Hunter Panels XCI Ply Class A (3/4 Ply Attached) 4ft x 8ft - All Sizes

Hunter Panels XCI Ply Class A (3/4 Ply Attached) 4ft x 8ft - All Sizes

$4,700.00 USD
$4,700.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

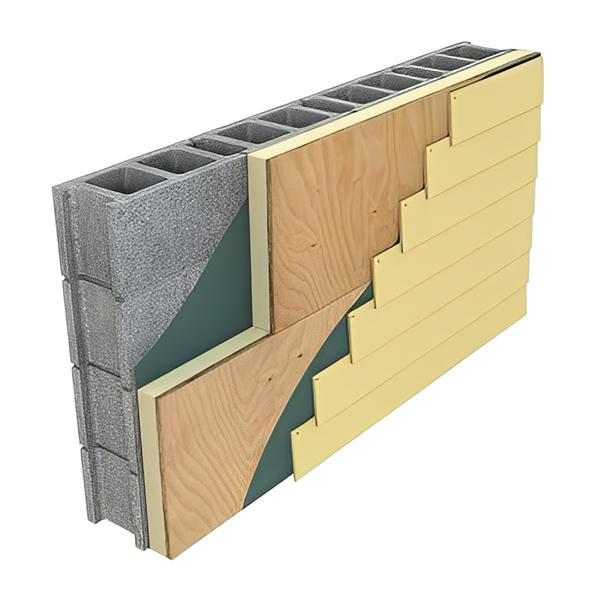

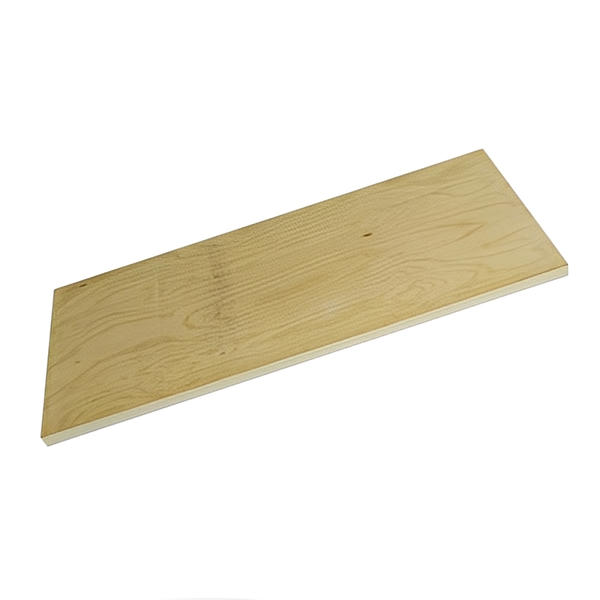

Xci Ply Class A is an energy efficient rigid insulation panel composed of a closed cell class A polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and ¾" fire-treated plywood on the other. It is designed for use in commercial wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.

Thickness R-Value Sq Ft/Pallet Sheets Per Pallet
1.7" 7
 896
 28
2.2" 10
 672
 21
2.7" 13.1
 544
 17
3.2" 16.3
 480
 15
3.7" 19.5 384
 12
4.2" 22.7
 352
 11

Features and Benefits

  • Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFC’s or HCFC’s; Virtually zero Global Warming Potential (GWP). The use of Xci products helps reduce the carbon footprint of buildings.
  • Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
  • Offers a superior combination of high insulating properties and mechanically attachable surface for claddings
  • Mitigates thermal bridging from cladding fasteners
  • Suitable for above-grade exterior walls in both commercial (Types I-V) and residential construction
  • For NFPA 285 compliance information reference applicable DrJ Technical Evaluation Report
  • Up to 2” foam thickness + the wood component can be used as structural insulating sheathing. Contact Hunter Xci for shear values, wind loads and attachment requirements.
  • Incorporates APA-TECO Rated Exposure 1 Fire Treated Plywood with flame spread of <25 per ASTM E84
  • Approved component of the Xci AEGIS Wall System
