CrystaLite Fixed Skylight Frame with LoE 366 Glass, Curb-Mount, Multiple Sizes
Regular price $194.00Orders start at $399 — combine any items to reach the minimum. Learn more
CrystaLite Fixed Skylight Frame with LoE 366 Glass, Curb-Mount, Multiple Sizes

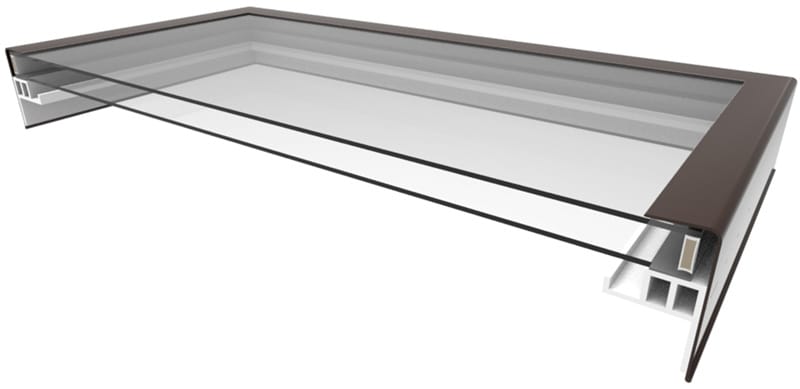

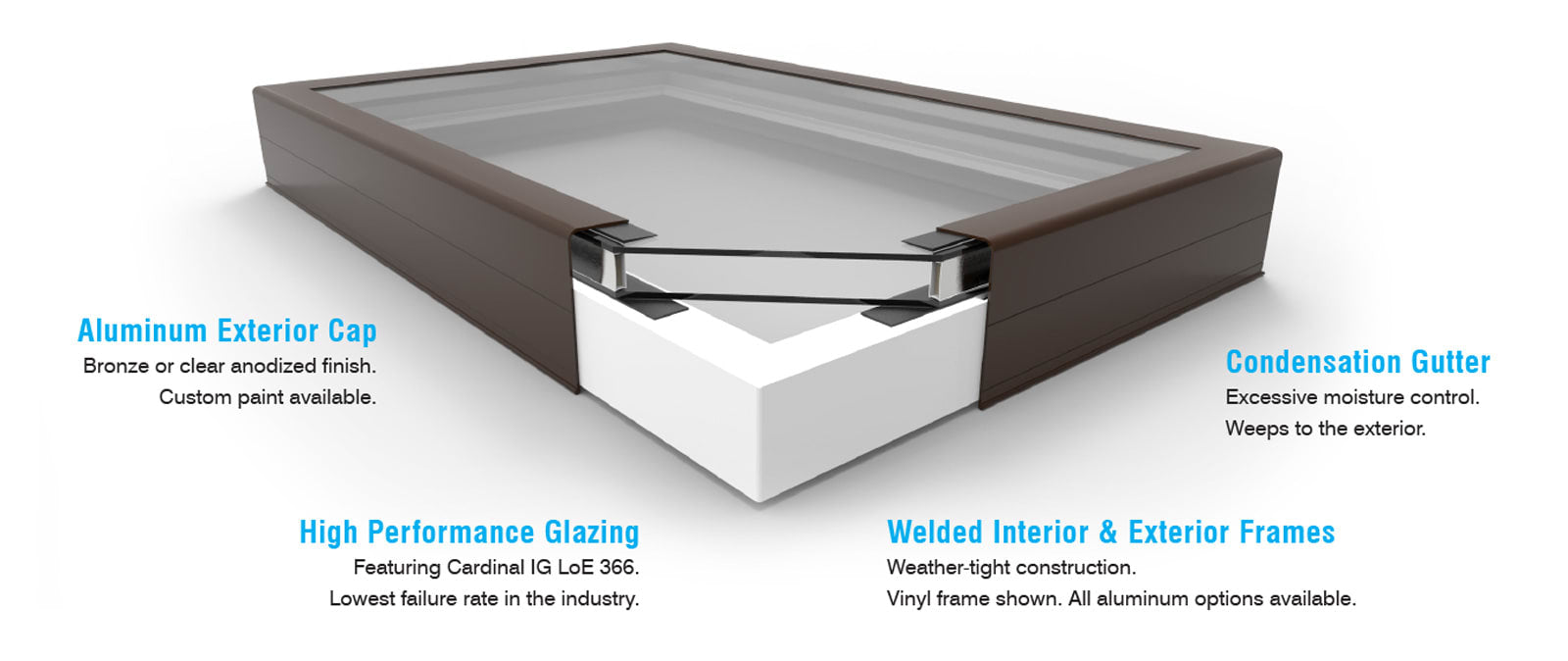

This is the CrystaLite 5843 series fixed curb-mounted skylight frame with insulated LoE 366 glazing and argon fill. It uses a welded PVC interior frame with condensation gutter and a welded aluminum exterior perimeter cap. Sold individually in four sizes.
Key Features:
- Fixed design: A non-operating production-line frame limited to insulated glass glazing.
- LoE 366 glazing: Clear tempered LoE 366 glass with clear laminate and argon fill.
- Welded PVC interior: Interior frame is welded PVC with an integrated condensation gutter.
- Aluminum exterior cap: A fully welded aluminum perimeter cap protects the exterior edge.
- Sealed glazing: Glazing is captured between the frame elements and sealed with adhesive glazing tape.
- Four sizes: Offered in 2626, 2638, 2650 and 5050 unit sizes.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | CrystaLite |
| Sell unit | 1 skylight unit |
| Product line | CrystaLite 5843 series |
| Available sizes | 2626, 2638, 2650, 5050 |
| Material | Welded PVC interior frame, welded aluminum exterior cap |
| Glazing | Clear tempered LoE 366 over clear laminate, argon fill |
| Sealing | Adhesive glazing tape |
| Finish / texture | Insulated glass glazing only (production line frame) |
| Intended use | Curb-mounted fixed skylight for residential or light commercial roofs |
Fit and Compatibility:
Designed for curb-mount installation; build or use a curb sized to the selected unit (2626, 2638, 2650 or 5050). CrystaLite flashing kits and accessories are sold separately.
Frequently Asked Questions (FAQ):
Q: What is included?
A: One fixed skylight unit in the selected size, with LoE 366 insulated glazing installed.
Q: What do the size codes mean?

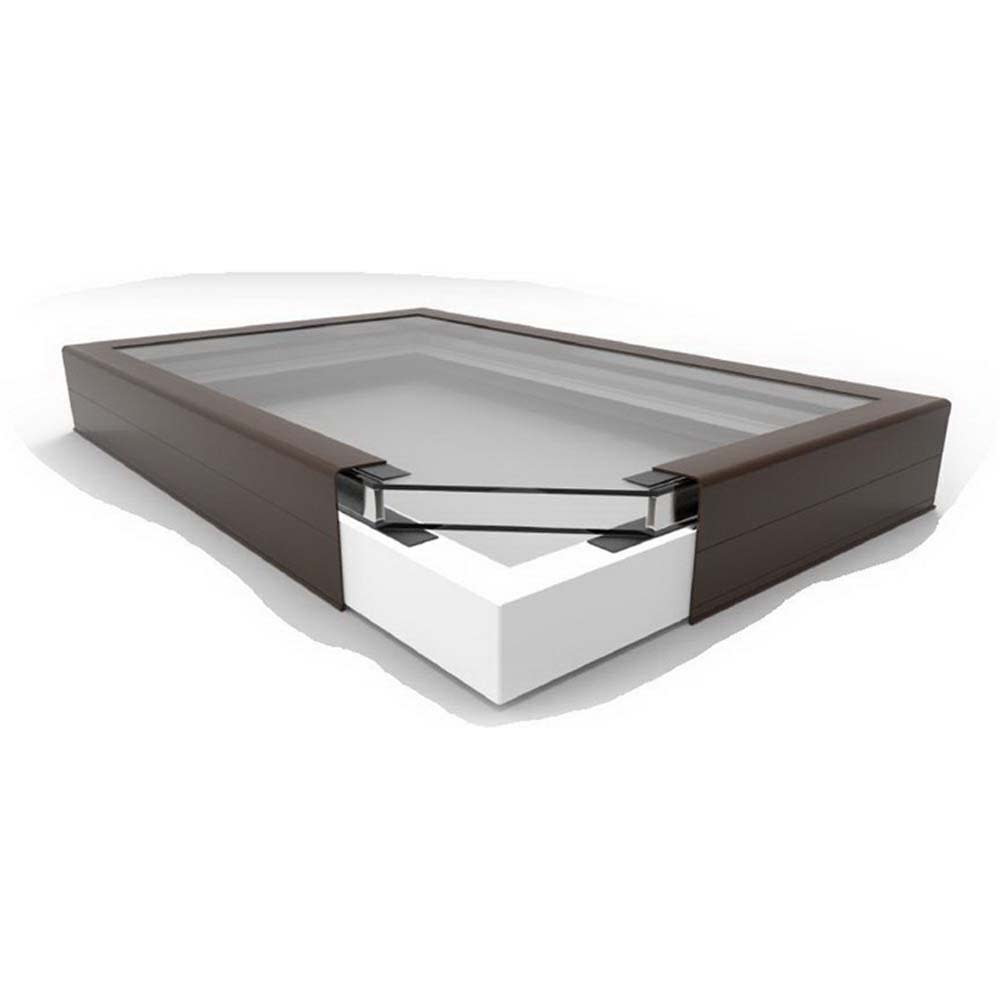

A: The four-digit codes (2626, 2638, 2650, 5050) denote unit rough dimensions; the 2626 and 2650 sizes are shown in the listed images.
Q: Is the skylight operable?
A: No, this is a fixed frame; use the CrystaLite Open frame if ventilation is needed.
Q: What glass does it use?
A: Clear tempered LoE 366 glass over a clear laminate, with argon fill.
Q: How is it sealed against condensation?
A: The welded PVC interior frame includes a condensation gutter, and the glazing is sealed with adhesive glazing tape.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
The 5843 fixed frame suits rooms where daylight, not ventilation, is the goal, and the LoE 366 with argon helps control summer heat gain and winter heat loss. Mount on a properly flashed, level curb and confirm curb height for your roofing material before ordering. For operable units choose the CrystaLite Open frame line.
Roof work at skylight openings requires fall protection; never leave an uncovered curb opening unattended on the roof.
Order your CrystaLite fixed curb-mount skylight with LoE 366 glass in the size you need.
