Carlisle USG SECUROCK Gypsum-Fiber Roof Board, 1/4 in. to 5/8 in. x 4 ft. Panels, Off White
Regular price $32.50Orders start at $399 — combine any items to reach the minimum. Learn more

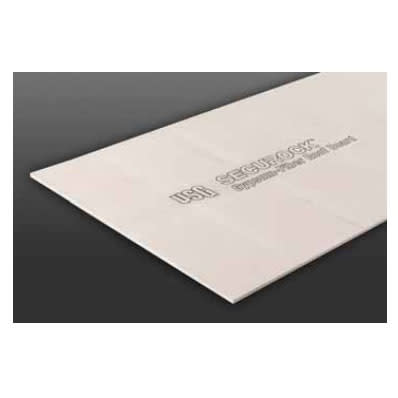

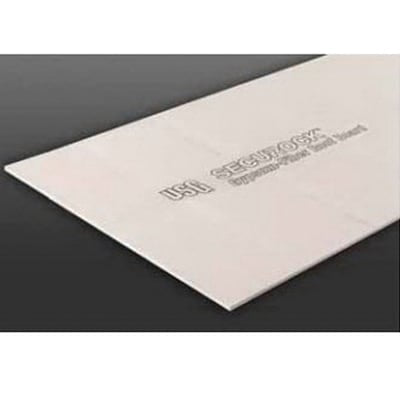

Carlisle USG SECUROCK Gypsum-Fiber Roof Board, 1/4 in. to 5/8 in. x 4 ft. Panels, Off White
USG SECUROCK Gypsum-Fiber Roof Board is a high-performance cover board for low-slope roofing systems, with a fiber-reinforced, homogenous composition that is strong and water-resistant through the core. It is offered here in four sizes: 1/4 in., 1/2 in. and 5/8 in. thicknesses in 4 ft. x 4 ft. or 4 ft. x 8 ft. panels, in Off White. Use it under single-ply membranes for wind uplift, hail and foot-traffic protection.
Key Features:
- Homogeneous core: Fiber-reinforced, homogenous composition makes the panel strong and water-resistant all the way through to its core.
- Superior adhered bond: Provides an exceptional bond and low absorption in adhered roofing systems.
- Wind uplift strength: Achieves high wind uplift ratings with no risk of facer delamination because there is no facer to delaminate.
- Moisture and mold resistant: The board is resistant to moisture and mold for long-term performance in low-slope roofs.
- Hail and traffic protection: Provides protection from hail and foot traffic when adhered with insulation adhesive.
- 97% recycled: Manufactured from 97% recycled material, combining superior performance with sustainable design.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Carlisle |
| Sell unit | 1 panel |
| Product line | USG SECUROCK Gypsum-Fiber Roof Board |
| Material | Gypsum-fiber roof board, 97% recycled content |
| Color / finish | Off White |
| Available colors | 1 color: Off White |
| Available sizes | 4 variants: 1/4 in. x 4 ft. x 4 ft., 1/2 in. x 4 ft. x 4 ft., 5/8 in. x 4 ft. x 4 ft., 1/2 in. x 4 ft. x 8 ft. |
| Dimensions | Thicknesses of 1/4 in., 1/2 in. and 5/8 in.; panel faces of 4 ft. x 4 ft. or 4 ft. x 8 ft. |
| Coverage per unit | 16 sq ft per 4 ft. x 4 ft. panel or 32 sq ft per 4 ft. x 8 ft. panel |
| Intended use | Cover board / roof board for low-slope, single-ply and multi-ply roofing systems |
Coverage & How Much You Need:
A 4 ft. x 4 ft. panel covers 16 sq ft and a 4 ft. x 8 ft. panel covers 32 sq ft before cuts and edge tolerances. Divide total roof area by panel coverage and order about 5-10% extra for waste and perimeter cuts.
Fit and Compatibility:
Designed for use in low-slope roofing systems under single-ply membranes, adhered with insulation adhesive over suitable insulation decks. Adhesive, membranes and fasteners are sold separately; follow the membrane manufacturer's assembly requirements.
Frequently Asked Questions (FAQ):
Q: What sizes are available?
A: This page lists four variants: 1/4 in. x 4 ft. x 4 ft., 1/2 in. x 4 ft. x 4 ft., 5/8 in. x 4 ft. x 4 ft. and 1/2 in. x 4 ft. x 8 ft., all in Off White.
Q: What thickness should I use?
A: Thicker boards such as 1/2 in. or 5/8 in. add more hail and foot-traffic protection, while 1/4 in. suits lighter-duty cover-board needs; confirm with your roof system specification.
Q: How is it attached?
A: It is designed to be adhered with insulation adhesive in adhered systems; follow the roofing system manufacturer's attachment requirements.
Q: Will it hold up if the membrane leaks?
A: The homogenous composition is water-resistant through the core and the board is resistant to moisture and mold.
Q: How much area does one panel cover?
A: A 4 ft. x 4 ft. panel covers 16 sq ft and a 4 ft. x 8 ft. panel covers 32 sq ft.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
SECUROCK is a strong choice where high wind uplift and hail resistance matter, because its through-core strength eliminates facer delamination risk common with paper-faced boards. Choose 1/2 in. or 5/8 in. for high-traffic or hail-prone roofs and keep board joints staggered from insulation joints. Adhere with a compatible insulation adhesive and let adhesive skim properly before placing boards.
Roof boards are heavy and panels have sharp edges when cut; use proper lifting technique, cut-resistant gloves and roof-edge fall protection.
Spec Carlisle USG SECUROCK Gypsum-Fiber Roof Board for your next low-slope roof project.
