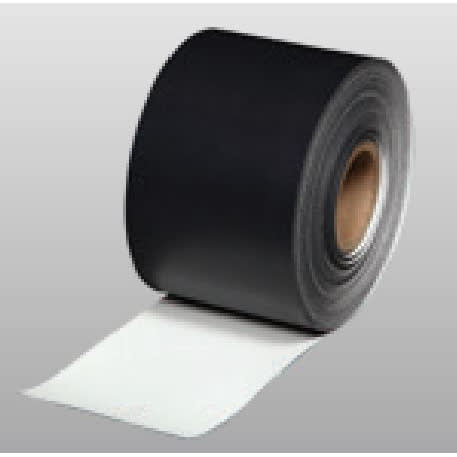

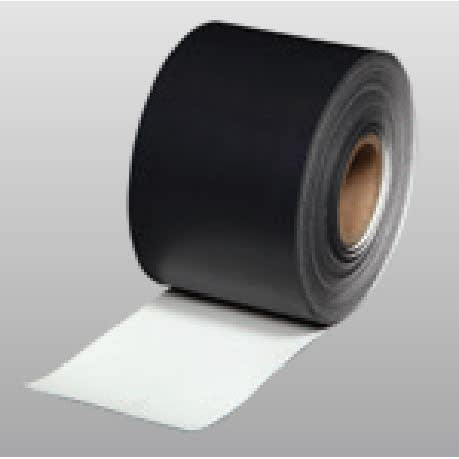

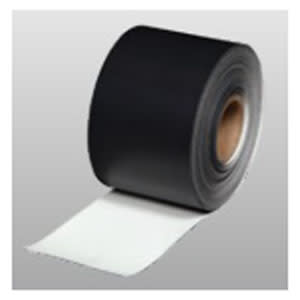

Carlisle Sure-Weld TPO Reinforced Overlayment Strip, 45/60 mil, 6 in. x 100 ft. or 9 in. x 50 ft., White/Gray/Tan
Regular price $180.00Orders start at $399 — combine any items to reach the minimum. Learn more
Carlisle Sure-Weld TPO Reinforced Overlayment Strip, 45/60 mil, 6 in. x 100 ft. or 9 in. x 50 ft., White/Gray/Tan
Carlisle Sure-Weld TPO Reinforced Overlayment Strip is a heat-weldable, reinforced TPO membrane roll for covering end laps and strip-in of metal flanges. It comes in 45-mil 6 in. x 100 ft. and 60-mil 6 in. x 100 ft. and 9 in. x 50 ft. rolls in white, gray, or tan. One roll is the sell unit.
Key Features:
- Heat-weldable TPO: Made from reinforced thermoplastic polyolefin membrane that welds with standard hot-air equipment.
- OctaGuard XT package: Reinforced Sure-Weld TPO enhanced with the OctaGuard XT weathering package for resistance to heat, solar UV, ozone, and oxidation.
- Labor-saving widths: 6 in. and 9 in. widths eliminate the need to slit large rolls of membrane.
- Lap and flange coverage: Covers end laps on FleeceBACK and SAT TPO systems and strips in flat metal flanges.
- Three colors: Available in white, gray, and tan to match the membrane.
- Two thicknesses: Offered in 45-mil and 60-mil reinforced constructions.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Carlisle |
| Sell unit | 1 roll |
| Product line | Sure-Weld TPO Reinforced Overlayment Strip |
| Available colors | White, Gray, Tan |
| Available sizes | 45-mil 6 in. x 100 ft.; 60-mil 6 in. x 100 ft.; 60-mil 9 in. x 50 ft. |
| Material | Reinforced thermoplastic polyolefin (TPO) |
| Thickness | .045 in. (45 mil) or .060 in. (60 mil) |
| Dimensions | 6 in. x 100 ft. or 9 in. x 50 ft. rolls |
| Coverage per unit | 100 linear ft. per 6 in. roll; 50 linear ft. per 9 in. roll |
| Intended use | Covering end laps on FleeceBACK and SAT TPO systems and strip-in of flat metal flanges such as coated drip edges, gravel stops, and scuppers |
| Assembly | Hot-air welded to the TPO membrane |
Coverage & How Much You Need:
A 6 in. x 100 ft. roll strips 100 linear feet of lap or flange at full width; a 9 in. x 50 ft. roll covers 50 linear feet. Add normal weld-side overlap per Carlisle details when estimating.
Fit and Compatibility:
Intended for Carlisle Sure-Weld TPO systems, including FleeceBACK and SAT assemblies, and for stripping in TPO-coated metal such as drip edges, gravel stops, and scuppers. Weld with standard hot-air welding equipment; primer and welding tools sold separately.
Frequently Asked Questions (FAQ):
Q: What sizes are available?
A: 45-mil 6 in. x 100 ft. rolls, and 60-mil in both 6 in. x 100 ft. and 9 in. x 50 ft. rolls.
Q: Which colors can I order?
A: White, gray, and tan, so the strip blends with the field membrane.
Q: How is it installed?
A: It is heat-welded to the TPO membrane or metal flange with standard hot-air welding equipment.
Q: What is it used for?
A: Covering end laps on FleeceBACK and SAT TPO systems and strip-in of flat metal flanges like drip edges, gravel stops, and scuppers.
Q: Why not just cut a strip from a big roll?
A: The 6 in. and 9 in. widths save labor by eliminating the need to slit large membrane rolls on site.
Q: What weathering protection does it offer?
A: The OctaGuard XT weathering package provides exceptional resistance to heat, solar UV, ozone, and oxidation.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Choose 45-mil for standard lap coverage and step up to 60-mil where traffic or detail durability matters; the 9 in. width is the efficient choice for wide flange strip-in. Match strip color to the field membrane for a uniform appearance and weld with clean, dry surfaces at the manufacturer's recommended temperature. Keep a couple of rolls of each width on the truck for drip edge and gravel stop details.
Hot-air welding creates very hot surfaces and fumes; wear heat-resistant gloves and eye protection and follow the membrane manufacturer's welding procedures.
Order Carlisle Sure-Weld TPO Reinforced Overlayment Strip in your width, mil, and color today.
