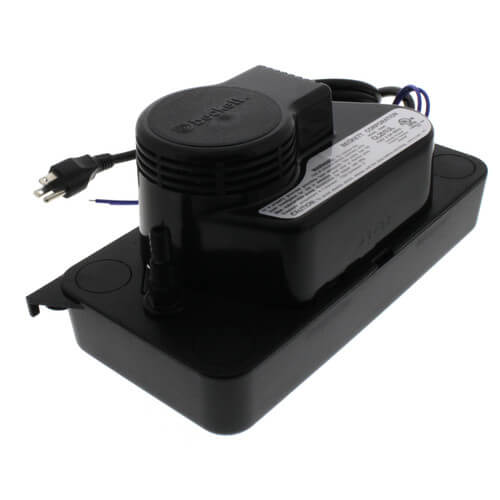

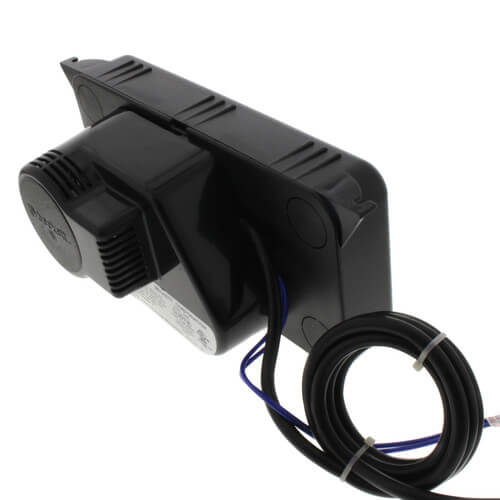

Beckett Pumps CL201UL Medium Low Pro Condensate Pump, 20 Ft Shutoff (1/30 HP, 115V)

The Beckett Pumps CL201UL Medium Low Pro Condensate Pump, 20 Ft Shutoff (1/30 HP, 115V) is a Beckett Pumps condensate pump for HVAC repair and replacement work. Use it when the part number CL201UL and the listed specifications match the equipment being serviced.

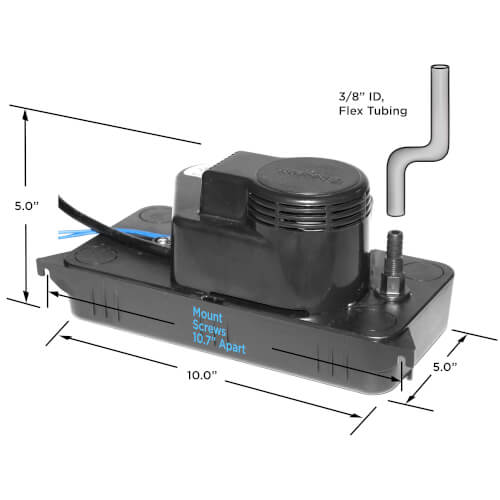

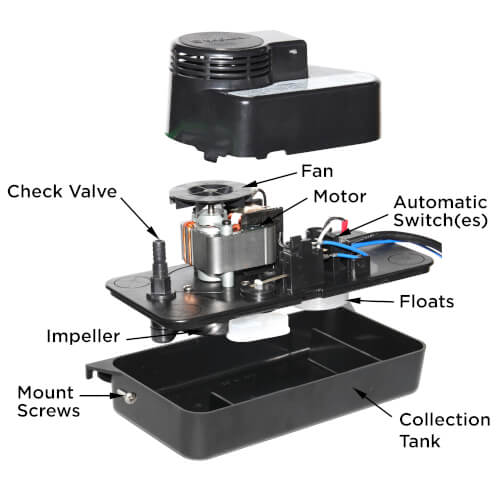

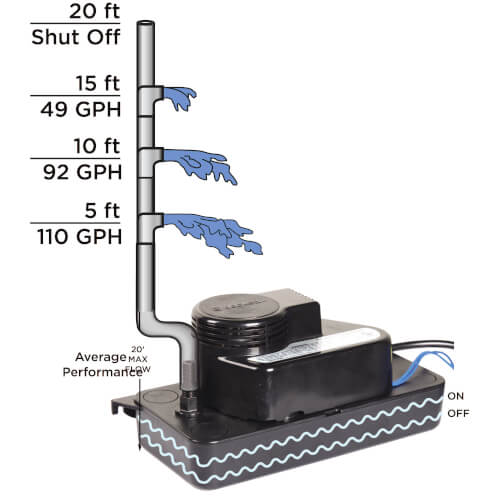

Beckett CL201UL Low Profile Condensate Pump, 115V, 20 Foot Max Lift Beckett’s compact CL20 has a low profile design that can be used in applications where space is limited. This unit is capable of handling high acidity condensation. The shut-off height for the CL20 is 20 ft. This model features a high impact ABS tank and a flame retardant plastic cover. Inlets are provided on each end of the tank cover. Product Features: • 115V, 60Hz, 98 Watts • 20 ft. max lift • Low Profile Design • 3/8" O.D. Outlet • Pump is rated for water temperature up to 150 degrees F • Thermally protected motor • This unit is capable of handling high acidity…

Key Specs

• Voltage: 115V
• Horse Power: 1/30
• Shutoff Head (ft.): 20'
• Product Type: Condensate Pump

Expert Verdict

Reviewed by the SuperArbor Pro Desk: choose this part when the existing component label and unit documentation match CL201UL and the spec set above. It is best suited for targeted HVAC service repairs where exact fitment matters more than broad universal compatibility.

FAQs

What is the Beckett Pumps CL201UL used for?

It is a condensate pump for compatible Beckett Pumps HVAC equipment. Match the part number CL201UL and the equipment service literature before ordering or installing.

Which specs should I verify before purchase?

Verify the spec set shown for this part: Voltage: 115V; Horse Power: 1/30; Shutoff Head (ft.): 20'; Product Type: Condensate Pump. The replacement should match the existing component and the unit documentation.

Does the electrical rating need to match exactly?

Yes. Confirm voltage rating 115V against the failed component label. Do not substitute a different rating unless the equipment manufacturer allows it.

Is this an OEM-style replacement part?

Use it as a direct replacement only when Beckett Pumps documentation lists CL201UL or an approved equivalent for the unit being serviced.

Who should install this HVAC component?

A qualified HVAC technician should install and test the condensate pump. Disconnect power first, follow lockout procedures, and confirm safe operation after replacement.

Safety and Installation Notes

Disconnect power before service. HVAC electrical and combustion-related components should be installed and tested by a qualified technician. After installation, confirm wiring, mounting, airflow or fluid routing as applicable, and normal system operation.
