Accuride 9301E Extra Heavy-Duty Full Extension Side-Mount Drawer Slide, 600 lb, Clear Zinc, 10-60 in Lengths
Regular price $591.75Orders start at $399 — combine any items to reach the minimum. Learn more
Accuride 9301E Extra Heavy-Duty Full Extension Side-Mount Drawer Slide, 600 lb, Clear Zinc, 10-60 in Lengths

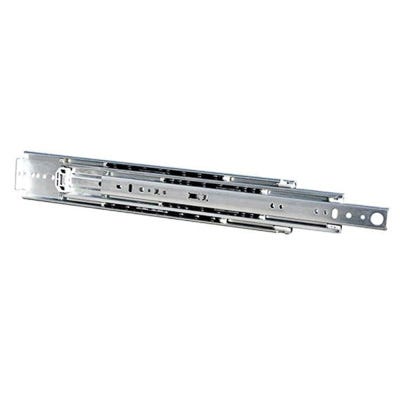

The Accuride 9301E is an extra heavy-duty flat, side-mount ball-bearing slide rated 600 lb with full extension, in lengths from 10 to 60 inches. Cold rolled steel with a clear zinc finish handles drawers up to 42 in wide at slide lengths up to 60 in. Sold per pair unless item text states otherwise, in bulk pack or polybagged packaging.
Key Features:
- 600 lb Capacity: Rated for 600 lb, one of the strongest choices for extra heavy-duty drawer and pull-out applications.
- Up to 60 in Long: Available in 10 to 60 in lengths, including long sizes for deep storage and industrial cases.
- Full Extension: Full-extension travel provides complete access to deep drawer contents; a 60 in slide extends to 120 in.
- Flat Profile: Flat side-mount profile with 3 in OAH and 3/4 in overall width at the 60 in size.
- Non-Disconnect: Non-disconnect design keeps the drawer permanently attached for secure heavy-load service.
- Multiple Screw Sizes: Specifies 1/4 in, #10, M6 and M5 screw options for varied mounting.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Accuride |
| Sell unit | 1 pair |
| Material | Cold rolled steel |
| Finish | Clear Zinc |
| Series | 9301E |
| Available lengths | 10 in, 12 in, 14 in, 16 in, 18 in, 20 in, 22 in, 24 in, 26 in, 28 in, 30 in, 32 in, 34 in, 36 in, 40 in, 42 in, 44 in, 48 in, 54 in, 60 in |
| Extension | Full extension |
| Load rating | 600 lb |
| Mounting | Side |
| Side clearance | 3/4 in side space |
| Closing | Conventional closure |
| Disconnect | Non-disconnect |
| Screw size | 1/4 in, #10, M6, M5 |
| Height | 3 in OAH (60 in size) |
| Width | 3/4 in overall (60 in size) |
| Profile | Flat |
| Packaging | Bulk pack or polybagged |
| Intended use | Drawers up to 42 in wide with slide lengths up to 60 in, extra heavy-duty |
Fit and Compatibility:
Accuride 9301E series slides mount on the drawer and cabinet sides of drawers up to 42 in wide, with slide lengths up to 60 in. It is non-disconnect, so pair it with the 9308E where a locking member is needed. Allow 3/4 in side space per side.
Frequently Asked Questions (FAQ):
Q: What lengths does the 9301E come in?
A: Twenty lengths from 10 in to 60 in, including 44, 48 and 54 in sizes for deep cases.
Q: How much weight can it hold?
A: It is rated for 600 lb per pair, suited to extra heavy-duty storage, industrial and vehicular drawers.
Q: Can I remove the drawer after installing?
A: No, the 9301E is a non-disconnect slide, so the drawer stays attached once installed.
Q: How much side space is required?
A: It needs 3/4 in of side space per side, or 1-1/2 in total width clearance.
Q: Is it a flat or pocket slide?
A: It is a flat side-mount slide with a 3 in overall height at the 60 in size.
Q: What packaging options exist?
A: The same slide is offered in bulk pack and polybagged packaging.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Pick the 9301E when a drawer must carry serious weight, such as industrial tool cases, vehicle drawers or deep pantry pull-outs, and when 3/4 extension slides would leave contents out of reach. On long lengths like 48 to 60 in, mount the cabinet member flat against a reinforced panel and verify the case will accept a 120 in projection on a 60 in pair. Because it is non-disconnect, plan your installation sequence carefully since the drawer cannot be popped off later.
Extra heavy drawers require solid mounting into structural members; do not rely on thin panels, and keep hands clear when closing a loaded 600 lb drawer.
Get the Accuride 9301E 600 lb full-extension slide for your most demanding drawer projects.
