CALI Vinyl Legends Diamondhead 12mm Waterproof LVP Flooring

Premium WPC luxury vinyl planks in the Diamondhead shade deliver a thick, cushioned 12 mm feel with attached IXPE pad for quieter, more comfortable floors. The 9 in. x 60 in. planks feature a 20 mil wear layer and click-lock installation, ideal for busy homes needing water resistance and easy maintenance.

---

Key Features:

• Thick, Comfortable Build: Full 12 mm construction with attached 1.5 mm IXPE acoustic pad for cushioned underfoot feel and sound reduction
• Durable Wear Layer: 0.5 mm (20 mil) wear layer with aluminum oxide finish resists scratches in active homes
• Waterproof WPC Core: 100% waterproof construction suitable for kitchens, bathrooms, and basements
• Easy Click Installation: Angle-angle click system installs floating or glue-down over most subfloors
• Healthy Home Certified: FloorScore certified; radiant-heat compatible up to 85°F

Please check the Product Data Sheet Here

---

Specifications Table:

Specification	Details
Color/Style	Diamondhead
Collection	CALI Vinyl Legends

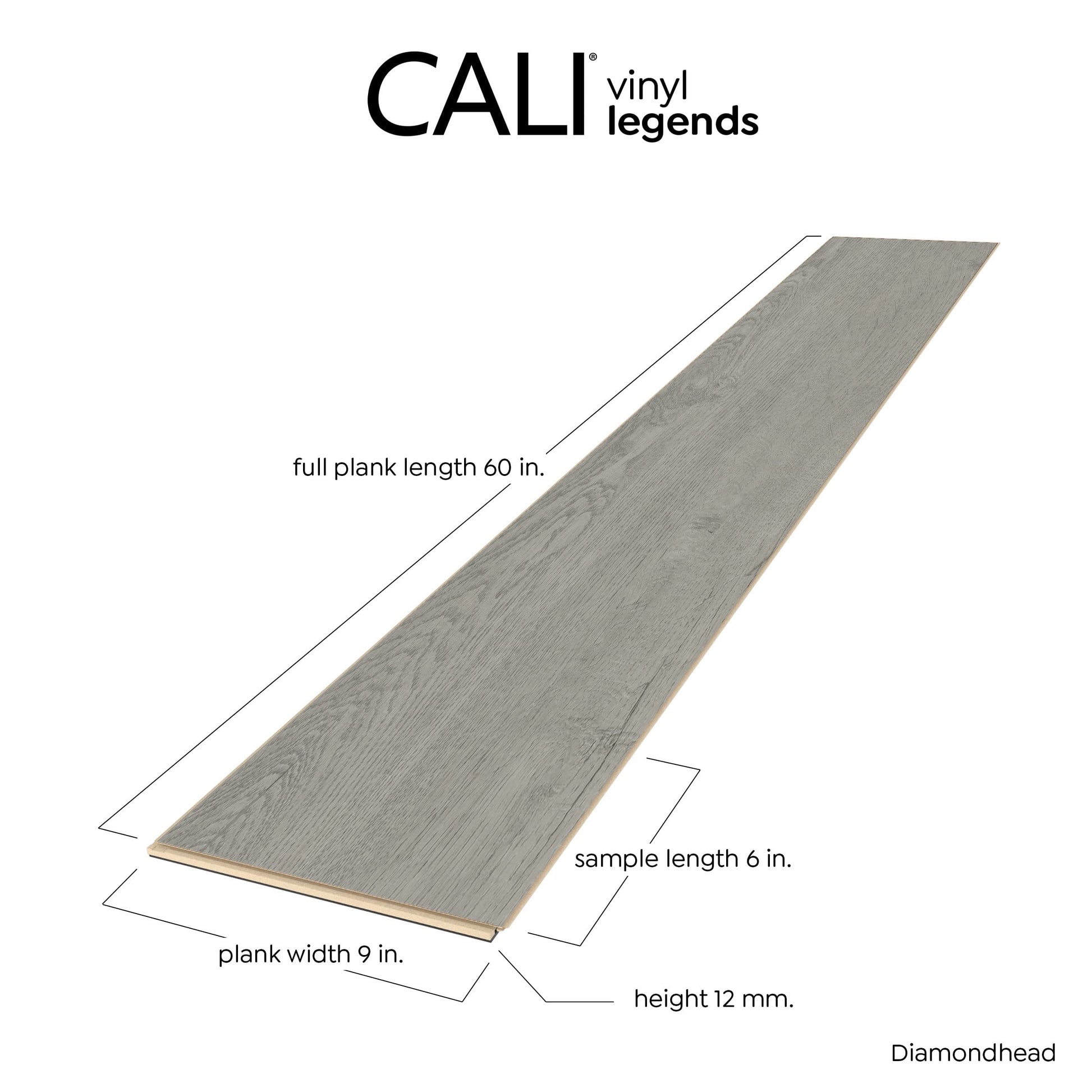

Plank Width	9 in
Plank Length	60 in
Thickness	12 mm
Wear Layer	0.5 mm / 20 mil
Construction	WPC; 100% Waterproof
Finish	Aluminum Oxide

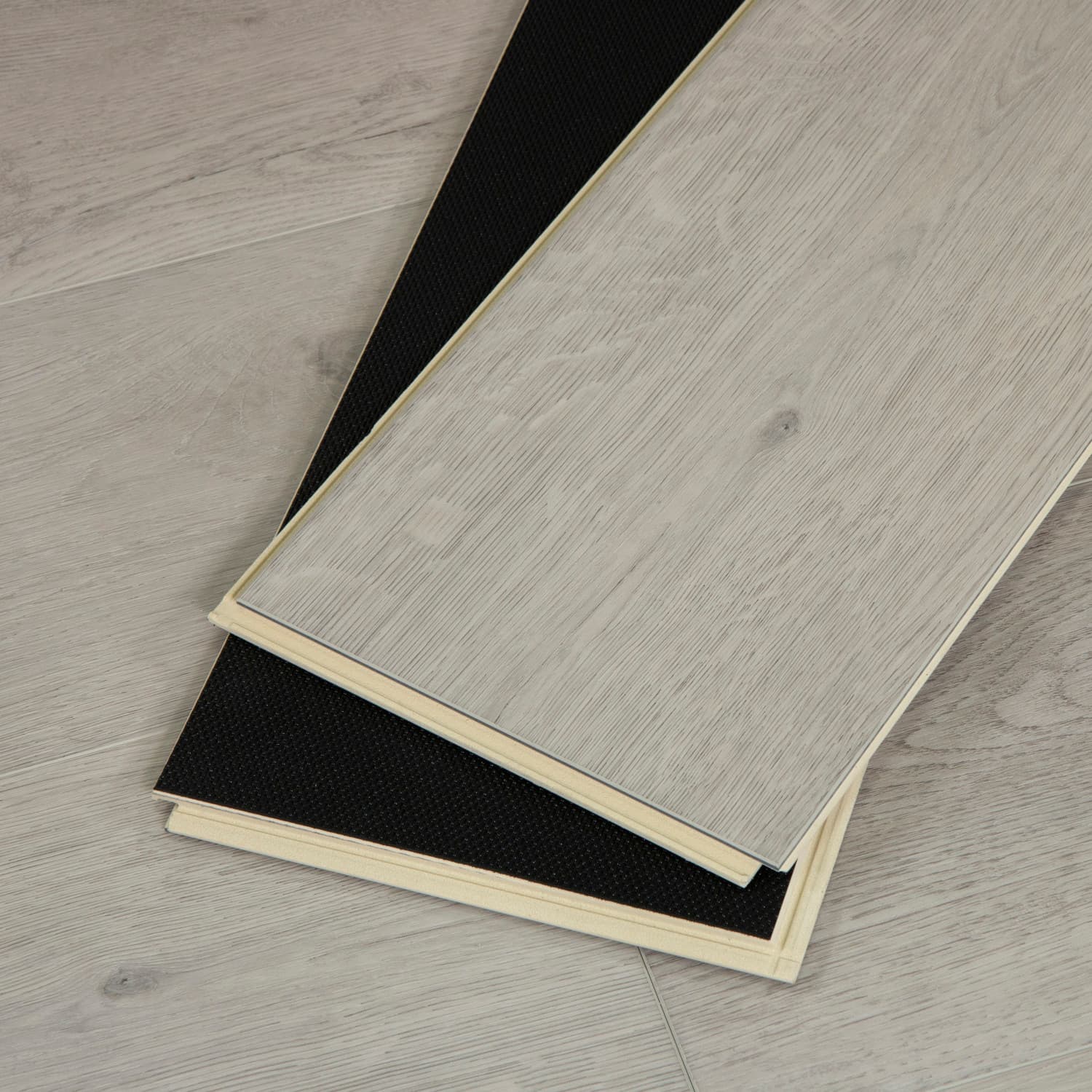

Attached Pad	1.5 mm IXPE
Installation Method	Float or Glue Down
Locking System	Click (Angle-Angle)
Texture/Embossing	Premium wood grain embossing; EIR pattern; light wood grain
Square Feet per Box	22.44 sq ft
Application	Residential
Warranty	Limited Lifetime Residential; No Commercial
Certifications	FloorScore Certified
Radiant Heat Compatible	Yes, up to 85°F
Acoustic Ratings	STC 61 & IIC 63 with CALI Complete; STC 61 & IIC 62 without underlayment

---

Frequently Asked Questions (FAQ):

Q: What are the plank dimensions and coverage per box?
A: Each plank is 9 in. wide by 60 in. long and 12 mm thick; one box covers 22.44 sq. ft.

---

Q: Is this flooring waterproof?
A: Yes, it uses a 100% waterproof WPC construction suitable for moisture-prone areas.

---

Q: Can it be installed over radiant heat?
A: Yes, it is compatible with radiant heat systems up to 85°F.

---

Q: Do I need additional underlayment?
A: An attached 1.5 mm IXPE pad provides acoustic comfort; additional underlayment is typically not required unless specified by local codes or subfloor conditions.

---

Q: What installation methods are supported?
A: It can be floated using the click-lock system or glued down.

---

Soft Gray Timber, Elevated

Diamondhead casts a serene, misty gray across the room, letting light dance along its wood-grain embossing. The extra-thick profile adds sumptuous comfort underfoot while quieting the space with ease. Pair it with brushed brass accents and creamy textiles to accentuate its cool sophistication. It’s a modern foundation that makes everyday living feel effortlessly luxurious.

---

Upgrade to Diamondhead today for a waterproof, ultra-comfortable floor that installs fast and lasts for years.
