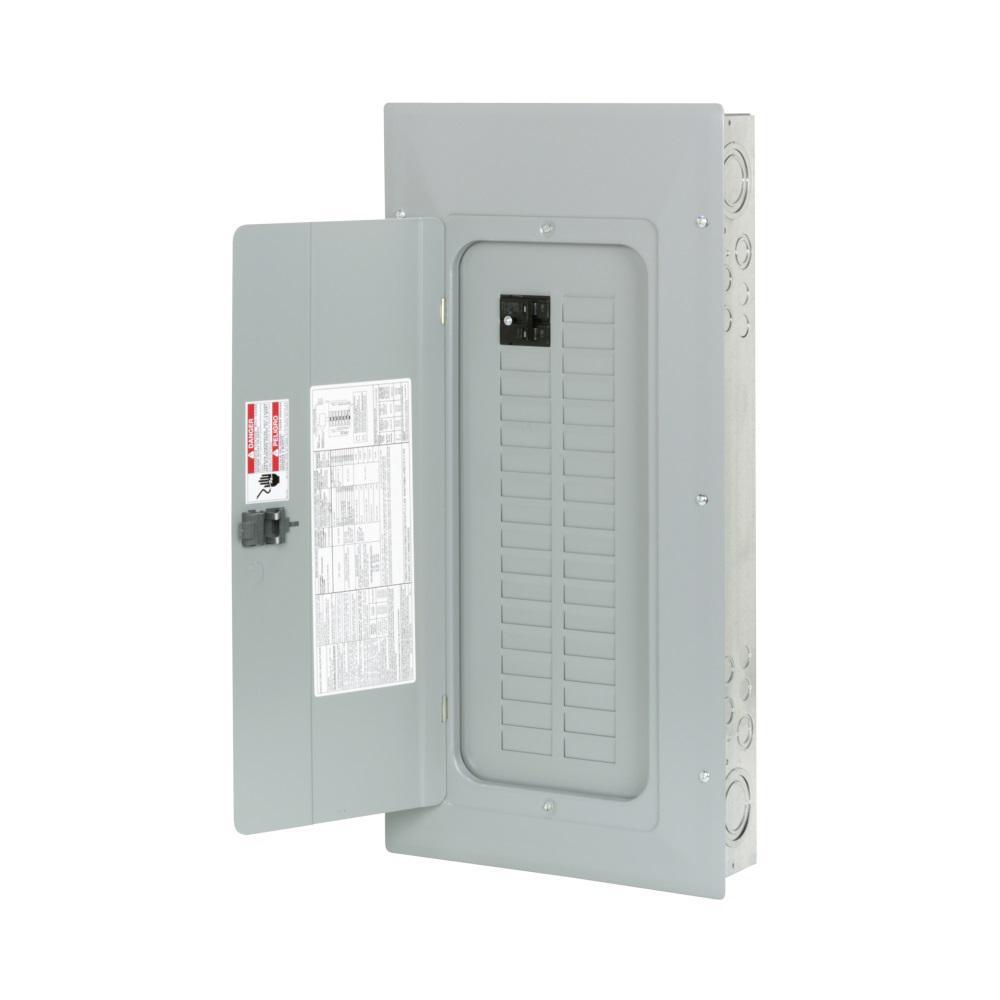

BR 100 Amp 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Copper Bus

from $87.66

Published price — same for everyone

Gone — not just here.

Substitutes below — from the same aisle.

SKU 307648487

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

Quick, easy and clean describe the new plug-on neutral design attributes offered by Eaton. Time saving features offer a quick installation equating to less time on the job. Designed to maximize installation efficiency and to provide additional convenience allowing for an easy installation. New features that help ensure an aesthetically clean and professional installation.
  • Amperage rating: 100 Amp
  • Cover: cover included
  • Enclosure: NEMA 1
  • Interrupt rating: 10 kAIC
  • Bus material: copper
  • Used with: type BR 1 in. breakers
  • BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savings
  • Dedicated neutral bus for breaker connection
  • In-board neutral bar increases gutter space to allow for professional installation of conductors
  • Backed out neutral screws allows for quick connection of neutral and ground conductors
  • Optimized knockout locations for additional access and easier to remove
  • Self-leveling tabs allow for quick drywall offset and helps simplify installation
  • Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications

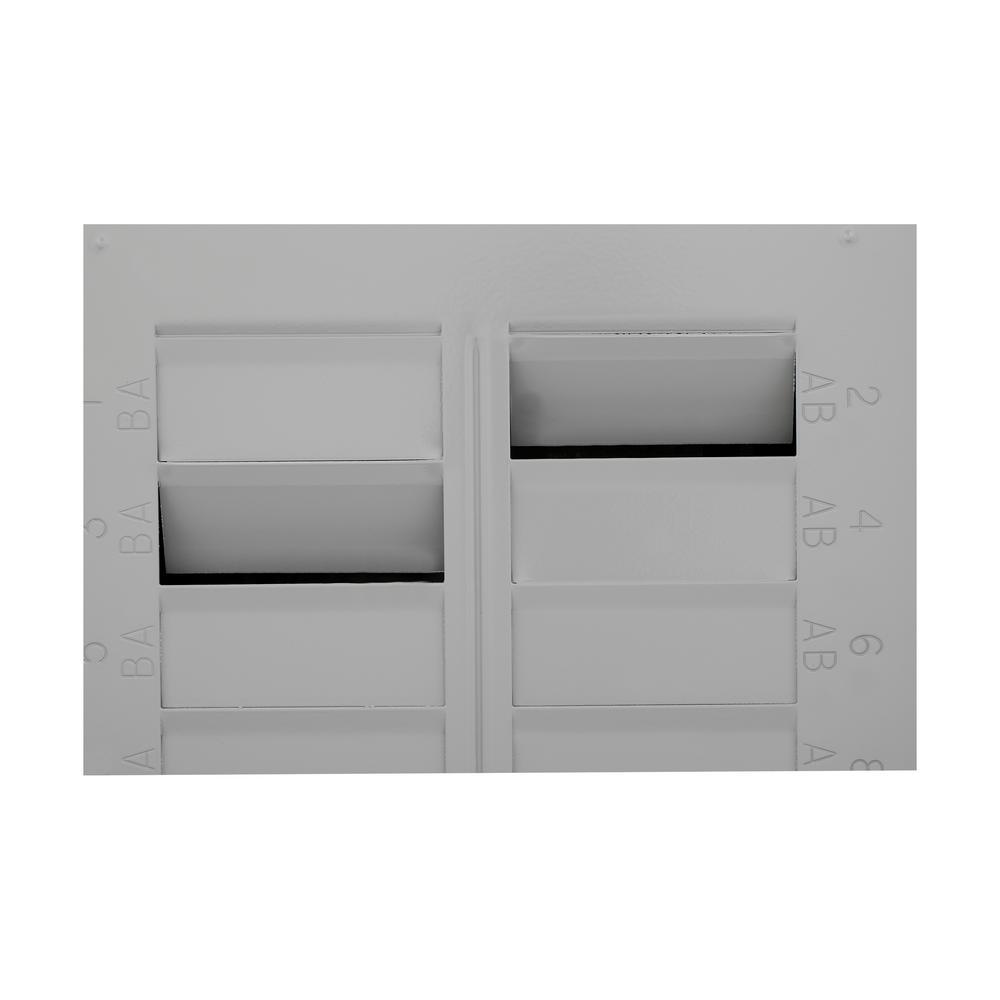

  • Rigid cover spine provides strength when twist outs are removed allowing for easier removal
  • Eaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, dual function and surge protection





Features
Item Weight 34.87
Maximum Amperage (amps) 100
Mounting Type Bolt On
Number of Circuits 60
Load Center Type Main Breaker
Number of Spaces 30
Product Weight (lb.) 34.87
Indoor/Outdoor Indoor
Returnable 180-Day
Voltage (volts) 120/240
Electrical Product Type Load Center
Indoor/Outdoor2 Indoor
Number of Phases 1
Phase Type 1 Phase
Load center width (in.) 16
Load center depth (in.) 36.5
Load center height (in.) 4.5
Manufacturer Warranty 10 Year Per Warranty Statement
Certifications and Listings UL Listed
