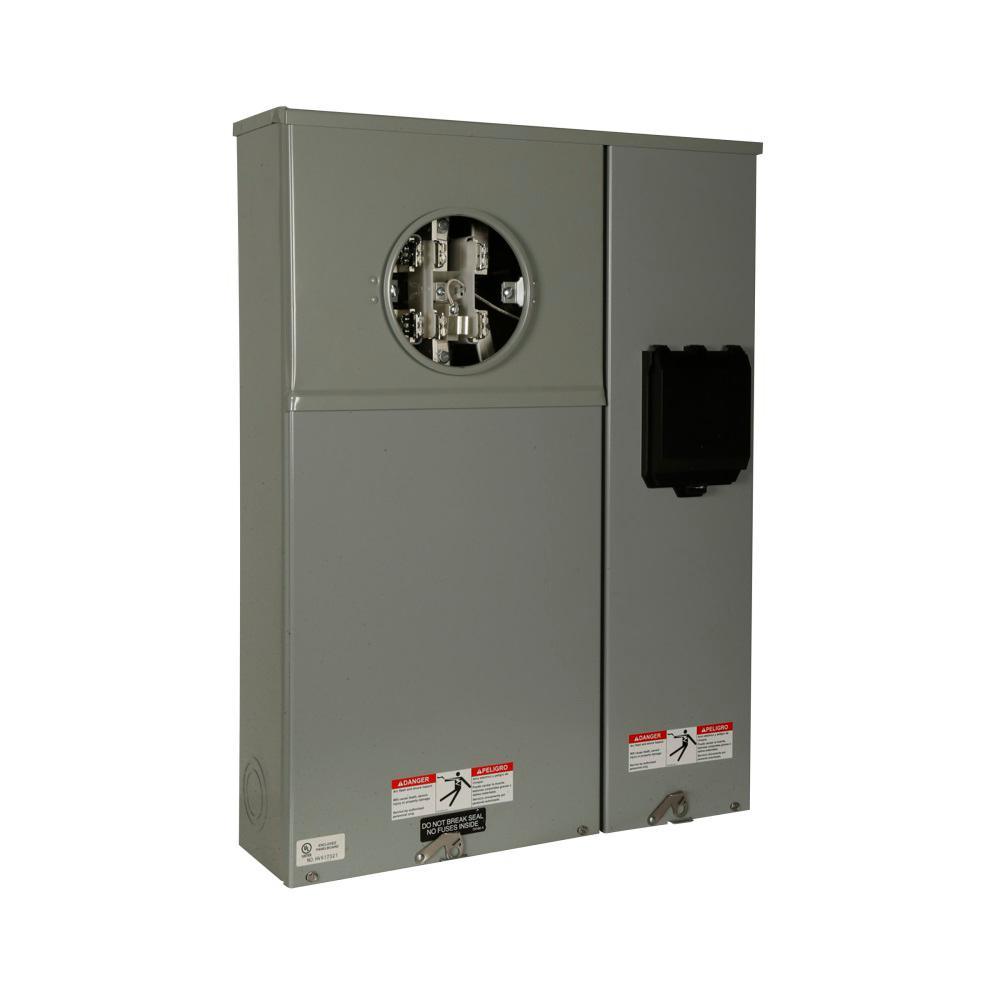

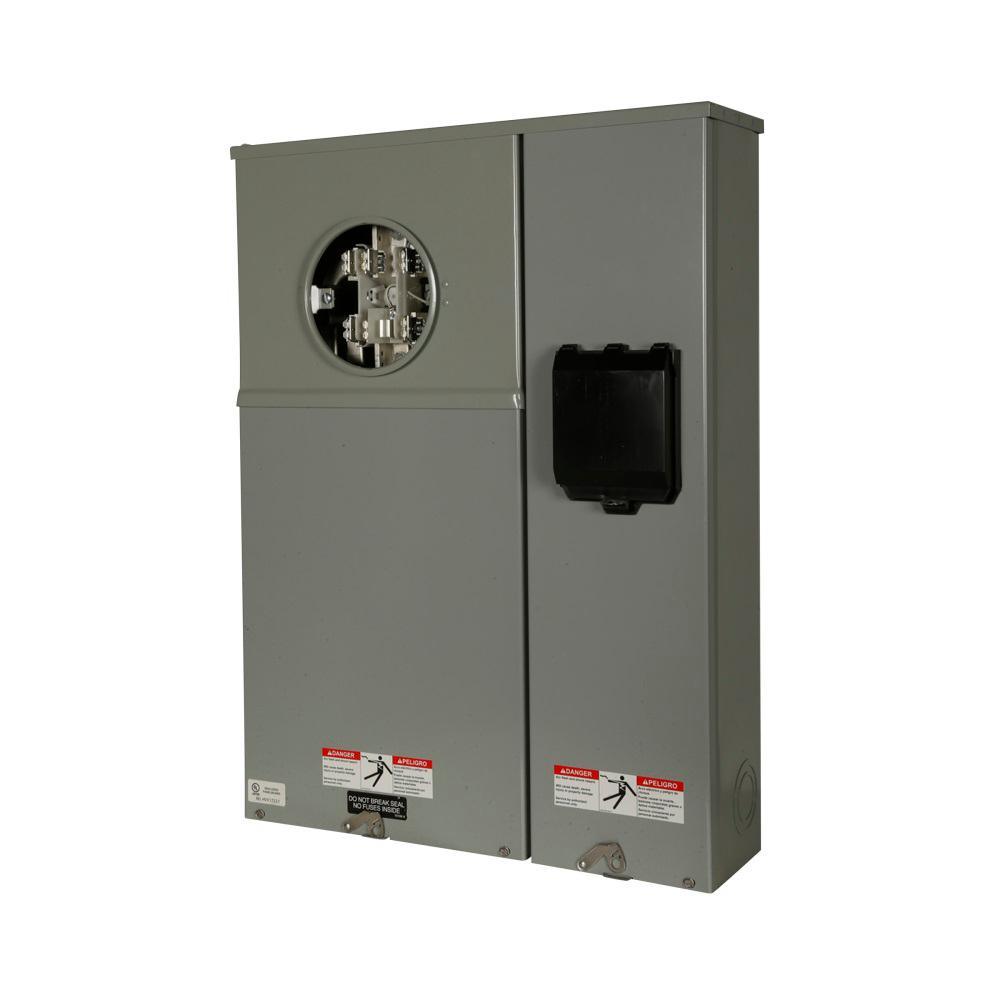

200 Amp Type CH Commercial Meter Breaker Meter Socket Panel

$1,248.60

/
Shipping calculated at checkout.
Eatons Commercial Safety Sockets are typically used where a single meter socket or single meter socket with a distribution section are needed. These areas could include a commercial business, commercial office building, individual retail facilities and signs and street lighting. This is a Type CH panel and only Type CH breakers can be used.
  • Commercial safety socket with a provision for a main circuit breaker
  • Meter socket amp rating is 200 Amp
  • Number of jaws - 7
  • Number of sockets 1
  • Service - underground
  • AC voltage: 208/120
  • 3-phase
  • 4-wire
  • Order Type CC breaker or CCH breaker separately
  • Maximum interrupting rating is dependent upon the main breaker that is purchased separately, type CCV = 10 kA; Type CCVH = 25 kA
  • Security: ring
  • Rated nema 3R for outdoor use

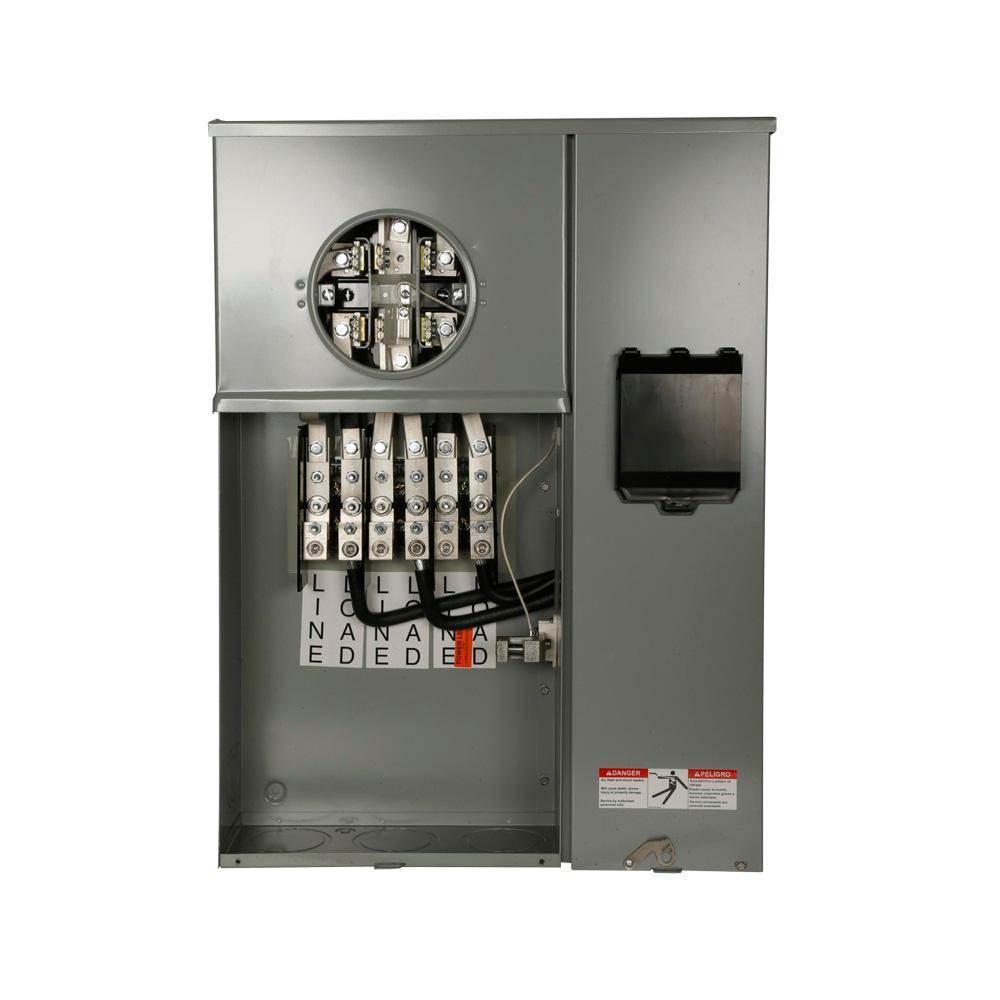

  • Bussed connection from meter socket to test block

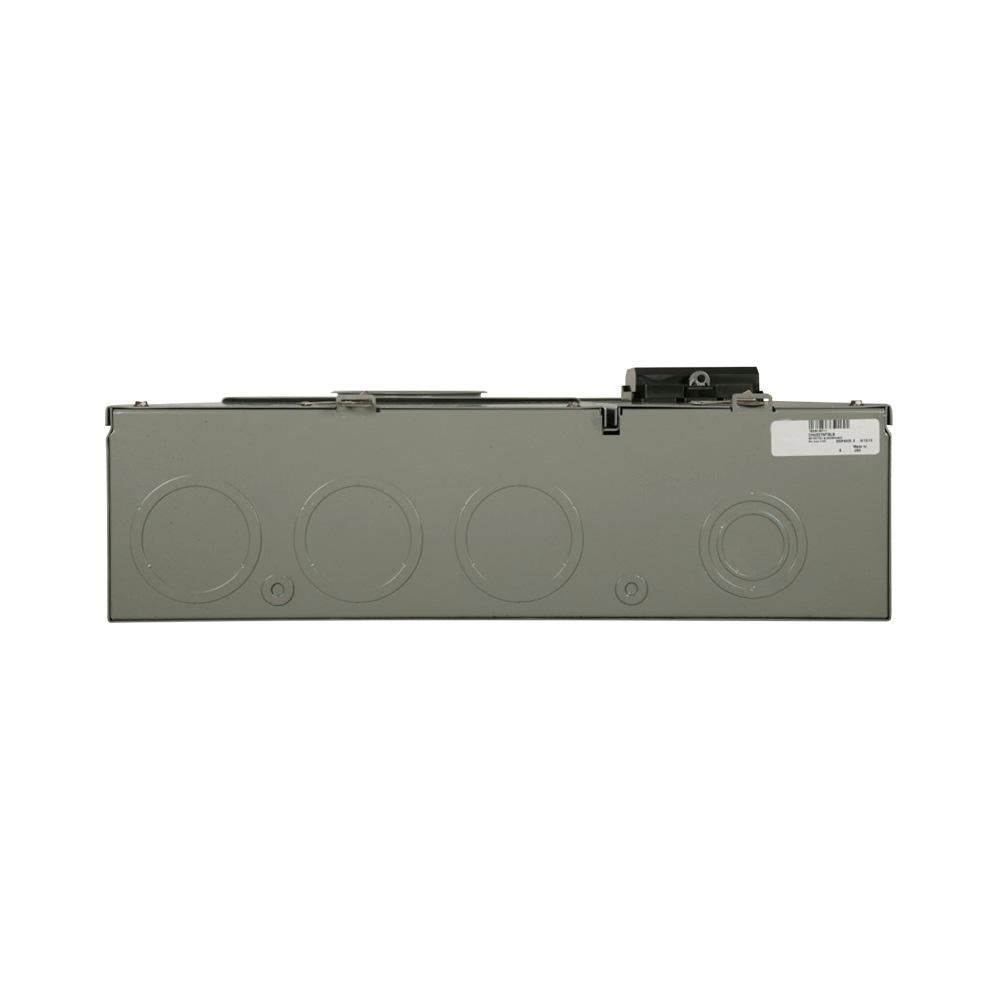

  • Load wires can exit top or bottom
  • Used with: type CH breakers





Features
Item Weight 50
Mounting Type Bolt On
Electrical Product Type Load Center
Voltage (volts) 208/120
Number of Circuits 0
Product Weight (lb.) 50
Load Center Type Combination
Phase Type 3 Phase
Indoor/Outdoor Outdoor
Number of Spaces 0
Returnable 180-Day
Maximum Amperage (amps) 200
Load Center Mounting Type Flush
Load center height (in.) 8
Load center width (in.) 34
Load center depth (in.) 34
Certifications and Listings ANSI Certified,UL Listed
Manufacturer Warranty Limited Lifetime
