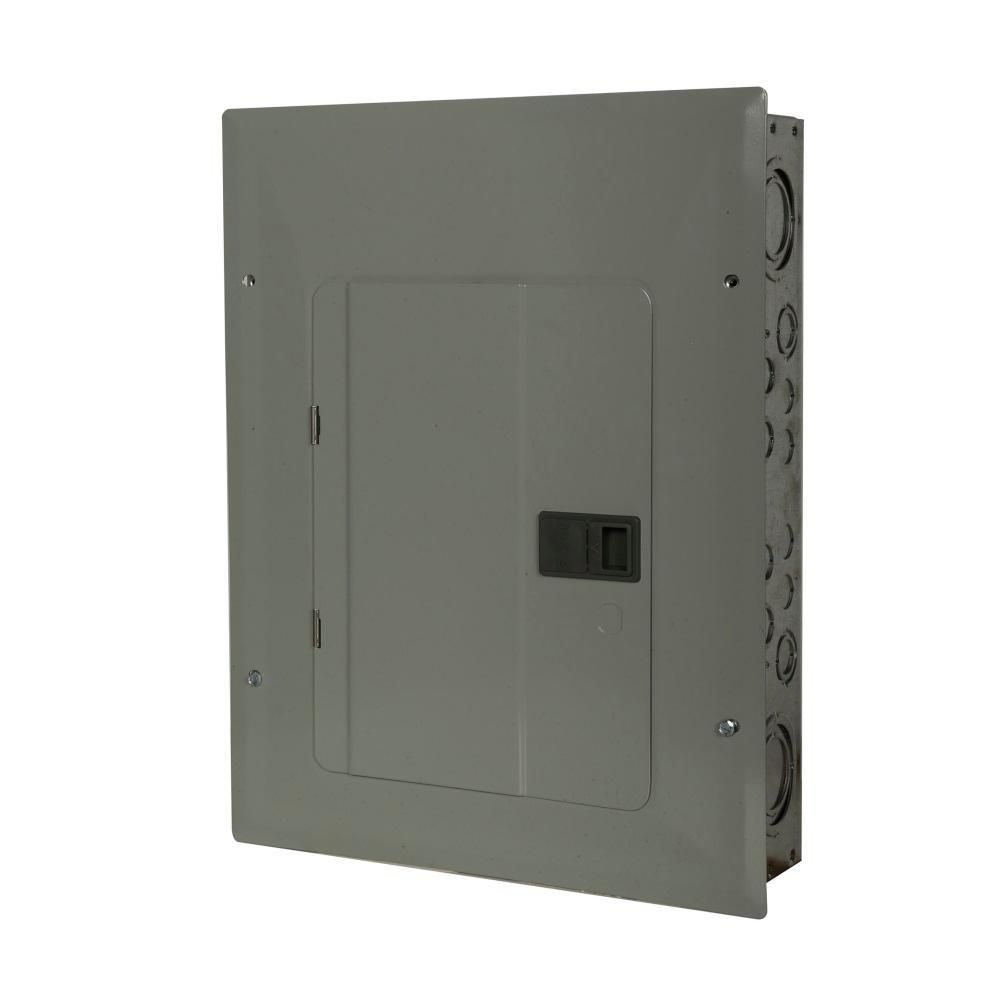

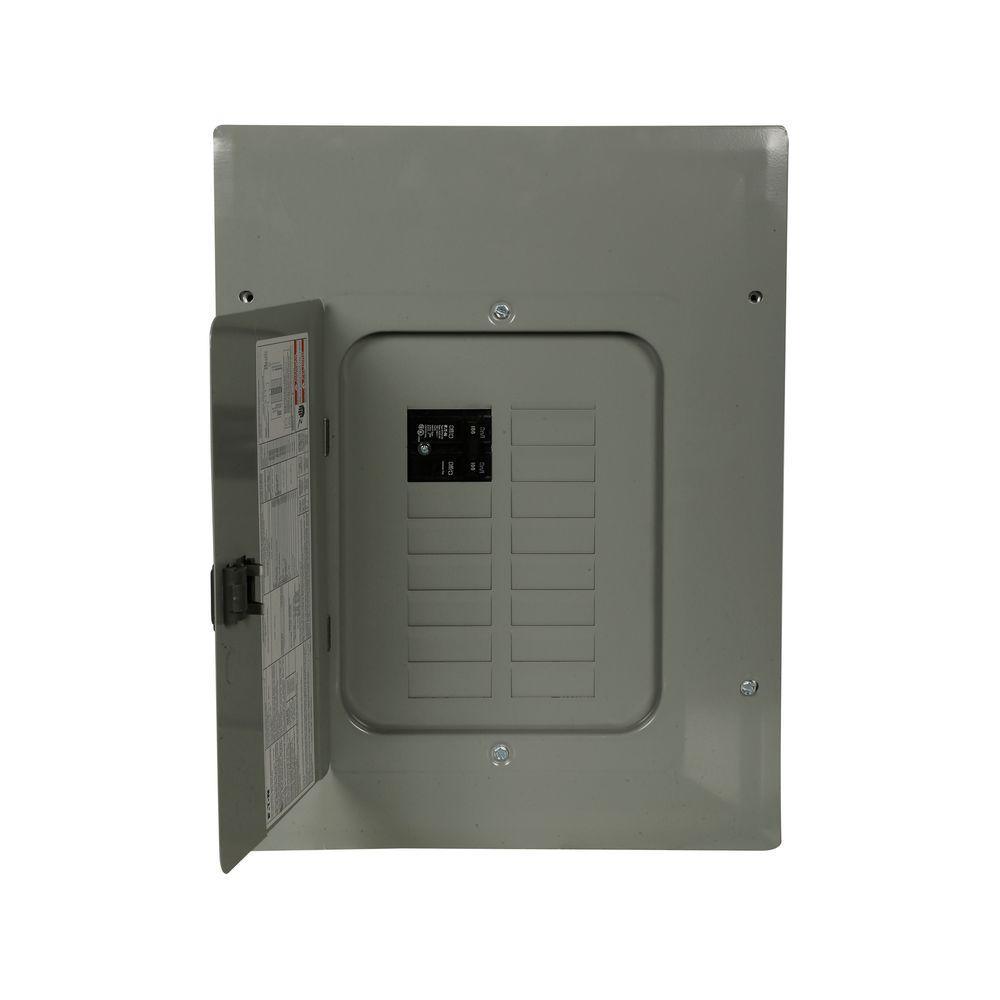

BR 100 Amp 12 Space 20 Circuit Indoor 22k Main Breaker Loadcenter with Combination Cover

Not priced yet

Gone — not just here.

Substitutes below — from the same aisle.

Start your list

No published price on this one yet — put it on your list.

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR1220H100 is a 100 amp main breaker with 12 spaces and 20 circuits.
  • Amperage Rating: 100A
  • Bus Material: Aluminum
  • Rated NEMA 1 for indoor use
  • Feed Type: Bottom or Top which allows for straight-in wiring that saves labor and material
  • Interrupt Rating: 22 kAIC
  • Mounting: Surface
  • Number Of Circuits: 20
  • Number of Spaces: 12
  • Phase: Single-phase
  • “Tangential” center knockout easier installation for conduit applications
  • 2/0 Lug easily removable and can be installed in any location on the neutral bar
  • Neutral Bus (Strap) is easily removable for sub-panel applications
  • Bonding Z-Strap provides easy field conversion for service entrance applications
  • Twin neutral bars minimum 150% neutral capacity
  • Steel back pan provides solid and reliable breaker mounting—single piece design for stability and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
  • Used With: Type BR breakers





Features
Item Weight 20
Mounting Type Bolt On
Maximum Amperage (amps) 100
Voltage (volts) 120/240
Load Center Type Main Breaker
Load Center Mounting Type Surface
Electrical Product Type Load Center
Indoor/Outdoor Indoor
Number of Circuits 20
Product Weight (lb.) 20
Returnable 180-Day
Phase Type 1 Phase
Number of Spaces 12
Load center width (in.) 15
Load center height (in.) 22
Load center depth (in.) 4
Certifications and Listings ANSI Certified,CSA Listed,UL Listed
Manufacturer Warranty 10 years
