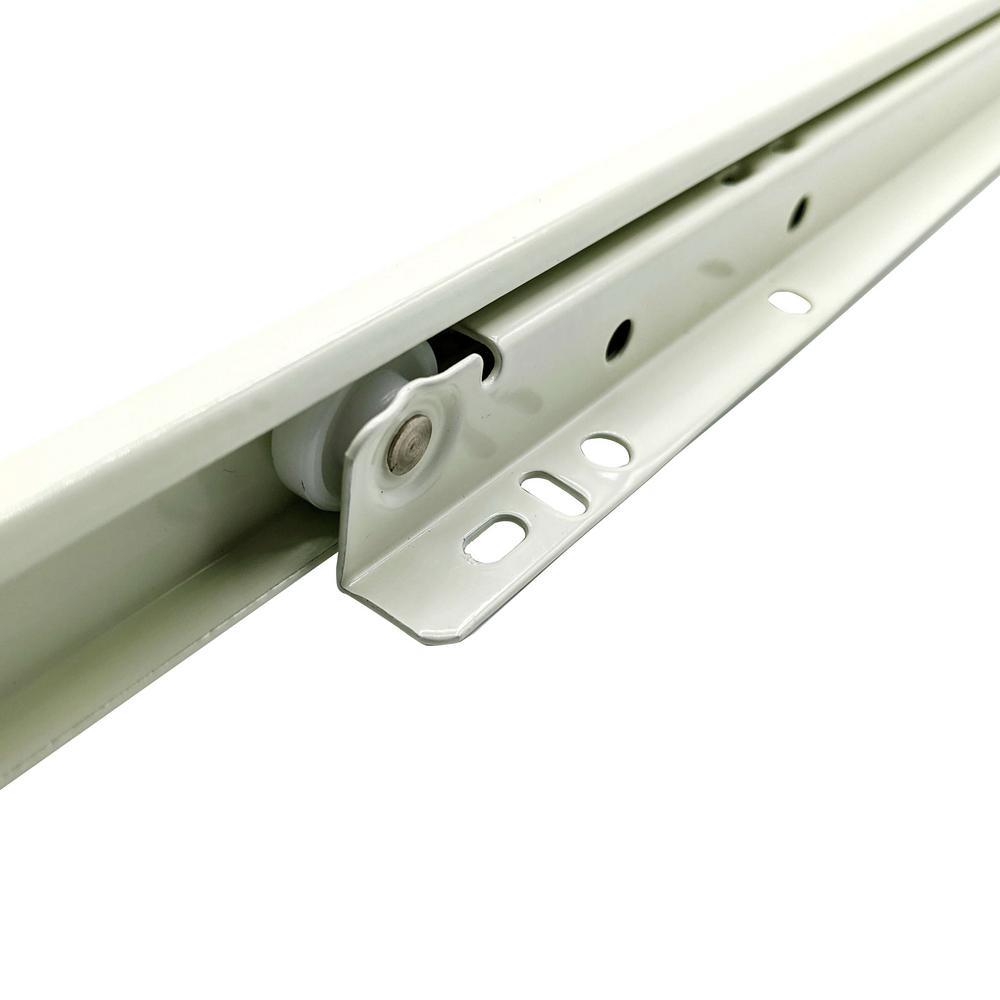

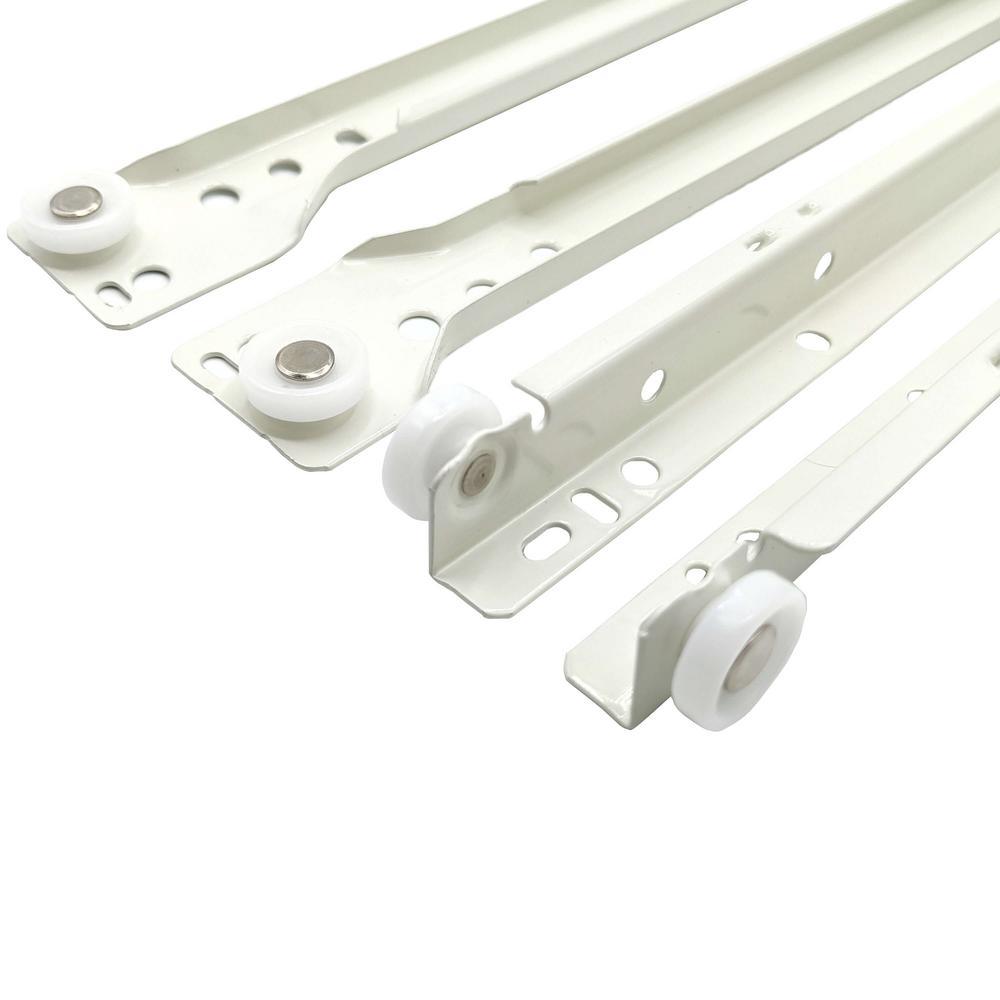

22 in. Bottom Mount V-Notch Epoxy Euro Self-Close Drawer Slide Set
Regular price $8.99/
Shipping calculated at checkout.
Made from stamped steel with an off-white epoxy finish. Can be used in frameless applications but also includes rear mounting sockets for face-frame applications. Mounts to the bottom corners of the drawer. Drawer member: 21-5/8 in., Cabinet member: 23-1/8 in. Rated for normal-duty use with loads up to 55 lbs. per pair. Each set includes 2-drawer members, 2 cabinet members and 2 rear mounting sockets. Note: Number 6 flathead screws required - not included.
Features
- 22 in. (550 mm) slide length, self-closing
- Epoxy coated steel with smooth running synthetic polymer rollers
- Load capacity of 55 lbs. per pair
- For frameless and face-frame applications with included rear mounting sockets
- Set includes: 1-pair of slides with rear mounting sockets, enough for 1-drawer
Features
| Item Weight | 1.5 |
| Mount Type | Bottom Mount |
| Drawer Slide Type | Euro/Roller Bearing |
| Material | Steel |
| Features | Self Closing |
| Returnable | 180-Day |
| Builders Hardware Product Type | Drawer Slides |
| Slide System | European Side |
| Weight load per set (lb.) | 55 |
| Package Quantity | 1 |
| Finish Family | Other |
| Maximum Expandable Length (in.) | 41 |
| Slide Length (In.) | 22 |
| Product Height (in.) | 0.38 in |
| Product Width (in.) | 1 in |
| Manufacturer Warranty | Limited Lifetime Replacement |
