4 in. 17 ft. to 24 ft. Quarter Pattern Mini Rotor Sprinkler
Regular price $7.04/
Shipping calculated at checkout.

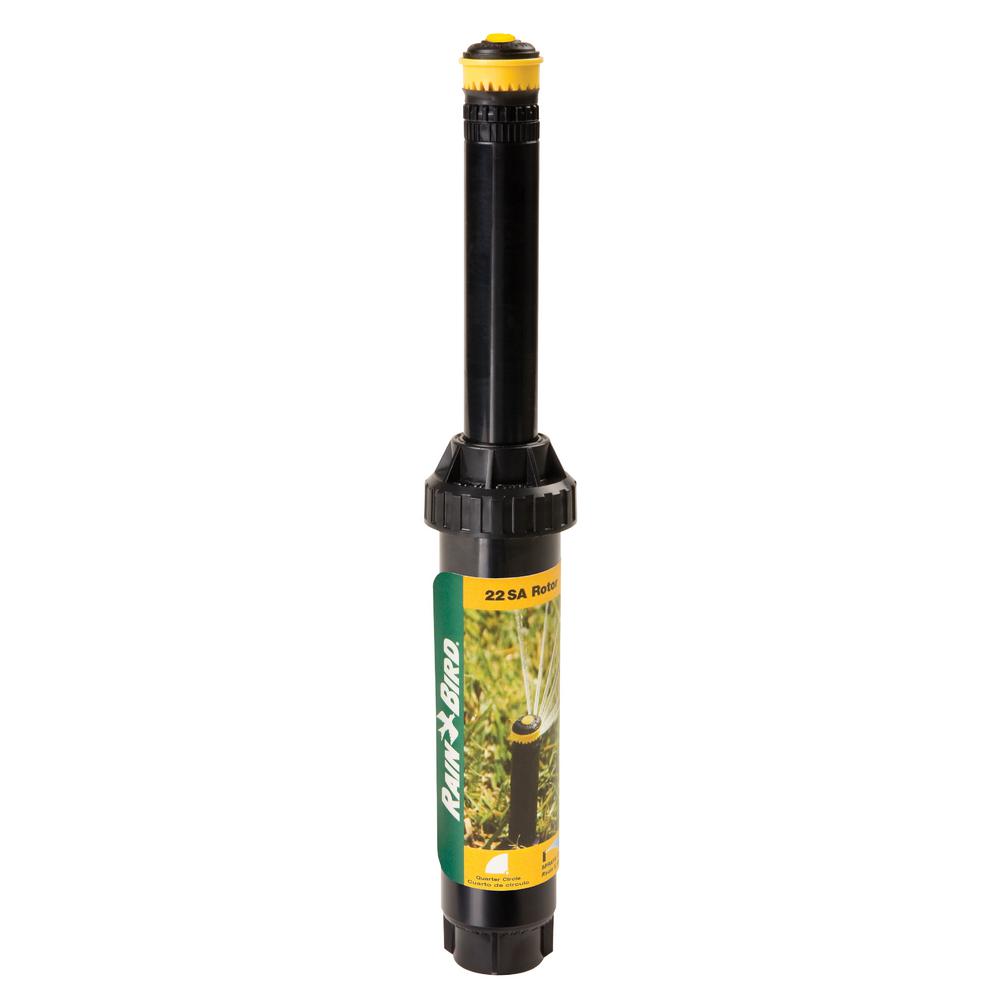

Rain Bird's 22SA rotary sprinklers provide highly uniform water distribution and an increased radius range of up to 24 ft. covering more area with fewer heads. At the same time, the sprinkler produces remarkably low precipitation rates of 0.6 in. per hour, reducing water use up to 30%. The secret is in the nozzle's rotary multi-stream action. The water delivery is gentle enough for newly seeded areas and hillsides, yet covers more area than standard pop-up sprays. The extended throw also allows you to use fewer heads per zone to reduce system complexity. And the 22SA nozzle's water droplets are larger than traditional sprinkler droplets, resisting windblown overspray. The 22SA is easy to adjust: simply use a standard slotted screwdriver to adjust the throw distance from 17 ft. to 24 ft. Other features include a 4 in. pop-up height; a protected closed-case design that makes these sprinklers ideal for creeping grasses, sandy soil, and other harsh surroundings; and a water-lubricated rotating stream operation that's quiet and maintenance-free. This version of the 22SA produces a 90° quarter-coverage pattern; the 22SA is also available in full and half patterns.
Features

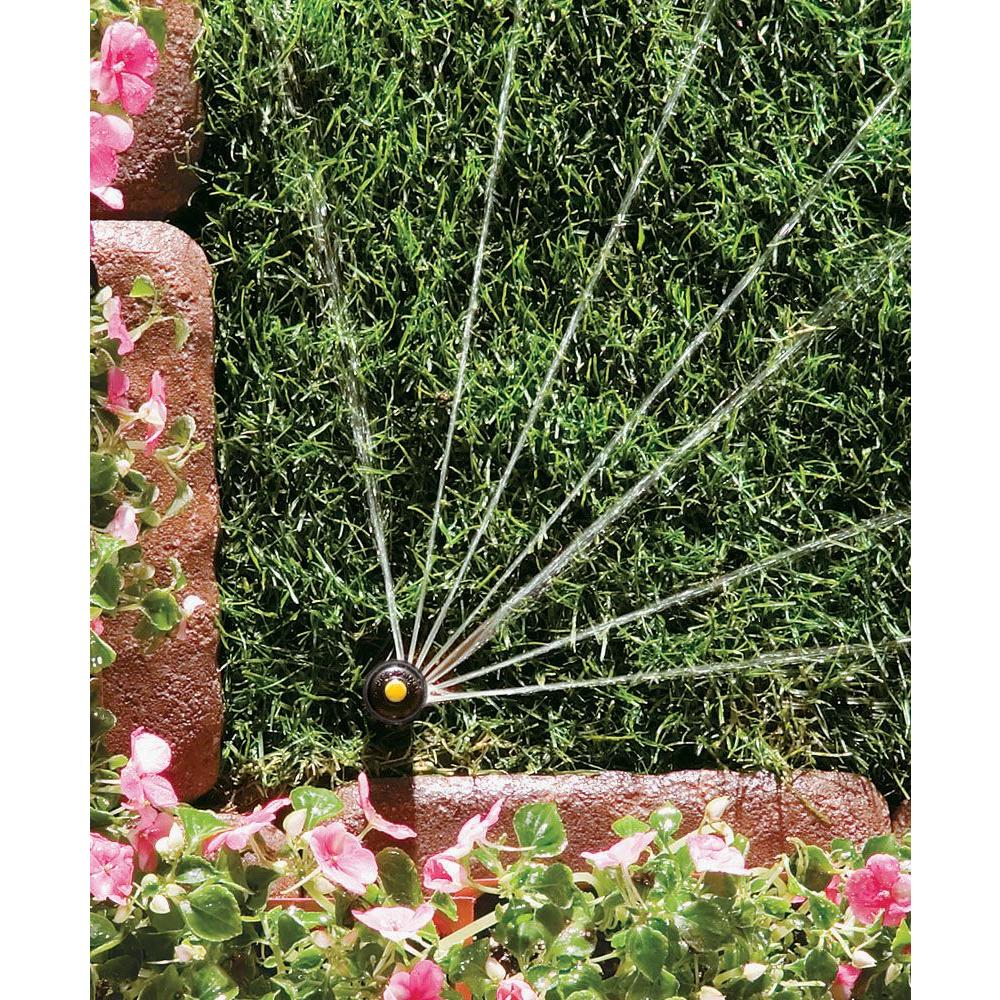

- 90° quarter circle pattern rotary sprinkler head
- Extended 18 ft. to 24 ft. throw covers more area with fewer sprinkler heads to reduce system complexity
- 4 in. pop-up height
- Reduces water use up to 30% over pop-up sprinklers

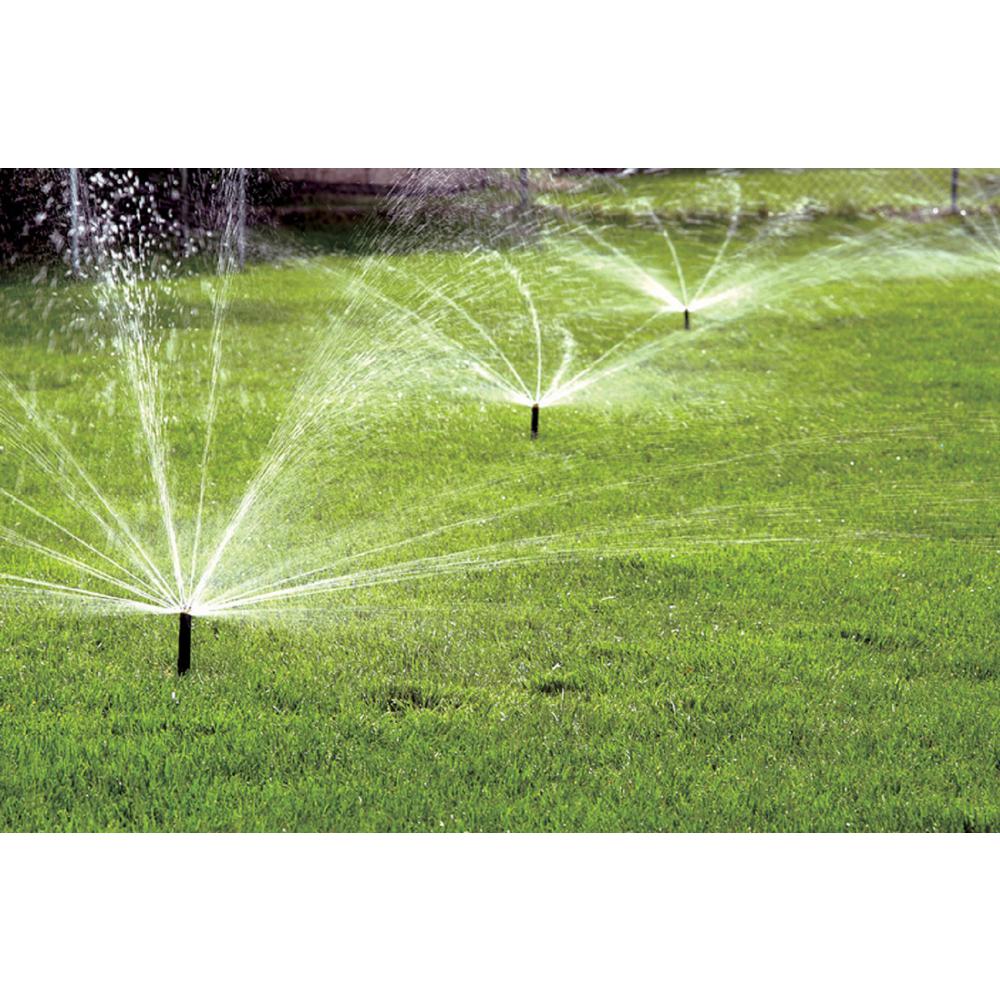

- Multiple rotating streams gently distribute large droplets to water uniformly and resist windblown overspray
- Slow distribution rate of 0.6 in. per hour is ideal for newly seeded areas, slopes and hillsides
- Matches watering rates of large rotors and can be installed in the same zone
- No misting or fogging at high pressures
- Constructed of highly durable UV and chemical-resistant materials to assure long life
- Black color
Features
| Item Weight | .17 |
| Sprinkler Head Material | ABS Plastic |
| Sprinkler Type | Pop-Up |
| Sprinkler Location | Below ground |
| Irrigation System Component | Sprinkler |
| Color Family | Blacks |
| Maximum Rotation (Degrees) | 90 |
| Maximum Spray Distance (ft.) | 24 |
| Maximum Coverage Area (sq ft.) | 450 |
| Features | Retraction Spring,Rotating |
| Pack Size | 1 |
| Minimum Spray Distance (ft.) | 18 |
| Mounting | In-Ground Install |
| Sprinkler Head Type | Rotating |
| Inlet Type | Female |
| Material | ABS Plastic |
| Riser | Riser Not Required |
| Thread Type | 1/2" Female Pipe Thread |
| Returnable | 180-Day |
| Pressure Rating | 25 - 55 psi |
| Nozzle Material | ABS Plastic |
| Maximum Gallons Per Minute | 1 |
| Sprinkler Angle Minimum (Degrees) | 20 |
| Sprinkler Angle Maximum (Degrees) | 20 |
| Head Material | Plastic |
| Sprinkler Head Spray Pattern | Quarter Radius |
| Package Quantity | 1 |
| Product Depth (in.) | 1.5 in |
| Product Width (in.) | 1.75 in |
| Product Diameter (in.) | 1.5 in |
| Product Height (in.) | 6.25 in |
| Retracted Height (in.) | 6 |
| Manufacturer Warranty | If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund. |
