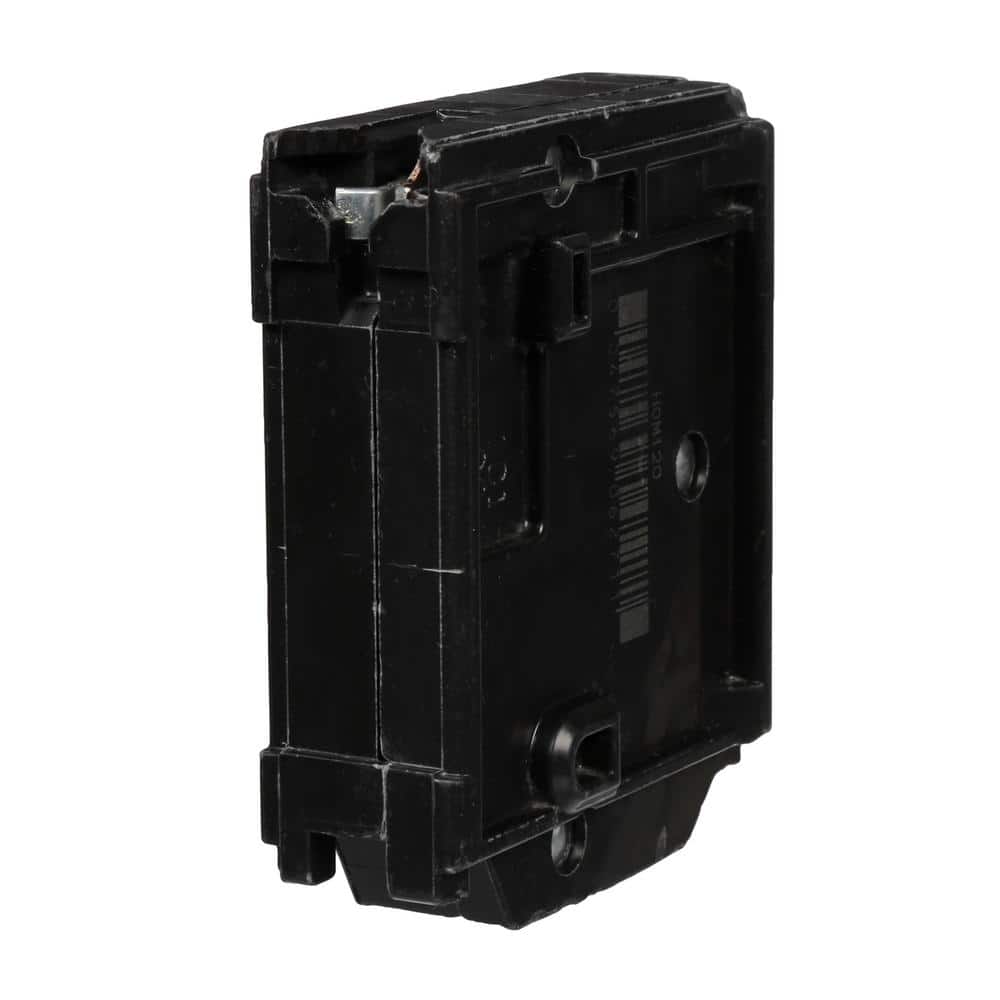

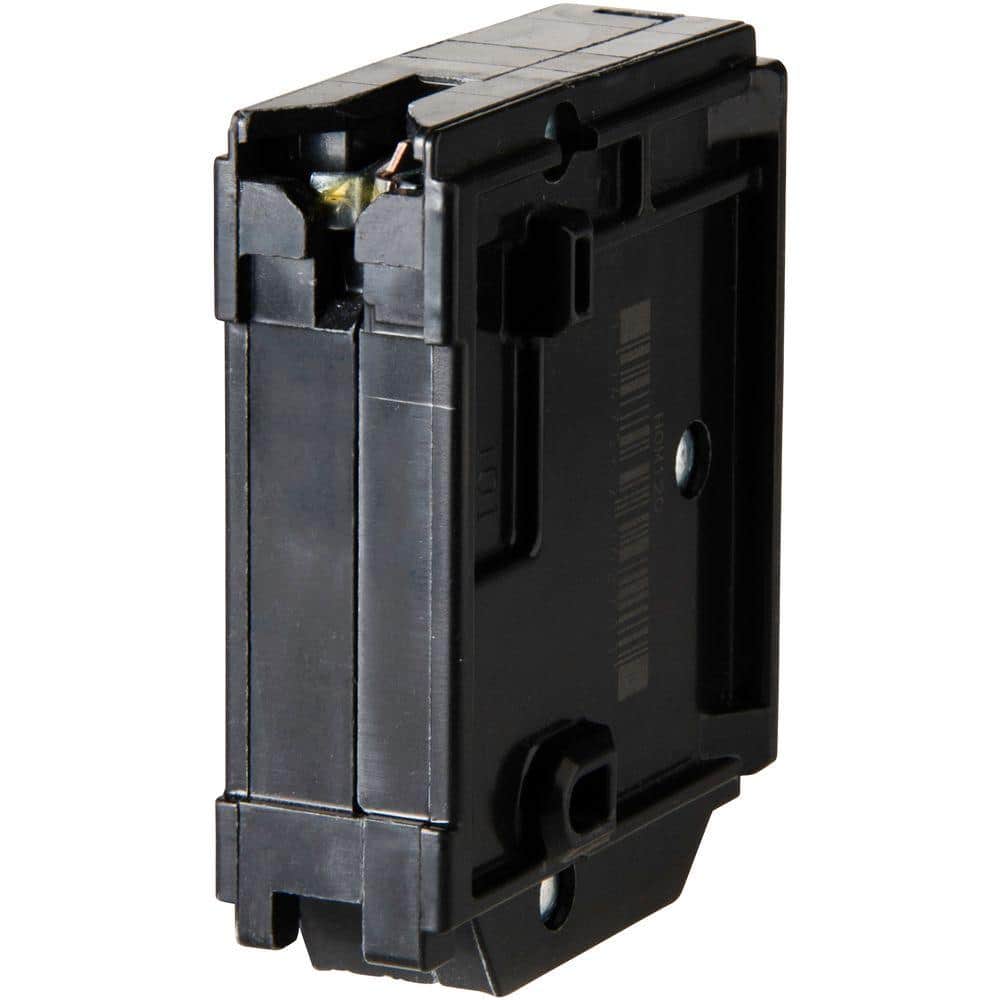

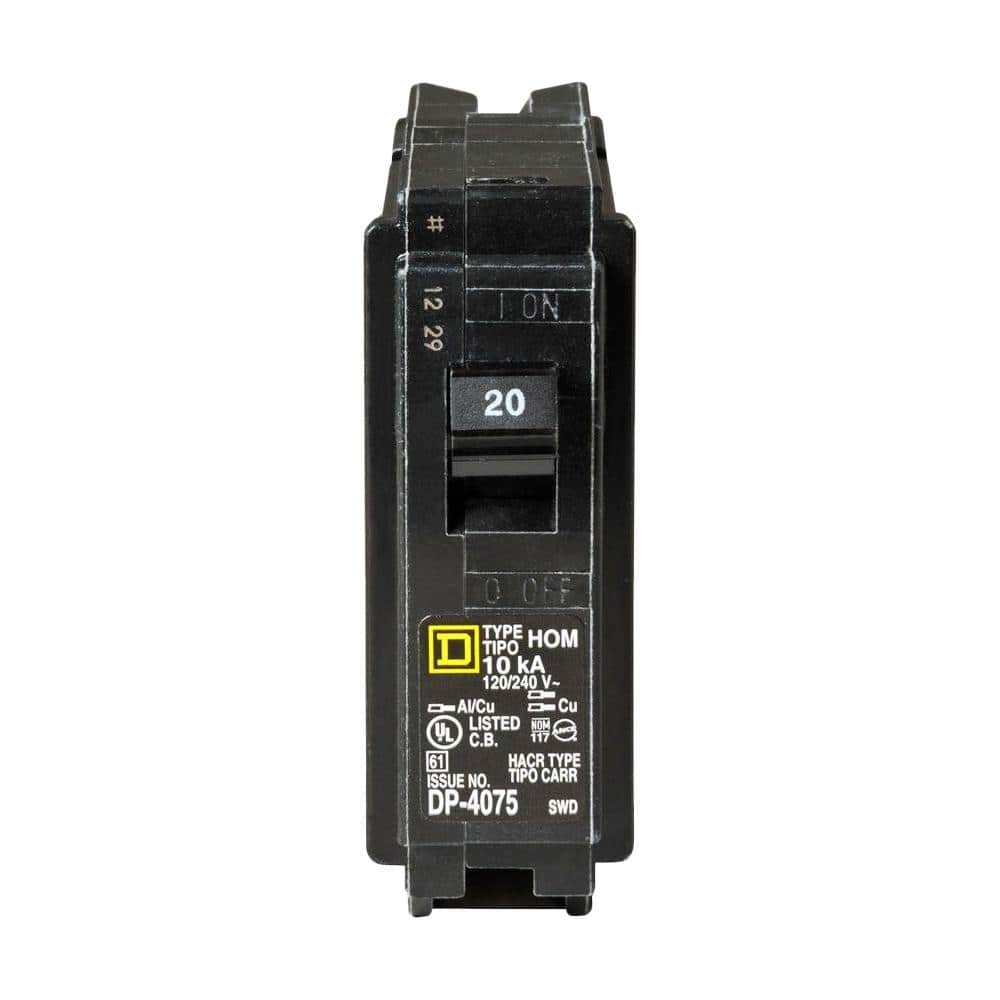

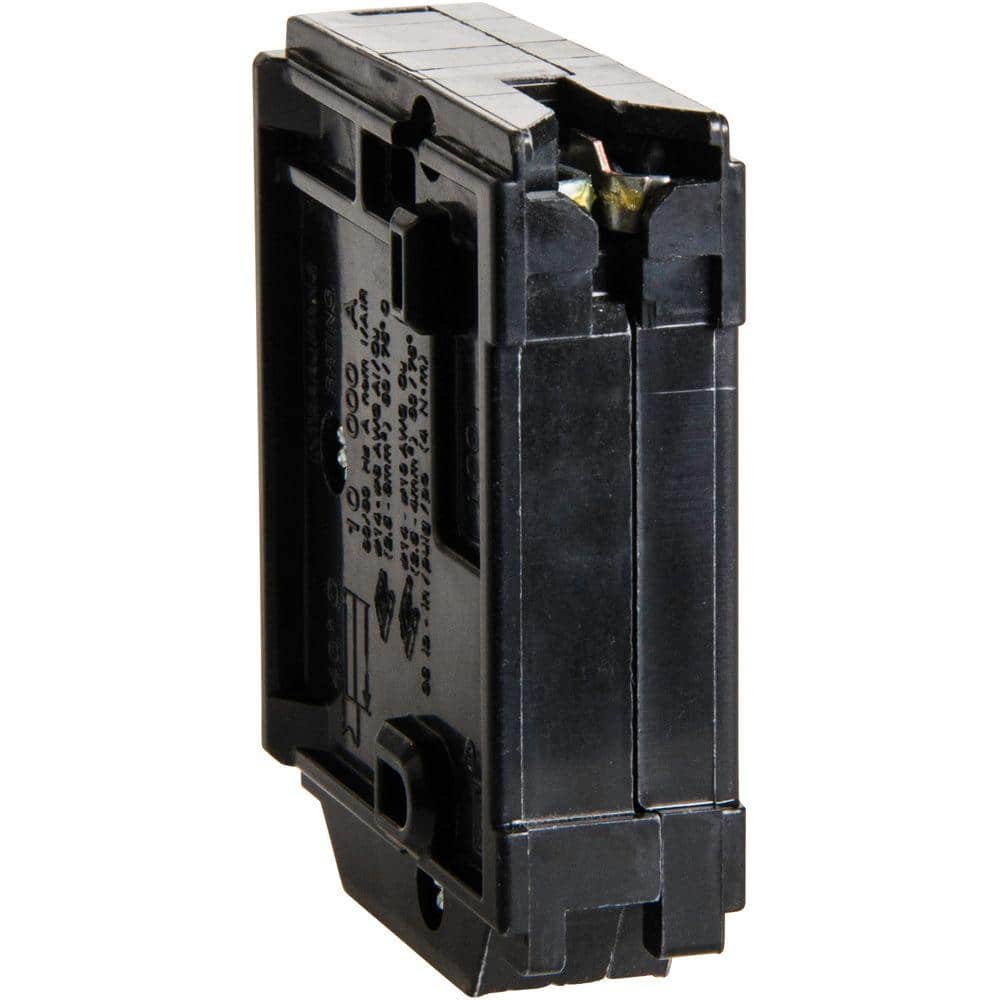

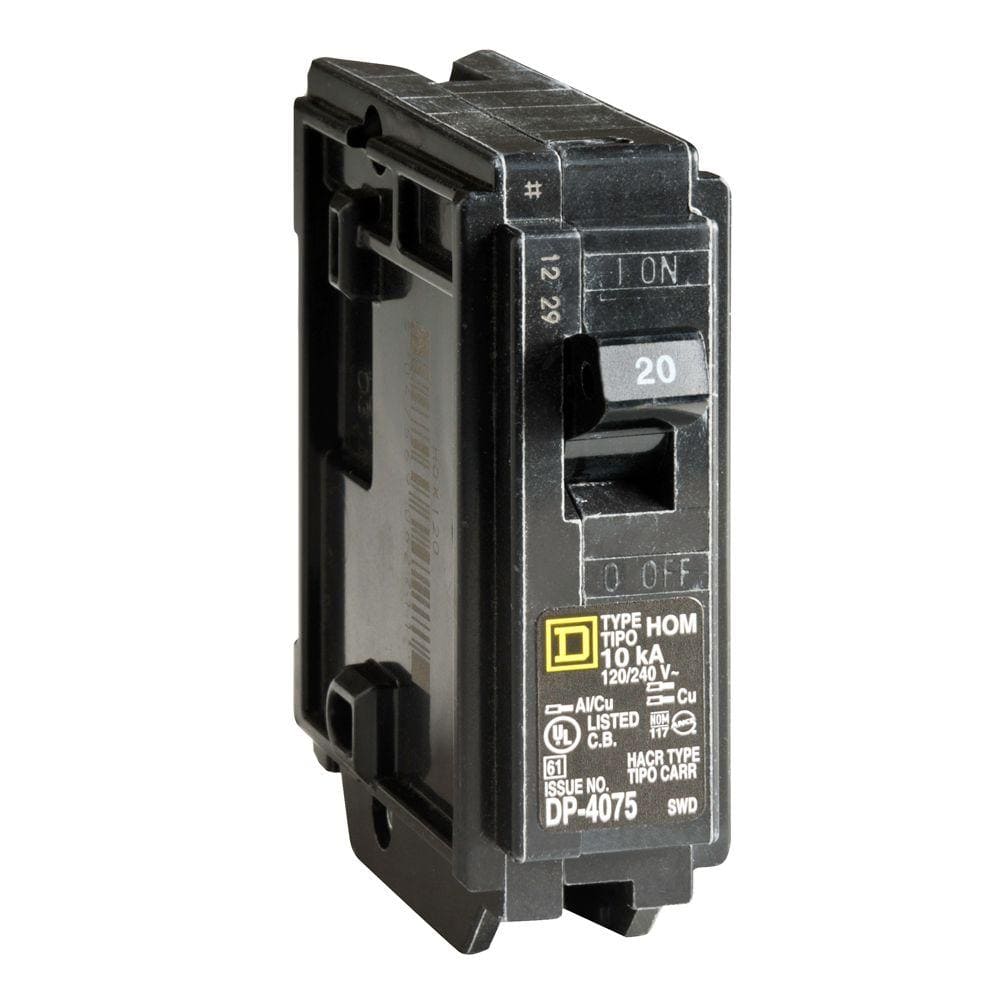

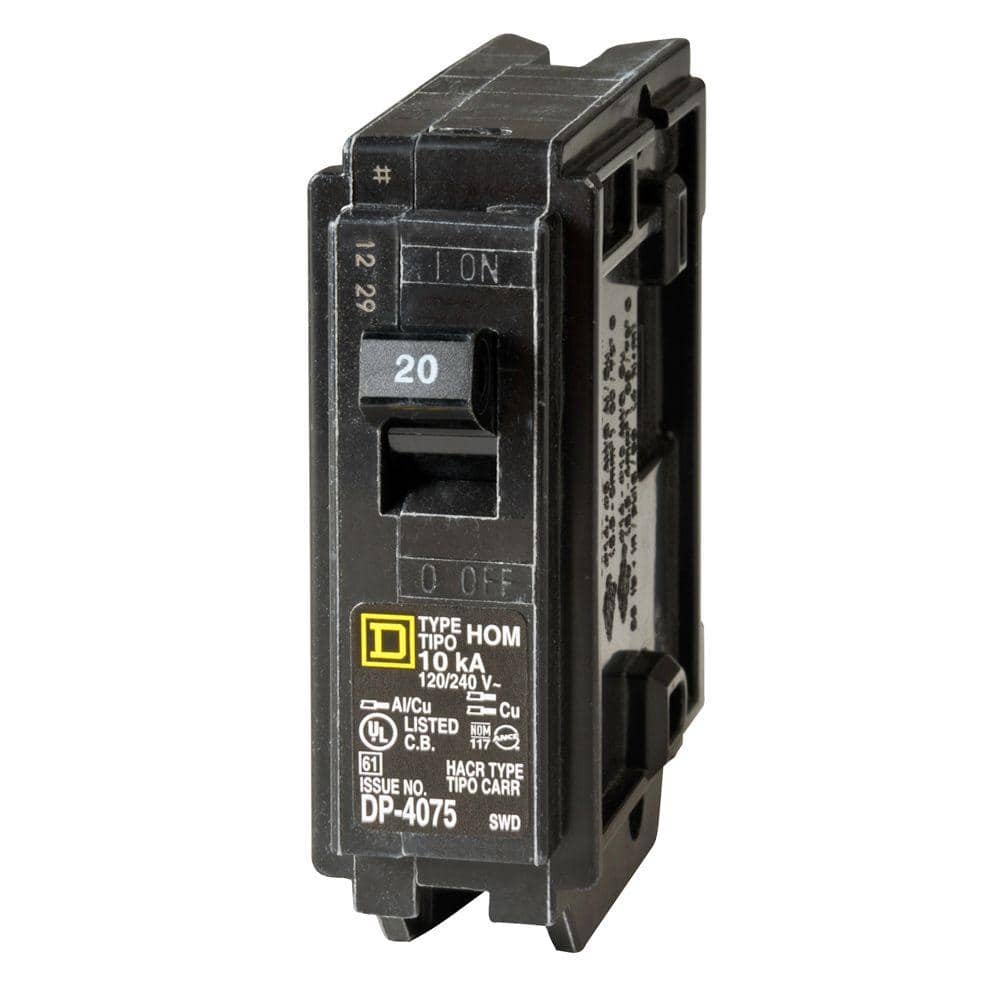

Homeline 20 Amp Single-Pole Circuit Breaker 8-Pack

Ensure reliable protection for your residential electrical system with the Square D Homeline 20 Amp Single-Pole Circuit Breaker 8-Pack. Engineered for safety and easy installation, these breakers guard against overloads and short circuits, ensuring long-lasting performance in Homeline load centers.

---

Key Features:

• Compatibility: Designed for Homeline load centers and CSED devices.
• Installation: Features plug-on design for quick and easy installation.
• Safety: Provides overload and short-circuit protection with a 10,000 AIR rating.
• Versatility: Suitable for 120/240-Volt applications in residential settings.
• Durability: Backed by a limited lifetime warranty, ensuring peace of mind.

---

Specifications Table:

Specification	Details
AIC Rating	10000
Breaker Type	Standard
Connection Type	Non-Neutral
Interruption Type	Standard Trip
Maximum Amperage (A)	20 A
Mounting Type	Plug-On
Number of Poles	Single
Number of Spaces	1
Pack Size	8
Product Weight (lb.)	0.28 lb
Series Type	Homeline
Trip Unit	Thermal Magnetic
Voltage (V)	120/240 V
Certifications and Listings	UL Listed
Manufacturer Warranty	Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed.
Product Depth (in.)	2.98 in
Product Height (in.)	3.13 in
Product Width (in.)	1 in

---

Frequently Asked Questions (FAQ):

Q: How do I install the Homeline circuit breakers?
A: Installation is straightforward with the plug-on design, but it's recommended to hire a licensed electrician for safety and compliance with local codes.

---

Q: Are these circuit breakers compatible with other load centers besides Homeline?
A: No, these breakers are specifically designed for use with Homeline load centers and CSED devices.

---

Q: What does the limited lifetime warranty cover?
A: The warranty covers defects in material and workmanship under normal usage in a residential installation for the lifetime of the Homeline load center in which the breaker is installed.

---

Q: Can I use these breakers for commercial applications?
A: While they can be used in light commercial settings, they are primarily designed for residential use to protect branch circuits.

---

Q: What is the safety rating of these circuit breakers?
A: They have an ANSI-certified and UL-listed rating of 10,000 AIR, providing robust protection against overloads and short circuits.

---

The Unsung Hero of Home Safety

Transform the way your home handles electricity with the Square D Homeline Circuit Breakers. These precision-engineered marvels act as vigilant guardians, seamlessly fusing with your modern electrical panel. Their sleek, inconspicuous design belies their power, ensuring that your space remains harmonious and secure. By investing in circuit breakers that marry functionality with resilience, you elevate your home to a sanctuary of efficiency and safety—a quintessential facet of sophisticated living.

---

Secure your home's electrical system with the reliable Square D Homeline Circuit Breakers and experience peace of mind today.
