Homeline 200 Amp 30-Space 60-Circuit Outdoor Main Breaker Plug-On Neutral Load Center with Surge SPD - Value Pack
Regular price $0.00Shipping calculated at checkout.
The Square D Homeline Value Pack 200 Amp 30-Space 60-Circuit Outdoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes a selection of breakers and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings. The Homeline Surge Breaker Surge Protective Device is designed as a quick plug-on unit for use in Homeline load centers and CSED devices. The SPD requires 2-pole spaces. This unit has 22,500 Amp Maximum Surge Capacity and has a 150 VAC line-to-ground maximum providing protection from electrical surges. This bundle comes with Schneider model numbers HOM3060M200PRBVP and HOM2175SB.
Features
- California residents
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds

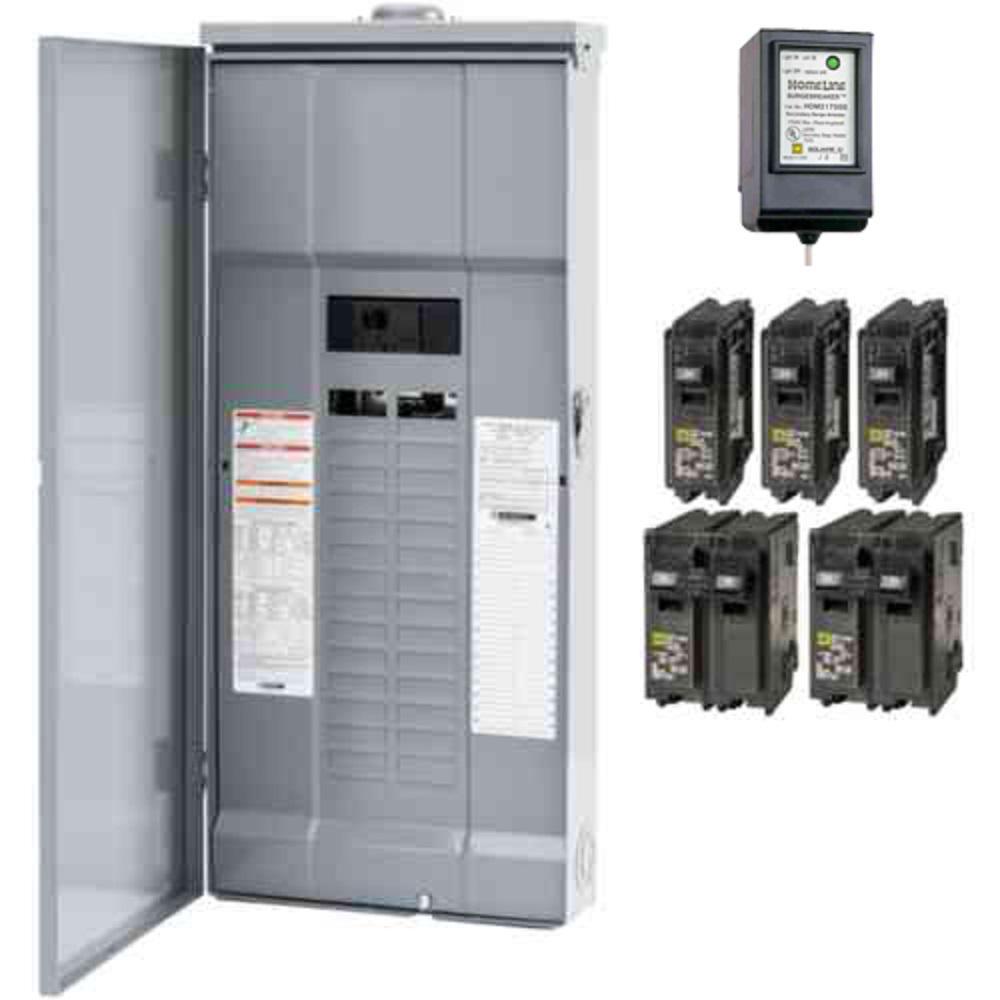

- Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a rainproof outdoor cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Single phase
- Rated 120/240 VAC and 22,000 air short circuit current rating
- Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
- Designed with straight-in mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/Square Drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
- Made in the USA
- Equal protection to circuits and receptacles throughout home
- Includes an LED indicator
Features
| Item Weight | 41.77 |
| Product Weight (lb.) | 41.77 |
| Number of Circuits | 60 |
| Load Center Mounting Type | Flush,Surface |
| Electrical Product Type | Load Center and Breaker Kit |
| Voltage (volts) | 120/240 |
| Number of Spaces | 30 |
| Load Center Type | Main Breaker |
| Mounting Type | Plug-On Neutral |
| Indoor/Outdoor | Outdoor |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Maximum Amperage (amps) | 200 |

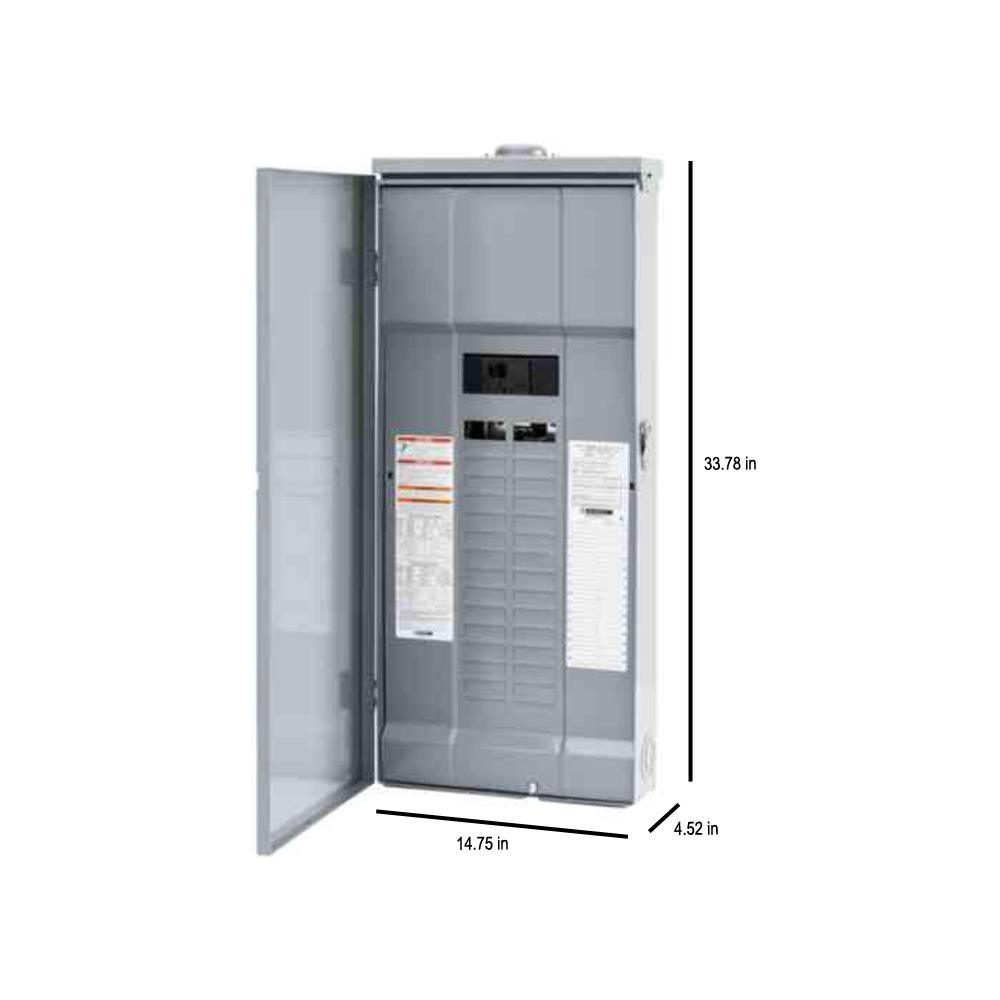

| Load center height (in.) | 33.78 |
| Load center depth (in.) | 4.52 |
| Load center width (in.) | 14.75 |
| Manufacturer Warranty | Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |
| Certifications and Listings | UL Listed |
