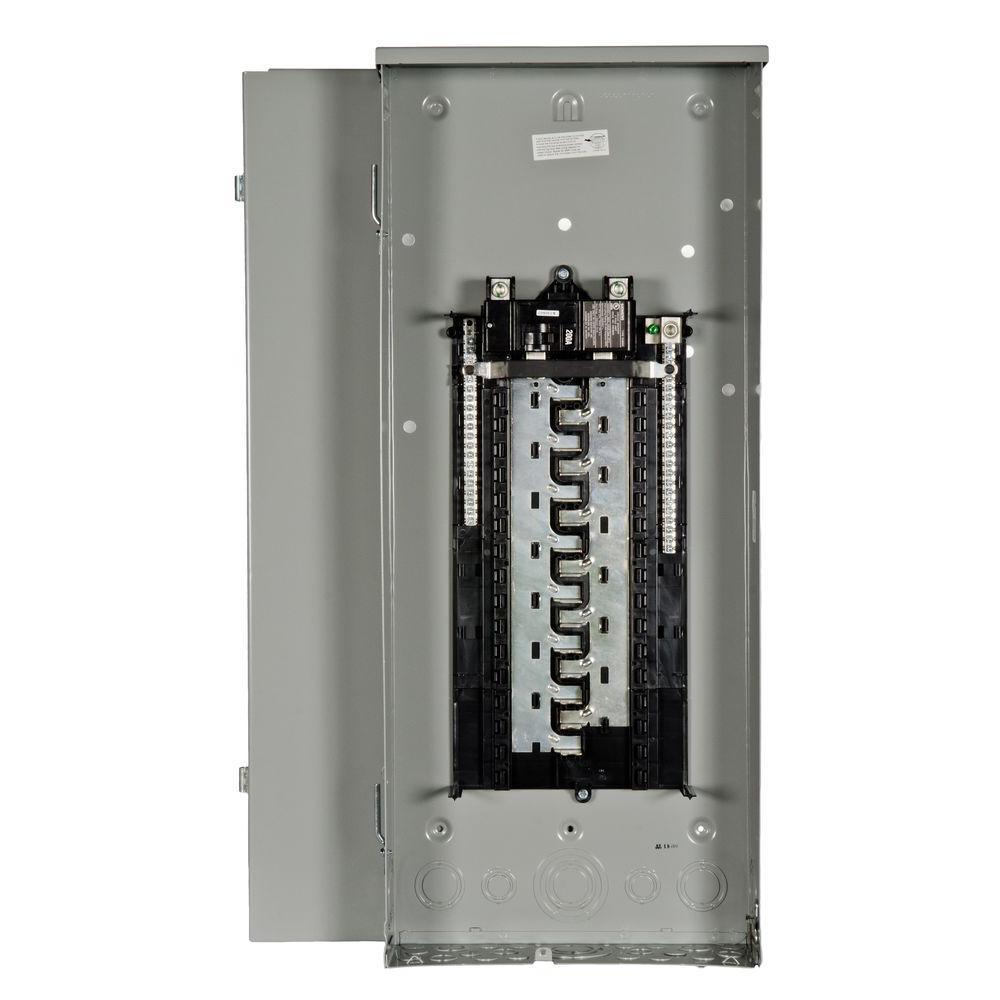

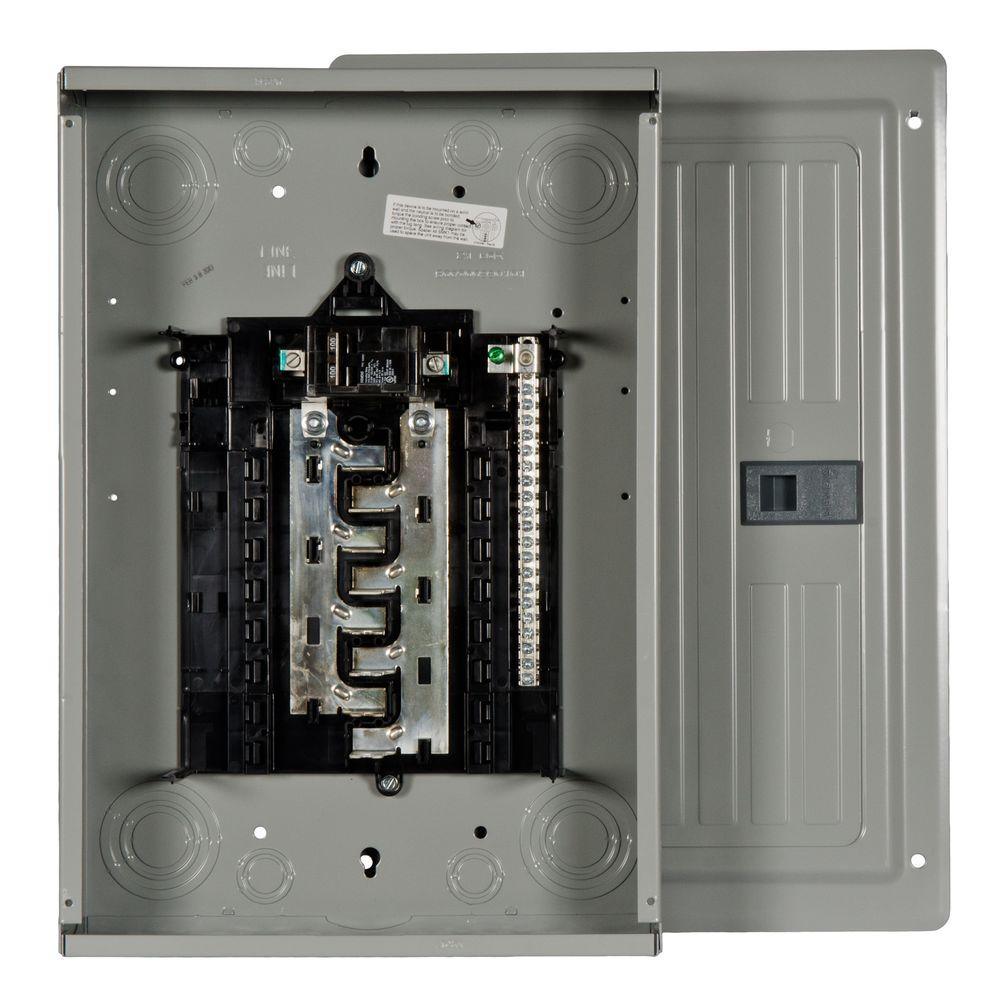

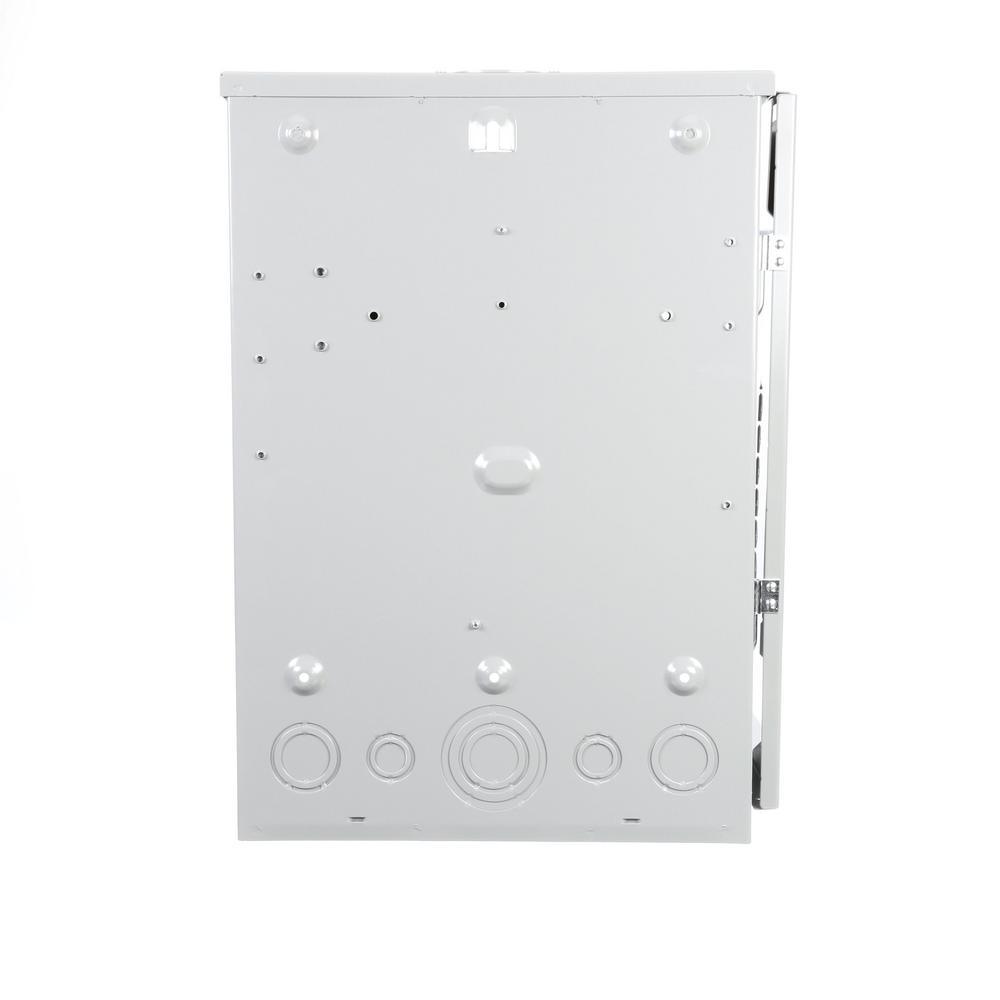

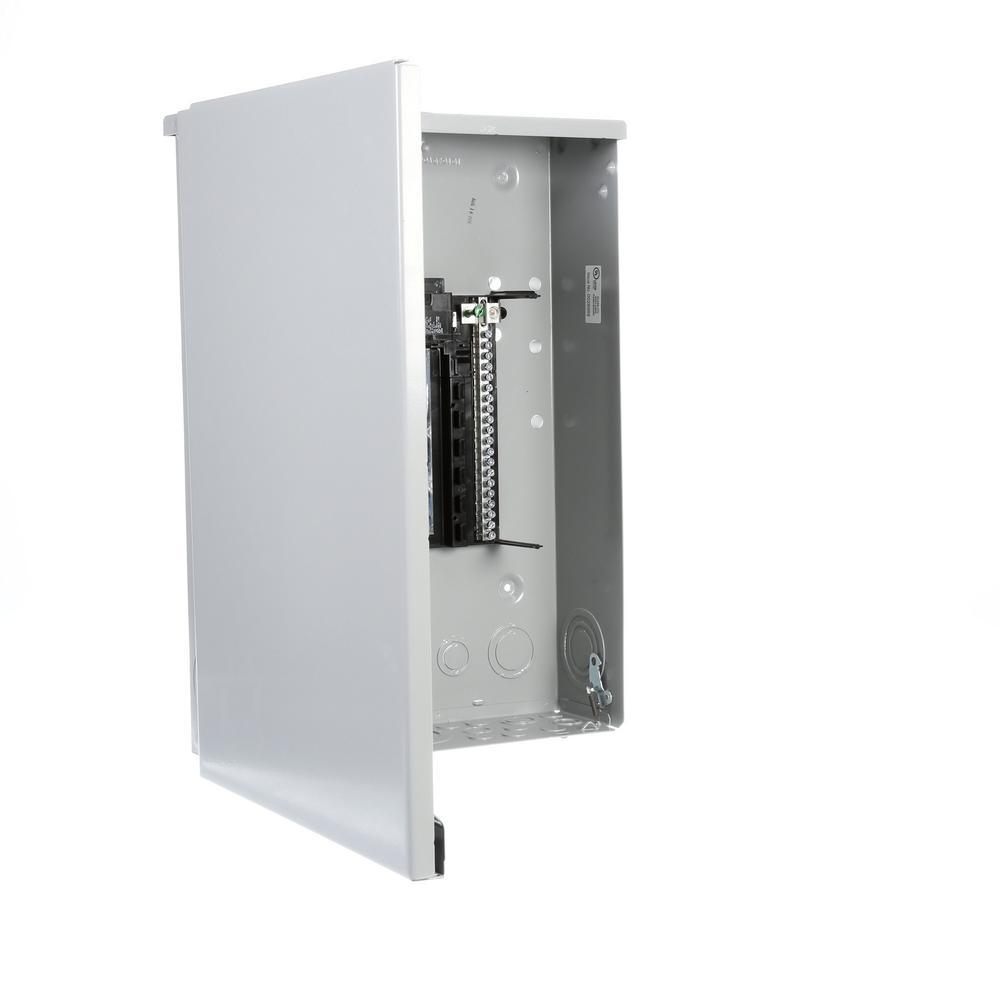

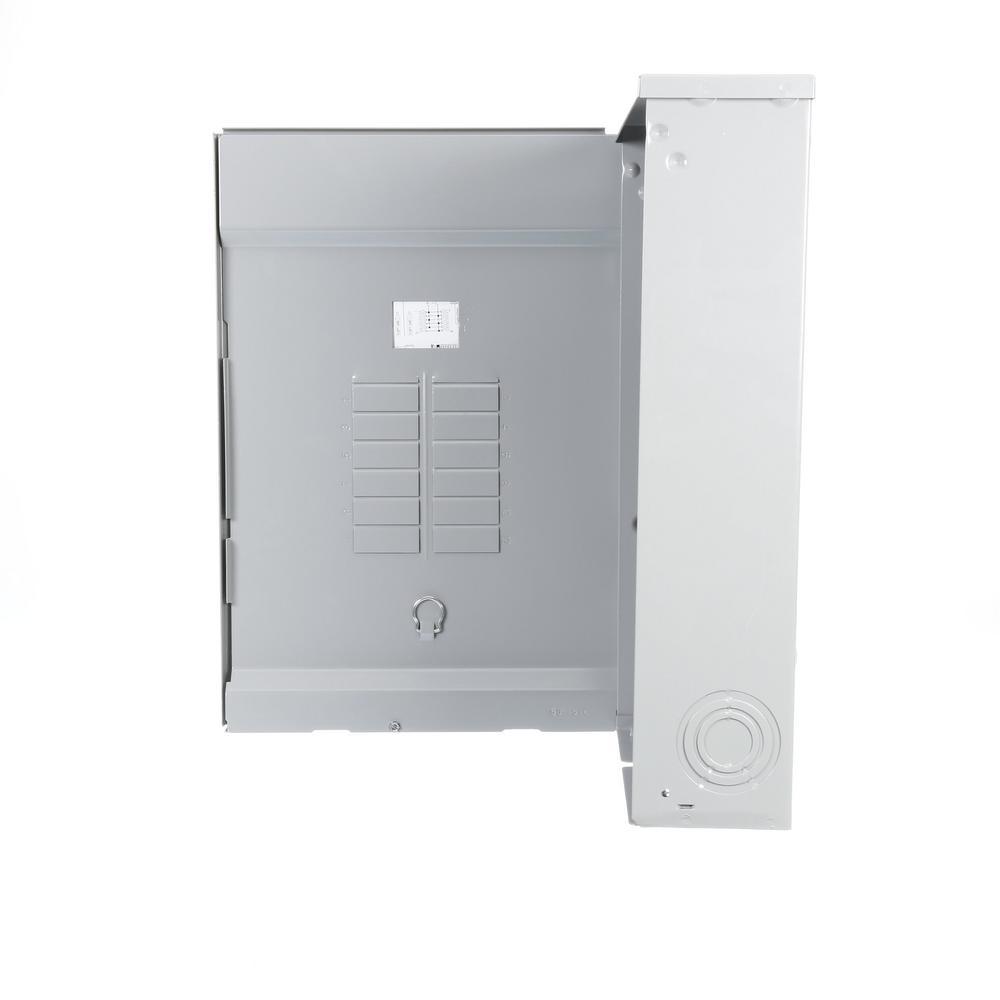

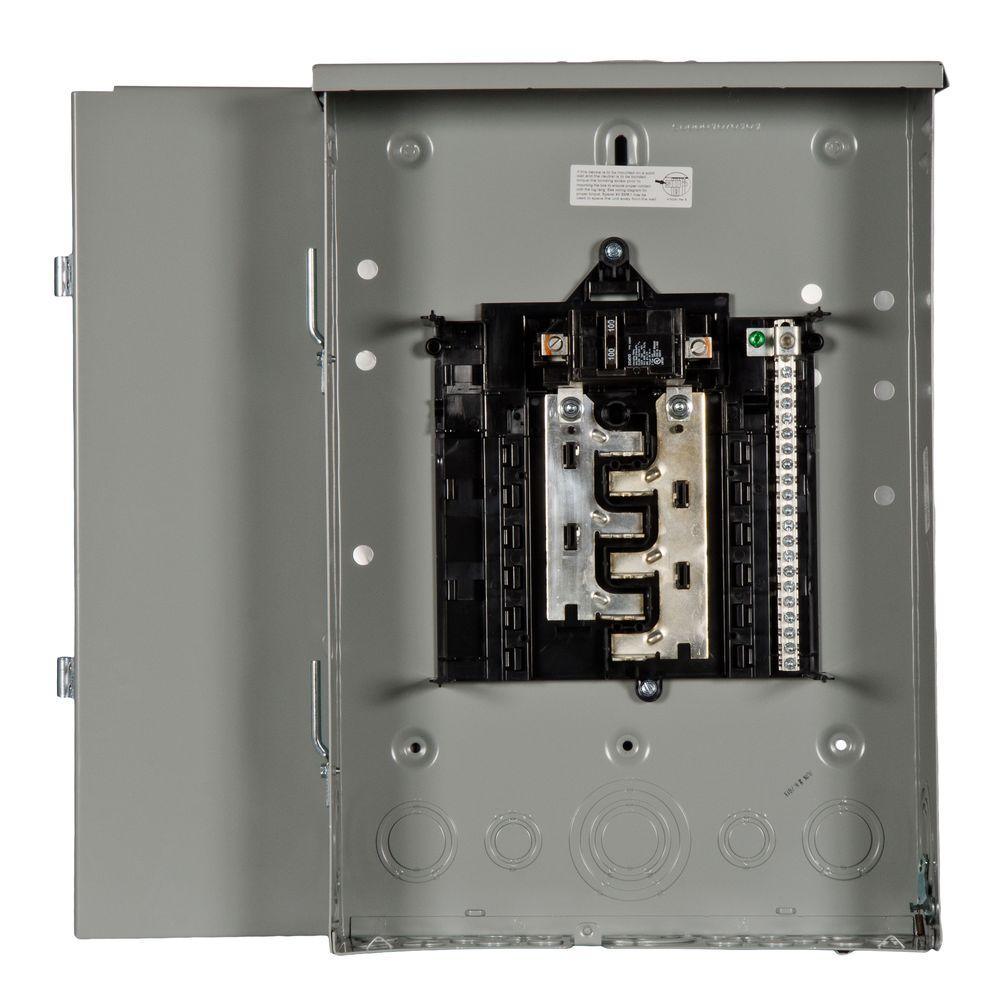

ES Series 100 Amp 12-Space 24-Circuit Main Breaker Outdoor Load Center

$0.00

/
Shipping calculated at checkout.
The new Siemens ES Series Load Center is the smart choice when value and quick installation are of highest priority. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.
  • A single phase, 120/240-Volt, 100-Amp main breaker load center with 12-spaces/24-circuits
  • Aluminum bus
  • Ground bar field installed
  • Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
  • Single side inboard neutral
  • Invertible for bottom feed application
  • All ES series load centers allow the main breaker to be converted to main lug, but not vice versa
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Pre-positioned bond screw eliminated bond straps/screw assemblies, and reduces the risk of losing components in the field
  • Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
  • Rigid, sturdy base pan provides ruggedness required for harsh applications
  • NEMA type 3: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation or internal icing
  • ES Series Single Phase load centers are being phased out, and replaced by the new SN Series Plug-On Neutral load centers, SW1224B1100 equivalent is the new SNW1224B1100


Features
Item Weight 23.436
Voltage (volts) 120
Maximum Amperage (amps) 100
Mounting Type Bolt On
Load Center Type Main Breaker
Load Center Mounting Type Surface
Electrical Product Type Load Center
Product Weight (lb.) 23.436
Indoor/Outdoor Outdoor
Returnable 180-Day
Phase Type 1 Phase
Number of Spaces 12
Number of Circuits 24
Load center depth (in.) 5
Load center height (in.) 22.625
Load center width (in.) 25.5
Certifications and Listings UL Listed
Manufacturer Warranty 10 Year
