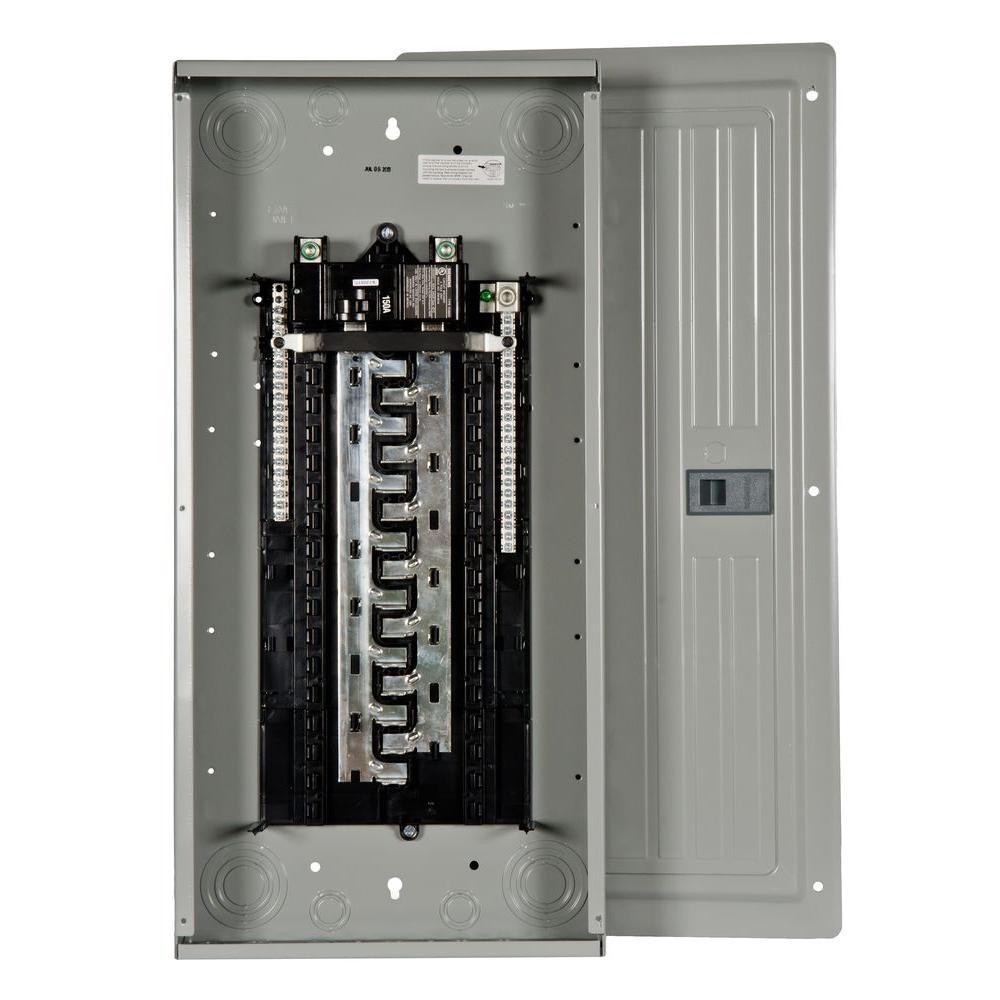

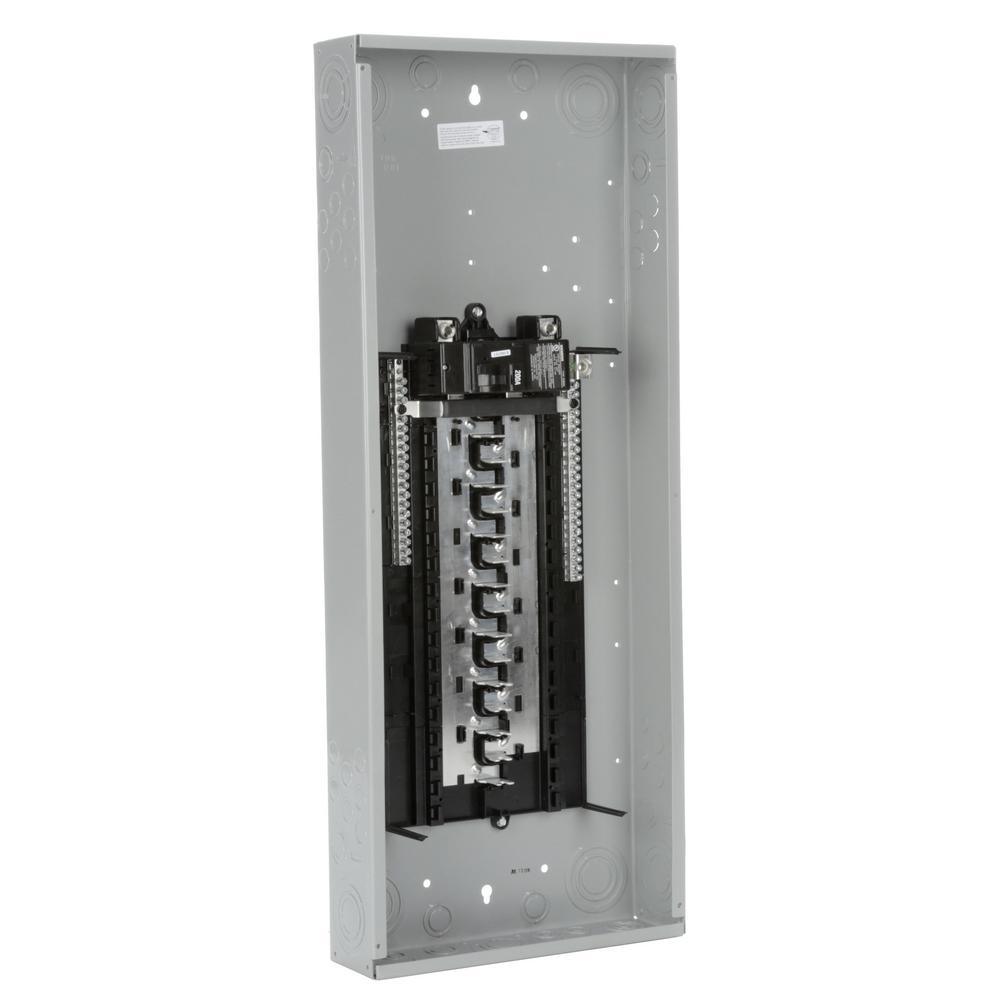

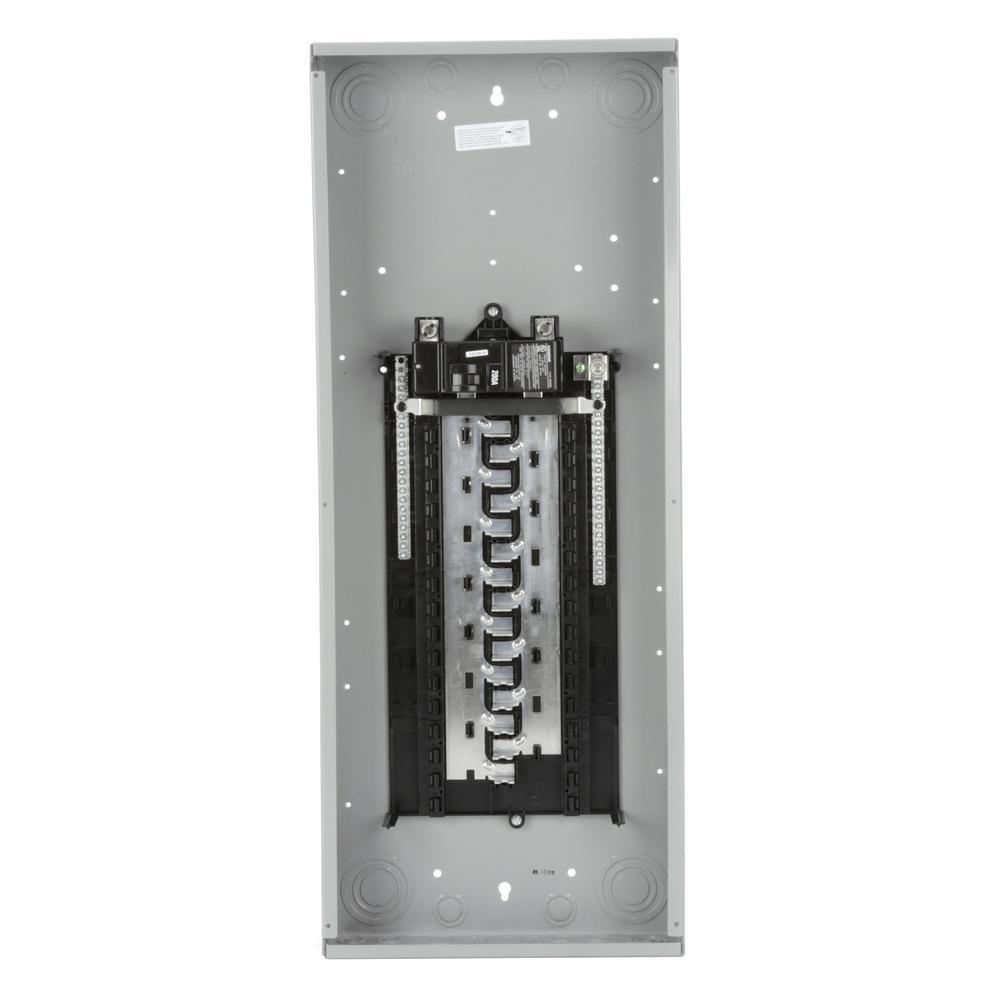

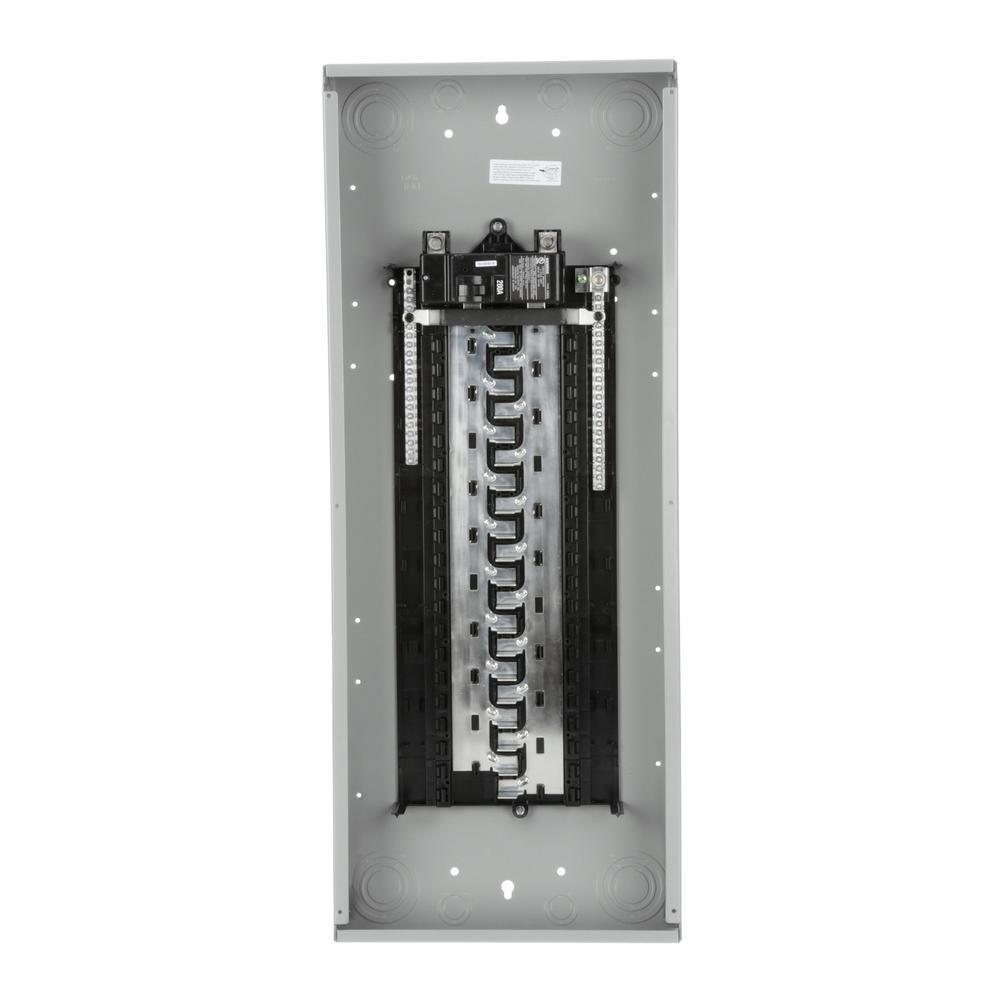

ES Series 200 Amp 30-Space 40-Circuit Main Breaker Indoor Load Center

$0.00

/
Shipping calculated at checkout.
The new Siemens ES Series Load Center is the smart choice when value and quick installation are of highest priority. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.
  • A single phase, 120/240-Volt, 200-Amp main breaker load center with 30-spaces/40-circuits
  • Aluminum bus
  • Ground bar field installed
  • Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
  • Dual side inboard neutral
  • Invertible for bottom feed application
  • All ES series load centers allow the main breaker to be converted to main lug, but not vice versa
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Pre-positioned bond screw eliminated bond straps/screw assemblies, and reduces the risk of losing components in the field
  • Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
  • Rigid, sturdy base pan provides ruggedness required for harsh applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
  • ES Series Single Phase load centers are being phased out, and replaced by the new SN Series Plug-On Neutral load centers, S3040B1200 equivalent is the new SN3048B1200


Features
Item Weight 35
Voltage (volts) 120
Mounting Type Bolt On
Product Weight (lb.) 35
Load Center Mounting Type Flush,Surface
Load Center Type Main Breaker
Electrical Product Type Load Center
Number of Spaces 30
Indoor/Outdoor Indoor
Number of Circuits 40
Returnable 180-Day
Phase Type 1 Phase
Maximum Amperage (amps) 200
Load center depth (in.) 5
Load center height (in.) 40.5
Load center width (in.) 15.875
Certifications and Listings UL Listed
Manufacturer Warranty 10 Year
