Homeline 150 Amp 8-Space 16-Circuit Outdoor Main Breaker Plug-On Neutral Load Center with Feed-Thru Lug

$0.00

/
Shipping calculated at checkout.
The Square D Homeline 150 Amp 8-Space 16-Circuit Outdoor Convertible Main Breaker Load Center for Plug-on Neutral breakers has feed-thru lugs and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
  • California residents
  • Contact your local building inspector for adoptions and details.

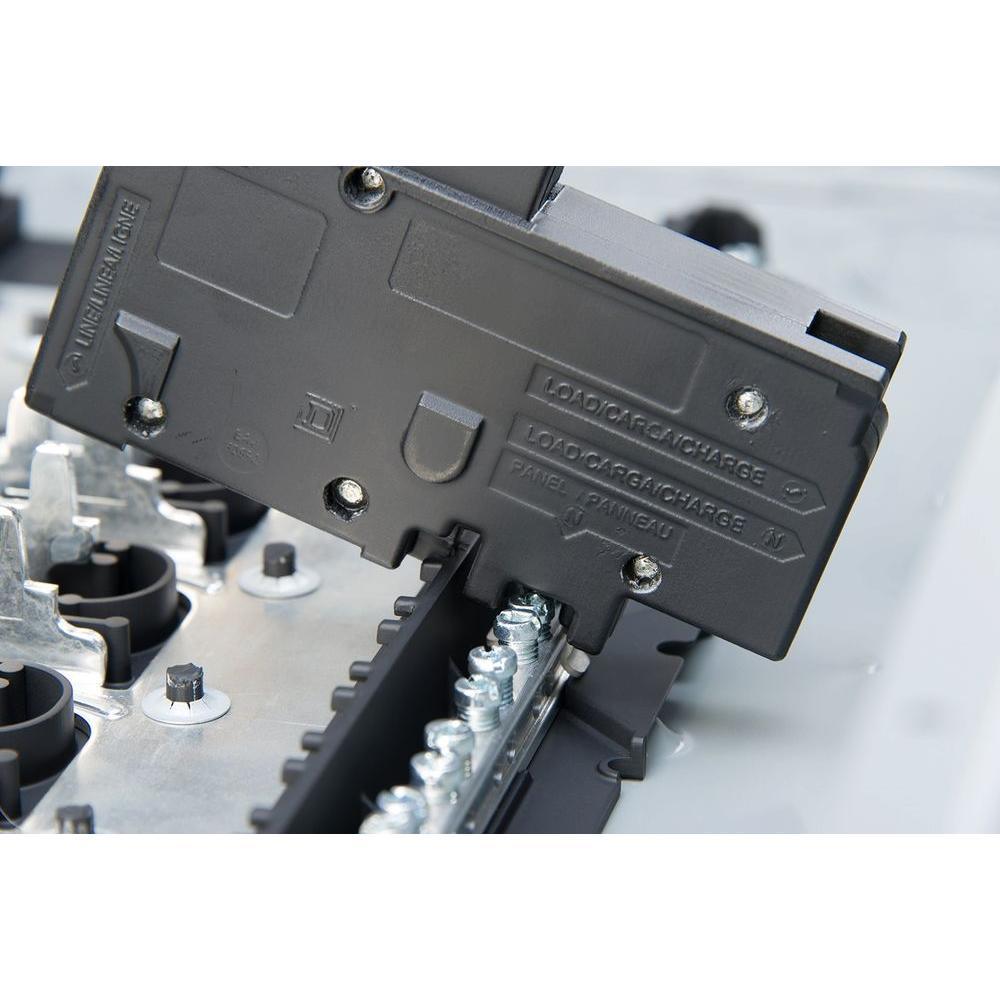

  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds

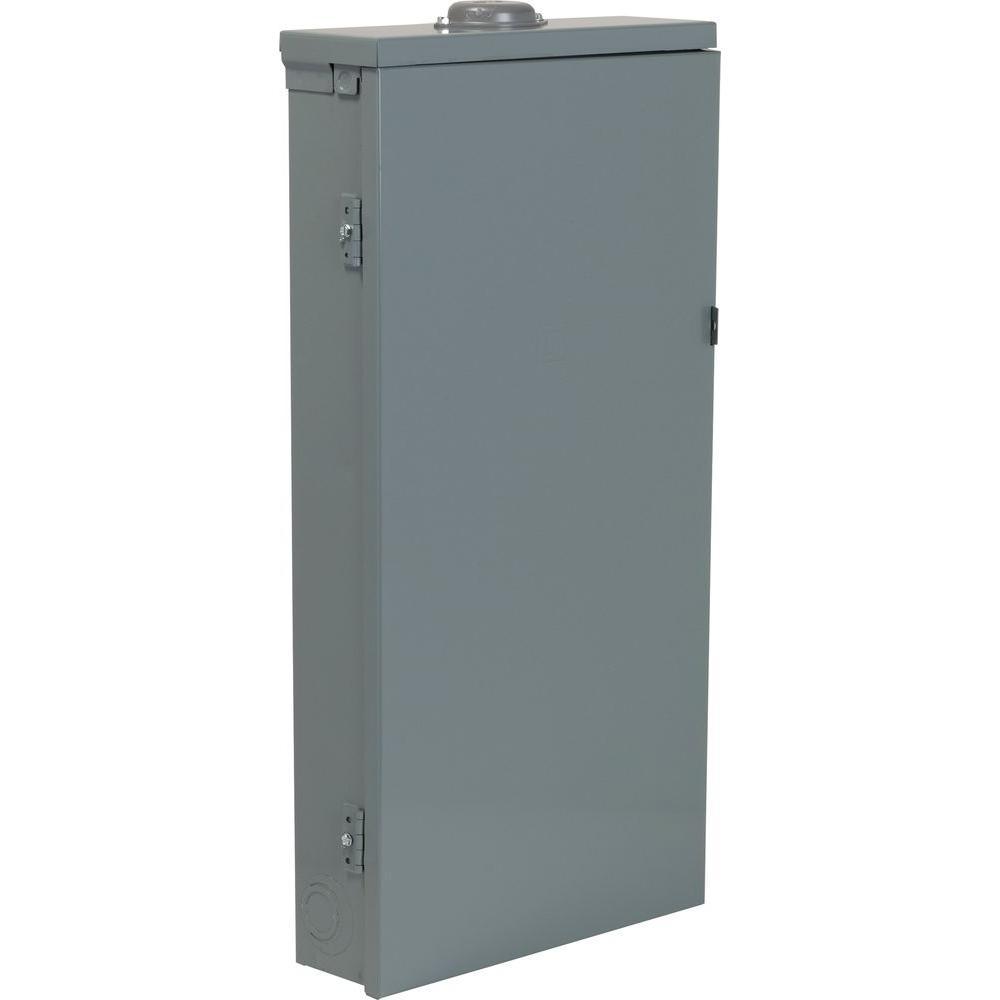

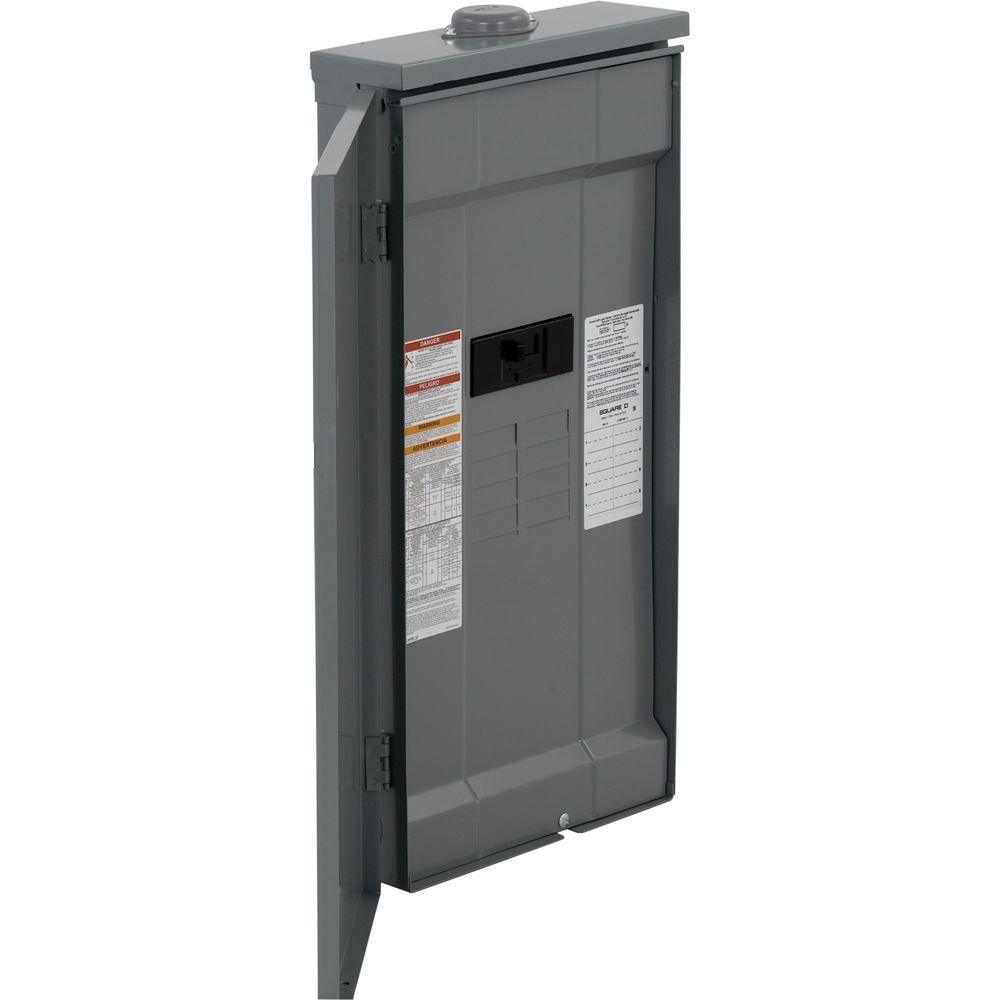

  • Includes feed-thru lugs and a rainproof outdoor cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
  • Single phase
  • Rated 120/240 VAC and 22,000 AIR short circuit current rating
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • Designed with straight-in mains to save expensive cable and time

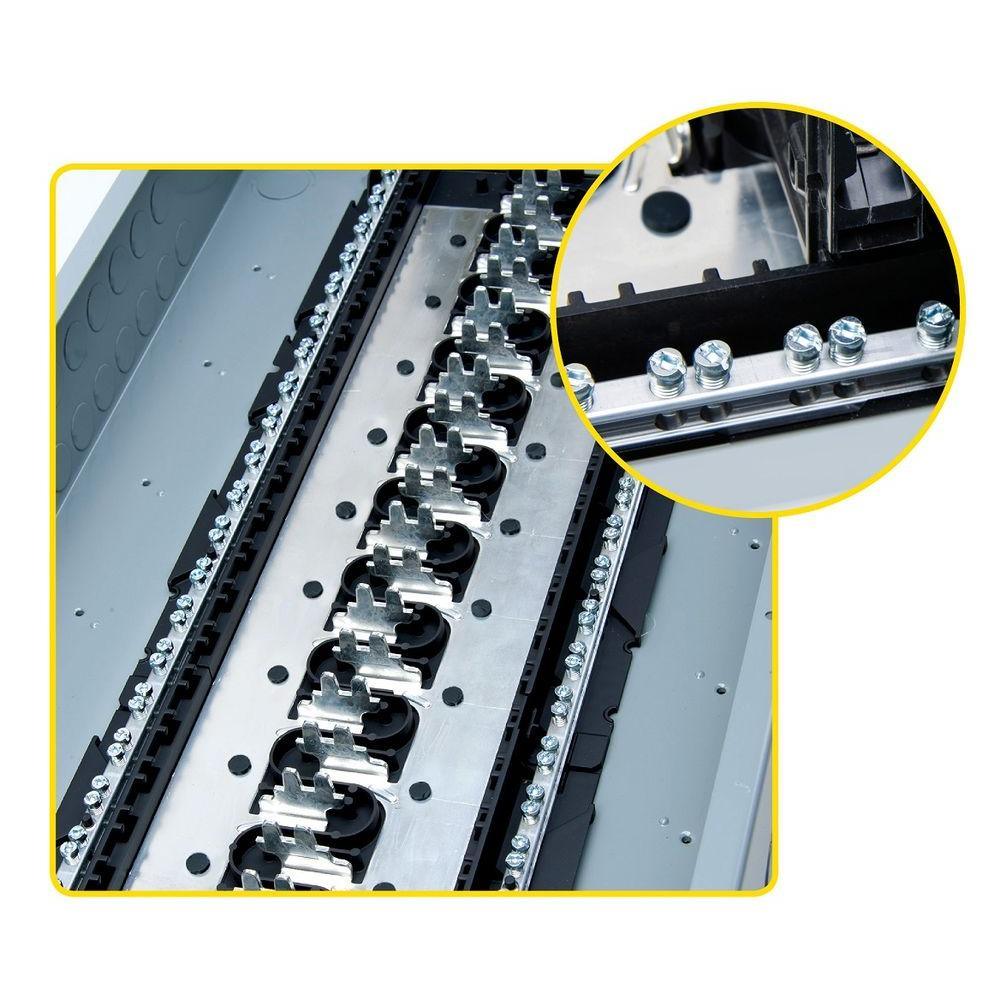

  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA





Features
Item Weight 32.9
Number of Circuits 16
Number of Spaces 8
Voltage (volts) 120/240
Product Weight (lb.) 32.9
Load Center Type Main Breaker
Mounting Type Plug-On Neutral
Load Center Mounting Type Surface
Electrical Product Type Load Center
Indoor/Outdoor Outdoor
Returnable 180-Day
Phase Type 1 Phase
Maximum Amperage (amps) 150

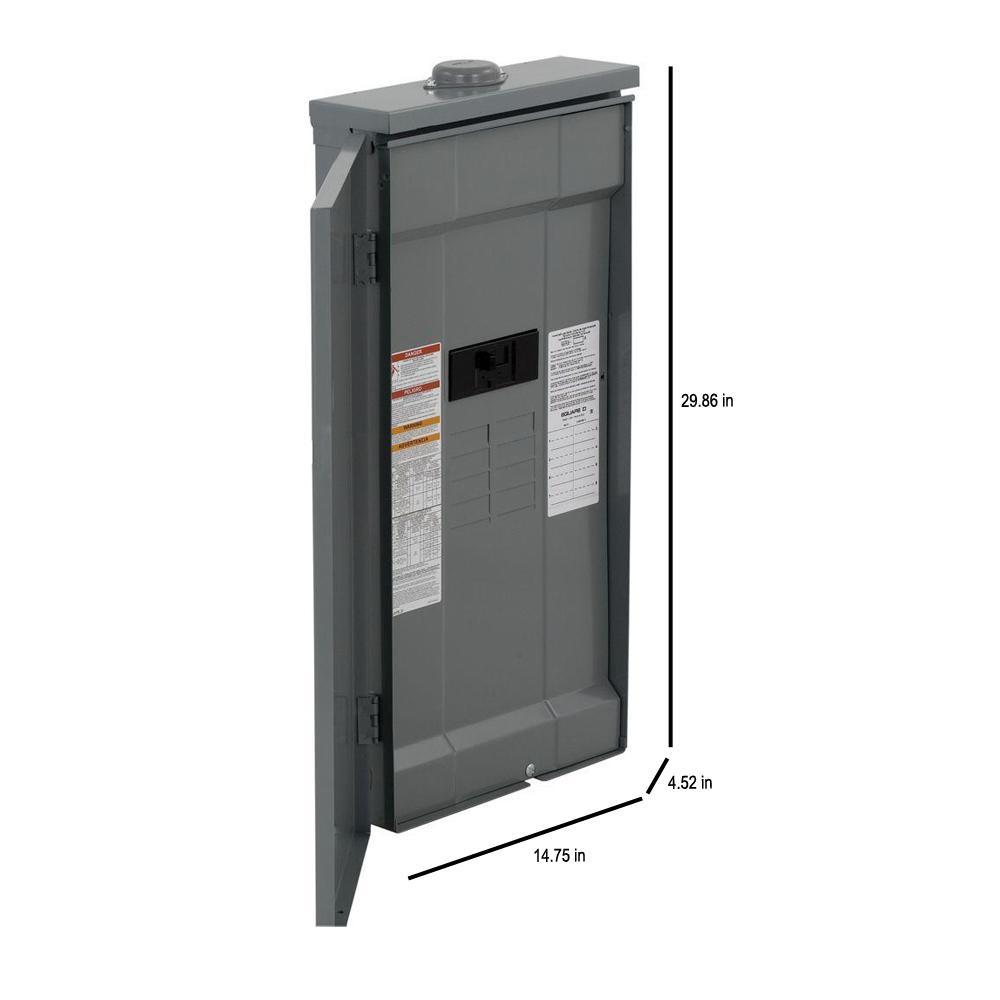

Load center depth (in.) 4.52
Load center height (in.) 29.86
Load center width (in.) 14.75
Manufacturer Warranty Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Certifications and Listings UL Listed
