QO 200 Amp 30-Space 40-Circuit Indoor Main Breaker Load Center with Cover - Value Pack
Regular price $0.00/
Shipping calculated at checkout.
The Square D by Schneider Electric QO 200 Amp 30-Space 40-Circuit Convertible Main Breaker Indoor Load Center Value Pack is UL listed for residential, commercial and industrial power distribution. This load center is built with a shielded, copper bus bar that is plated for reliability. QO load centers are tested and listed only for QO circuit breakers. QO load centers are the "World's Finest" designed with industry leading features for flexible application. QO load centers include features engineered for fast installation and wire savings.
Features
- California residents

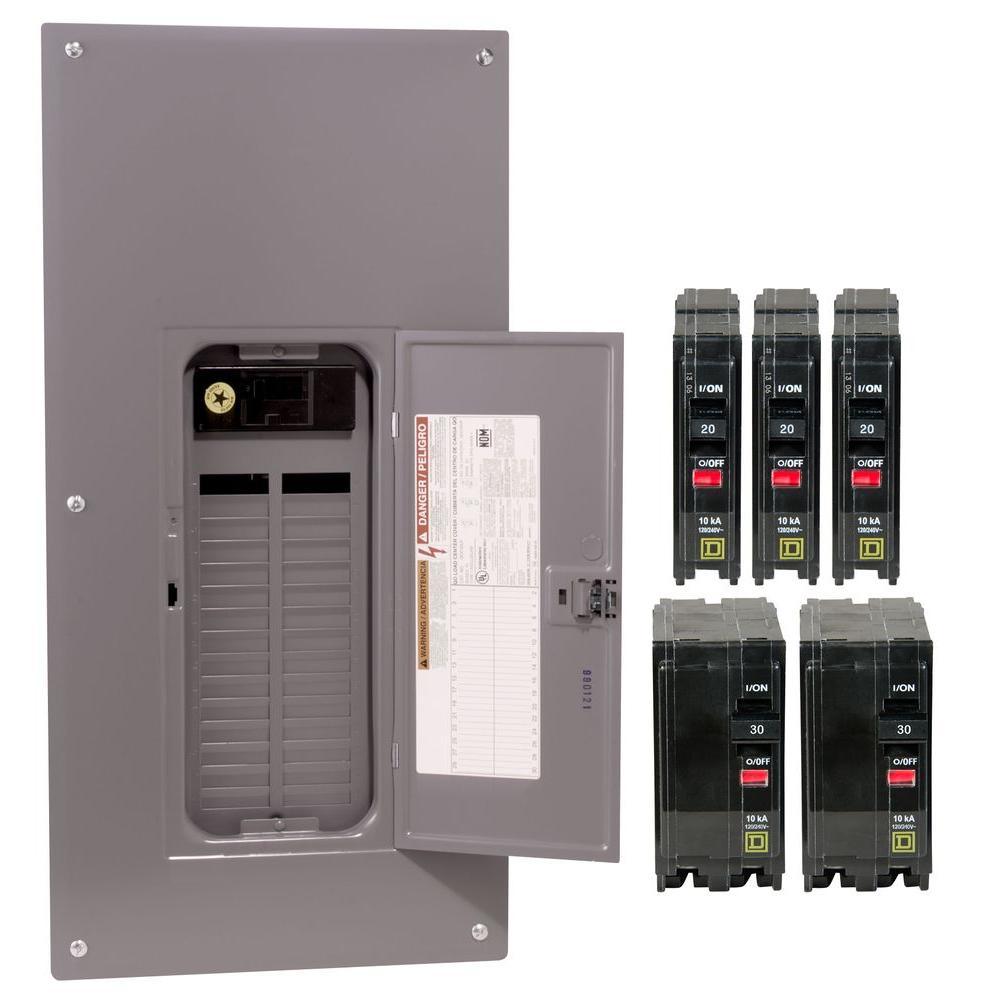

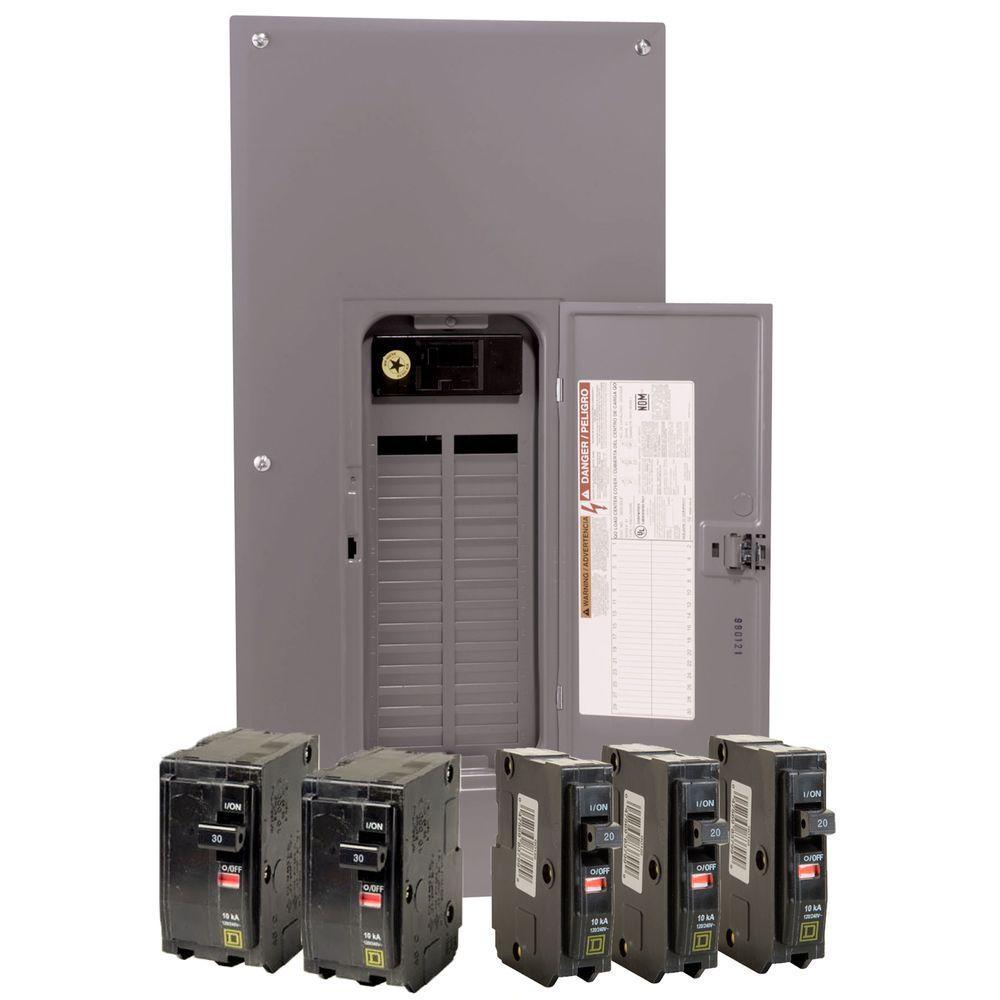

- Includes (3) QO120 QO 20 Amp single-pole circuit breakers, (2) QO230 QO 30 Amp double-pole circuit breakers, (1) QO13040M200C 30 space, 40 circuit, load center with a factory installed QOM2200VH main breaker, and a combination flush/surface cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
- Single phase
- Rated 120/240-Volt AC and 22,000 AIR short circuit current rating
- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-in mains to save expensive cable and time
- Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
- Made in the USA
Features
| Item Weight | 31.73 |
| Load Center Mounting Type | Flush,Surface |
| Electrical Product Type | Load Center and Breaker Kit |
| Voltage (volts) | 120/240 |
| Number of Spaces | 30 |
| Load Center Type | Main Breaker |
| Indoor/Outdoor | Indoor |
| Product Weight (lb.) | 31.73 |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Mounting Type | Plug-On |
| Maximum Amperage (amps) | 200 |
| Number of Circuits | 40 |
| Load center width (in.) | 14.25 |
| Load center depth (in.) | 3.75 |
| Load center height (in.) | 29.86 |
| Manufacturer Warranty | Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty. |
| Certifications and Listings | UL Listed |
