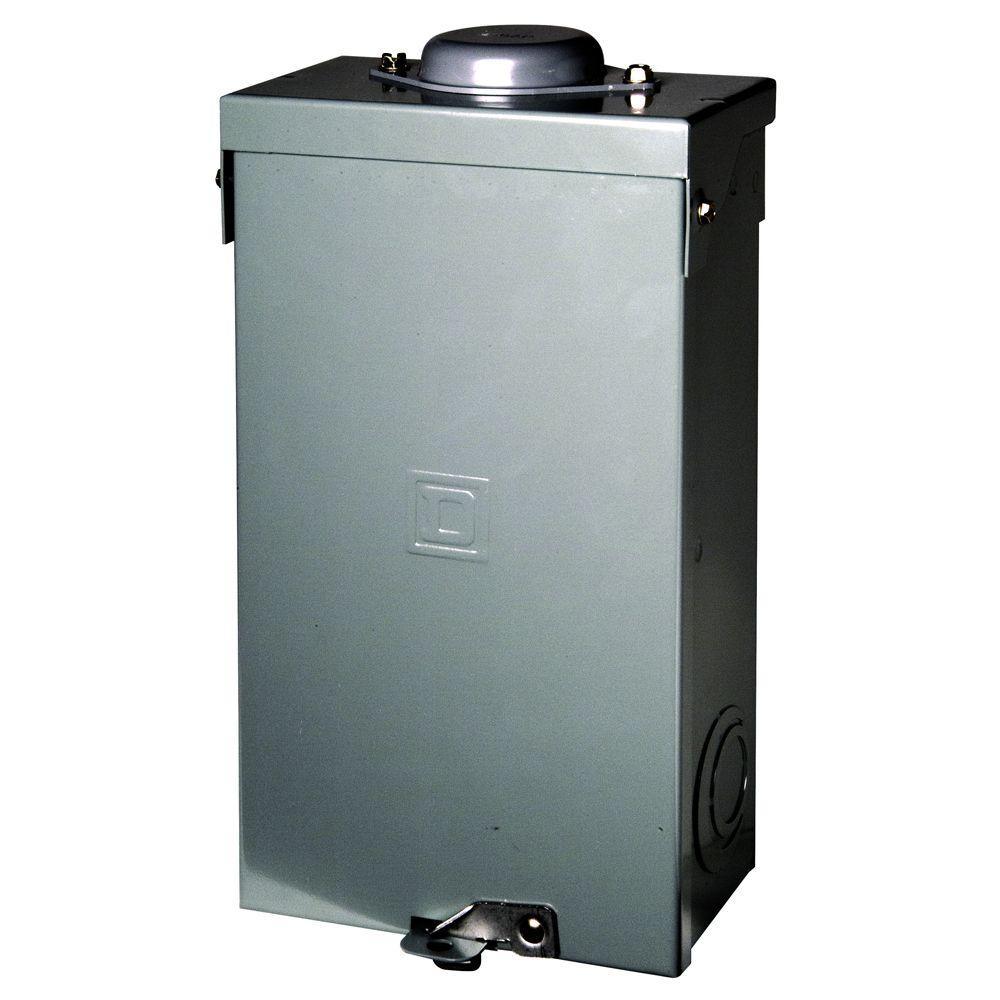

QO 100 Amp 2-Pole Outdoor Circuit Breaker Enclosure
Regular price $0.00/
Shipping calculated at checkout.
The Square D by Schneider Electric QO Outdoor Circuit Breaker Enclosure accepts QO two-pole breakers up to 100 Amps and is suitable for use as service entrance equipment. This device is rated Type-3R for outdoor use. This enclosure accepts a B-Hub for top feed applications (Circuit Breakers and B-Hubs sold separately). For non-service entrance equipment applications, ground bar PKOGTA-2 may be needed and is sold separately.
Features
- California residents
- QO 100 Amp outdoor circuit breaker enclosure
- PKOGTA-2 ground bar kit and B-hubs sold separately
- Not for use with single-pole breakers. Two-pole QO, QO-GFI, QO-AFI, QO-EPD and QO-PL circuit breakers sold separately
- Type-3R enclosure for outdoor use
- Single-phase, 100 Amp, 120/240-Volt AC rated
- 2-1/2 in. type-B hub on the top and a 1-1/2 in. maximum knockout on the bottom
- Surface mountable for easy installation
- ANSI certified and UL listed
Features
| Item Weight | 8.42 |
| Maximum Amperage (amps) | 100 |
| Product Weight (lb.) | 8.42 lb |
| Number of Circuits | 2 |
| Voltage (volts) | 120/240 |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Surface |
| Electrical Product Type | Load Center |
| Indoor/Outdoor | Outdoor |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Mounting Type | Plug-On |
| Number of Spaces | 2 |
| Load center width (in.) | 6.92 |
| Load center depth (in.) | 4.12 |
| Load center height (in.) | 13.12 |
| Manufacturer Warranty | Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty. |
| Certifications and Listings | UL Listed |
