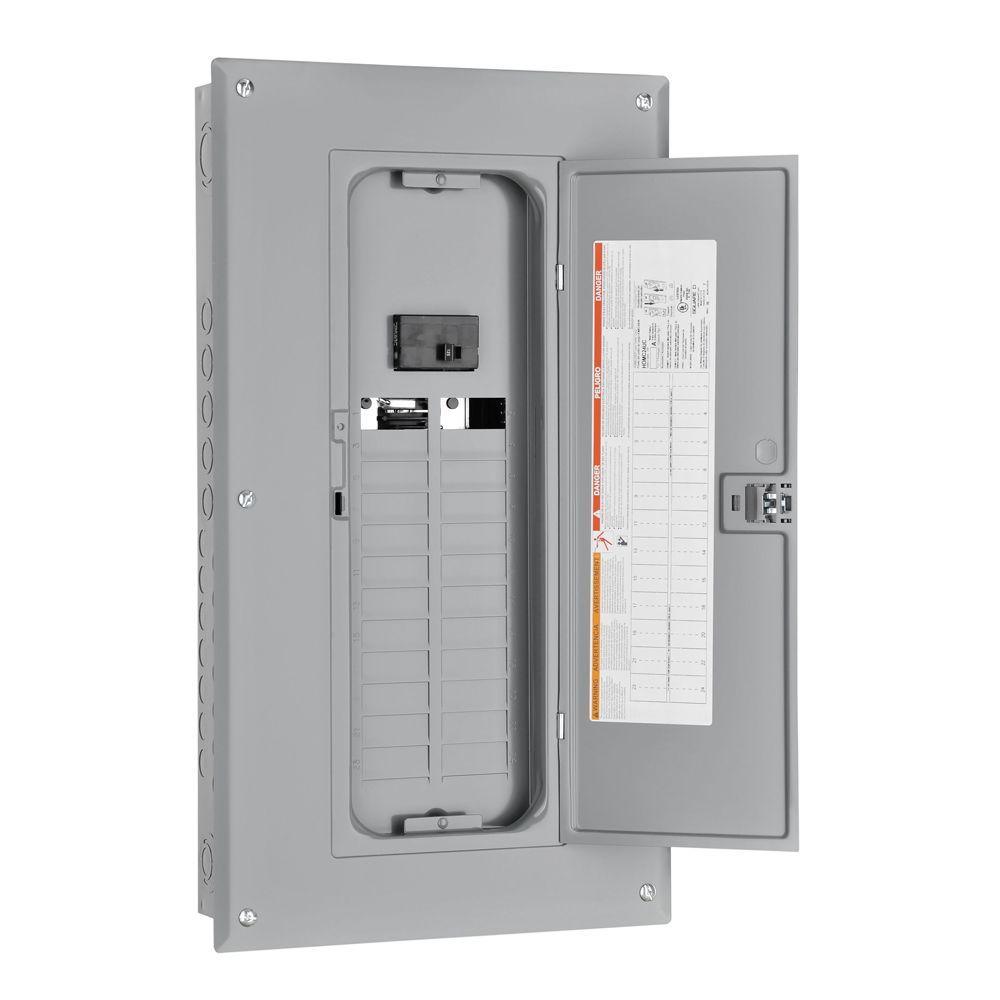

Homeline 125 Amp 24-Space 24-Circuit Indoor Main Breaker Load Center with Cover
Regular price $0.00/
Shipping calculated at checkout.
The Square D Homeline 125 Amp 24-Space 24-Circuit Indoor Convertible Main Breaker Load Center is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
Features
- Includes a combination flush/surface indoor cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
- Single phase
- Rated 120/240-Volt AC and 22,000 AIR short circuit current rating
- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-in mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/Square Drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
- Made in the USA
Features
| Item Weight | 25.45 |
| Load Center Type | Main Breaker |
| Indoor/Outdoor | Indoor |
| Returnable | 180-Day |
| Number of Spaces | 24 |
| Number of Circuits | 24 |
| Maximum Amperage (amps) | 125 |
| Voltage (volts) | 120/240 |
| Electrical Product Type | Load Center |
| Indoor/Outdoor2 | Indoor |
| Number of Phases | 1 |
| Mounting Type | Plug In |
| Product Weight (lb.) | 25.15 |
| Phase Type | 1 Phase |

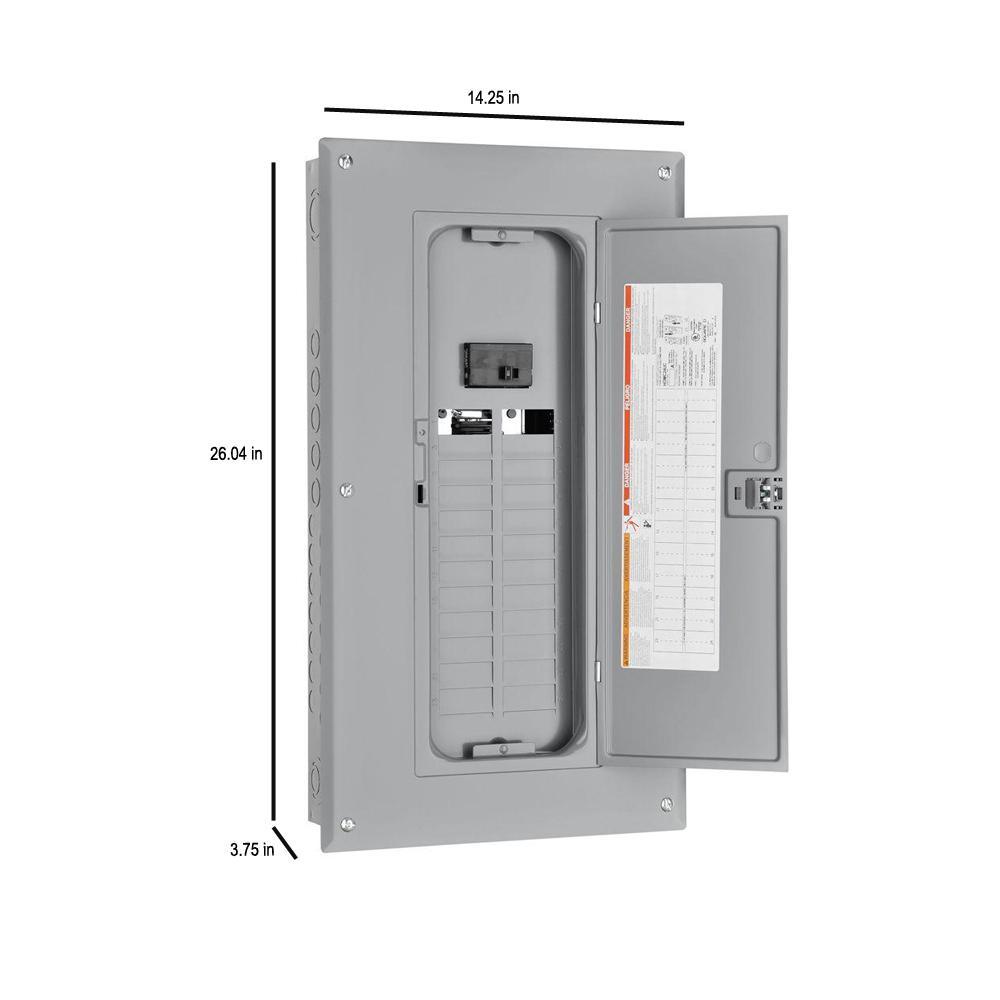

| Load center width (in.) | 14.25 |
| Load center depth (in.) | 3.75 |
| Load center height (in.) | 26.04 |
| Manufacturer Warranty | Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |
| Certifications and Listings | UL Listed |
