Eaton

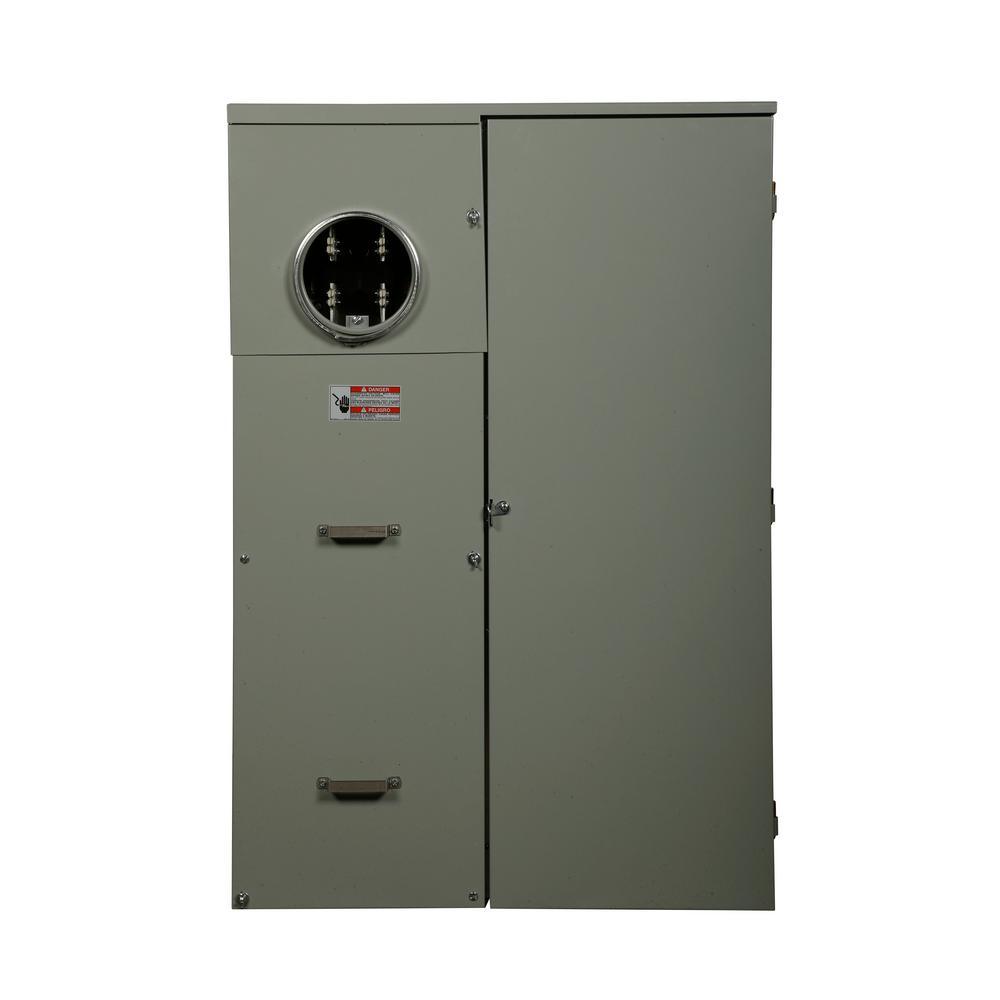

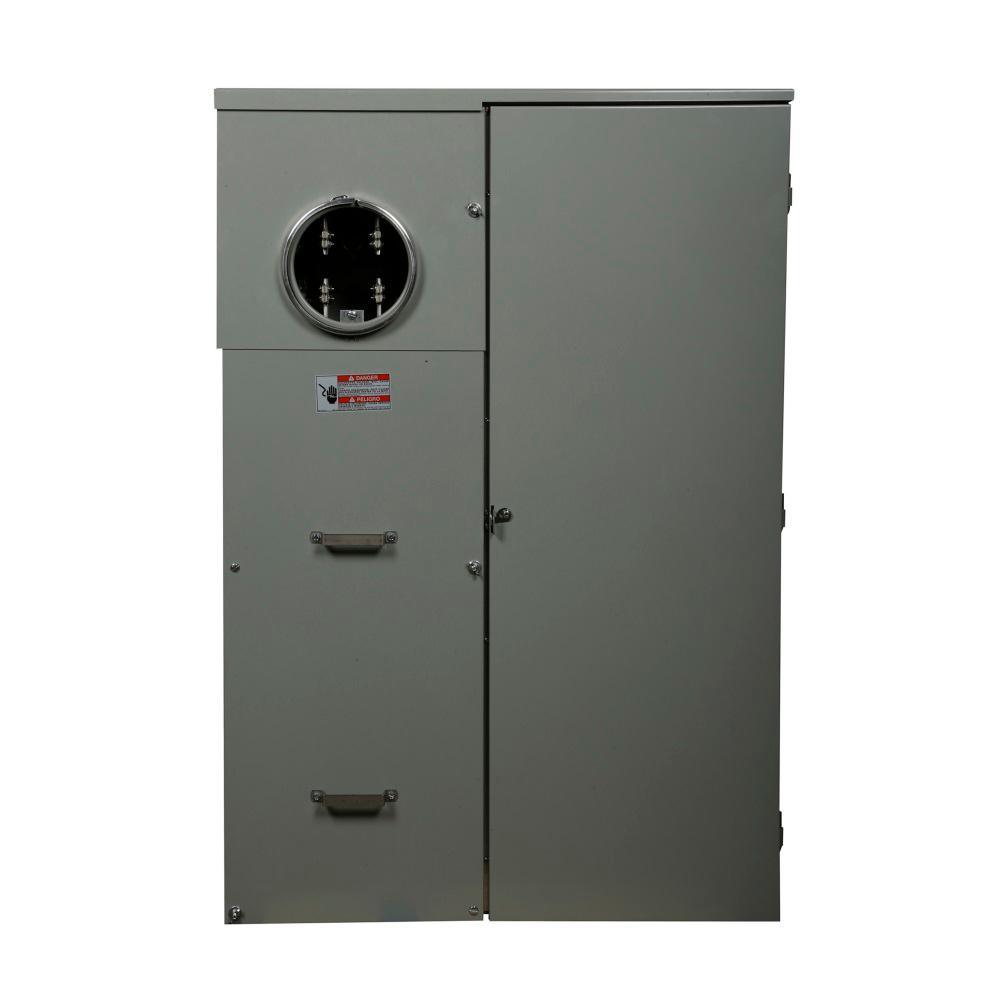

400 Amp 42-Space 42-Circuit Type CH Meter Socket and Main Breaker Load Center
$3,480.99
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU 304547784
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
The Eaton 400 Amp 42-Space 42-Circuit Type CH Meter Socket and Main Breaker Load Center is NEMA 3R rated for outdoor use with a rainproof design. This combination unit is intended for use as both a main breaker load center and as a meter socket and it is also rated for use as service entrance equipment. The center's load conductors can exit the top, bottom, side or back for application and installation flexibility and has a socket-to-distribution section that is connected via an insulated cable for safety.
Features
- For use as a combination main breaker load center and meter socket
- Rated for service entrance equipment
- NEMA 3R rated for outdoor use with a rainproof design
- Copper buss
Features
| Item Weight | 114 |
| Number of Circuits | 42 |
| Indoor/Outdoor | Indoor,Outdoor |
| Mounting Type | Bolt On |
| Maximum Amperage (amps) | 400 |
| Load Center Type | Main Breaker |
| Electrical Product Type | Load Center |
| Number of Spaces | 42 |
| Product Weight (lb.) | 114 lb |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Load Center Mounting Type | Flush |
| Voltage (volts) | 240/120 |
| Load center width (in.) | 32 |
| Load center height (in.) | 46 |
| Load center depth (in.) | 8 |
| Manufacturer Warranty | Limited lifetime |
| Certifications and Listings | UL Listed |
