Eaton

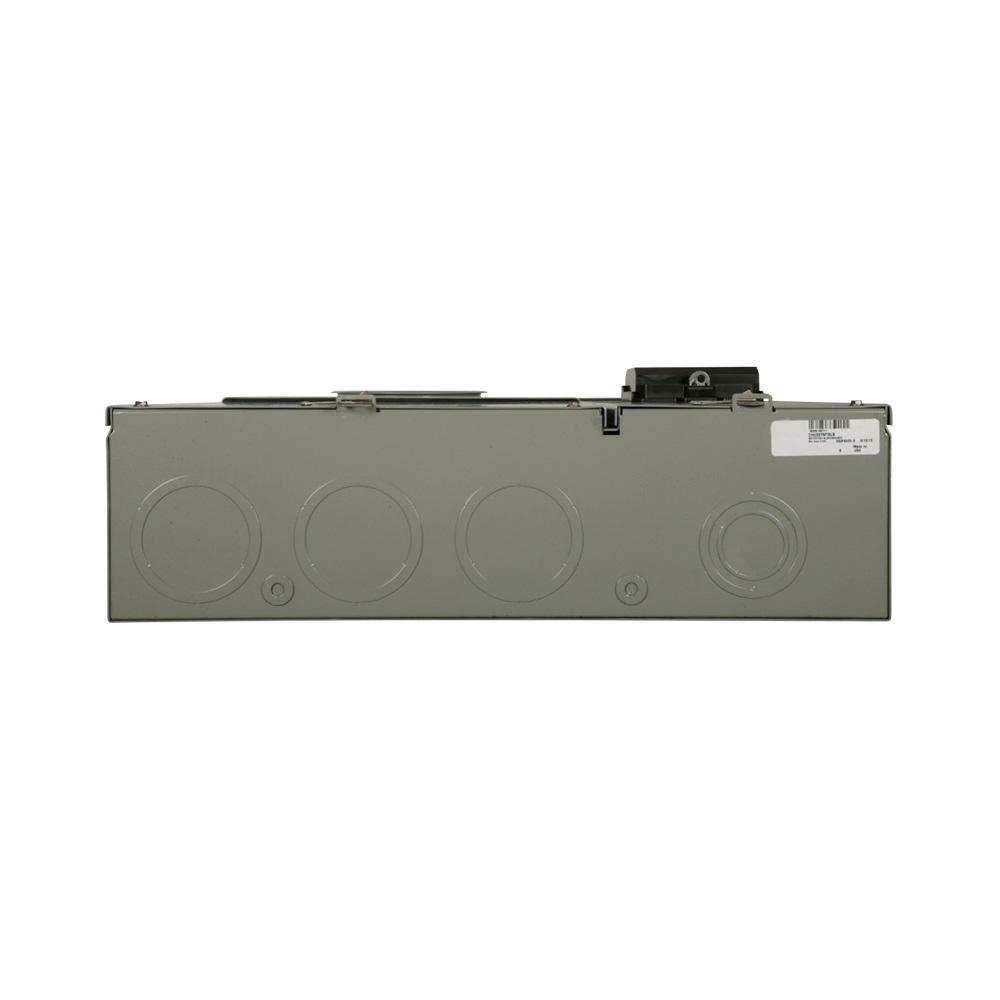

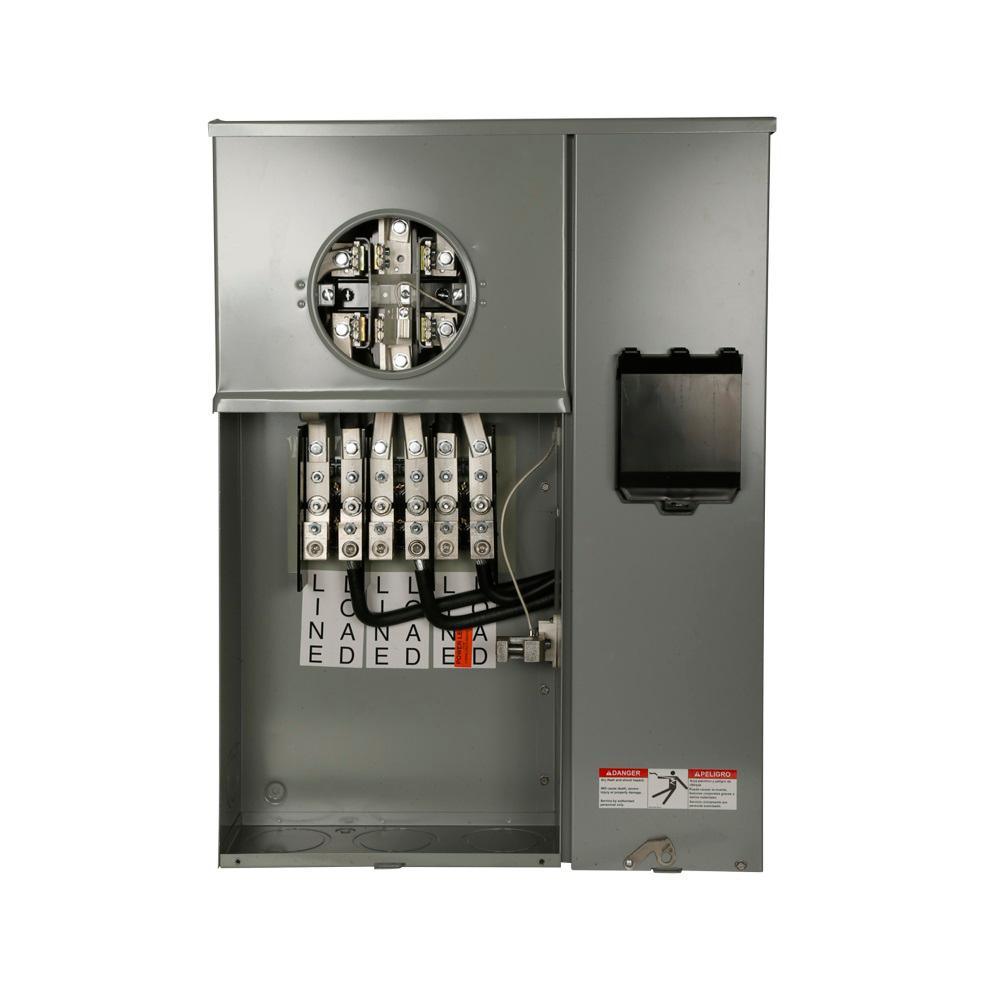

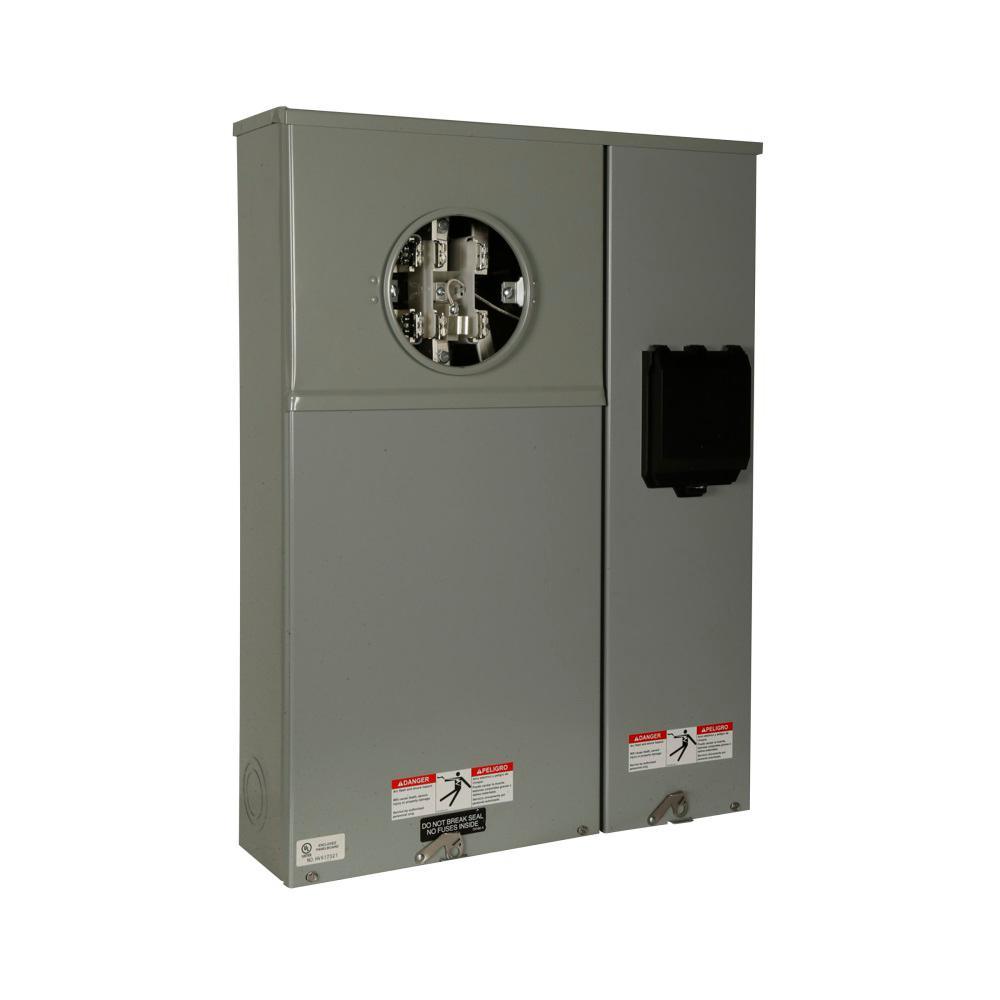

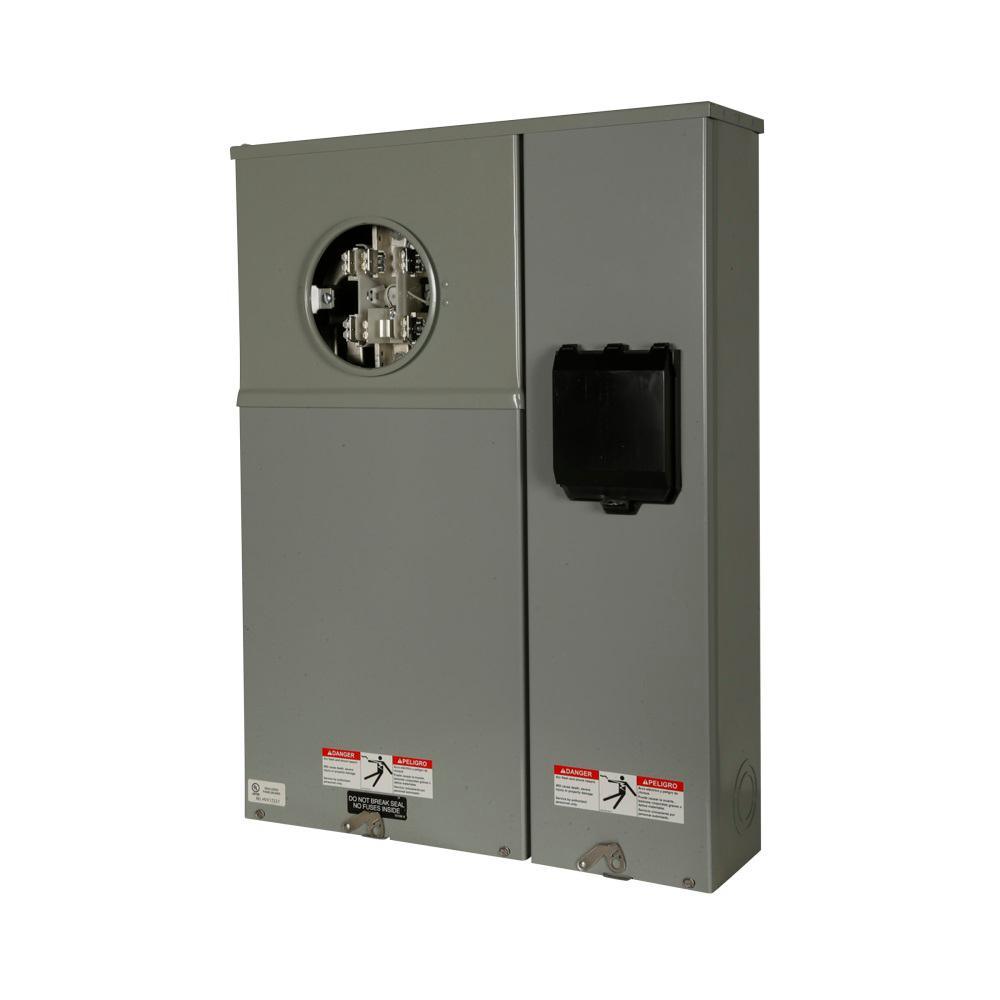

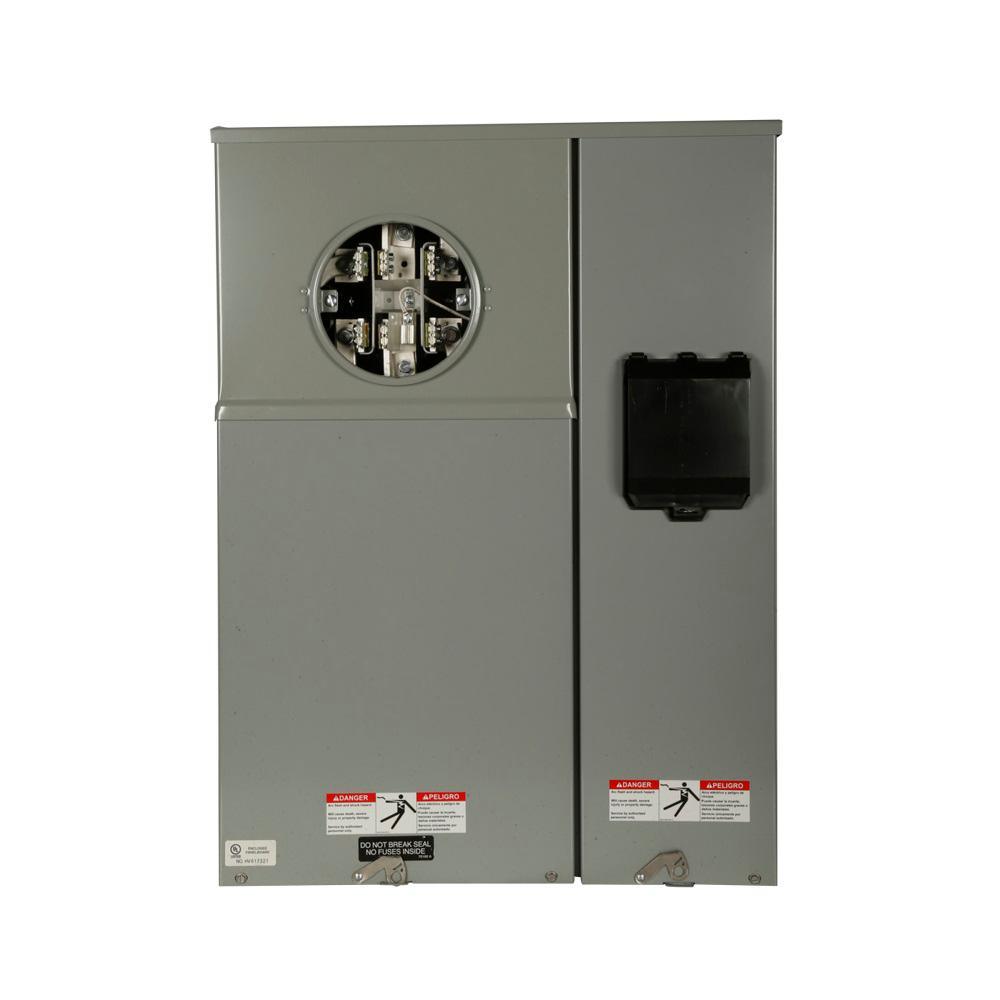

200 Amp Type CH Commercial Meter Breaker Meter Socket Panel
$1,248.60
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU 1133091361
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Eatons Commercial Safety Sockets are typically used where a single meter socket or single meter socket with a distribution section are needed. These areas could include a commercial business, commercial office building, individual retail facilities and signs and street lighting. This is a Type CH panel and only Type CH breakers can be used.
Features
- Commercial safety socket with a provision for a main circuit breaker
- Meter socket amp rating is 200 Amp
- Number of jaws - 7
- Number of sockets 1
- Service - underground
- AC voltage: 208/120
- 3-phase
- 4-wire
- Order Type CC breaker or CCH breaker separately
- Maximum interrupting rating is dependent upon the main breaker that is purchased separately, type CCV = 10 kA; Type CCVH = 25 kA
- Security: ring
- Rated nema 3R for outdoor use
- Bussed connection from meter socket to test block
- Load wires can exit top or bottom
- Used with: type CH breakers
Features
| Item Weight | 50 |
| Mounting Type | Bolt On |
| Electrical Product Type | Load Center |
| Voltage (volts) | 208/120 |
| Number of Circuits | 0 |
| Product Weight (lb.) | 50 |
| Load Center Type | Combination |
| Phase Type | 3 Phase |
| Indoor/Outdoor | Outdoor |
| Number of Spaces | 0 |
| Returnable | 180-Day |
| Maximum Amperage (amps) | 200 |
| Load Center Mounting Type | Flush |
| Load center height (in.) | 8 |
| Load center width (in.) | 34 |
| Load center depth (in.) | 34 |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | Limited Lifetime |
