Eaton

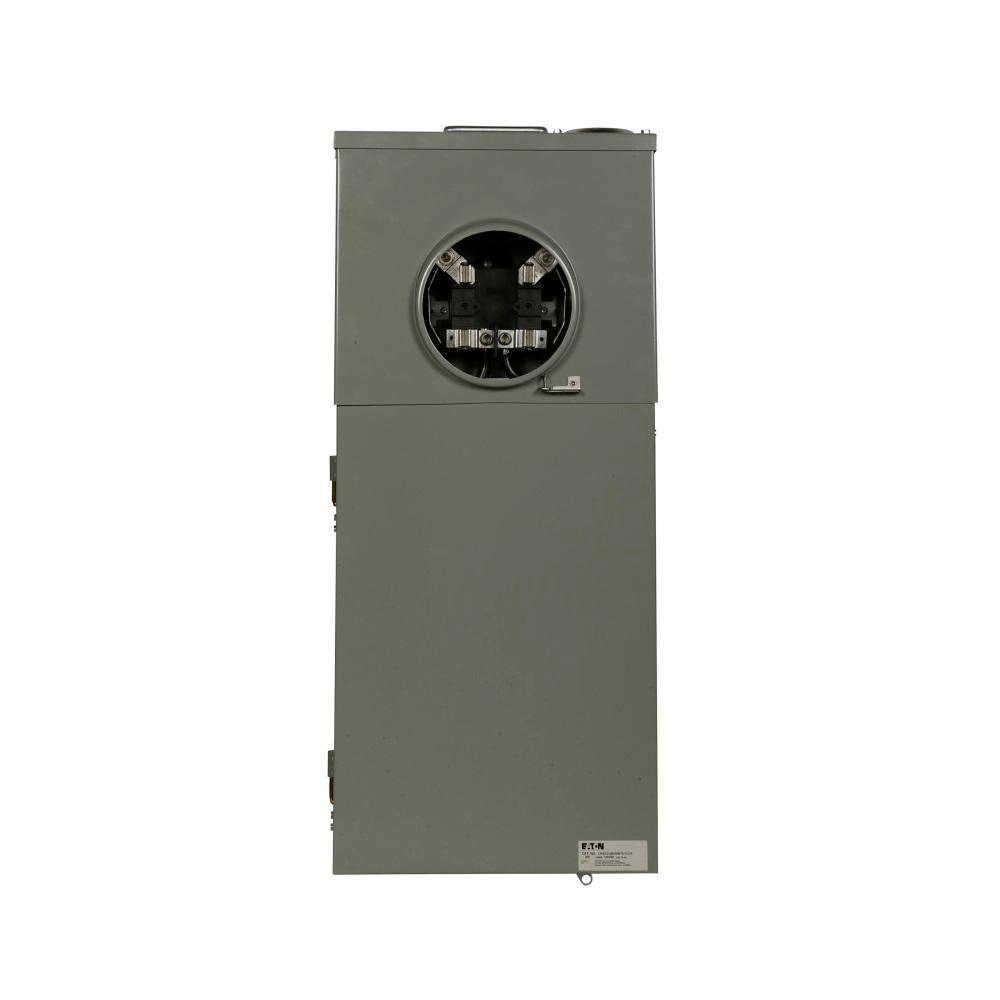

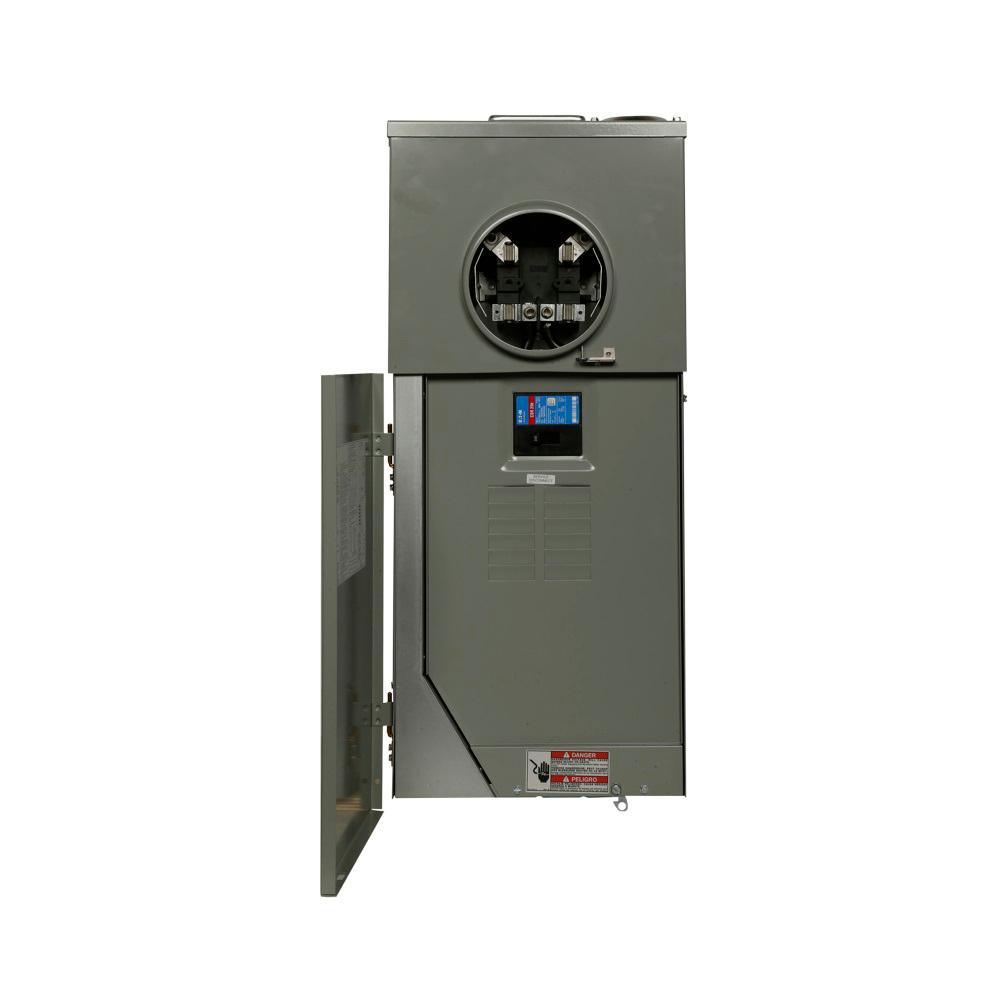

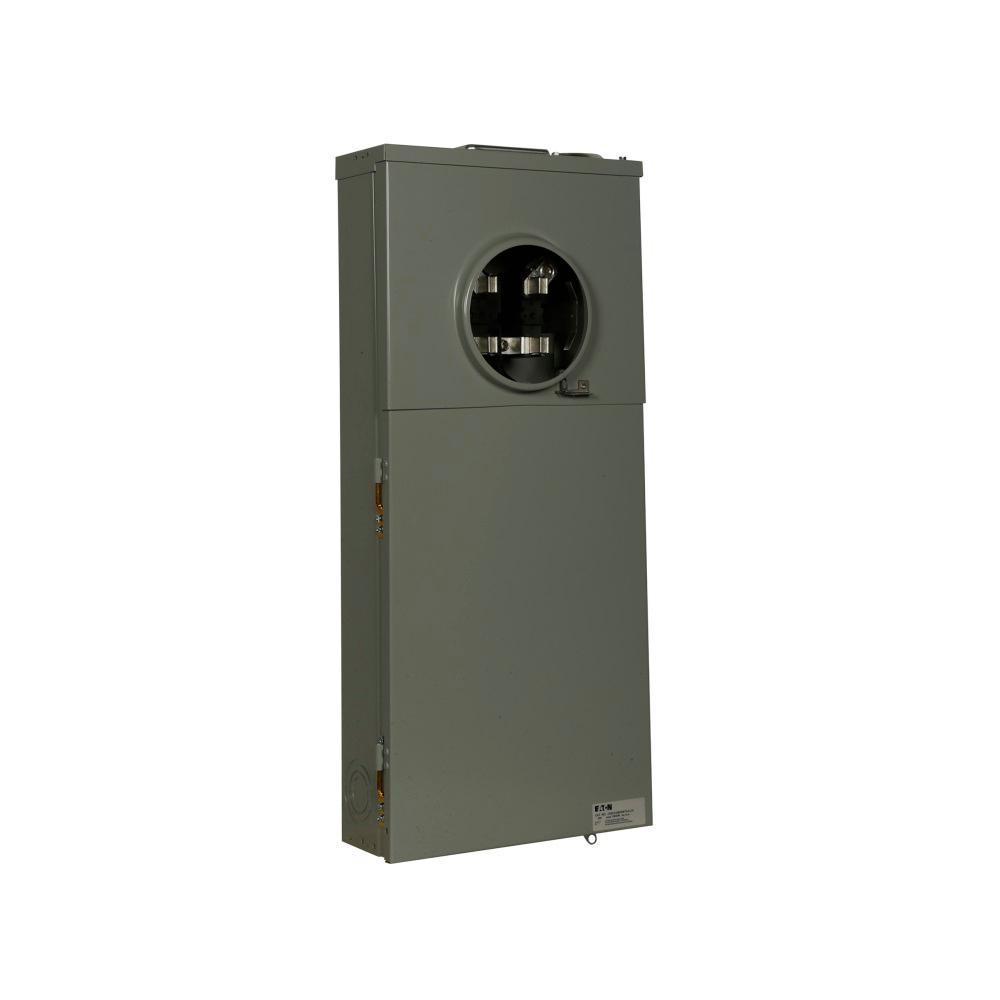

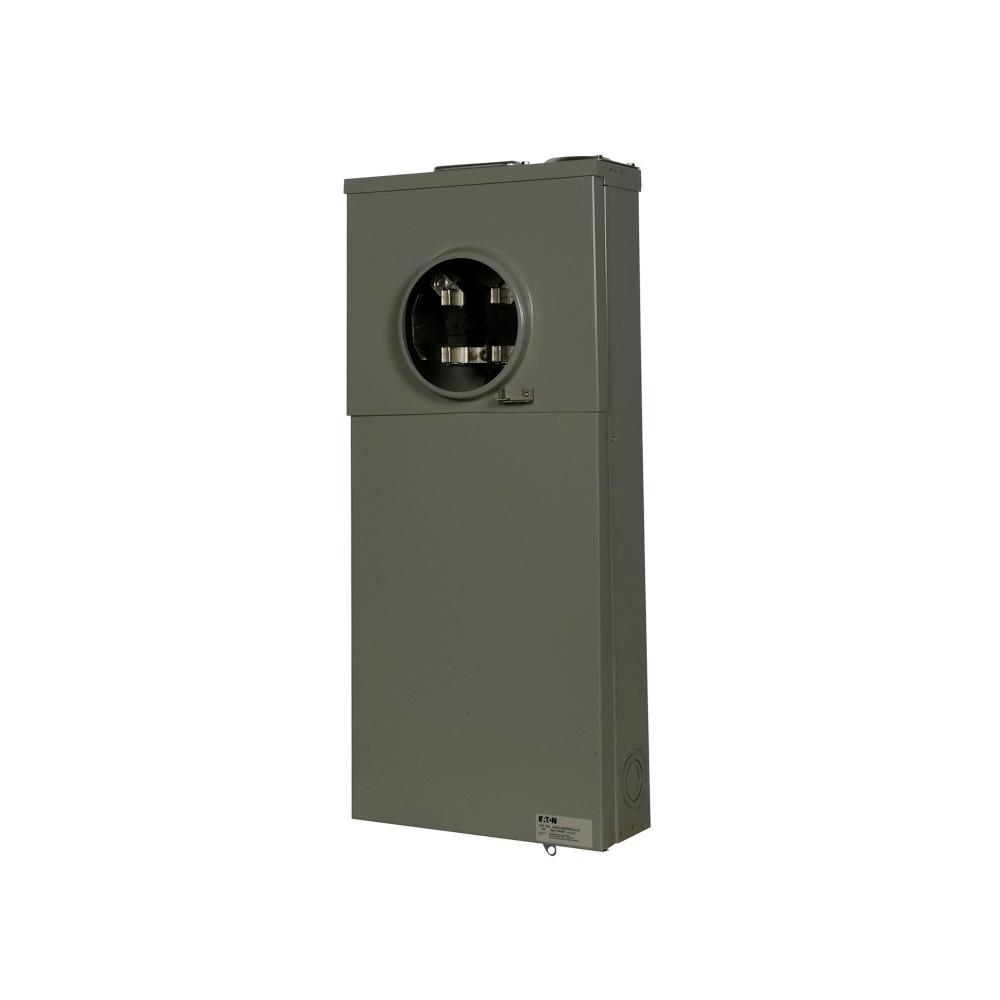

CH 200 Amp 12-Space 12-Circuit Non-EUSERC Meter Breaker Panel
Not priced yet
Gone — not just here.
Substitutes below — from the same aisle.
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Eaton's residential meter breakers are service entrance equipment systems that consist of a single meter socket and load center distribution section. This type of configuration is also known as All-in Ones. This design provides the contractor with labor and material savings. The meter breakers are constructed to meet the latest NEC wire bending space requirements.
Features
- Type CH NON-EUSERC residential meter breaker
- Amperage rating: 200 Amp
- Bus material: aluminum
- Rated NEMA 3R for outdoor use
- Feed type: overhead/underground
- Interrupt rating: 10 kAIC
- Main circuit breaker: CSR2200
- Mounting: surface mounting
- Number of spaces: 12
- Number of circuits: 12
- Number of jaws: 4-jaws
- Number of sockets: 1
- Phase: single-phase
- Security: Ringless
- Voltage rating: 120/240-Volt
- Used with: Type CH breakers
Features
| Item Weight | 42 |
| Mounting Type | Bolt On |
| Product Weight (lb.) | 42 |
| Voltage (volts) | 120/240 |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Surface |
| Electrical Product Type | Load Center |
| Phase Type | 3 Phase |
| Indoor/Outdoor | Outdoor |
| Returnable | 180-Day |
| Number of Circuits | 12 |
| Maximum Amperage (amps) | 200 |
| Number of Spaces | 12 |
| Load center depth (in.) | 32.5 |
| Load center height (in.) | 5.5 |
| Load center width (in.) | 14.5 |
| Certifications and Listings | ANSI Certified,UL Listed |
| Manufacturer Warranty | Limited Lifetime |
