Eaton

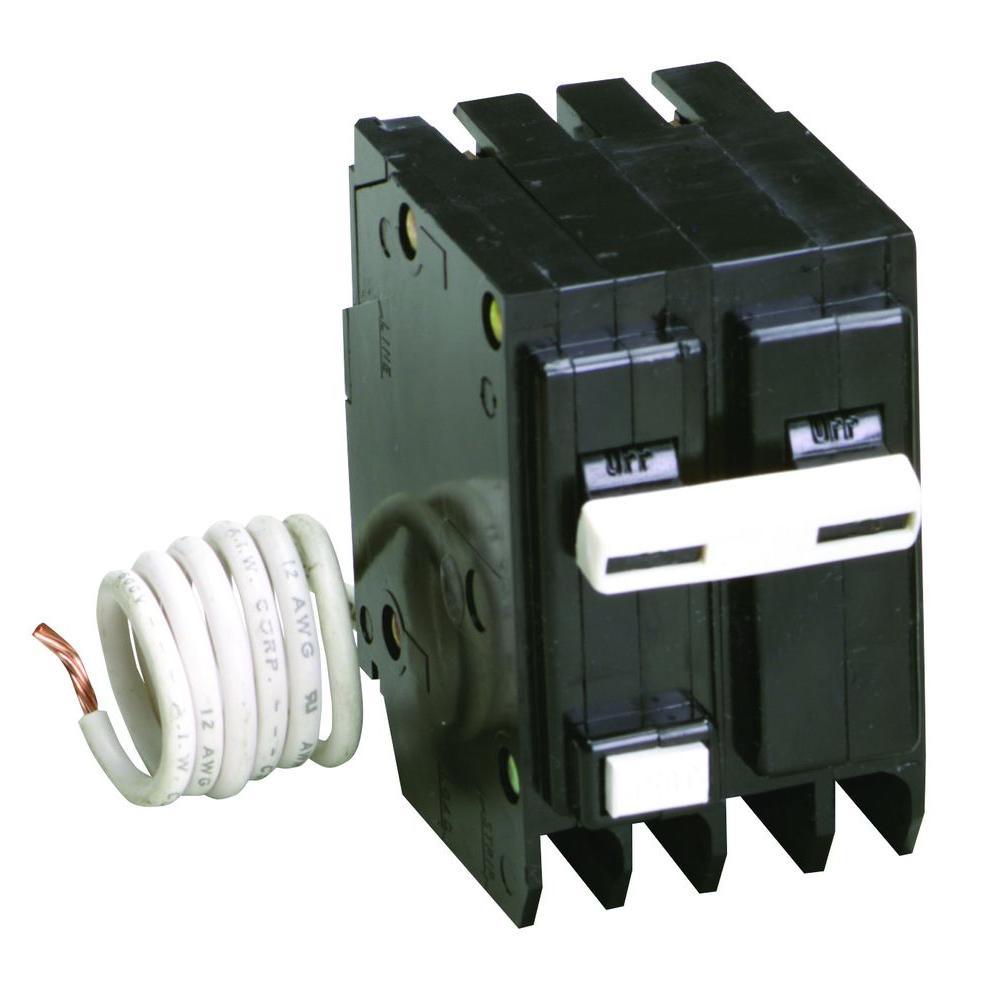

BR 20 Amp 2 Pole Self Test Ground Fault Circuit Breaker
from $97.24
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU 206677554
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Eaton's BR ground fault current interrupters (GFCIs) are 1 in. wide and provide superior safety over a standard electrical outlet in areas where electricity may come into contact with water. GFCIs are required in any application near water such as kitchen countertops, bathrooms, swimming pools, hot tubs, and outdoor receptacles. They immediately break the circuit when electrical current leakage is detected, reducing the risk of shock and electrocution. This circuit breaker periodically runs a self-test diagnostic and complies UL 943, Fourth Edition.
Features
- Amperage-20 Amp
- Double pole breaker
- Self-test GFCI
- For use in type BR load centers
- Interrupt rating-10 kAIC
- Voltage rating is 120/240V
- 5mA ground fault protection
- Periodic self-test diagnostic ensures ground fault detection and protection is functional
Features
| Item Weight | 4.10 |
| Number of Poles | 2 |
| Voltage (volts) | 120/240 |
| Product Weight (lb.) | .89 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Mounting Type | Plug In |
| Interruption Type | GFCI |
| Returnable | 180-Day |
| Breaker Type | Double Pole |
| Maximum Amperage (amps) | 20 |
| Electrical Product Type | Breaker |
| Product Height (in.) | 6.75 |
| Product Depth (in.) | 2.20 |
| Product Width (in.) | 4.10 |
| Manufacturer Warranty | 5 Year Per the Warranty Statement |
| Certifications and Listings | UL Listed |
