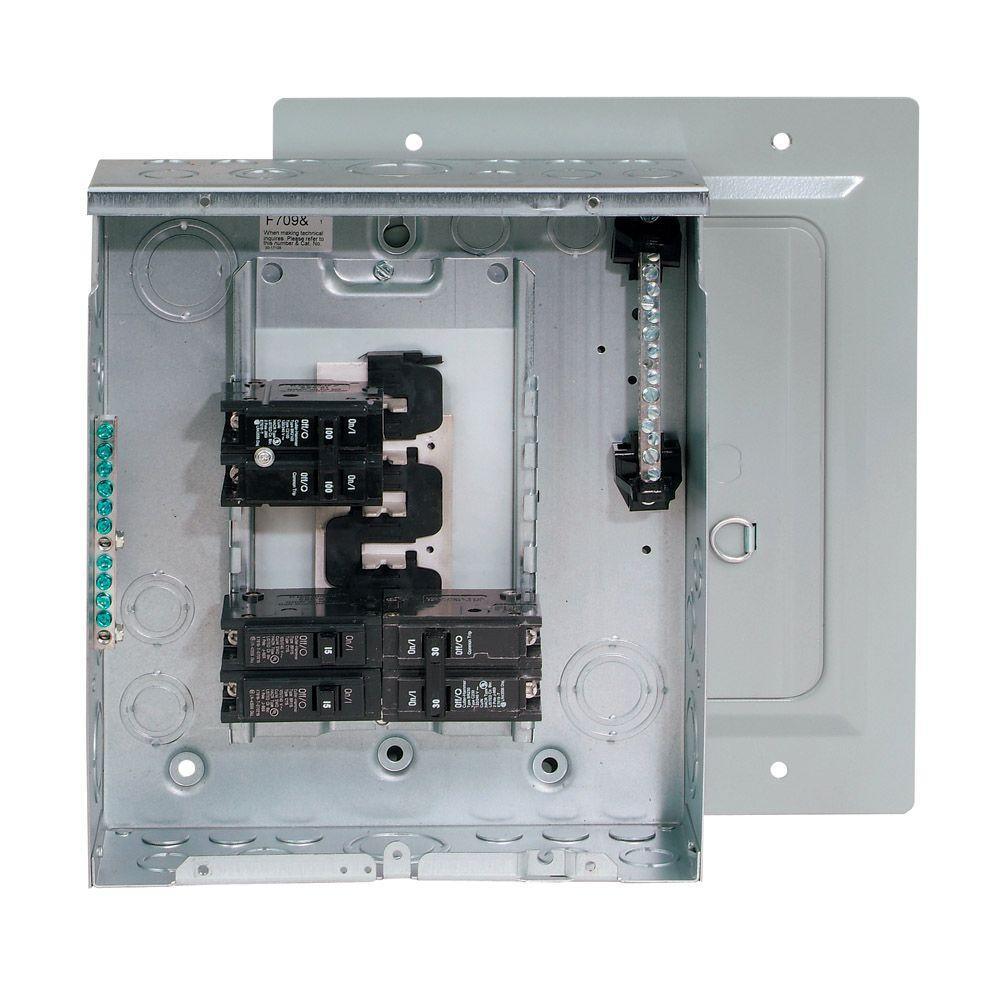

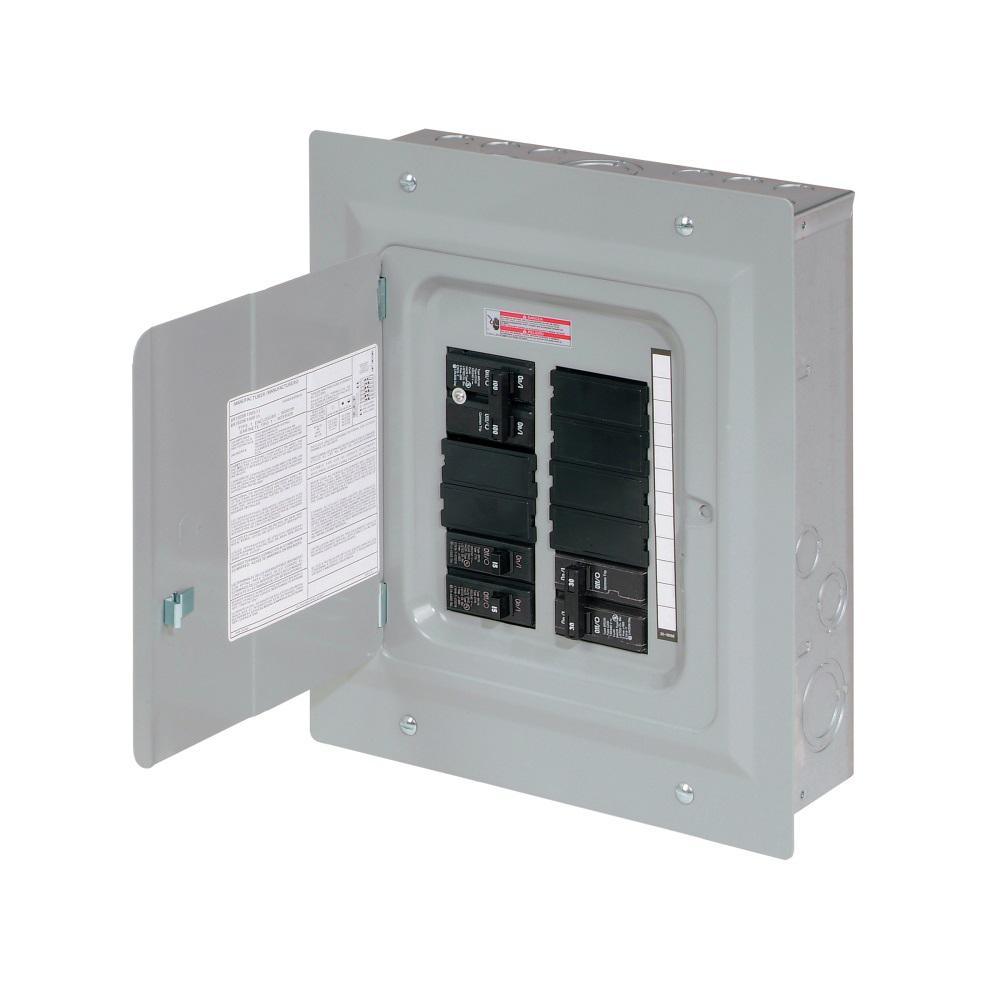

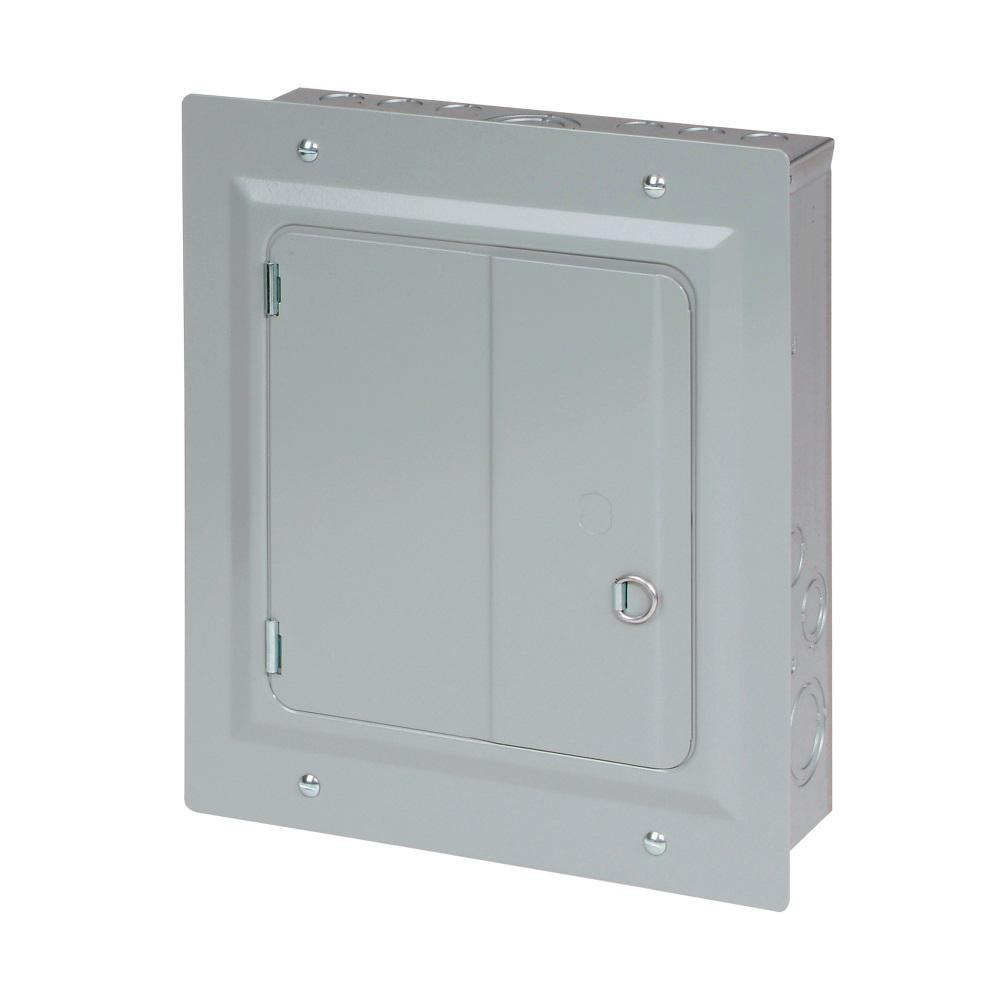

BR 100 Amp 10-Space 20-Circuit Indoor Main Breaker Renovation Loadcenter Value Pack - Super Arbor

Eaton

From the Eaton hall The buying guide

BR 100 Amp 10-Space 20-Circuit Indoor Main Breaker Renovation Loadcenter Value Pack

Not priced yet

Gone — not just here.

Substitutes below — from the same aisle.

Start your list

No published price on this one yet — put it on your list.

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

This panel carries the 'Quick Pro' logo known for quick and straightforward installation. It's ideal for garages, home additions and workshops. Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR1020B100FRNV is a 100 Amp main breaker with 10-spaces and 20-circuits. It is a value pack for the cost-conscious home owner or contractor. The value pack consists of the load center (and cover) plus 2-1P 15 Amp and 1-2P 30 Amp breakers.
  • Amperage rating: 100 Amp
  • Bus material: aluminum
  • Rated NEMA 3R for outdoor use
  • Feed type: bottom or top which allows for straight-in wiring that saves labor and material
  • Interrupt rating: 10 kAIC
  • Mounting: flush
  • Number of circuits: 20
  • Number of spaces: 10
  • Phase: single-phase
  • Designed to replace existing load centers and fuse boxes
  • Factory installed 5-circuit terminal block(s) which allows the installer to terminate existing short wires without using wire nuts or junction boxes
  • Twin-stacked neutrals are mounted up high in the load center, which allows for all neutral and ground wires to be terminated in the top half of the load center
  • Includes 2 BR115 and 1 BR230 circuit breakers
  • Used with: type BR breakers





Features
Item Weight 12.07
Mounting Type Bolt On
Maximum Amperage (amps) 100
Electrical Product Type Load Center and Breaker Kit
Voltage (volts) 120/240
Load Center Type Main Breaker
Indoor/Outdoor Indoor
Product Weight (lb.) 11.27
Number of Spaces 10
Number of Circuits 20
Returnable 180-Day
Phase Type 1 Phase
Load Center Mounting Type Flush
Load center width (in.) 11.228
Load center depth (in.) 3.556
Load center height (in.) 13.0
Certifications and Listings ANSI Certified,CSA Listed,UL Listed
Manufacturer Warranty 10 Years
