BR 20 Amp Single Pole Circuit Breaker - Super Arbor

Eaton

From the Eaton hall The buying guide

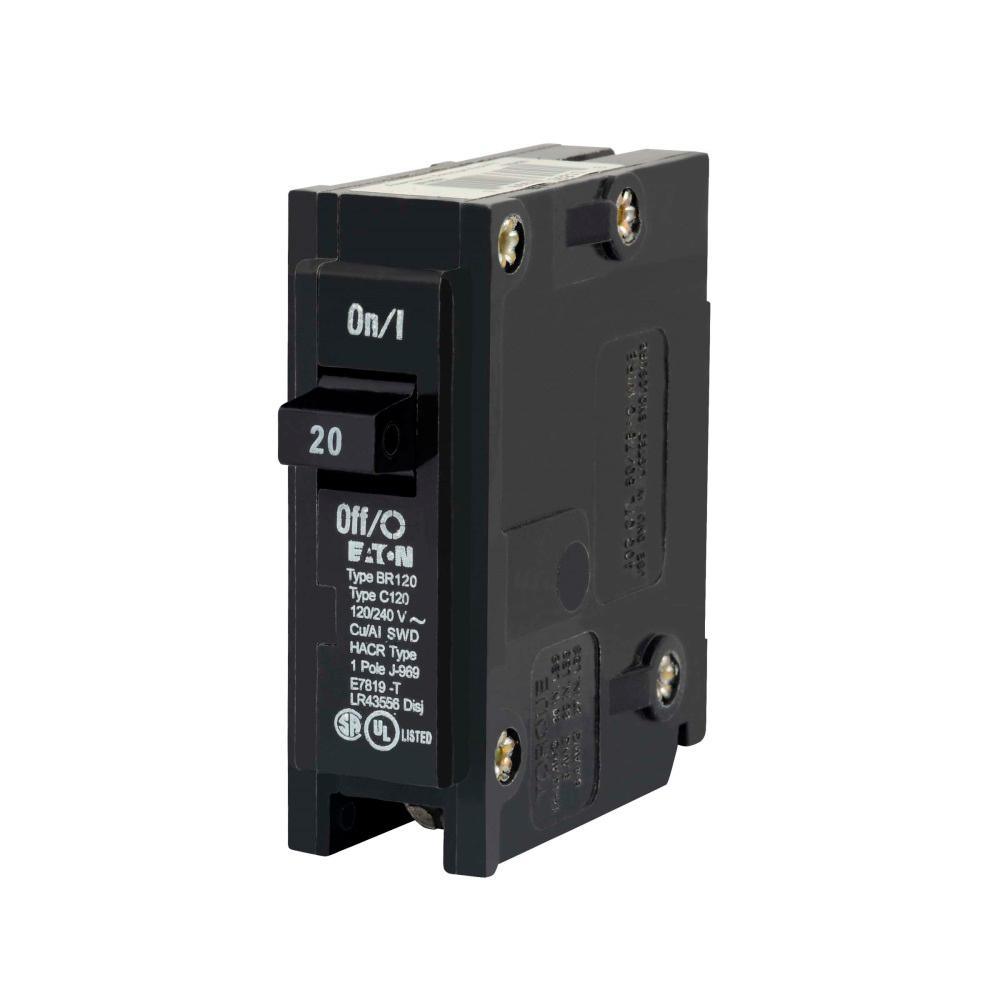

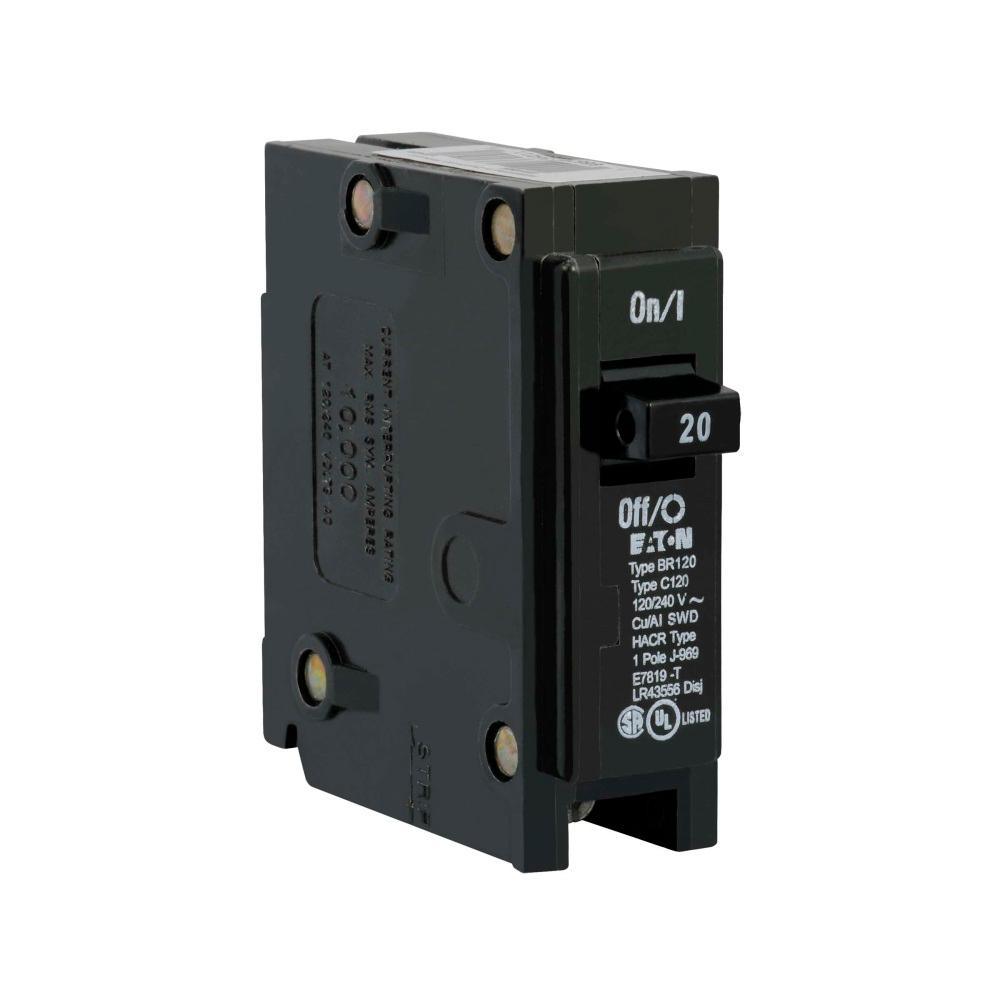

BR 20 Amp Single Pole Circuit Breaker

$5.54

Published price — same for everyone

Gone — not just here.

Substitutes below — from the same aisle.

SKU 409456796

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

The Eaton Cutler-Hammer 20 Amp 1 in. Single-Pole Type BR Replacement Circuit Breaker is designed to protect house wires from overheating or causing a short-circuit. Single pole breaker applications include use with dishwashers, waste disposals, refrigerators, freezers, washing machines, televisions and window air conditioners. The UL-listed breaker is compatible with Westinghouse, Challenger and Bryant load centers and has a maximum load of 240-Volt.
  • Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
  • Amperage rating: 20 Amp
  • Single pole 1 in. wide breaker
  • Trips to center position - must turn off then turn back on
  • For use in type BR load centers
  • Type BR breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger and Bryant
  • Interrupt rating - 10 kAIC
  • Voltage rating is 120/240-Volt
  • Wire size - #14-4 AWG Cu/Al at 60°C or 75°C
  • Gauge/number of wires with ground - 12/2





Features
Item Weight .3
Product Weight (lb.) 0.26
Voltage (volts) 120/240
Number of Poles 1
Power Distribution Features No Additional Features
Pack Size 1
Mounting Type Plug In
Returnable 180-Day
Breaker Type Single Pole
Maximum Amperage (amps) 20
Interruption Type Standard Trip
Electrical Product Type Breaker
Product Height (in.) 2.9245
Product Width (in.) 0.981
Product Depth (in.) 2.89
Certifications and Listings ANSI Certified,UL Listed
Manufacturer Warranty 5 Year Per the Warranty Statement
