Eaton

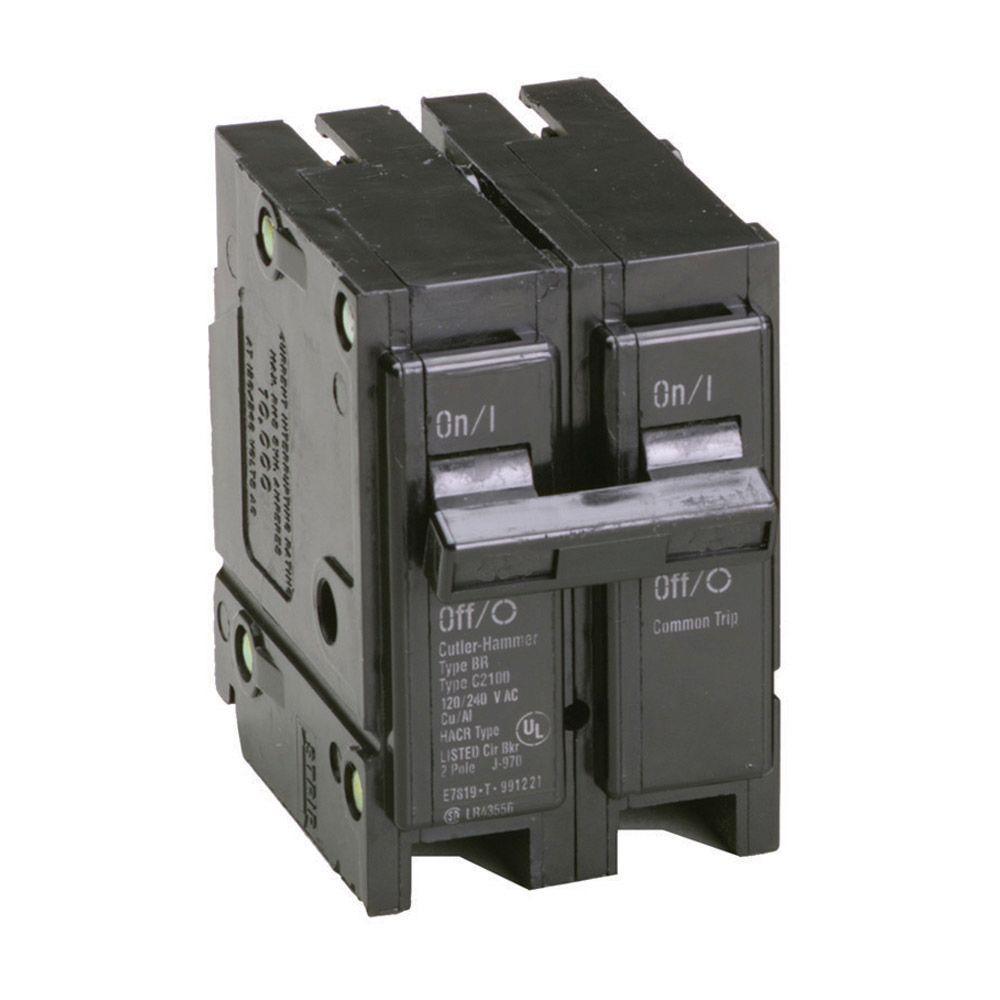

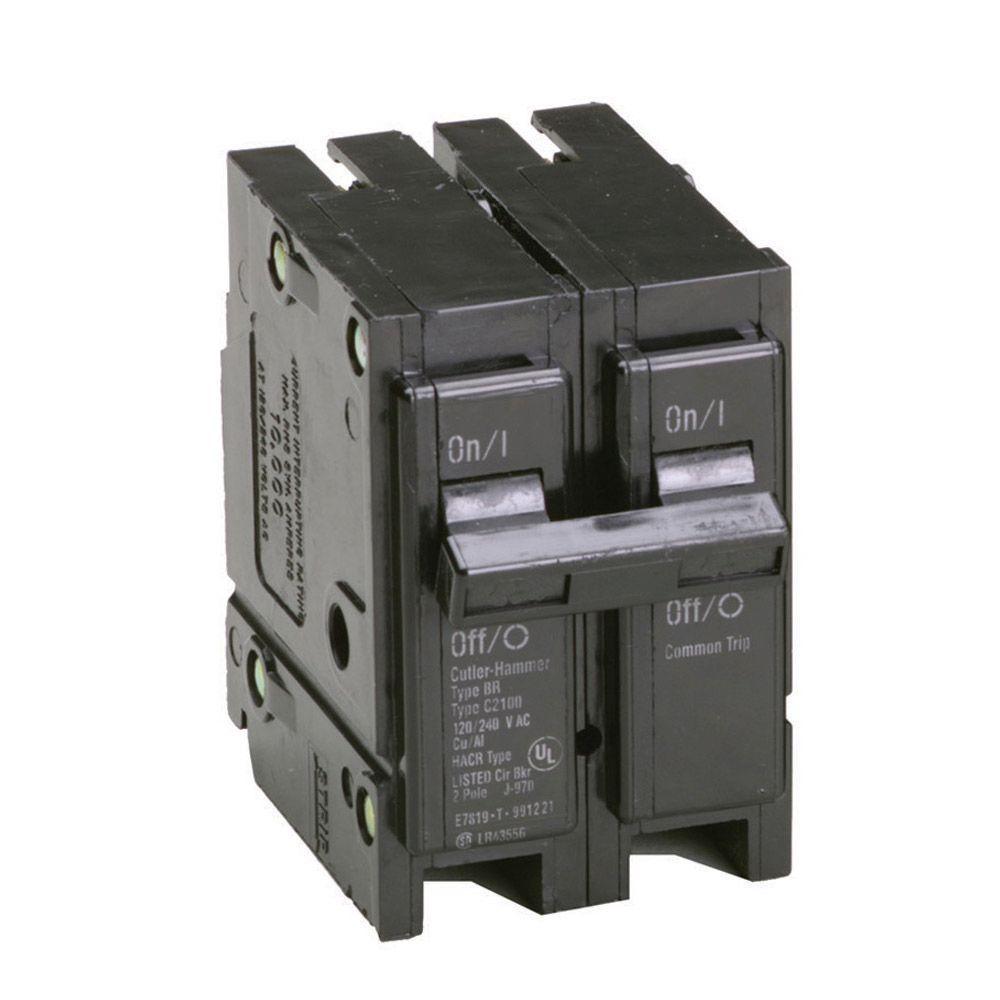

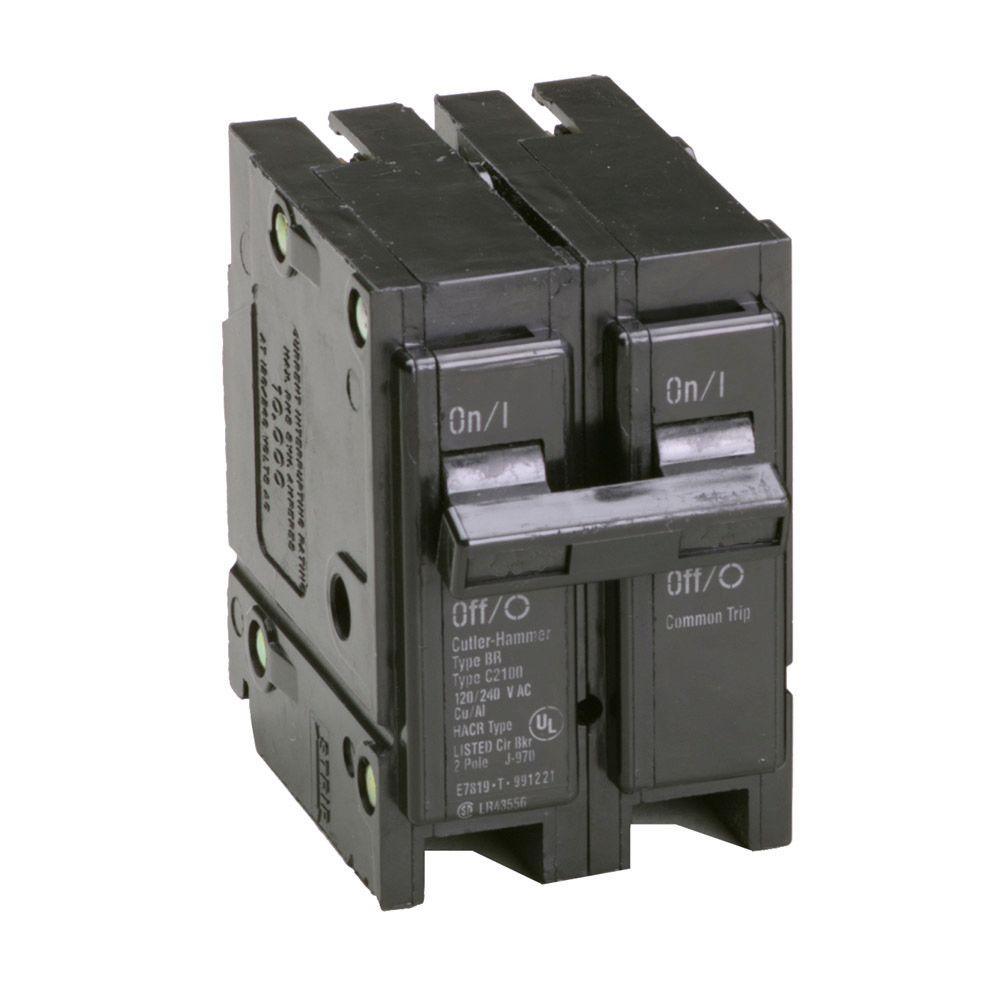

BR 30 Amp 2 Pole Circuit Breaker
$15.98
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
- Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
- Amperage rating: 30 Amp
- Double pole 2 in. wide breaker
- Trips to center position - must turn off then turn back on
- For use in type BR load centers
- Type BR breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger and Bryant
- Interrupt rating - 10 kAIC
- Voltage rating is 120/240-Volt
- Wire size - #14-4 AWG Cu/Al at 60°C or 75°C
- Gauge/number of wires with ground - 10/3
| Item Weight | .5 |
| Maximum Amperage (amps) | 30 |
| Product Weight (lb.) | 0.52 |
| Number of Poles | 2 |
| Voltage (volts) | 120/240 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Mounting Type | Plug In |
| Returnable | 180-Day |
| Interruption Type | Standard Trip |
| Breaker Type | Double Pole |
| Electrical Product Type | Breaker |
| Product Width (in.) | 1.96 |
| Product Depth (in.) | 3 in |
| Product Height (in.) | 3 in |
| Certifications and Listings | ANSI Certified,CSA Listed,UL Listed |
| Manufacturer Warranty | 5 Year Per the Warranty Statement |
