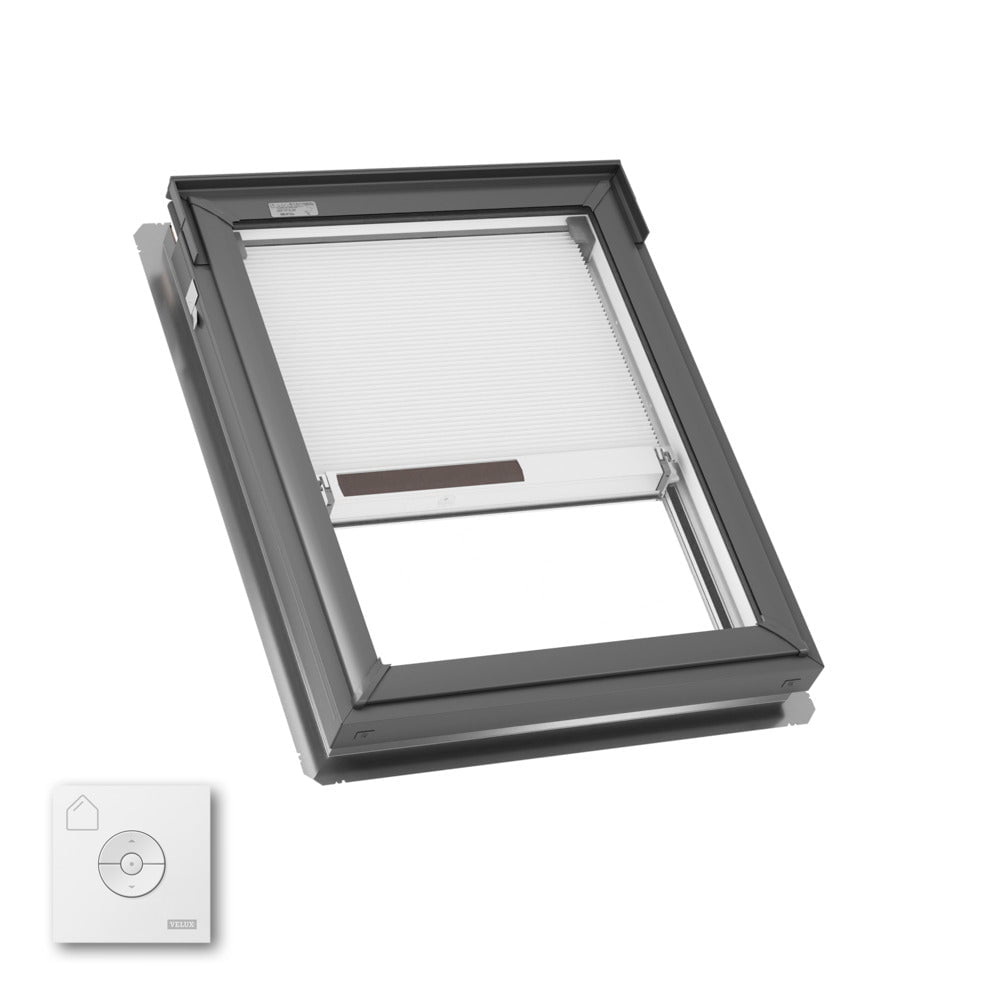

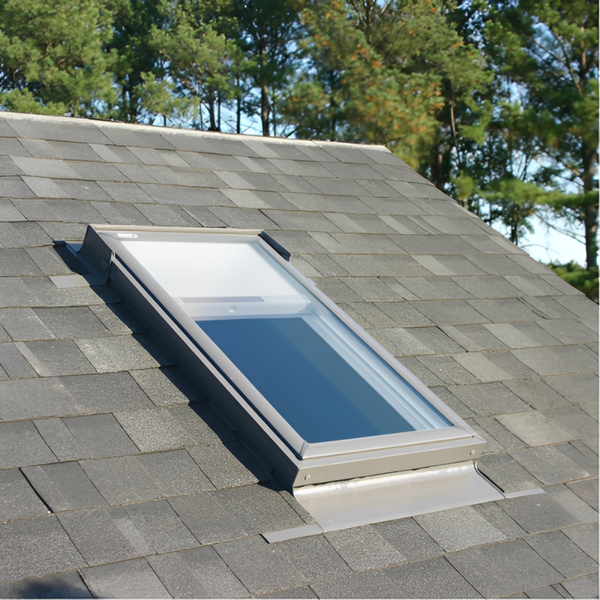

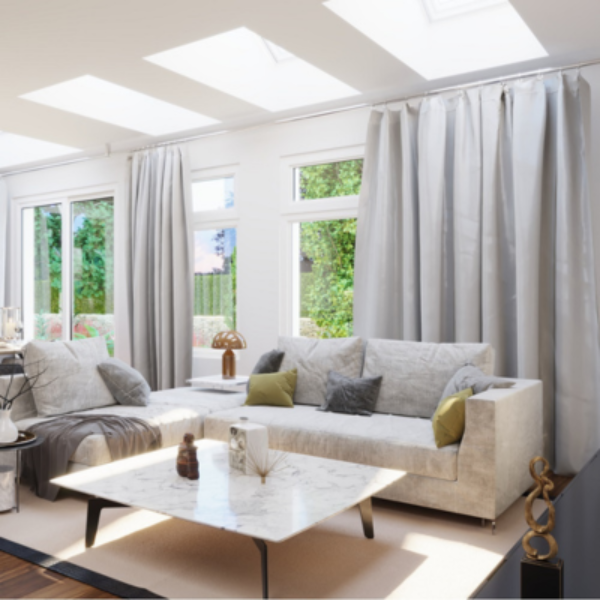

Installing a skylight is one of the most impactful ways to enhance the brightness and beauty of a room, and fixed skylights are an economical choice for bringing in natural light from above. Deck mount skylights mount directly on the roof deck over a rough opening, work with a wide variety of roofing materials, and their streamlined exterior profile won't obstruct your roofline.

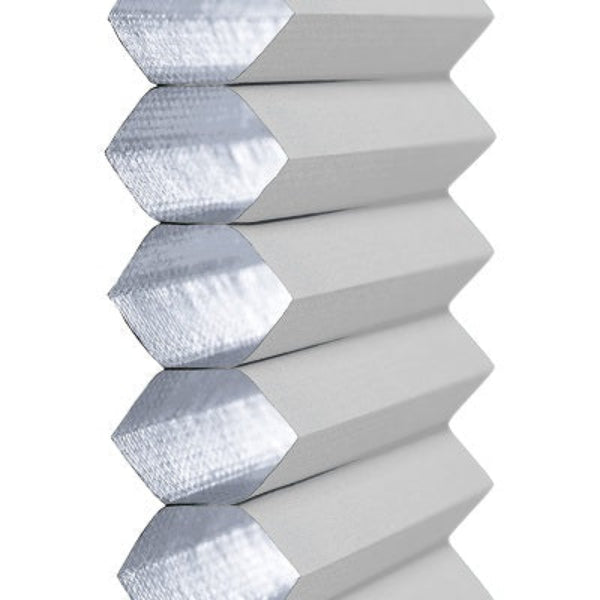

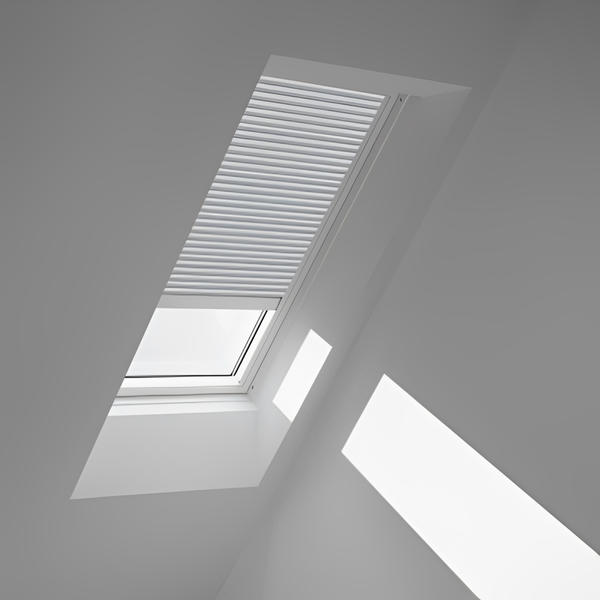

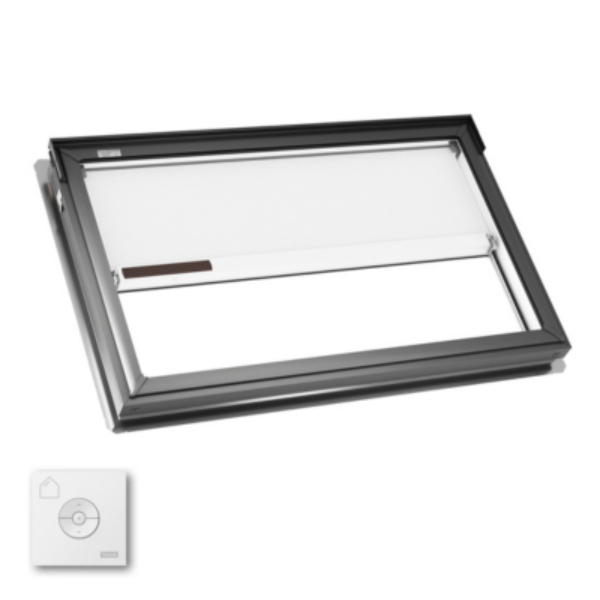

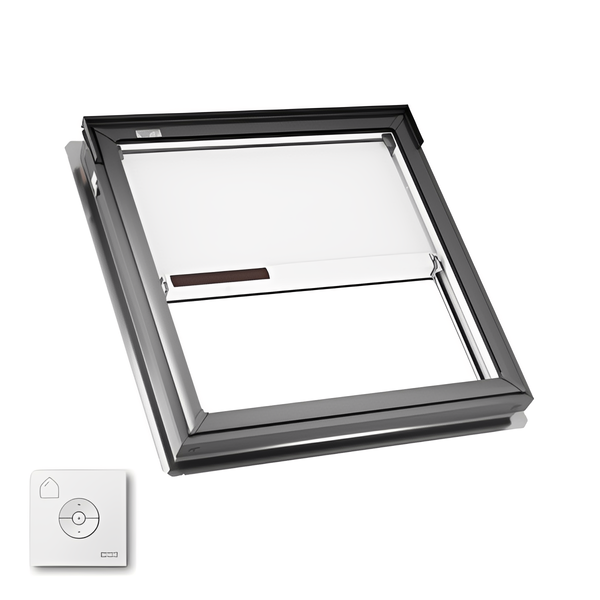

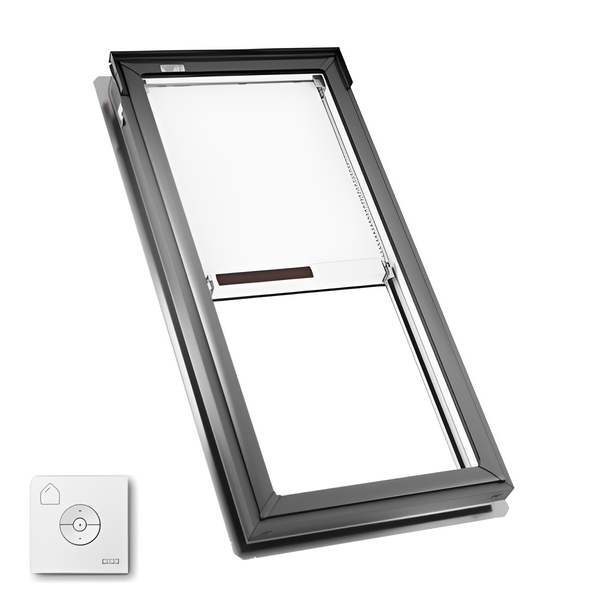

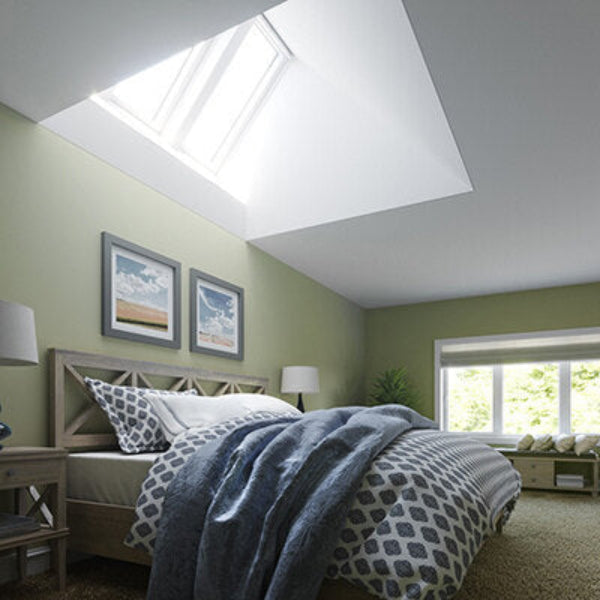

The room darkening shade utilizes a double-pleated honeycomb structure with an interior aluminum coating to block even the brightest sunlight, making it ideal for bedrooms, entertainment rooms or any other space where light control is important. By helping prevent thermal heat gain, skylight shades can improve the energy efficiency of your skylights by up to 40% compared to skylights without shades.

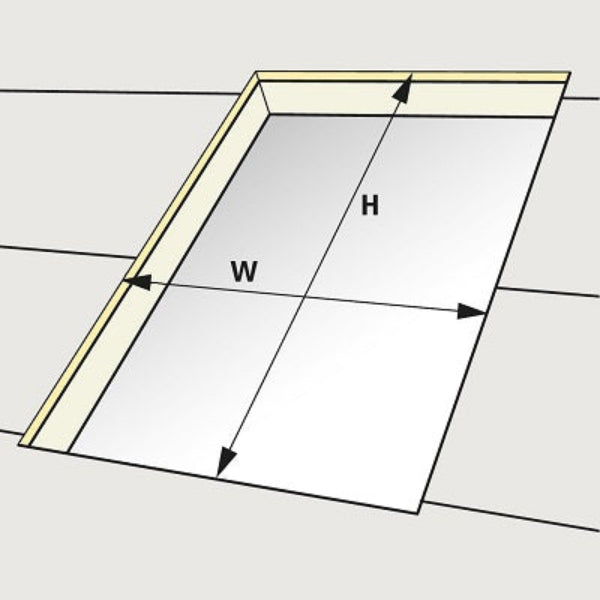

Roof Opening
Flashing To Use
Outside Frame
14.5 In x 45.75 In
14/45 [Shingle Roof] [Metal Roof]
15.25 In x 46.25 In
21 In x 26.87 In
21/26 [Shingle Roof][Metal Roof] [Tile Roof]
21.5 In x 27.37 In
21 In x 37.87 In
21/37 [Shingle Roof][Metal Roof] [Tile Roof]
21.5 In x 38.37 In
21 In x 45.75 In
21/45 [Shingle Roof][Metal Roof] [Tile Roof]
21.5 In x 46.25 In
21 In x 54.43 In
21/54 [Shingle Roof][Metal Roof] [Tile Roof]
21.5 In x 54.93 In
22.5 In x 22.93 In
22/22 [Shingle Roof][Metal Roof] [Tile Roof]
23.25 In x 23.43 In
22.5 In x 45.75 In
22/45 [Shingle Roof][Metal Roof] [Tile Roof]
23.25 In x 46.25 In
30.06 In x 30 In
30/30 [Shingle Roof][Metal Roof] [Tile Roof]
30.56 In x 30.5 In
30.06 In x 37.87 In
30/37 [Shingle Roof][Metal Roof] [Tile Roof]
30.56 In x 38.37 In
30.06 In x 45.75 In
30/45 [Shingle Roof][Metal Roof] [Tile Roof]
30.56 In x 46.25 In
30.06 In x 54.43 In
30/54 [Shingle Roof][Metal Roof] [Tile Roof]
30.56 In x 54.93 In
44.25 In x 26.87 In
44/26 [Shingle Roof][Metal Roof] [Tile Roof]
44.75 In x 27.37 In
44.25 In x 45.75 In
44/45 [Shingle Roof][Metal Roof] [Tile Roof]
44.75 In x 46.25 In
Key Features:
Consists of a wood frame, insulated glass, maintenance-free aluminum exterior cladding, and deck seal mounting flange
Integrated gaskets allow condensation to drain to the outside rather than into your home

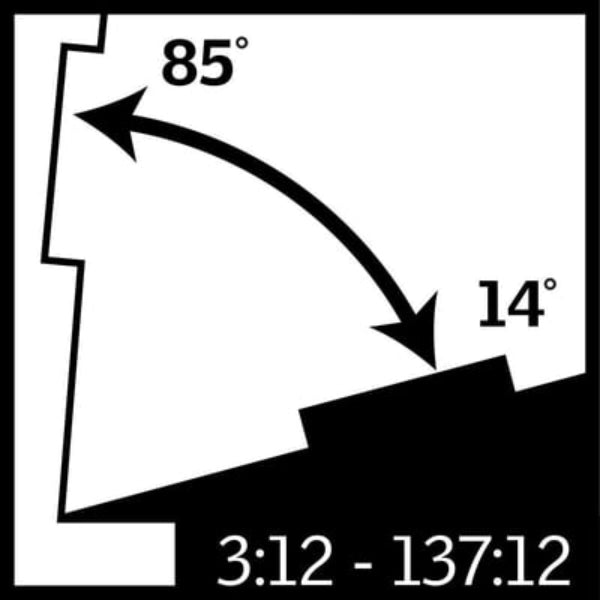

Eligible for the VELUX 10-year installation warranty when installed with appropriate VELUX flashing kit (sold separately) on a roof with a pitch between 14-85 degrees
Use EDL flashing on a shingle, shake, or slate roof, EDW flashing on a tile roof, or EDM flashing on a metal roof
VELUX Laminated Low-E3 Standard Safety Glass keeps your skylight cleaner, reduces unwanted outside noise, and comes with a 10-year hail warranty against glass breakage
ENERGY STAR certified in all 4 US climate zones
Performance Ratings and Certifications
VELUX FS Standard Laminated (-04S)
VELUX FS Impact Laminated (-06S)
10-year Hail Warranty
✓
✓
U-Factor
0.43
0.42
Solar Heat Gain SHGC
0.23
0.24
Visible Transmittance VT
0.54
0.55
UV Protection
99.9%
99.9%
ENERGY STAR Southern
✓
✓
ENERGY STAR South-Central
✓
✓
ENERGY STAR North-Central
✓
✓
ENERGY STAR Northern
✓
✓
Texas Department of Insurance
SK03
SK14
Florida Product Approval
FL13308
FL13308
High Velocity Hurricane Zone HVHZ
✗
✗
Miami-Dade County
✗
✗
Colorado’s Water & Efficiency Standards
Compliant
Compliant
Unlike many skylight brands, VELUX skylights come with an NFRC label because their products have been rigorously tested and certified by the National Fenestration Research Council. This means you get accurate, reliable information about the energy efficiency of VELUX skylights, and their effectiveness at reducing heat transfer and solar heat gain.
