SharkBite

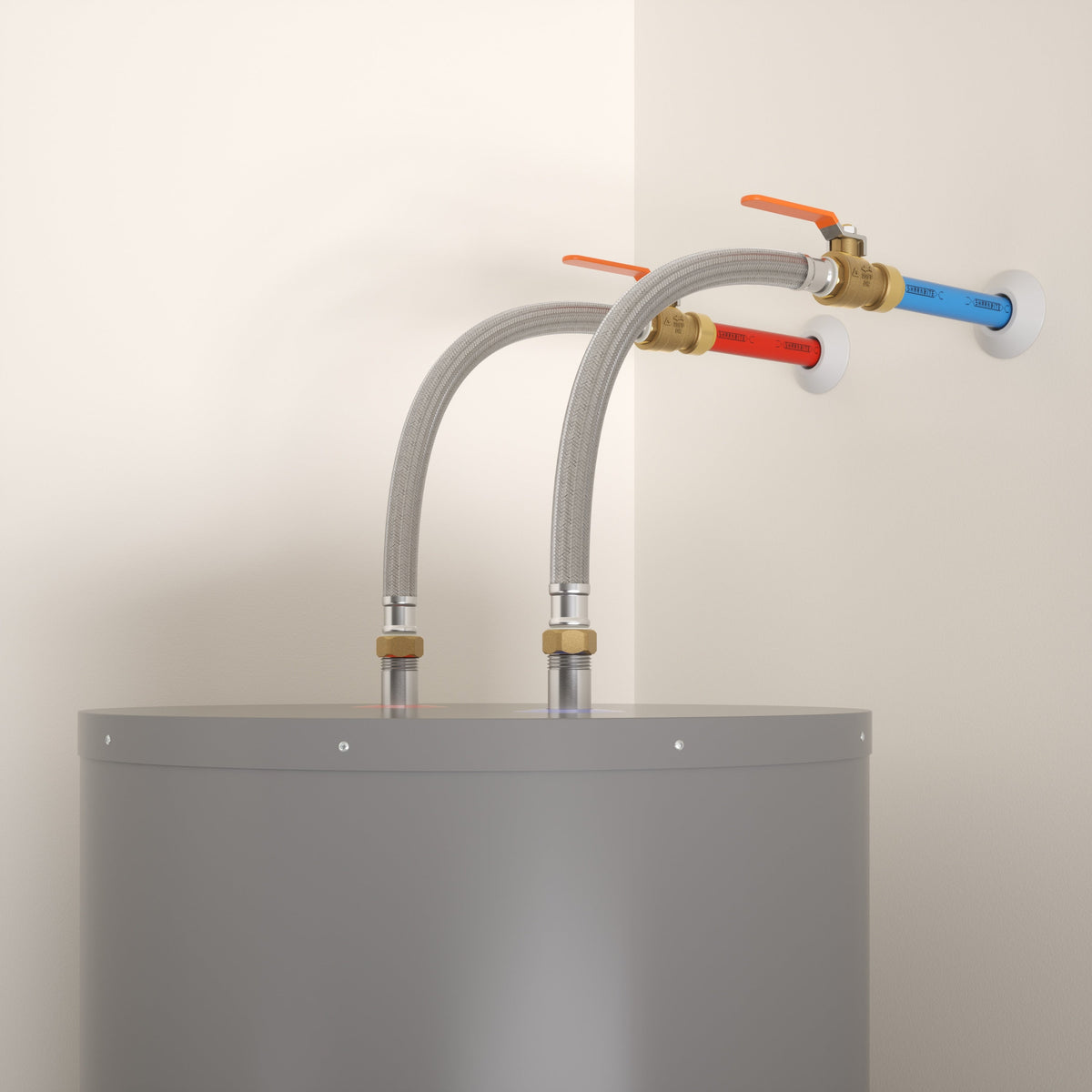

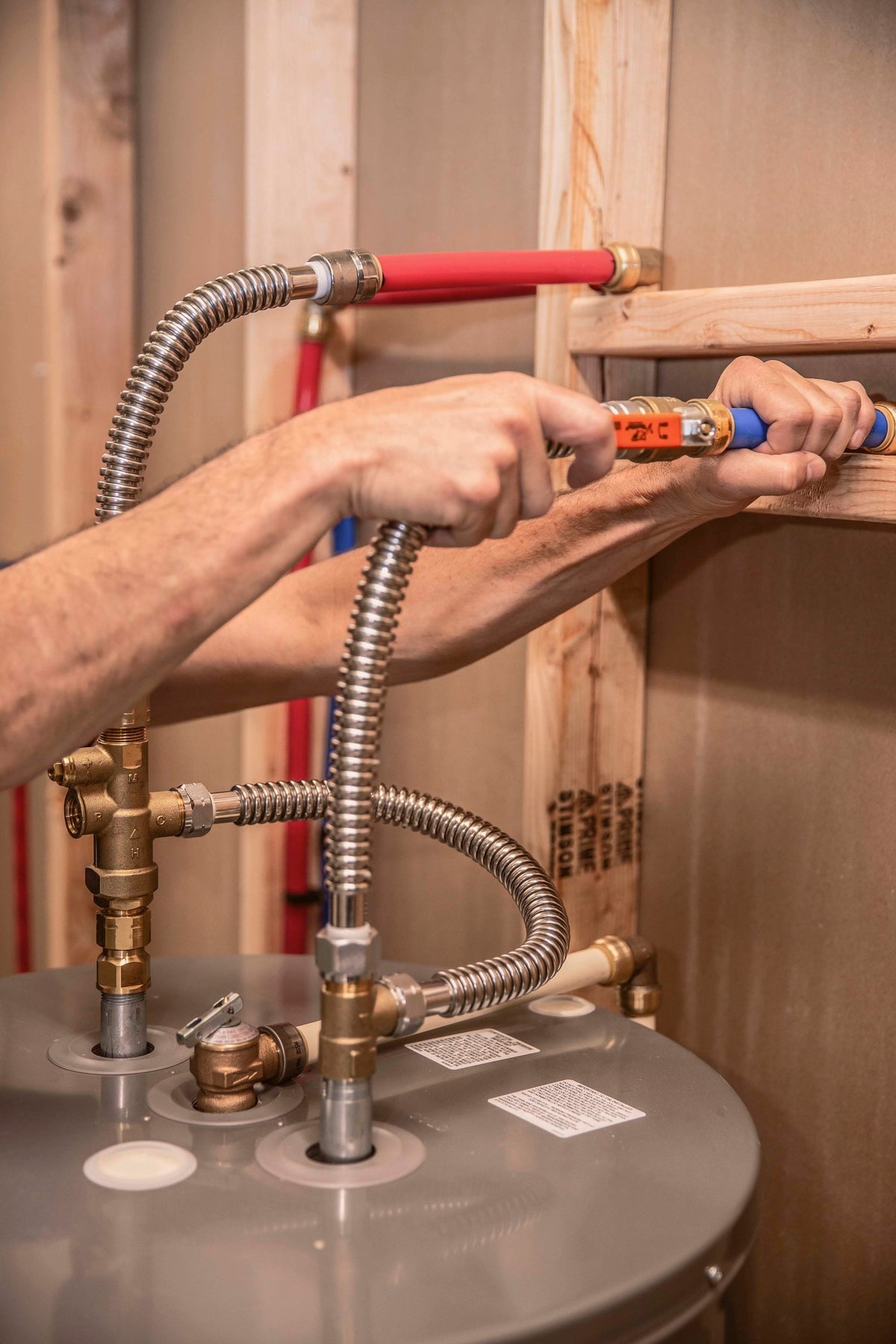

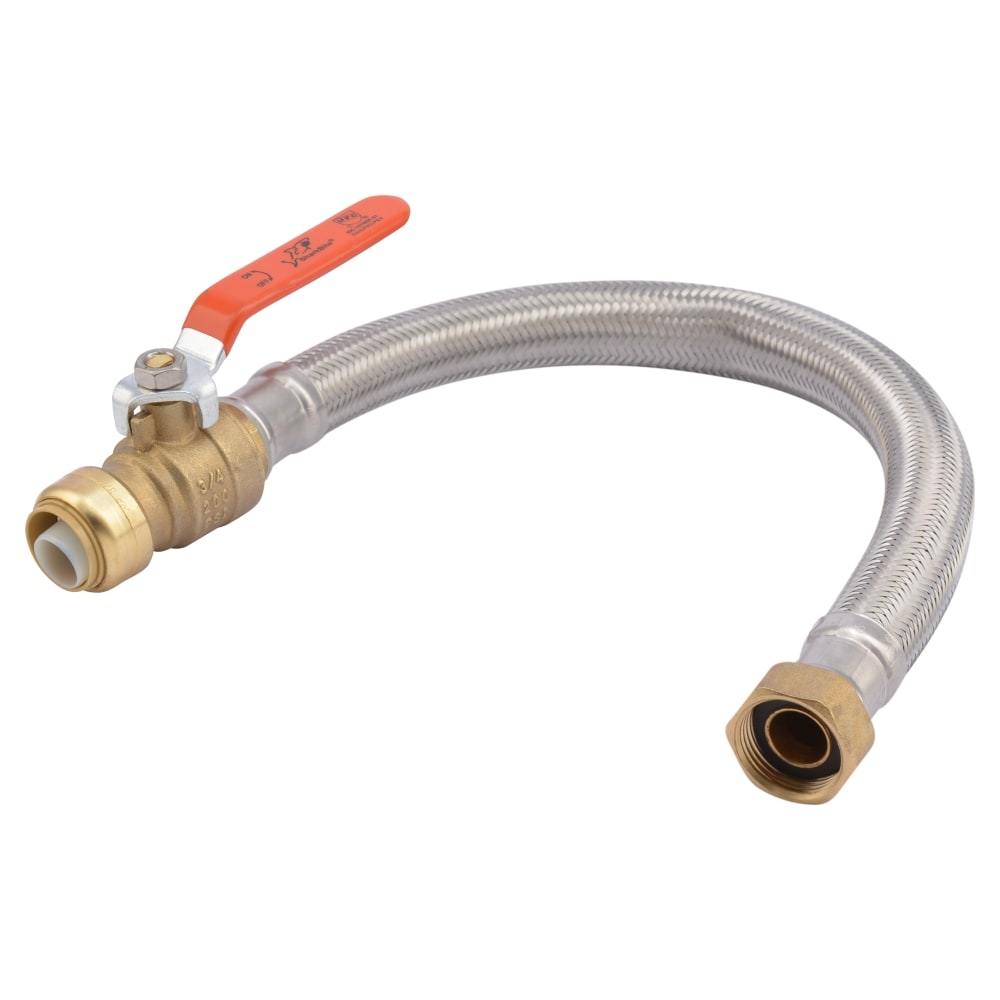

SharkBite 18-in L 3/4-in Push-to-Connect x 3/4-in FIP Braided Stainless Steel Water Heater Connector with Ball Valve
Published price — same for everyone
Out of stock — available on backorder
SKU U3088FX18BLZ
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
18-in SharkBite Push-to-Connect Water Heater Connector w/ Valve
Braided stainless steel connector with integrated ball valve for fast, tool-free water heater hookups. Push-to-connect 3/4-in inlet mates to PEX, copper, CPVC or PE-RT, with a 3/4-in FIP outlet to the tank. Rated 200 PSI and 200°F for reliable performance in tight spaces.
Key Features:
- Tool-Free Installation: Push-to-connect fitting eliminates solder, crimping, or glue
- Versatile Compatibility: Connects to PEX, copper, CPVC, or PE-RT supply lines
- Integrated Shutoff: Quarter-turn ball valve provides quick water control at the heater
- Durable Build: Braided stainless steel with brass fittings for corrosion resistance
- Performance Rated: Up to 200 PSI and 200°F; lead-free and code-approved
Specifications Table:
| Specification | Details |
|---|---|
| Type | Water heater connector |
| Length | 18 in |
| Inlet Fitting Size | 3/4 in |
| Inlet Fitting End Type | Push-to-connect |
| Outlet Fitting Size | 3/4 in |
| Outlet Fitting End Type | FIP |
| Material | Braided stainless steel |
| Fitting Material | Brass |
| Lead-Free | Yes |
| Corrosion Resistant | Yes |
| Flexible | No |
| Maximum Pressure | 200 PSI |
| Working Temperature | Up to 200°F |
| Approvals/Certifications | ASME A112.18.6-2009/CSA B125.6-200; NSF/ANSI 61; NSF 372 |
| Package Quantity | 1 |
| Excess Flow Valve (EFV) | No |
| Complies with Federal Lead Guidelines | Yes |
| Warranty | 2-year limited |
Frequently Asked Questions (FAQ):
Q: What pipe types does the push-to-connect end work with?
A: It connects directly to PEX, copper, CPVC, or PE-RT pipe.
Q: Do I need tools to install this connector?
A: No. Push the inlet onto the pipe and thread the 3/4-in FIP outlet onto the heater nipple using thread tape and a wrench.
Q: Is there a shutoff valve included?
A: Yes, the connector includes an integrated quarter‑turn ball valve.
Q: What are the pressure and temperature ratings?
A: Rated up to 200 PSI and 200°F.
Q: Is it lead-free and code approved?
A: Yes. It complies with lead-free requirements and applicable standards (ASME A112.18.6/CSA B125.6, NSF 372, NSF/ANSI 61).
Streamlined Utility with a Polished, Pro-Grade Finish
This stainless braided connector introduces a clean, engineered aesthetic to an often-overlooked corner of the utility room. The integrated orange-handled valve is a crisp visual accent while offering immediate control. Pair two for a symmetrical, tidy installation above a modern tank, letting the braided texture echo other metallic finishes. It’s a small detail that elevates maintenance to a luxury of ease and order.
Upgrade your water heater hookup with this push-to-connect, valve‑integrated connector for a faster, cleaner install today.
