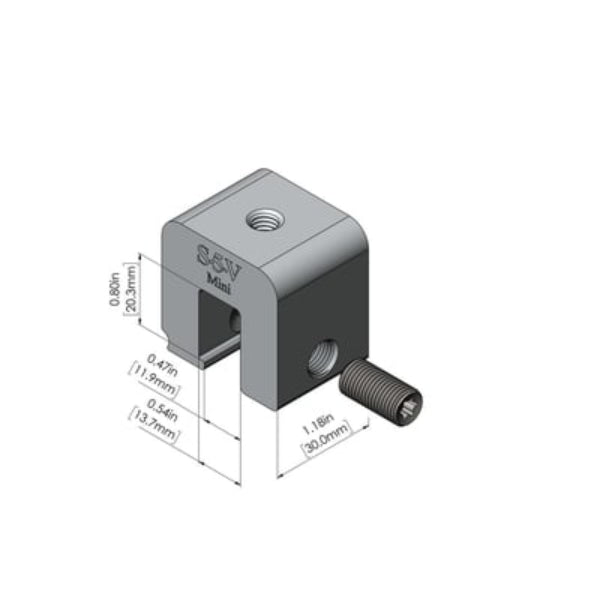

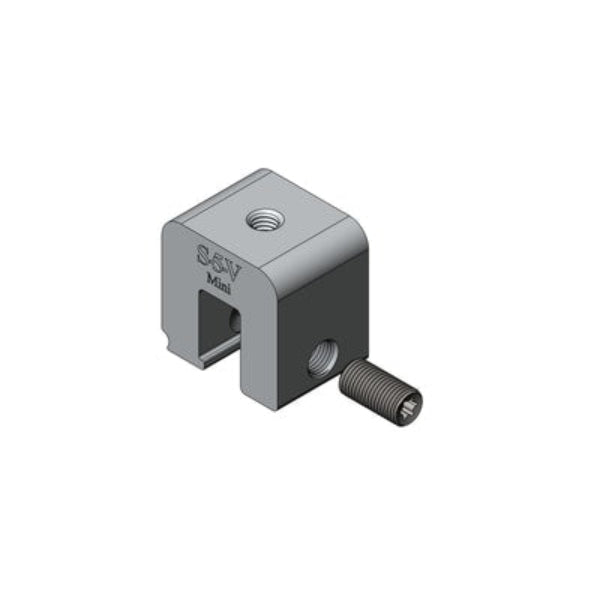

S-5-V Mini Metal Roof Clamps

The V Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

Specifications:

• Accommodates the same vertically-oriented seams as the S-5-U Mini
• Lower cost than the S-5-U Mini
• Specifically designed for vertical, mechanically-folded seams
• Use for light and medium-duty applications, such as solar PV and other utilities
• Smaller than the standard S-5-V
• One T-30 Torx round-point setscrew (Torx bit tip provided)
• No M8 bolt included

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
