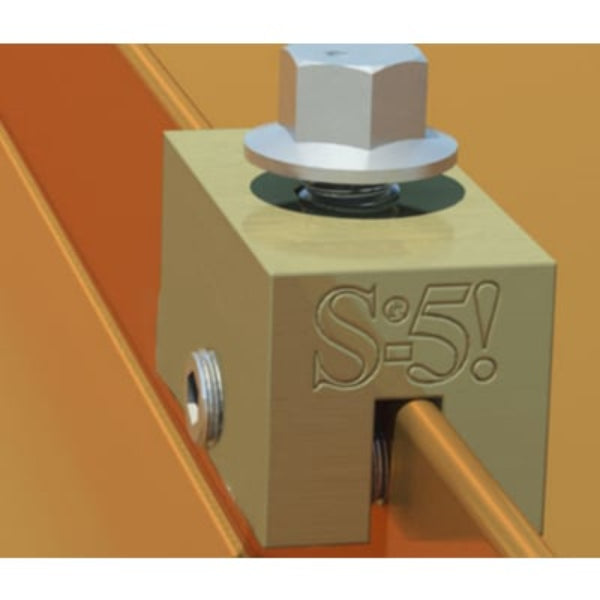

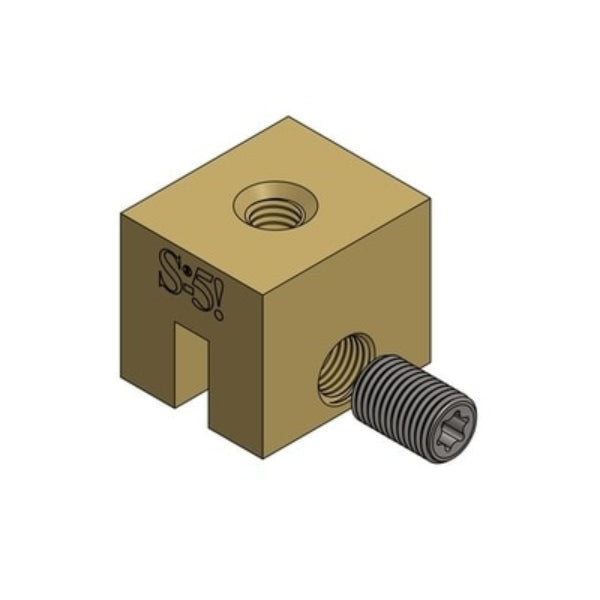

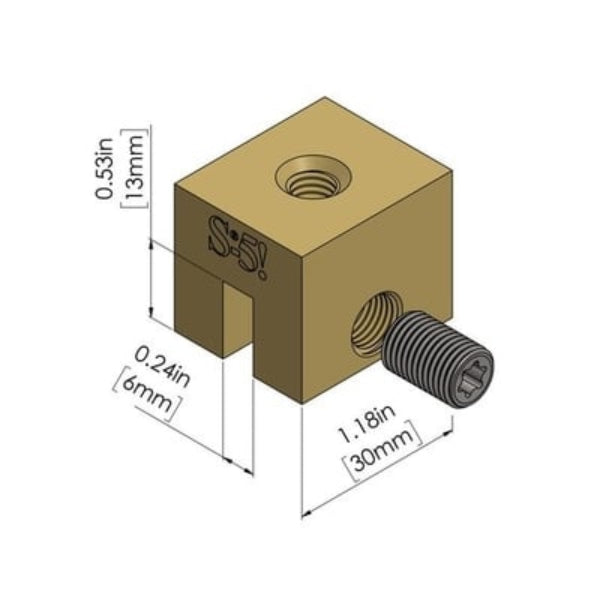

S-5-B Brass Metal Roof Mini Clamps

The S-5-B Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required. The Mini clamp is a bit shorter than the standard B with one setscrew rather than two.

Rigorous load testing is performed on both standard and Mini clamps. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (along the seam or drag load) is performed on all standard clamps.

Choose the B to mount a variety of utilities, such as rooftop lighting, solar arrays, lightning protection and other appurtenances to your copper roof.

Specifications:

• Designed for double-folded, copper standing seam roofs
• Metallurgical compatibility with copper
• Preserves aesthetics of copper roof
• Light and medium-duty applications, such as utility mounting
• Smaller than the standard S-5-B
• One T-30 Torx setscrew (Torx bit tip provided)
• No M8 Mini bolt included

S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
