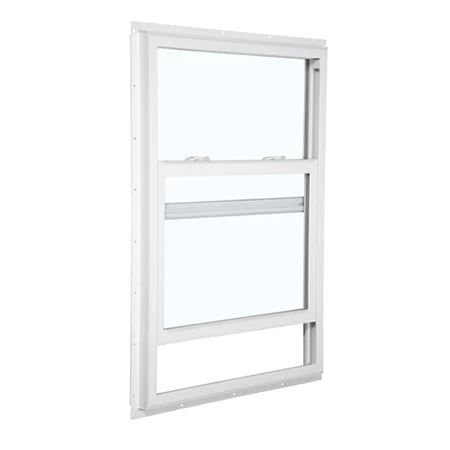

RELIABILT 105 Series New Construction 35-1/2-in x 47-1/2-in x 2-5/8-in Jamb White Vinyl Low-e Argon Single Hung Window with Grids Half Screen Included

ReliaBilt

RELIABILT 105 Series New Construction 35-1/2-in x 47-1/2-in x 2-5/8-in Jamb White Vinyl Low-e Argon Single Hung Window with Grids Half Screen Included

$202.74

Published price — same for everyone

Gone — not just here.

Substitutes below — from the same aisle.

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

Get top performance without breaking the bank with the RELIABILT 105 Series single hung window. This cost-effective option features a side-loaded bottom sash for easy removal and dual lift rails for smooth operation. Ideal for both new construction and remodeling projects, this window comes with an integrated nail fin and built-in accessory channels for versatile installation (nailing fin not included in Series 3050). With a DP-50 rating and modular sizing, it's easy to calculate rough opening widths for multiple units. Enjoy energy efficiency with Low-E glass and Argon insulating gas, while also considering each window's specific U-Value and SHGC value for accurate ENERGY STAR qualifications (may not be applicable in all zones).

Specification Details
Color/Finish Family White
Interior Color/Finish White
Exterior Color/Finish White
Series Name 105 Series
Hardware Color/Finish White
Dimensions
Actual Height (Inches) 47.5
Jamb Depth (Inches) 2.625
Actual Size (W x H) 35-1/2-in x 47-1/2-in
Jamb Depth Measurement 2-5/8-in
Actual Width (Inches) 35.5
Overfit Flange Size N/A
Clear Opening Height (Inches) 19.0
Rough Opening Height (Inches) 48.0
Clear Opening Size (W x H) 19-in x 32-7/8-in
Rough Opening Size (W x H) 36-in x 48-in
Clear Opening Width (Inches) 32.88
Rough Opening Width (Inches) 36.0
Common Size (W x H) 36-in x 48-in
TTT Flange Size N/A
Grid Width 5/8-in
Weight (lbs.) 33
Features
Argon Gas Insulated Yes
J Channel N/A
Balance System Block and tackle
Lock Type Sweep
Clear Opening Sq Ft 4.34
Design Pressure (DP) Rating 50
Mulling N/A
For Use with Mobile Homes Yes
Nail Fin Integrated
Frame Material Vinyl
Number of Locks 2
Frame Profile Flat
Obscure Glass No
Glass Insulation Low-E argon
Paintable No
Glass Strength Single strength
Project Type New construction
Glazing Type Double pane
Screen Frame Type Roll-form
Grid Included Yes
Screen Included Half
Grid Pattern 1hx2v
Screen Type Fiberglass mesh
Grid Profile Contoured
Solar Heat Gain Coefficient (SHGC) 0.21
Grid Type Between the glass
Tilt Mechanism N/A
High Altitude Rated No
Tilting No
Impact Resistant No
Ventilation Latches N/A
Insect Screen Included Yes
Wood Jamb Extension None
Warranty
Warranty Limited lifetime
