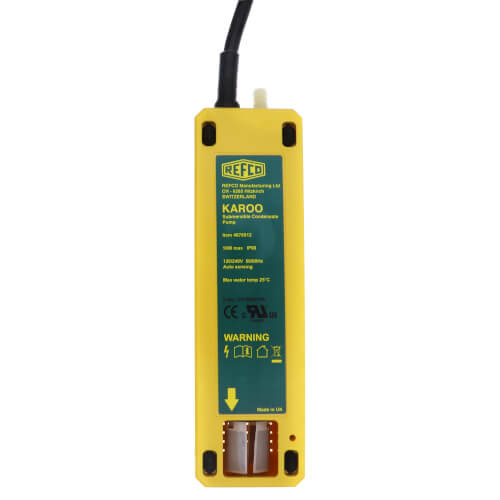

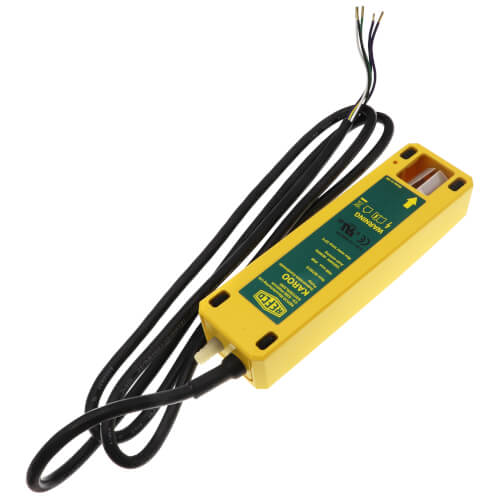

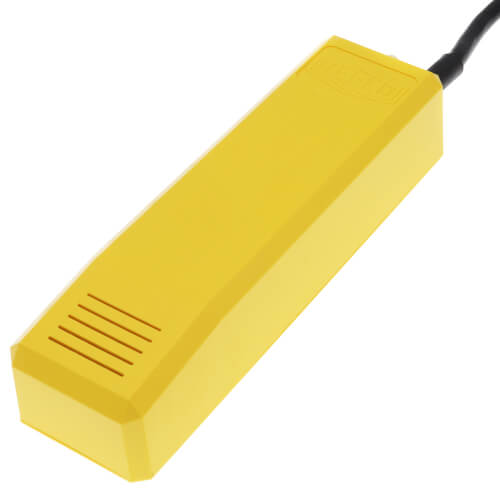

Refco 4678512 KAROO Condensate Removal Drain Pan Pump (120/240V) Condensate Pump

The Refco 4678512 KAROO Condensate Removal Drain Pan Pump (120/240V) Condensate Pump is a Refco condensate pump for HVAC repair and replacement work. Use it when the part number 4678512 and the listed specifications match the equipment being serviced.

The KAROO drain pan pump is a submersible condensate removal pump designed to automatically remove condensate water from refrigerated cases, dehumidifi ers, fan coils and air conditioning systems. The pump is intended to be installed within a collection tray inside the equipment. The water level is measured by an Electronic Energy Control System (EECS) that controls the operation of the pump via the fully-encapsulated circuitry. Technical Specifications: • Power supply: • 120/240 V, 50/60 Hz Auto sensing • Power consumption: 16 W max., 0.25 when idle • Alarm relay: 5 A, 30 VDC, 250 VAC Break on fault • Capacity: 3.17 US gal/h • Discharge…

Key Specs

• Product Type: Condensate Pump
• Voltage: 120v, 240v
• Shutoff Head (ft.): 65'

Expert Verdict

Reviewed by the SuperArbor Pro Desk: choose this part when the existing component label and unit documentation match 4678512 and the spec set above. It is best suited for targeted HVAC service repairs where exact fitment matters more than broad universal compatibility.

FAQs

What is the Refco 4678512 used for?

It is a condensate pump for compatible Refco HVAC equipment. Match the part number 4678512 and the equipment service literature before ordering or installing.

Which specs should I verify before purchase?

Verify the spec set shown for this part: Product Type: Condensate Pump; Voltage: 120v, 240v; Shutoff Head (ft.): 65'. The replacement should match the existing component and the unit documentation.

Does the electrical rating need to match exactly?

Yes. Confirm voltage rating 120v, 240v against the failed component label. Do not substitute a different rating unless the equipment manufacturer allows it.

Is this an OEM-style replacement part?

Use it as a direct replacement only when Refco documentation lists 4678512 or an approved equivalent for the unit being serviced.

Who should install this HVAC component?

A qualified HVAC technician should install and test the condensate pump. Disconnect power first, follow lockout procedures, and confirm safe operation after replacement.

Safety and Installation Notes

Disconnect power before service. HVAC electrical and combustion-related components should be installed and tested by a qualified technician. After installation, confirm wiring, mounting, airflow or fluid routing as applicable, and normal system operation.
