SharkBite 18-in 3/4-in Push-to-Connect Inlet x 3/4-in FIP Outlet Braided Stainless Steel Water Heater Connector with Ball Valve
Published price — same for everyone
Out of stock — available on backorder
SKU U3088FX18BLZ
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

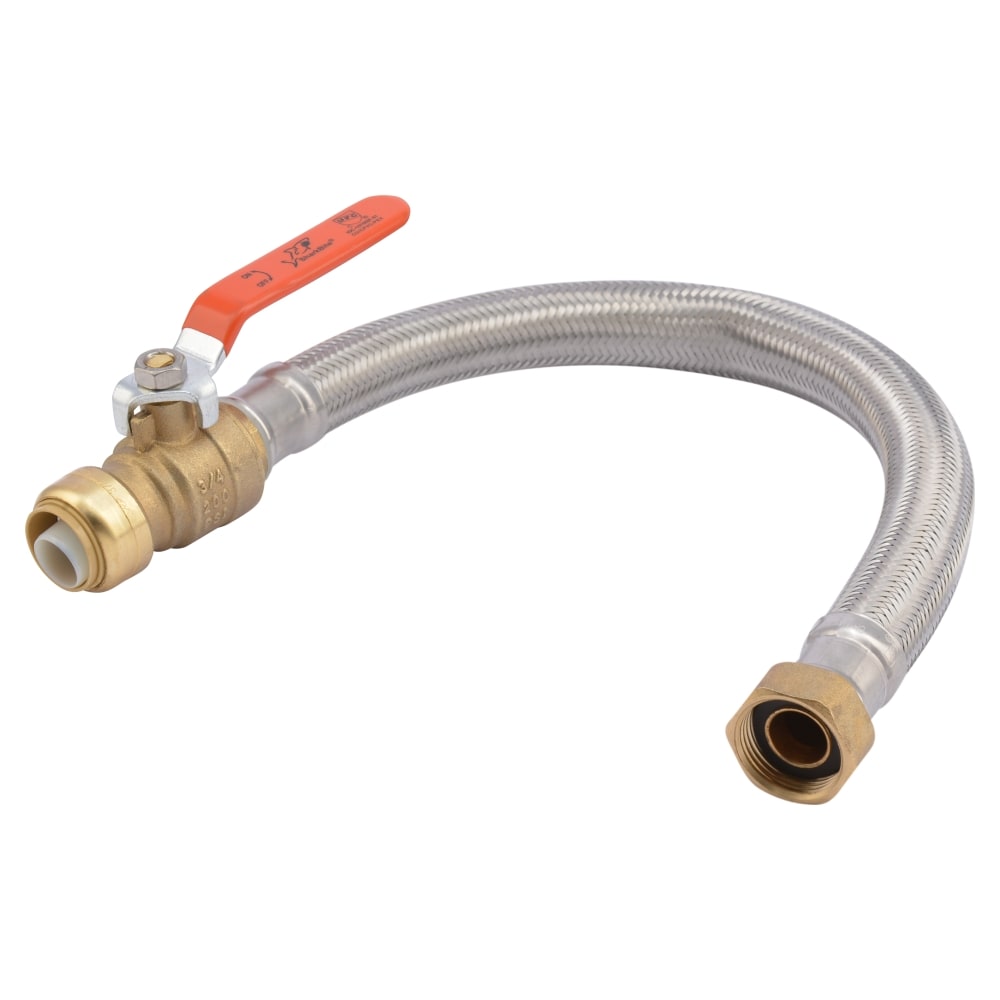

18-in SharkBite Push-to-Connect Braided Water Heater Connector
Connect your water heater fast with this 18-inch SharkBite braided stainless steel connector featuring a 3/4-in push-to-connect inlet and 3/4-in FIP outlet. Built with brass fittings and an integrated ball valve for quick shut-off, it’s rated to 200 PSI and 200°F for reliable performance.
Key Features:
- Push-to-Connect Convenience: Installs on copper, PEX, CPVC, or PE-RT without solder, glue, or tools
- Integrated Ball Valve: Quarter-turn shutoff for easy service and maintenance
- Durable Build: Braided stainless steel line with DZR brass fitting resists corrosion
- Strong Performance Ratings: Rated up to 200 PSI and 200°F for hot water applications
- Code-Compliant: Meets ASME A112.18.6, CSA B125.6, NSF 372, and NSF/ANSI 61 standards
Specifications Table:
| Specification | Details |
|---|---|
| Type | Water heater connector |
| Size - Length | 18-in |
| Inlet Fitting Size | 3/4-in |
| Inlet Fitting End Type | Push-to-connect |
| Outlet Fitting Size | 3/4-in |
| Outlet Fitting End Type | FIP |
| Material | Braided stainless steel |
| Fitting Material | Brass |
| Maximum PSI | 200 |
| Working Temperature Range | 200°F |
| Lead-Free | Yes |
| Corrosion Resistant | Yes |
| Excess Flow Valve (EFV) | No |
| Flexible | No |
| High Efficiency | No |
| Package Quantity | 1 |
| Complies with Federal Lead Guidelines | Yes |
| Approvals | ASME A112.18.6-2009/CSA B125.6-200; NSF 372; NSF/ANSI 61 |
| Includes | Integrated ball valve |
Frequently Asked Questions (FAQ):
Q: What pipe types can this connector attach to?
A: The push-to-connect end works with copper, PEX, CPVC, and PE-RT.
Q: Do I need special tools for installation?
A: No tools are required—simply push the fitting onto the pipe and thread the FIP end to the heater.
Q: Is this connector rated for hot water use?
A: Yes, it’s rated to 200°F and 200 PSI.
Q: Does it include a shutoff?
A: Yes, the connector has an integrated quarter-turn ball valve.
Q: Is it lead-free and code-approved?
A: Yes, it complies with NSF 372 and NSF/ANSI 61 and ASME/CSA standards.
Streamlined Utility with Polished, Modern Confidence

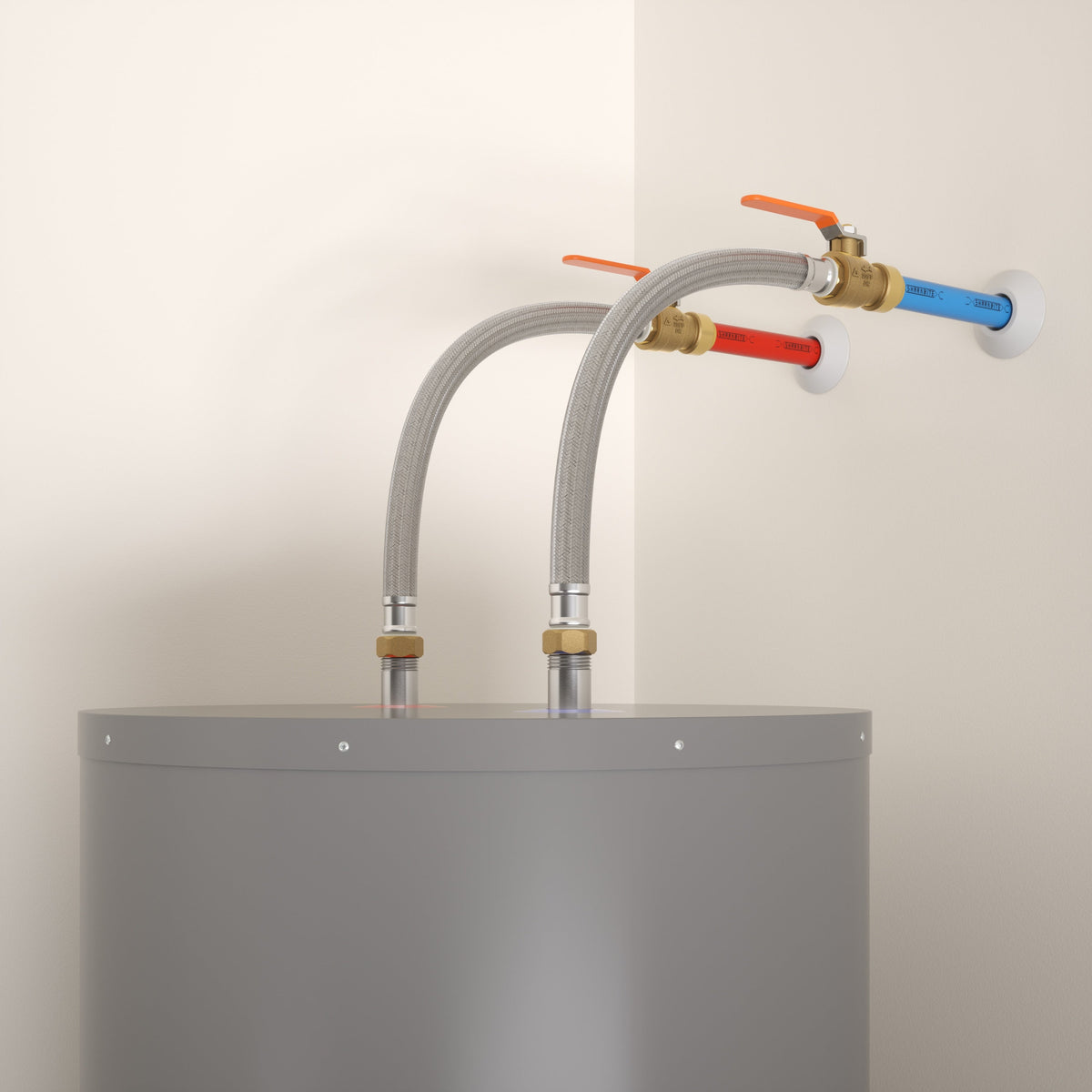

This SharkBite connector brings a refined industrial touch to the mechanical heart of the home. The braided stainless sheath and crisp brass valve read clean and purposeful, turning a utility corner into an organized, modern vignette. Pair two connectors for symmetrical hot and cold lines and keep the orange handles aligned for a tidy, design-forward installation. It’s a small upgrade that delivers luxury through effortless function.
Upgrade your install with SharkBite’s quick, code-compliant connector and finish your water heater hookup in minutes.
