SharkBite
SharkBite 18-in 3/4-in Push Inlet x 3/4-in FIP Outlet Corrugated Stainless Steel Water Heater Connector
Published price — same for everyone
Out of stock — available on backorder
SKU 24680Z
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
18-in Stainless Steel Water Heater Connector, 3/4-in Push x 3/4-in FIP

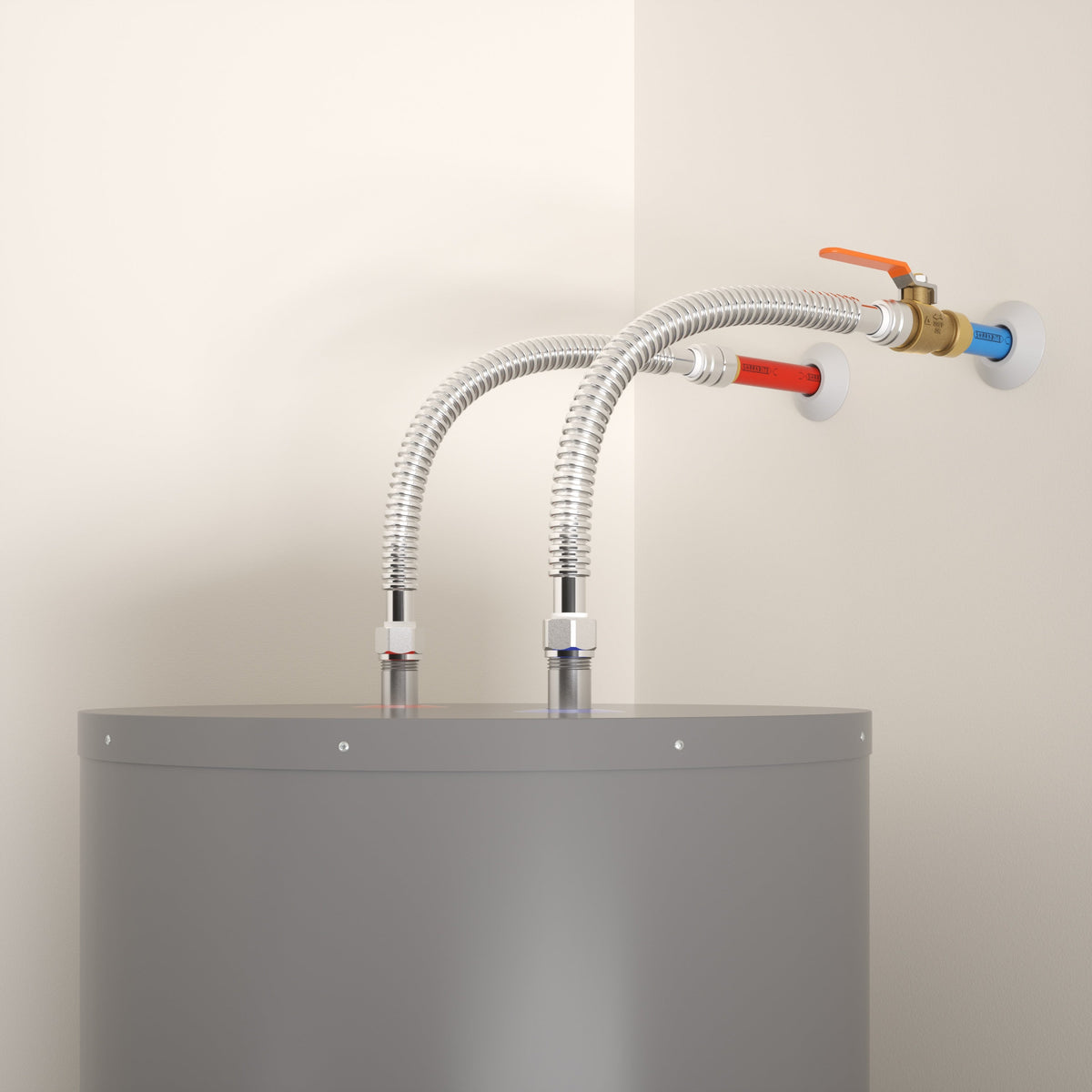

Simplify water heater hookups with this SharkBite corrugated stainless steel connector. The 18-in hose features a 3/4-in push-to-connect inlet and a 3/4-in FIP outlet for quick, tool-free installation and durable, corrosion-resistant performance.
Key Features:
- Quick Push-to-Connect: 3/4-in push inlet allows fast, tool-free connections to copper, CPVC, or PEX.
- Durable Build: Corrugated stainless steel hose with brass fittings resists corrosion and provides long service life.
- Secure Threaded Outlet: 3/4-in FIP outlet threads to heater nipples for a tight, leak-resistant seal.
- Code-Compliant: Lead-free and approved to IAPMO/ANSI Z1157, ASME A112.18.6/CSA B125.6-09, NSF/ANSI 61 and 372.
- Versatile Use: Ideal for connecting hot and cold water supply lines to standard water heaters.
Specifications Table:
| Specification | Details |
|---|---|
| Type | Water heater connector |
| Inlet Fitting Size | 3/4 in |
| Outlet Fitting Size | 3/4 in |
| Outlet Diameter | 3/4 in |
| Length | 18 in |
| Inlet Fitting End Type | Push |
| Outlet Fitting End Type | FIP |
| Material | Corrugated stainless steel |
| Fitting Material | Brass |
| Corrosion Resistant | Yes |
| Flexible | No |
| High Efficiency | No |
| Lead-Free | Yes |
| Maximum PSI | 200 PSI |
| Working Temperature Range | 40 to 180°F |
| Package Quantity | 1 |
| Compliance/Certifications | IAPMO/ANSI Z1157; ASME A112.18.6/CSA B125.6-09; NSF/ANSI 61; NSF/ANSI 372 |
| Complies with Federal Lead Guidelines | Yes |
| Excess Flow Valve (EFV) | No |
| Warranty | 2-year limited |
| UNSPSC | 40142000 |

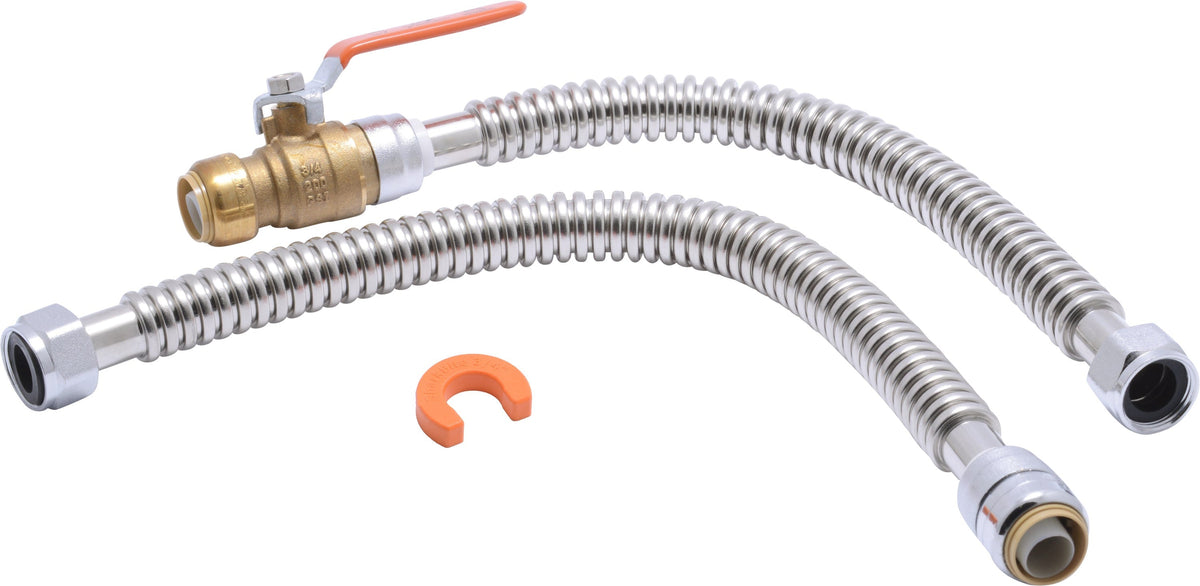

| Kit Contents (if applicable) | May include 3/4-in FIP x 3/4-in SharkBite x 18-in hose (1), 3/4-in FIP x 3/4-in SharkBite ball valve x 18-in hose (1), 3/4-in disconnect clip (1) |
Frequently Asked Questions (FAQ):
Q: What pipe types are compatible with the push inlet?
A: The 3/4-in push fitting connects to copper, CPVC, or PEX tubing of the same size.
Q: Do I need tools to install it?
A: No special tools are required for the push connection; tighten the FIP outlet with channel locks or a similar wrench.
Q: What temperatures and pressures can it handle?
A: Working temperature range is 40–180°F with a maximum pressure of 200 PSI.
Q: Is it lead-free and code compliant?
A: Yes, it complies with NSF/ANSI 61 and 372 and other listed standards for potable water.
Q: Does it include a shutoff valve?
A: This connector may be sold as part of a kit with a ball valve; confirm contents before purchase.
Streamlined Utility with Polished Confidence
Clean, corrugated stainless lines lend a modern, utilitarian elegance to the utility room. The streamlined brass valve becomes a subtle accent, pairing beautifully with crisp wall plates and organized piping. Style it with matching metallic hardware and tidy cable management for a cohesive, professional look. This connector elevates everyday function into quietly luxurious living.
Choose SharkBite’s stainless connector for a fast, code-compliant water heater hookup that lasts.
