Milwaukee M12 FUEL 12V Li-Ion Brushless Cordless 4-in-1 Installation 3/8 in. Drill/Driver Kit with High Output 2.5Ah Battery
Published price — same for everyone
Out of stock — available on backorder
SKU 2505-20-48-11-2425
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

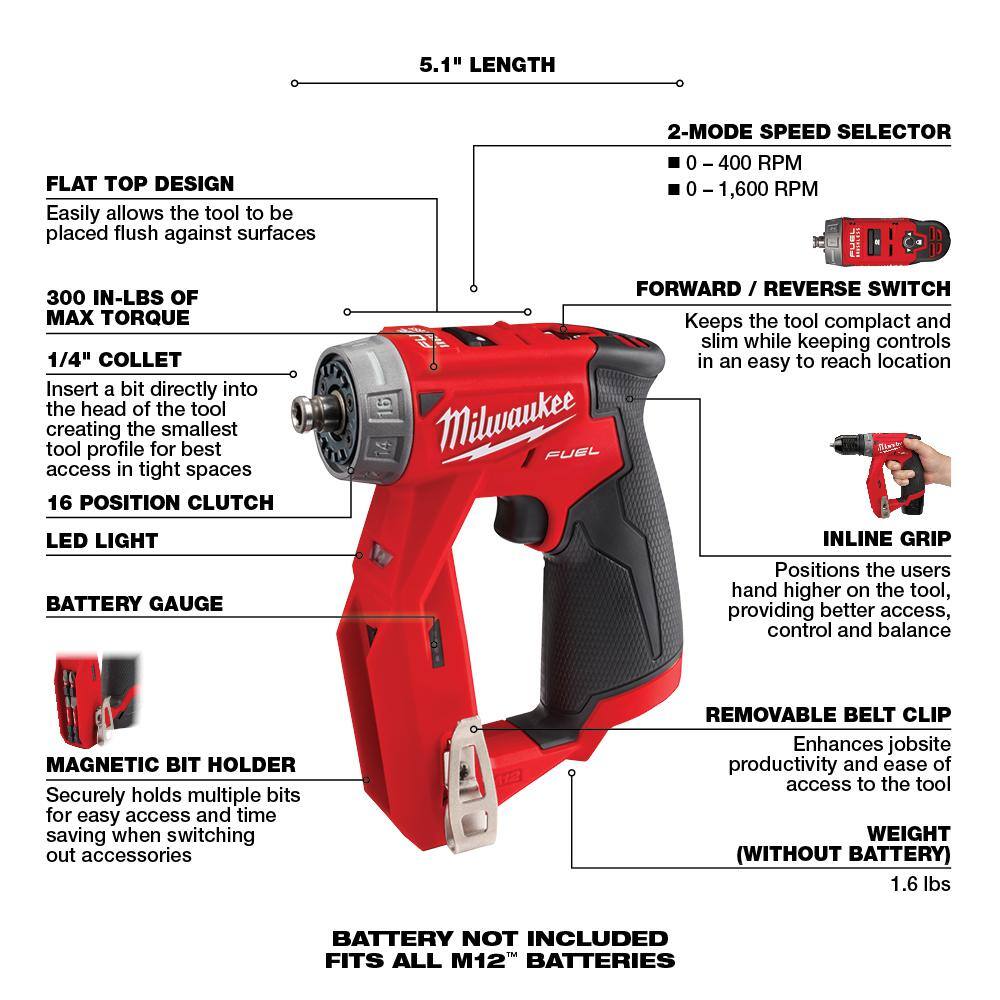

M12 FUEL 4‑in‑1 Installation Drill/Driver, 12V
Compact, brushless 12V installation drill/driver with 4 interchangeable heads delivers precise control in tight spaces. The POWERSTATE motor puts out up to 300 in-lbs of torque, while REDLINK Plus protects against overload and overheating. Includes right-angle, offset, 3/8 in. chuck and 1/4 in. hex attachments for maximum versatility.
Key Features:

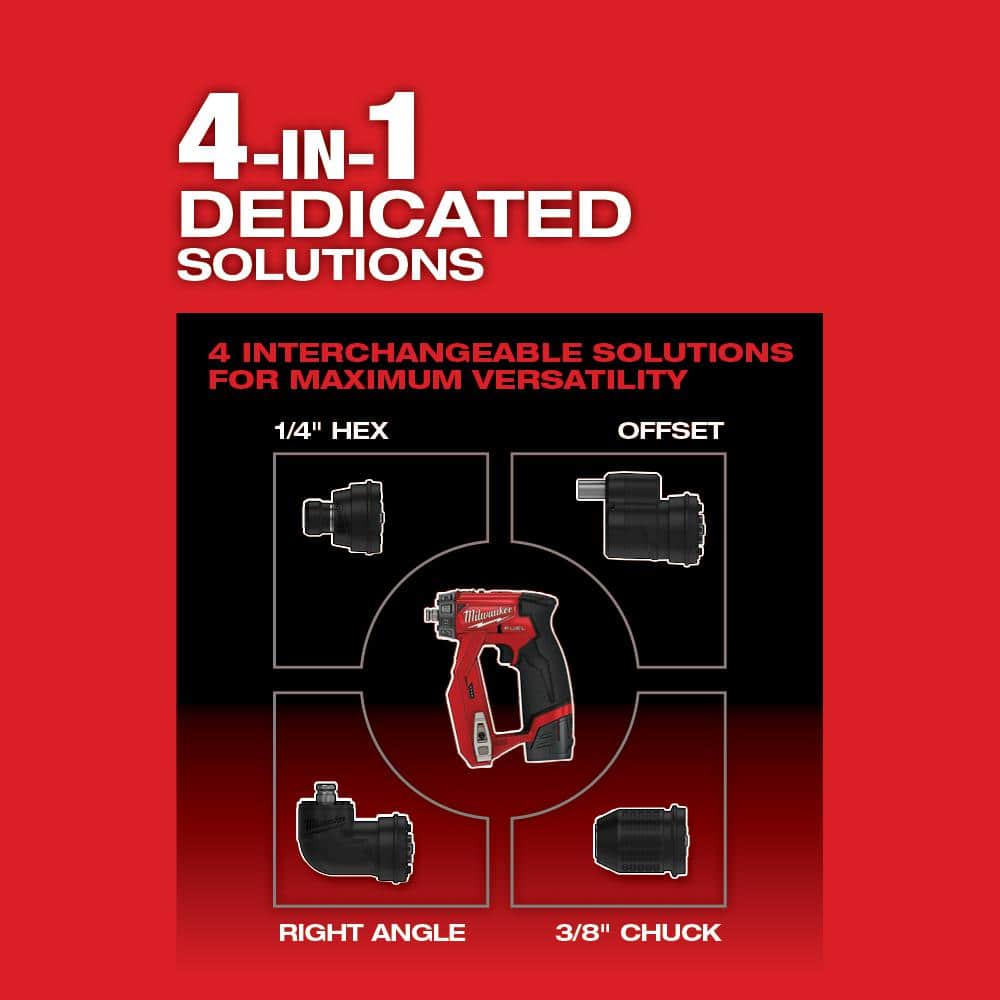

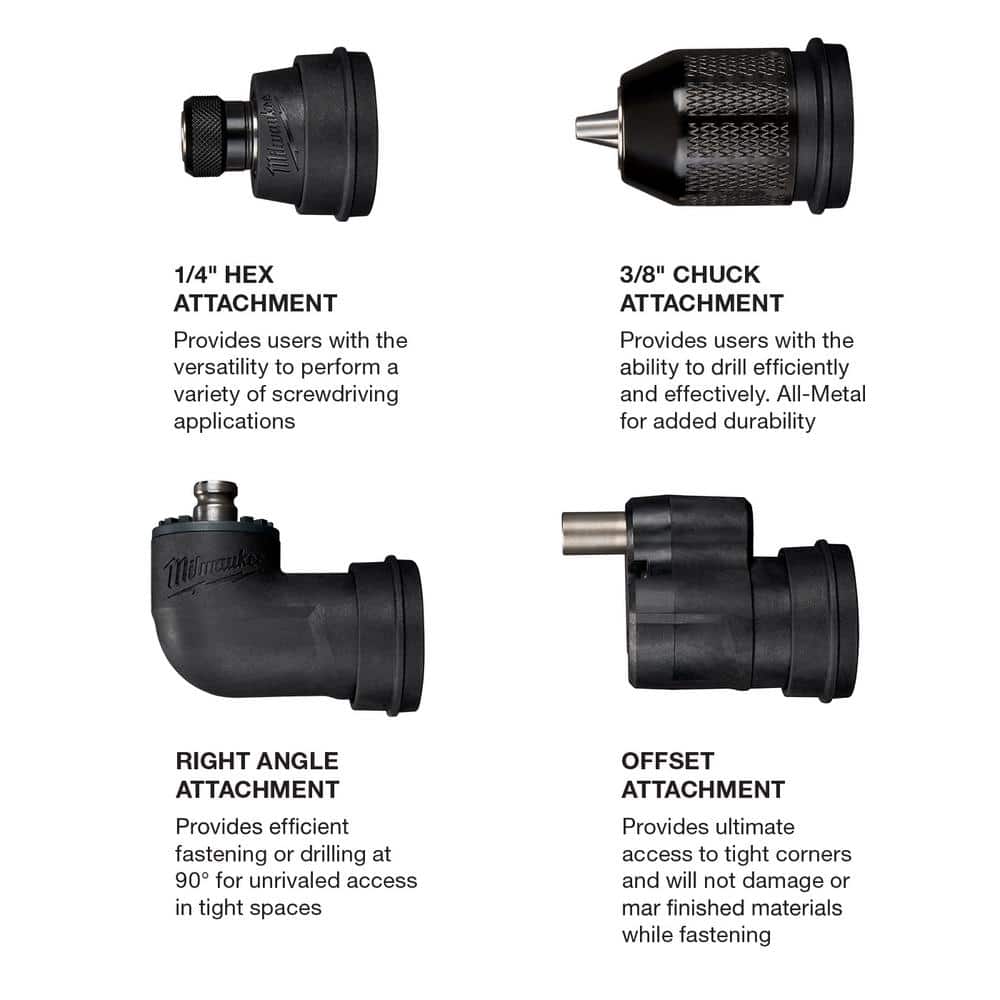

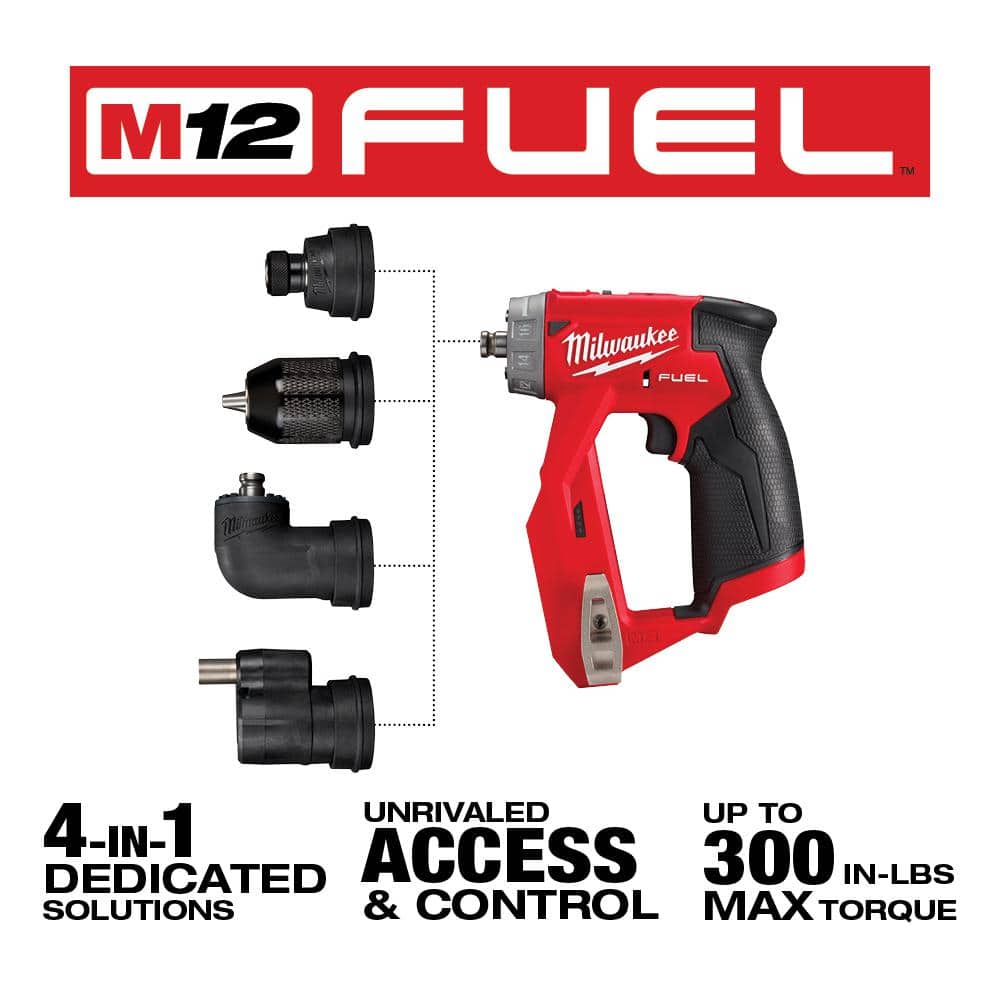

- 4-in-1 Versatility: Swap between 3/8 in. chuck, 1/4 in. hex, offset, and right-angle heads to tackle drilling and fastening in any space.

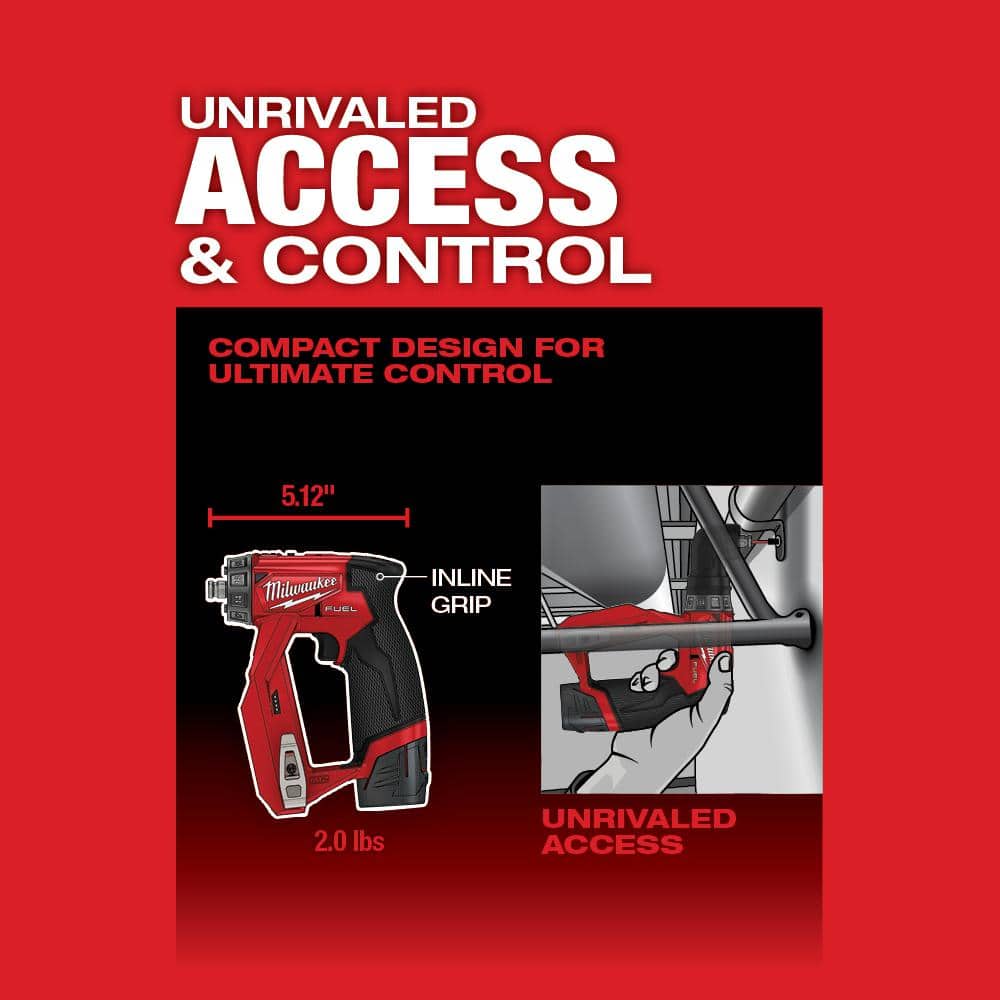

- Compact Control: Inline grip and 5.1 in. length offer unrivaled access in cabinets, electrical and HVAC installs.

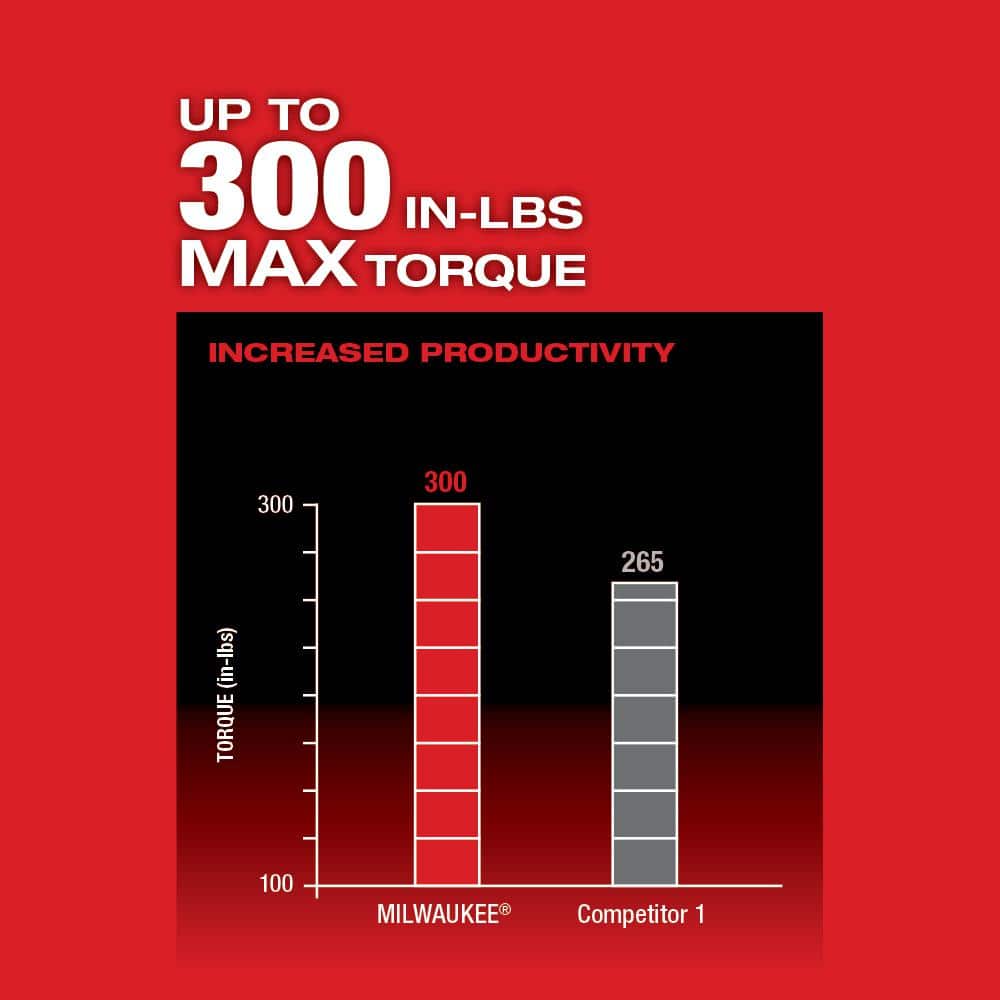

- Brushless Power: POWERSTATE motor delivers up to 300 in-lbs torque with 0–1,600 RPM and variable speed trigger.
- Smart Protection: REDLINK Plus Intelligence helps prevent overload and overheating for long tool life.
- Jobsite Ready: All-metal chuck, magnetic bit holder, LED light, belt clip, and contractor bag included.
Specifications Table:
| Specification | Details |
|---|---|
| Battery Amp Hours | 2.5 Ah |
| Battery Power Type | Lithium Ion |
| Battery Voltage (V) | 12V |
| Battery/Charger | 1 Battery Included (Charger Not Included) |
| Charger Included | No |
| Chuck Size (In.) | 3/8 In. |
| Chuck Type | Keyless |
| Color Family | Red |
| Cordless Tool Type | Drill/Driver |
| Cordless/Corded | Cordless |
| Drill/Driver Type | Power Drill |

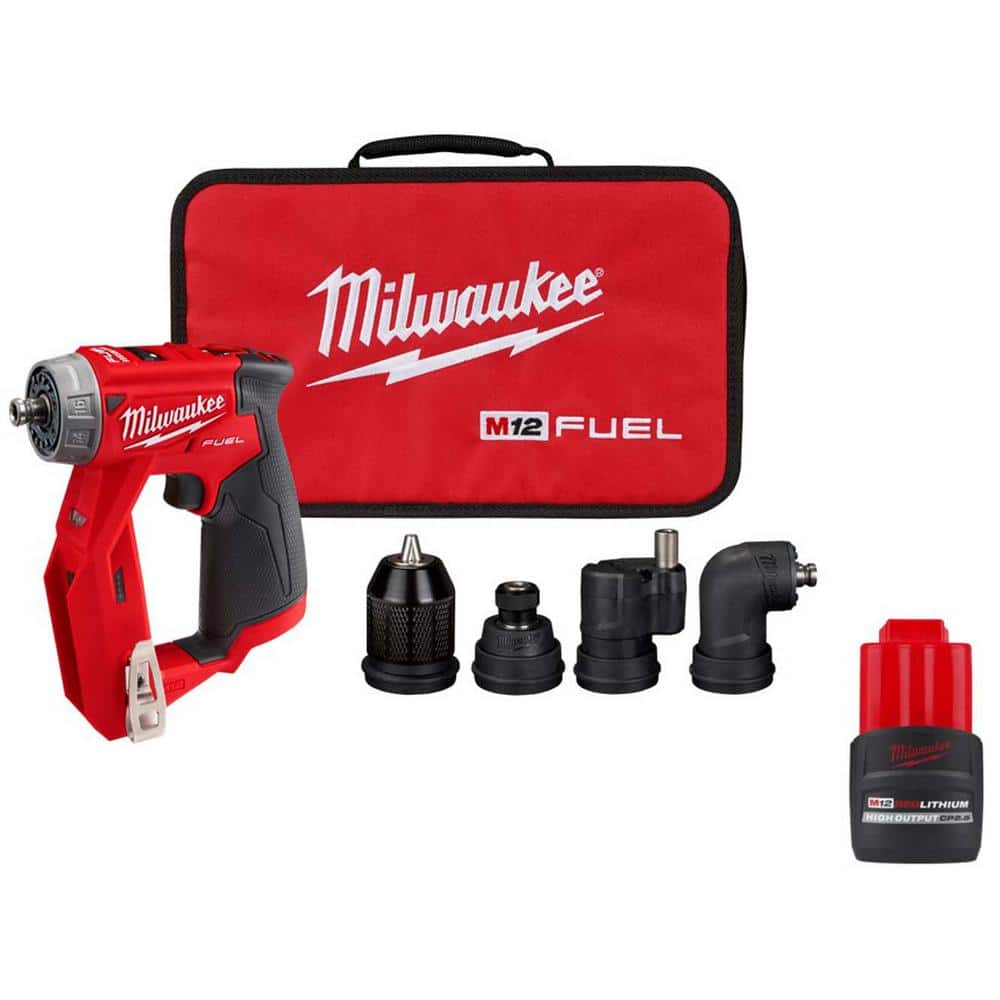

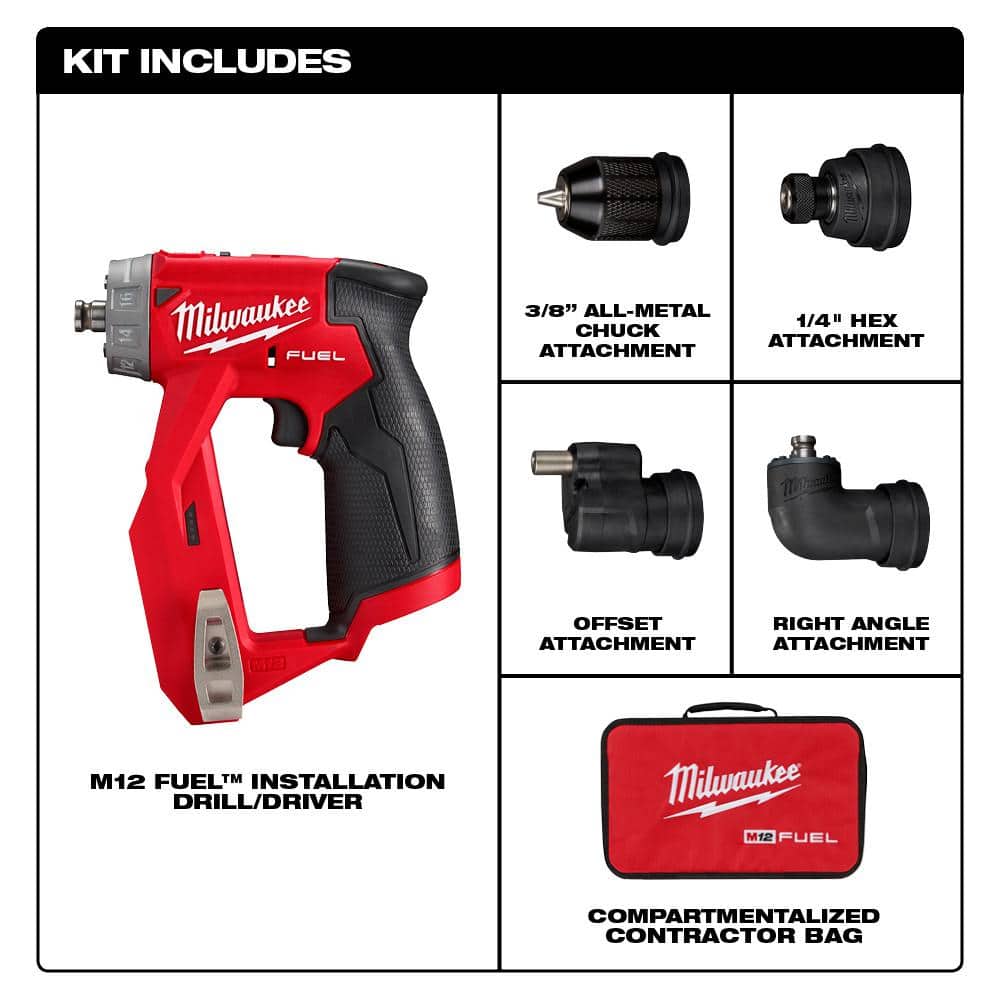

| Included | Installation drill/driver, 3/8 in. chuck, 1/4 in. hex, offset, right‑angle attachments, belt clip, contractor bag, 2.5Ah battery |
| Maximum Speed (RPM) | 0–1,600 RPM (2-speed) |
| Motor Type | Brushless |
| Number of Total Batteries Included | 1 |
| Power Tool Features | Forward/Reverse Switch, Keyless Chuck, LED Light, Sub-Compact, Variable Speed, Magnetic Bit Holder, 16-position clutch |
| Product Weight (lb.) | 1.8 lb (tool only) |
| Tools Product Type | Power Tool |
| Torque (lb-in) | 300 in-lbs |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 5 year limited |
| Product Depth (in.) | 5.2 in |
| Product Height (in.) | 7 in |
| Product Width (in.) | 1.8 in |
Frequently Asked Questions (FAQ):
Q: What batteries does it use?
A: It runs on Milwaukee M12 REDLITHIUM battery packs, including the included 2.5Ah High Output pack.
Q: Is a charger included?
A: No charger is included in this kit.
Q: Can it work in tight spaces?
A: Yes—its compact body, inline grip, and right‑angle/offset heads provide excellent access in confined areas.
Q: What is the max torque and speed?
A: Up to 300 in-lbs of torque with a 2-speed selector up to 1,600 RPM.
Q: How many head positions are available?
A: Attachments index in 16 positions for optimal angle and reach.
Precision Power, Minimal Footprint
This sleek, compact drill/driver slips effortlessly into the choreography of a well-designed workspace. Its modular 4-in-1 head system is the star—transformative, functional, and beautifully engineered for tight, polished installations. Pair it with matte black hardware and organized, labeled bins for a clean, professional aesthetic. Consider it an essential instrument for luxe, detail‑driven craftsmanship.
Equip your kit with compact power and 4‑in‑1 versatility—add the Milwaukee M12 FUEL Installation Drill/Driver to your cart today.
