Kingspan GreenGuard GG60-LG XPS Insulation Board - 2in x 2ft x 8ft - (96 Boards)

Kingspan

Kingspan GreenGuard GG60-LG XPS Insulation Board - 2in x 2ft x 8ft - (96 Boards)

$4,874.58

Published price — same for everyone

Out of stock — available on backorder

SKU M28200TYP7LG

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

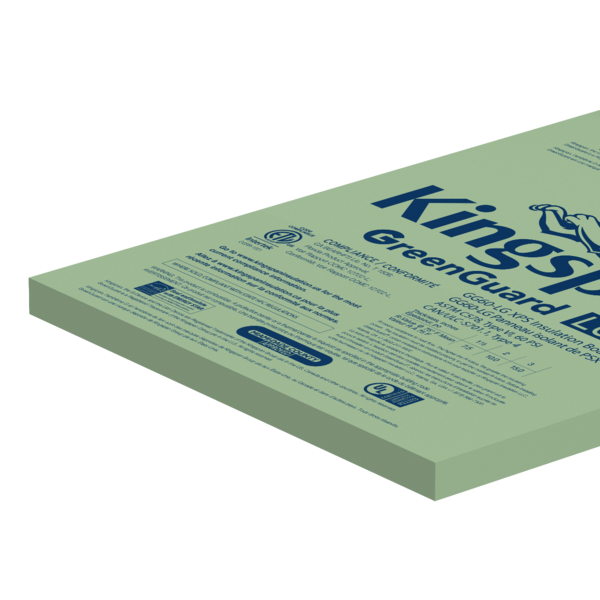

Kingspan GreenGuard GG60-LG XPS Insulation Board comprises closed–cell extruded polystyrene (XPS) with a minimum compressive strength of 60 psi. It has high water resistance and R–value of 5.0 per inch of thickness. It is available in a square edge board or a drainage channel board.

Kingspan GreenGuard LG XPS Insulation Board is made of synthetic materials that are generally recognized as not providing a food source for insects, fungus, mold, or mildew. It should always be properly installed and stored. Kingspan GreenGuard GG60-LG XPS Insulation Board is HCFC free.

96 Boards Per Pallet

1536 Sq Ft Per Pallet

Features & Properties

    • R-value of 5.0 per inch of thickness
    • Designed for high–load applications requiring insulation with minimum compressive strength of 60 psi
    • GWP of lessthan 50
    • Retains insulating properties over time
    • Lightweight, durable...easy to use
Property Test Method Result
Nominal Thickness (in) 1 1/2, 2, 3
Nominal Board Width (ft)
Nominal Board Length (ft)		 2 / 4
8
Edge Profile

Square

Channeled
Property Type ASTM C 578 VII
Compressive Strength, Min.
(psi@ 10% deflection)		 ASTM D 1621 60
Water Absorption, Max.
(% by volume)		 ASTM C 272 0.3
Density, Min.
(lb/ft)		 ASTM C 303 2.2
Water Vapor Permeance
(perm)		 ASTM E 96
(Dessicant Method)		 1.1
Service Temperature, Max (°F) 165
Thermal
Thermal Resistance, R-value
(°F.ft.hr / Btu per in thick)		 ASTM C 518
(@75°F Mean Temperature)		 5.0
Thermal Conductivity, k-value
(Btu.in / hr.ft.ºF)		 ASTM C 518
(@75°F Mean Temperature)		 0.2
Fire & Smoke
Flame Spread
Smoke Developed		 ASTM E 84 / UL723 25 (Class A)
140
