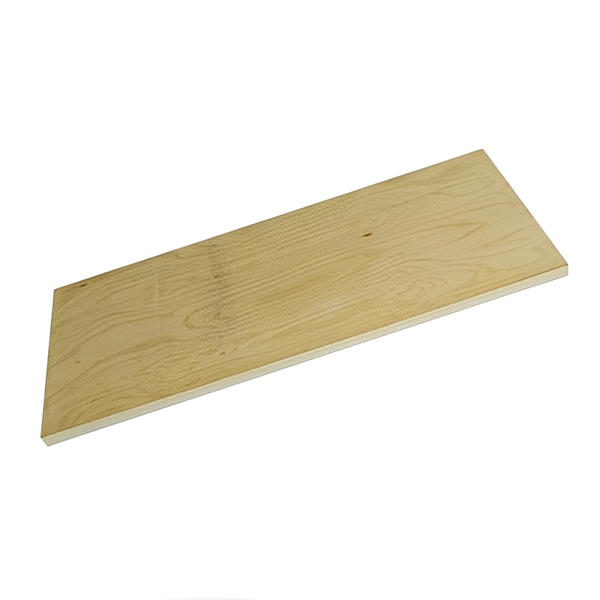

Hunter Panels XCI Ply Class A (5/8 Ply Attached) 4ft x 8ft - All Sizes

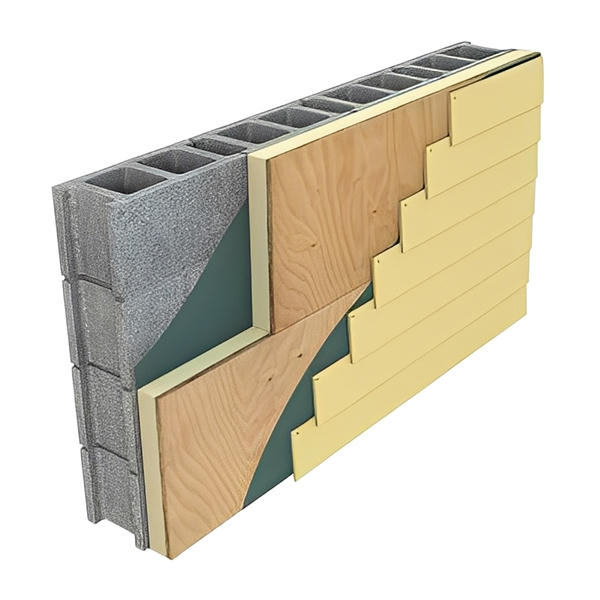

Xci Ply Class A is an energy efficient rigid insulation panel composed of a closed cell class A polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and 5/8" fire-treated plywood on the other. It is designed for use in commercial wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.

Features and Benefits

• Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFC’s or HCFC’s; Virtually zero Global Warming Potential (GWP). The use of Xci products helps reduce the carbon footprint of buildings.
• Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
• Offers a superior combination of high insulating properties and mechanically attachable surface for claddings
• Mitigates thermal bridging from cladding fasteners
• Suitable for above-grade exterior walls in both commercial (Types I-V) and residential construction
• For NFPA 285 compliance information reference applicable DrJ Technical Evaluation Report
• Up to 2” foam thickness + the wood component can be used as structural insulating sheathing. Contact Hunter Xci for shear values, wind loads and attachment requirements.
• Incorporates APA-TECO Rated Exposure 1 Fire Treated Plywood with flame spread of <25 per ASTM E84
• Approved component of the Xci AEGIS Wall System
