Hunter Panels
Hunter Panels XCI NB (3/4 PLY Attached) 4ft x 8ft - All Sizes
Hunter Panels XCI NB (3/4 PLY Attached) 4ft x 8ft - All Sizes
Regular price
$7,611.98 USD
Regular price
Sale price
$7,611.98 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

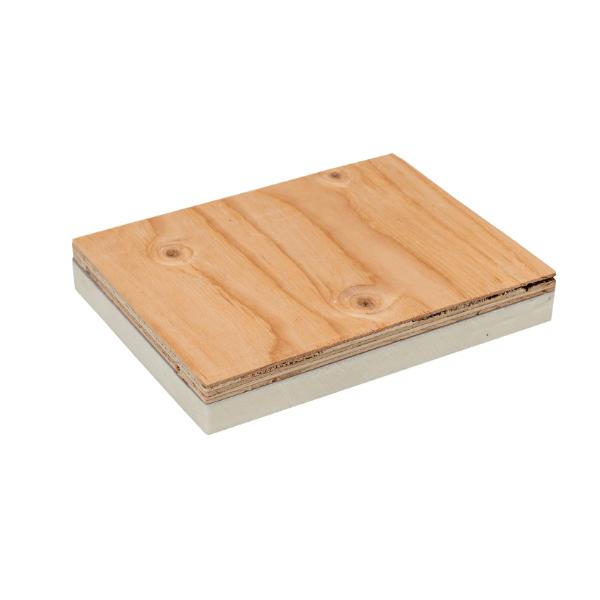

Xci NB is an energy efficient rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and plywood on the other. It is designed for use in Type V commercial and residential wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.
| Thickness | R-Value | Sq Ft/Pallet | Sheets Per Pallet |
|---|---|---|---|
| 1.7" | 7 | 896 | 28 |
| 2.2" | 10 | 672 | 21 |
| 2.7" | 13.1 |
544 | 17 |
| 3.2" | 16.3 |
480 | 15 |
| 3.7" | 19.5 | 384 | 12 |
Features & Benefits
- Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFC’s or HCFC’s; Virtually zero Global Warming Potential (GWP). The use of Xci products helps reduce the carbon footprint of buildings.
- Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
- Offers a superior combination of high insulating properties and mechanically attachable surface for claddings
- Mitigates thermal bridging from cladding fasteners
- Up to 2.7” thickness can be used as structural insualting sheathing when applied to wood studs. Contact Hunter Xci for shear values, wind loads and attachment requirements.
- Approved component of the Xci AEGIS Wall System
