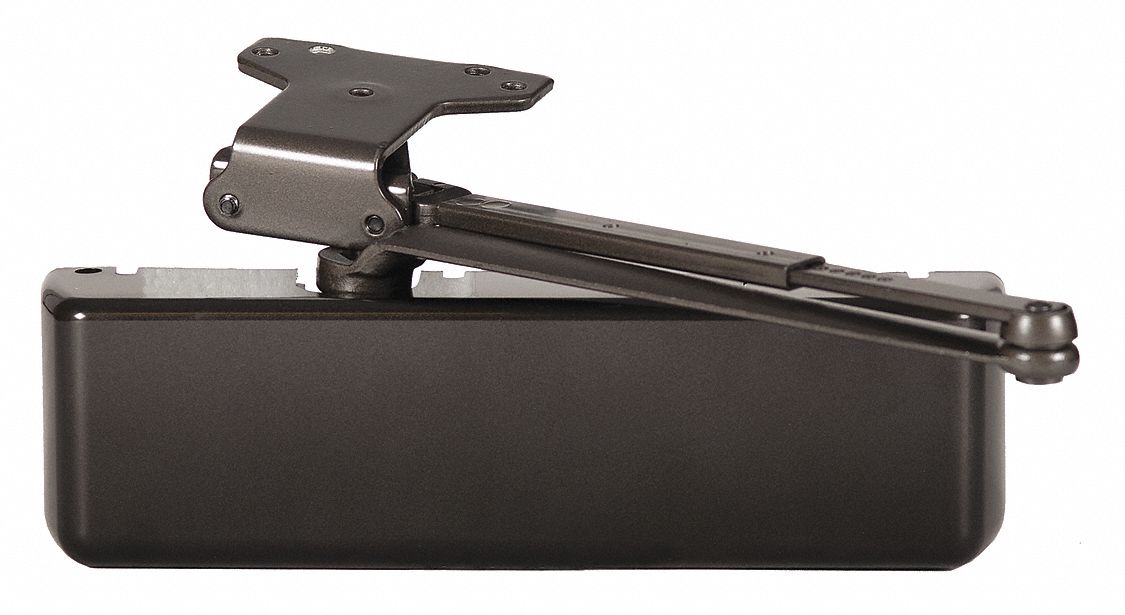

DORMAKABA QDC112R690 Heavy Duty Door Closer, Bronze - Grade 1

DORMAKABA Heavy Duty Door Closer, Bronze

Upgrade your door's functionality with the DORMAKABA Heavy Duty Door Closer. This adjustable-mount closer offers versatile installation options for any door swing style, supporting both interior and exterior doors up to 54 inches wide.

---

Key Features:

• Versatile Mounting: Adjustable mounting type allows installation as a standard, top frame, or parallel closer.
• Heavy Duty Performance: Grade 1 rating ensures durability for high-traffic areas, perfect for commercial environments.
• Wide Compatibility: Suitable for doors up to 54 inches wide, with a maximum opening angle of 180 degrees.
• Durable Construction: Made from robust cast iron and finished in an elegant bronze, providing both strength and style.
• Safety Certified: UL and cUL listed with a 3-hour fire rating, offering peace of mind for safety compliance.

---

Specifications Table:

Specification	Details
Manufacturer Part Number	QDC112R690
Brand	DORMAKABA
Closer Mounting Type	Adjustable
Closer Series	QDC100
Closer Type	Hold Open
Color	Bronze
Display Qty	1
Display Sell UOM	EA
Max Door Opening Angle	180 °
Features	Staked Valves
Finish	Bronze
Fire Rating	3 hr
Housing Depth	2-1/4 in
Housing Height	3-1/2 in
Energy Source	Hydraulic
Includes	Full Size Cover
Includes Hardware	Hardware Included
Door Width Campatibility	54 in
Location Use	Interior/Exterior
Standards	UL and cUL Listed
UL Fire Rating	UL10C
Spring Type	Adjustable
Height Between Mounting Holes	2-1/4 in
Spring Size - Minimum	1
Material	Cast Iron
Exterior Door Width - Maximum	54 in
Product Type	Door Closer
Projection	2-1/4 in
Spring Size	6
Hand Orientation	Non-Handed
Housing Length	12-3/16 in
Operation Style	Manual
Performance Duty Rating	1
Sub-brand	Dormakaba
Length Between Mounting Holes	4 in
Ligature Resistance	Not Ligature-Resistant
ADA Compliant	Yes
Performance Rating	Grade 1 - Heavy Duty
Finish C	Dark Bronze Painted ; Cast Iron ; Bronze

---

Frequently Asked Questions (FAQ):

Q: Does this door closer meet ADA requirements?
A: Yes, the DORMAKABA door closer is ADA compliant, ensuring it meets accessibility standards.

---

Q: Can this closer be used on exterior doors?
A: Yes, it is suitable for both interior and exterior doors, accommodating up to 54 inches in width.

---

Q: Is the door closer compatible with left-hand or right-hand doors?
A: The door closer is non-handed, eliminating concerns over left or right orientation during installation.

---

Q: What is the maximum door opening angle?
A: The door closer allows for a maximum opening angle of 180 degrees, facilitating wide access.

---

Q: Is installation hardware included?
A: Yes, all necessary hardware is included for installing the door closer.

---

Elevate Entrance Elegance with Bronze Precision

Infuse timeless elegance into entryways with the DORMAKABA Heavy Duty Door Closer. Its bronze finish brings a subtle glow that complements any architectural style, transforming mundane doorways into impressive passages. The sleek silhouette, featuring intricately smooth operation, seamlessly merges form with function. Ideal in upscale commercial or residential settings, this door closer redefines refinement. Truly indispensable for those who seek enduring luxury in details.

---

Secure your doorway with the durable and stylish DORMAKABA door closer today, and ensure smooth operation for years to come.
