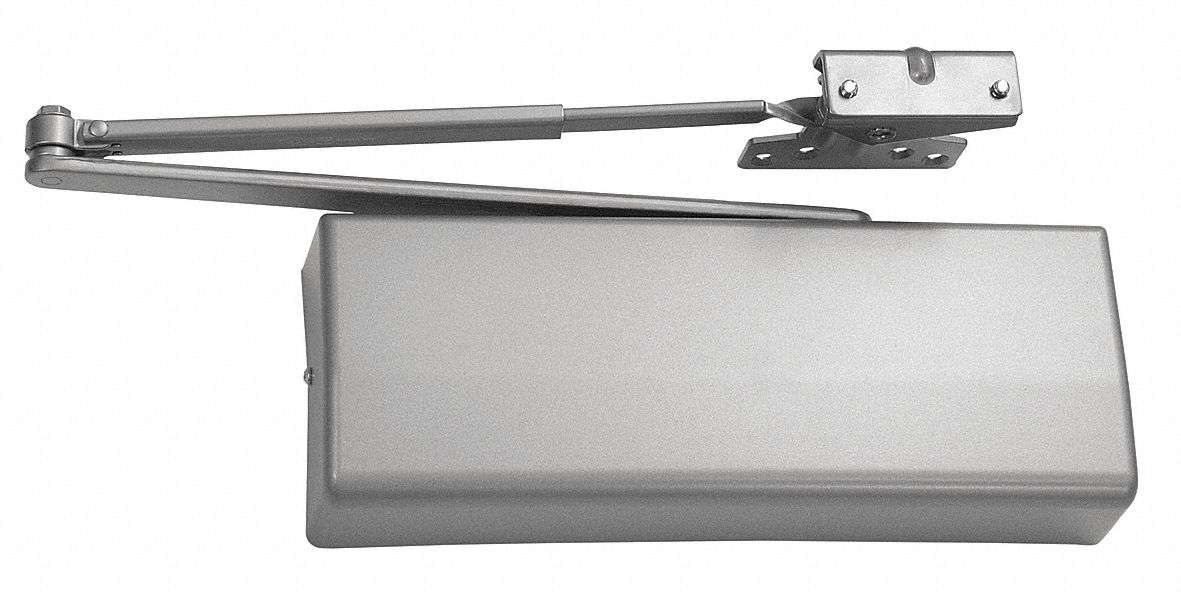

CORBIN Door Closer Grade 1 Heavy Duty Parallel Mount Aluminum

Heavy Duty Parallel Mount Door Closer

The CORBIN Heavy Duty Door Closer is designed for maximum durability and performance, ideal for industrial or commercial doors. Engineered with a sleek parallel arm design, it complements any interior or exterior setting while ensuring a smooth and reliable door operation for high-traffic areas.

---

Key Features:

• Durable Construction: Made from premium cast iron for longevity.
• Aesthetic Design: Parallel arm mount for a discreet, sleek look.
• High Performance: Grade 1 heavy duty rating for rigorous use.
• Versatile Use: Suitable for both interior and exterior doors.
• Adjustable Spring: Tailored settings for door control flexibility.

---

Specifications Table:

Specification	Details
Manufacturer Part Number	DC8210 x M101F 689 x A12 x 33-41
Brand	CORBIN
Closer Mounting Type	Parallel
Closer Series	DC8000
Closer Type	Hold Open
Color	Gray
Compatible with Brand	CORBIN RUSSWIN
Display Qty	1
Display Sell UOM	EA
Max Door Opening Angle	110 °
Door Opening - Minimum	85 °
Finish	Aluminum
Fire Rating	3 hr
Housing Depth	2-1/4 in
Housing Height	4-7/16 in
Energy Source	Hydraulic
Includes	M101B Bracket
Includes Hardware	Hardware Included
Location Use	Interior/Exterior
Properties	Vandal-Resistant
Standards	UL and cUL Listed
UL Fire Rating	UL10C
Spring Type	Adjustable
Height Between Mounting Holes	1 in
Spring Size - Minimum	1
Material	Cast Iron
Door Weight - Maximum	250 lb
Exterior Door Width - Maximum	41 in
Product Type	Door Closer
Projection	2-1/4 in
Spring Size	6
Arm Type	Parallel
Closer Cycles	25,000,000
Hand Orientation	Non-Handed
Housing Length	12 in
Operation Style	Manual
Performance Duty Rating	1
Sub-brand	27
Length Between Mounting Holes	10 in
Ligature Resistance	Not Ligature-Resistant
ADA Compliant	Yes
Performance Rating	Grade 1 - Heavy Duty
Finish C	Aluminum Painted ; Cast Iron ; Gray

---

Frequently Asked Questions (FAQ):

Q: How is this door closer installed?
A: The CORBIN door closer is installed using the included M101B bracket and hardware, which allows for parallel arm installation on the push side of the door.

---

Q: Is this door closer compatible with exterior doors?
A: Yes, this door closer is suitable for both interior and exterior applications, with a maximum door weight of 250 lbs.

---

Q: What is the maximum door opening angle for this closer?
A: The maximum door opening angle is 110 degrees.

---

Q: Does this door closer meet safety standards?
A: Yes, it is UL and cUL listed and meets UL Fire Rating UL10C standards, ensuring safety and reliability.

---

Q: Is the closer ADA compliant?
A: Yes, the CORBIN door closer is ADA compliant, made to facilitate accessibility.

---

Elevate Your Entryway Elegance

This CORBIN Door Closer is a marvel of design precision that harmonizes seamlessly with the aesthetic appeal of any entryway. Its parallel arm mount provides a discreet, refined look that adds an understated elegance to your doors. Pair it with stylish door hardware and let its sleek aluminum finish be a testament to your taste in sophisticated utility solutions. It’s not just a door closer, it's a defining element of luxurious entryway dynamics.

---

Elevate your doorway functionality and aesthetics by choosing the robust and elegant CORBIN Heavy Duty Door Closer today!
