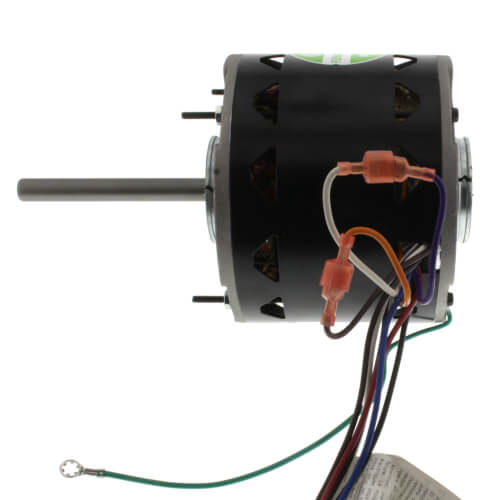

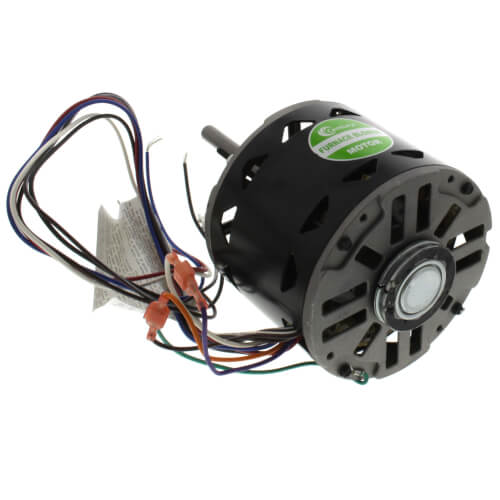

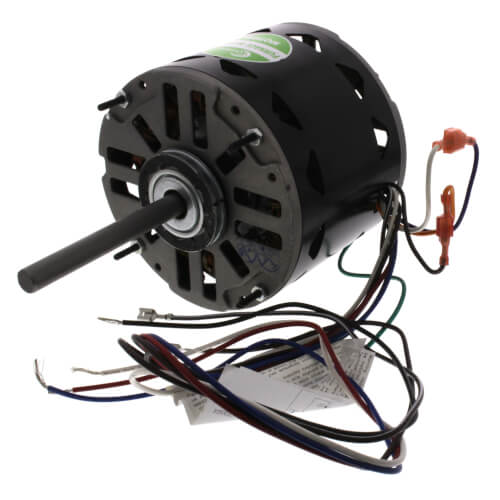

Century DL1036 5-5/8" Indoor Blower Motor (115V, 1075 RPM, 1/3 HP)

The Century DL1036 5-5/8" Indoor Blower Motor (115V, 1075 RPM, 1/3 HP) is a Century blower motor for HVAC repair and replacement work. Use it when the part number DL1036 and the listed specifications match the equipment being serviced.

5-5/8" Indoor Blower Motor (115V, 1075 RPM, 1/3 HP) Features: • 60 HZ • Single Phase • Automatic Overload • 48 Frame • 2 1/2 Mounting Rings • Extended Thru Bolts • 40 degree C ambient • Permanent Split Capacitor

Key Specs

• Type: Permanent Split Capacitor
• Voltage: 115V
• Horse Power: 1/3
• RPM: 1075
• Phase: 1
• Speeds: 3
• Product Type: Blower Motor

Replacement Notes

Captured replacement references include 3385, 46013, 43585, 01-0170. Confirm supersession details against the manufacturer parts list.

Expert Verdict

Reviewed by the SuperArbor Pro Desk: choose this part when the existing component label and unit documentation match DL1036 and the spec set above. It is best suited for targeted HVAC service repairs where exact fitment matters more than broad universal compatibility.

FAQs

What is the Century DL1036 used for?

It is a blower motor for compatible Century HVAC equipment. Match the part number DL1036 and the equipment service literature before ordering or installing.

Which specs should I verify before purchase?

Verify the spec set shown for this part: Type: Permanent Split Capacitor; Voltage: 115V; Horse Power: 1/3; RPM: 1075; Phase: 1; Speeds: 3. The replacement should match the existing component and the unit documentation.

Does the electrical rating need to match exactly?

Yes. Confirm voltage rating 115V against the failed component label. Do not substitute a different rating unless the equipment manufacturer allows it.

Are replacement or superseded references available?

Captured cross-reference data includes 3385, 46013, 43585, 01-0170. Verify any supersession directly against the manufacturer parts list before installation.

Who should install this HVAC component?

A qualified HVAC technician should install and test the blower motor. Disconnect power first, follow lockout procedures, and confirm safe operation after replacement.

Safety and Installation Notes

Disconnect power before service. HVAC electrical and combustion-related components should be installed and tested by a qualified technician. After installation, confirm wiring, mounting, airflow or fluid routing as applicable, and normal system operation.
