Bosch JS470EB 7 Amp Corded Variable-Speed Barrel-Grip Jig Saw Kit with Carrying Case

Bosch 7A Barrel-Grip Corded Jig Saw Kit

Precision barrel‑grip jig saw with a powerful 7.0‑amp motor and variable speed for clean curve cuts. Features Constant Response circuitry, low‑vibration design, and an aluminum footplate with no‑mar overshoe. Includes carrying case and accessories for fast, tool‑less blade changes.

---

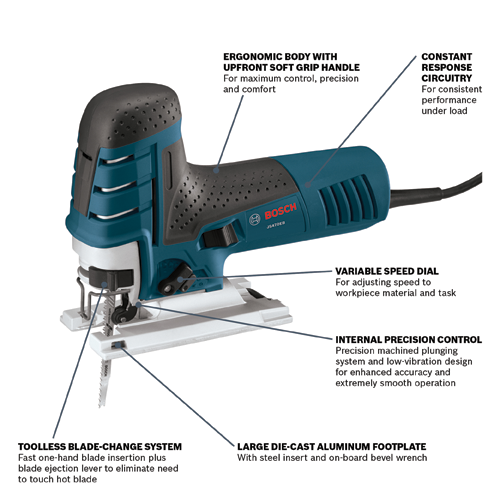

Key Features:

• Powerful Performance: 7.0‑amp motor delivers 500–3,100 SPM with 1 in. stroke length
• Precision Control: Constant Response circuitry and low‑vibration plunging for smooth, accurate cuts
• Versatile Cutting: Four orbital settings and 45° bevel capacity for a range of materials
• Comfortable Grip: Ergonomic barrel grip with upfront soft‑grip handle for maximum control
• Fast Blade Changes: Toolless T‑shank blade clamp with ejection lever to avoid touching hot blades

---

Specifications Table:

Specification	Details
Model	JS470EB
Amperage	7.0 A
No‑Load SPM	500–3,100
Stroke Length	1 in
Variable Speed	Yes
Orbital Settings	4
Bevel Angle Range	0–45°
Max. Bevel Capacity	45°
Jig Saw Blade Type	T‑shank (does not accept U‑shank)
Cutting Capacity – Soft Wood	5-7/8 in
Cutting Capacity – Aluminum	7/8 in
Cutting Capacity – Mild Steel	3/8 in
Dust Blower	Yes, with on/off switch
Dust Collection	Yes (compatible accessories)
Rating/Voltage	120V, 60 Hz
Reverse	No

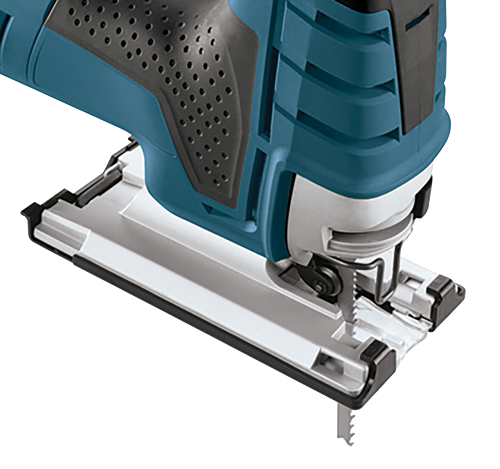

Footplate	Large die‑cast aluminum with no‑mar plastic overshoe
Gearbox	Aluminum with insulated cover
Blade Change	Toolless blade‑change system with ejection lever
Dimensions (L x H x W)	7 in x 7 in x 2.5 in
Works With	JA1010 Jig Saw Guide; JA1007 Dust Collection Attachment; JA1013 Anti‑Splinter Insert
Includes	JS470EB jig saw; non‑marring overshoe (2601099183); anti‑splinter insert; T‑shank blade; bevel wrench; carrying case
Color	Blue
Ergonomics	Upfront soft‑grip handle; fully counterbalanced low‑vibration mechanism

---

Frequently Asked Questions (FAQ):

Q: What blades does this jig saw use?
A: It uses T‑shank jig saw blades and does not accept U‑shank blades.

---

Q: What is the speed range?
A: No‑load speed is 500 to 3,100 strokes per minute, adjustable via the variable‑speed dial.

---

Q: Does it have dust management?
A: Yes, it includes a dust blower with on/off switch and supports dust collection attachments (JA1007).

---

Q: What bevel cuts can it make?
A: It has a maximum bevel capacity of 45°, with on‑board bevel wrench.

---

Q: What’s included in the kit?
A: JS470EB jig saw, non‑marring overshoe, anti‑splinter insert, T‑shank blade, bevel wrench, and carrying case.

---

Carve with Confidence and Control

This barrel‑grip jig saw brings a sculptural precision to custom cabinetry and countertops, gliding through curves with silk‑smooth control. The aluminum footplate and soft‑grip body feel tailored, while Constant Response circuitry keeps every cut poised and steady. Style it with a fine‑tooth T‑shank blade for delicately contoured edges or a bolder orbital setting for expressive textures. It’s a refined essential that elevates craftsmanship to a luxurious finish.

---

Bring home the JS470EB for smooth, accurate cuts and professional control—order your kit today.
