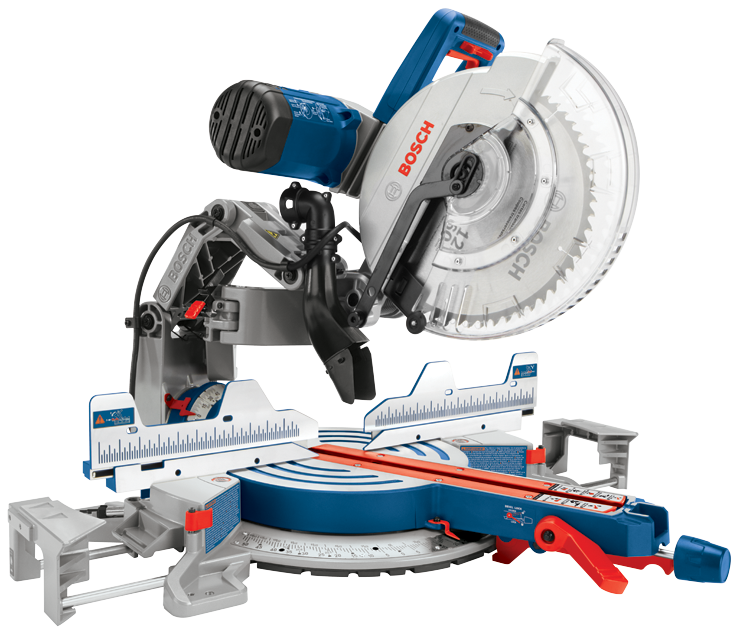

Bosch 15 Amp 12 in. Corded Dual-Bevel Sliding Glide Miter Saw with 60-Tooth Blade, GCM12SD

12 in. Dual-Bevel Glide Miter Saw (60T Blade)

This 12-inch dual-bevel sliding glide miter saw pairs Bosch’s Axial-Glide system with a 15-amp motor for smooth, accurate cuts and a compact, space-saving footprint. It includes a 60-tooth carbide-tipped blade, clear lower guard for visibility, and upfront bevel/miter controls for fast adjustments on the jobsite or in the shop.

---

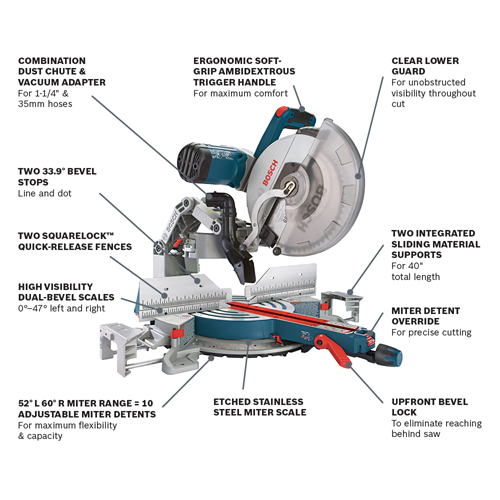

Key Features:

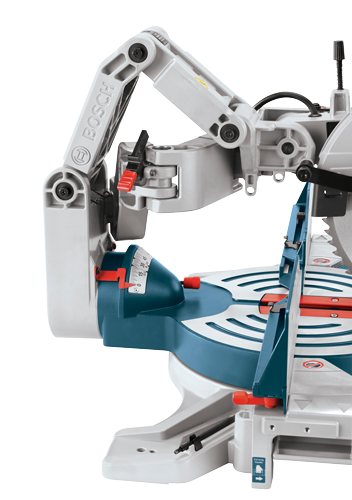

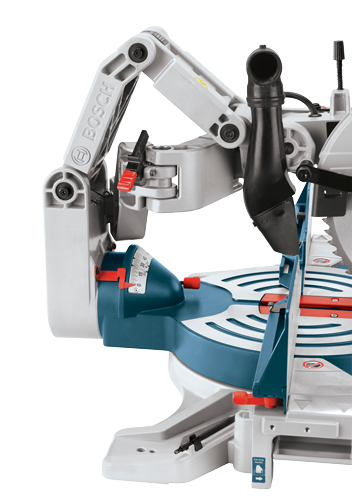

• Axial-Glide System: Space-saving, ultra-smooth glide with enhanced alignment for lasting precision.
• Powerful 15-Amp Motor: Delivers 4,000 RPM no-load speed for quick, accurate cuts in a variety of materials.
• Large Cutting Capacity: Up to 3-1/2 in. x 13-1/2 in. at 0°; 52° left/60° right miter and 47° left/right bevel range.

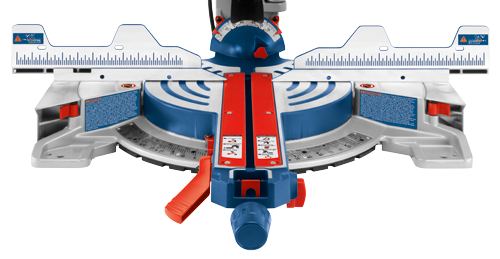

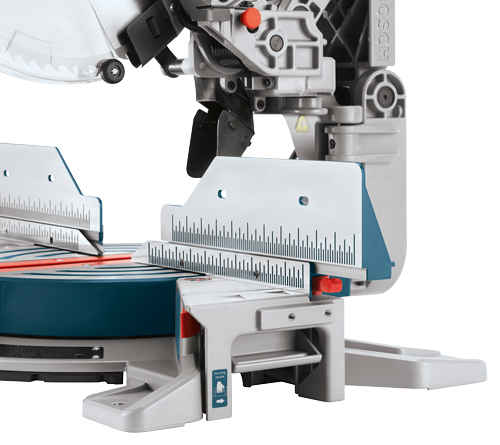

• Precision Controls: Stainless steel miter scale with detents and push-button detent override; pre-aligned SquareLock fences.
• Dust Management: Combination dust chute and vacuum adapter optimized for up to 90% collection when cutting 2x material.

---

Specifications Table:

Specification	Details
Model	GCM12SD
Amperage	15 A
Blade Diameter	12 in.
Blade Size	12 in.
No Load RPM	4,000 RPM
Voltage	120V
Miter Angle Range	52° left, 60° right
Bevel Angle Range	47° left and 47° right

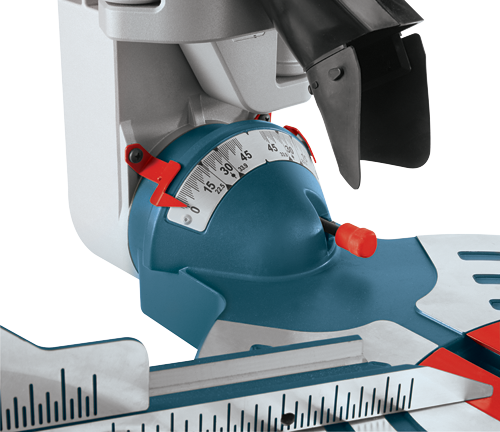

Bevel Stops	0°, 33.9°, 45°, 47° (L/R)
Miter Detents / Positive Stops	0°, 15°, 22.5°, 31.6°, 45° (L/R), 60° (R)
Category	Compound Miter Saws
Electric Motor Brake	Yes
Dust Collection	Yes; optimized up to 90% with vacuum
Height	27 in.
Length	32.375 in.
Width	26.5 in.
Height of Table from Base	3.75 in.
Max Cut Capacity (0° miter, 0° bevel)	3-1/2 in. x 13-1/2 in. (4x14 dimensional lumber)
Max Cut Capacity (0° miter, 45° left bevel)	2 in. x 13-1/2 in. (2x14 dimensional lumber)
Max Cut Capacity (0° miter, 45° right bevel)	1-1/2 in. x 13-1/2 in. (2x14 dimensional lumber)
Max Cut Capacity (45° miter, 0° bevel)	3-1/2 in. x 9-1/2 in. (4x10 dimensional lumber)
Max Cut Capacity (45° miter, 45° left bevel)	2 in. x 9-1/2 in. (2x10 dimensional lumber)
Max Cut Capacity (45° miter, 45° right bevel)	1-1/2 in. x 9-1/2 in. (2x10 dimensional lumber)
Max Base Molding Against Fence	3-7/8 in. (6-3/4 in. from 0° to 47° L)
Max Crown (38° spring) Angled Against Fence	5-1/4 in. (5-1/2 in. from 0° to 47° L)
Max Crown (45° spring) Angled Against Fence	6 in.
Works With	Bosch miter saw stands T1B, T4B, GTA3800; crown molding stops MS1233; length stop MS1234; Bosch VAC hoses/adapters as listed by manufacturer
Includes	GCM12SD saw, 12 in. 60T carbide-tipped blade, wrench, toolless vertical work clamp, dust bag/assembly, vacuum adapter elbow
Color	Blue/Gray

---

Frequently Asked Questions (FAQ):

Q: What blade size does this saw use?
A: It uses 12-inch blades and ships with a premium 12 in. 60-tooth carbide-tipped blade.

---

Q: What are the miter and bevel ranges?
A: Miter range is 52° left and 60° right; bevel range is 47° left and 47° right with detents at 0°, 33.9°, and 45°.

---

Q: Does it have an electric brake?
A: Yes, it includes an electric motor brake.

---

Q: What dust collection options are supported?
A: It includes a dust bag and vacuum adapter elbow; works with 1-1/4 in. and 35 mm hoses and various Bosch VAC hoses/adapters.

---

Q: What’s included in the box?
A: Saw, 12 in. 60T blade, wrench, toolless vertical work clamp, dust bag/assembly, and vacuum adapter elbow.

---

Sculpted Precision, Compact Power

The Axial-Glide arm feels like a piece of kinetic sculpture—sleek, architectural, and wonderfully compact against a wall. Its clear guard and etched stainless scale create a modern, functional elegance while delivering razor-precise cuts. Style it on a rolling stand with integrated material supports to turn a workshop corner into a refined, efficient cutting station. For the discerning maker, this saw is the polished centerpiece of a luxury-level workspace.

---

Bring Bosch’s Axial-Glide precision to your shop today and cut faster, cleaner, and more accurately on every project.
