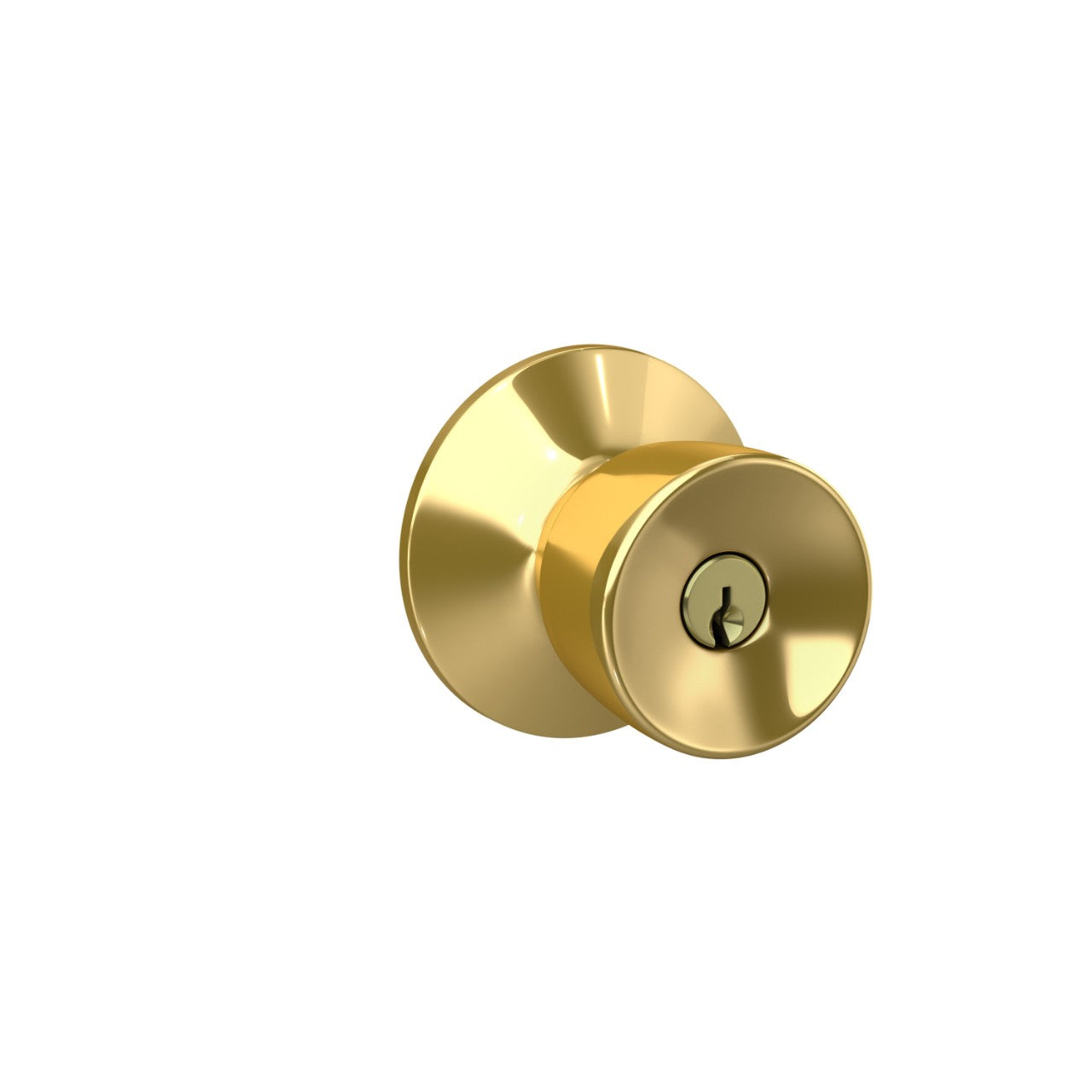

Schlage Bell Bright Brass Keyed Entry Knob

Secure exterior doors with the Schlage Bell keyed entry knob in Bright Brass. This ANSI Grade 2 lock features a durable metal construction and a universal adjustable backset for easy retrofit on standard doors.

---

Key Features:

• Grade 2 Security: ANSI/BHMA A156.2 Grade 2 with AAA rating for Security, Durability and Finish
• Easy Installation: Self-aligning screw holes and universal latch for 2-3/8 or 2-3/4 in backsets
• Flexible Fit: Works with 1-3/8 to 1-3/4 in thick doors; includes radius and drive-in faceplates
• Reliable Operation: Keyed entry outside with interior turn-button; includes 2 keys
• Built to Last: Premium metal construction with limited lifetime mechanical and finish warranty

---

Specifications Table:

Specification	Details
Finish/Color	Bright Brass
Function	Keyed Entry
Security Grade	ANSI/BHMA A156.2 Grade 2; A156.39 Grade AAA for Security, Durability, Finish
Backset	Adjustable 2-3/8 in (60 mm) or 2-3/4 in (70 mm)
Door Thickness	1-3/8 in (35 mm) to 1-3/4 in (44 mm)
Keyway	5-pin tumbler, C keyway standard
Handing	Universal; fits right or left handed doors
Included Components	Lockset, 2 keys, radius and drive-in faceplates
Fire Rating	Locks for up to three-hour fire doors available
Warranty	Limited Lifetime Mechanical and Finish Warranty

---

Frequently Asked Questions (FAQ):

Q: What door thickness does this lock fit?
A: It fits standard doors 1-3/8 in (35 mm) to 1-3/4 in (44 mm) thick.

---

Q: Will it work with my existing bore and backset?
A: Yes. The universal latch adjusts to 2-3/8 in or 2-3/4 in backsets and mounts in a single bore hole.

---

Q: Is this lock fire-rated?
A: Models for doors rated up to three hours are available per Schlage’s UL listings.

---

Q: How is it keyed and how many keys are included?
A: It uses a 5-pin tumbler with standard C keyway and comes with 2 keys.

---

Q: Is it ADA compliant?
A: No, this model is not ADA compliant.

---

A Classic Bell Silhouette in Luminous Bright Brass

The Bell knob’s rounded profile catches light like jewelry, instantly elevating a humble entry into a polished statement. Its gleaming Bright Brass finish layers warmth and heritage charm, pairing beautifully with rich woods or crisp black trim. Use it to punctuate a traditional façade or to add a luxe note to modern minimal millwork. This is the refined touch that signals thoughtful, everyday luxury.

---

Upgrade your entry with secure, grade-2 performance and timeless brass style—choose the Schlage Bell today.
