Schlage Elan Satin Chrome Keyed Entry Lever

The Schlage Elan keyed entry lever delivers Grade 2 security in a sleek, modern profile. Built from premium metal with a universal adjustable backset, it fits standard doors 1-3/8 in. to 1-3/4 in. thick for quick upgrades with just a screwdriver.

---

Key Features:

• Grade 2 Security: ANSI/BHMA A156.2 Grade 2 with Grade AAA rating for security, durability and finish
• Easy Installation: Self-aligning screw holes and universal latch fit 2-3/8 in. or 2-3/4 in. backsets; no special tools required
• Versatile Fit: Designed for 1-3/8 in. to 1-3/4 in. thick doors; includes radius and drive-in faceplates
• Reliable Operation: Keyed exterior with interior turn-button; unlocks from inside by rotating lever for quick exit
• Durable Finish: Premium metal construction with limited lifetime mechanical and finish warranty

---

Specifications Table:

Specification	Details
Model Name	Elan Lever Keyed Entry Lock
ANSI/BHMA Rating	A156.39-2015 Grade AAA (Security, Durability, Finish); A156.2 2011 Grade 2
Door Thickness	1-3/8 in. (35 mm) to 1-3/4 in. (44 mm)
Backset	Adjustable 2-3/8 in. (60 mm) or 2-3/4 in. (70 mm)
Keyway	5-pin tumbler C keyway standard
Function	Keyed entry; interior turn-button; unlocks from inside by rotating lever
ADA Compliant	No
UL / Fire Door	Locks for up to three-hour fire doors available
Warranty	Limited Lifetime Mechanical and Finish Warranty

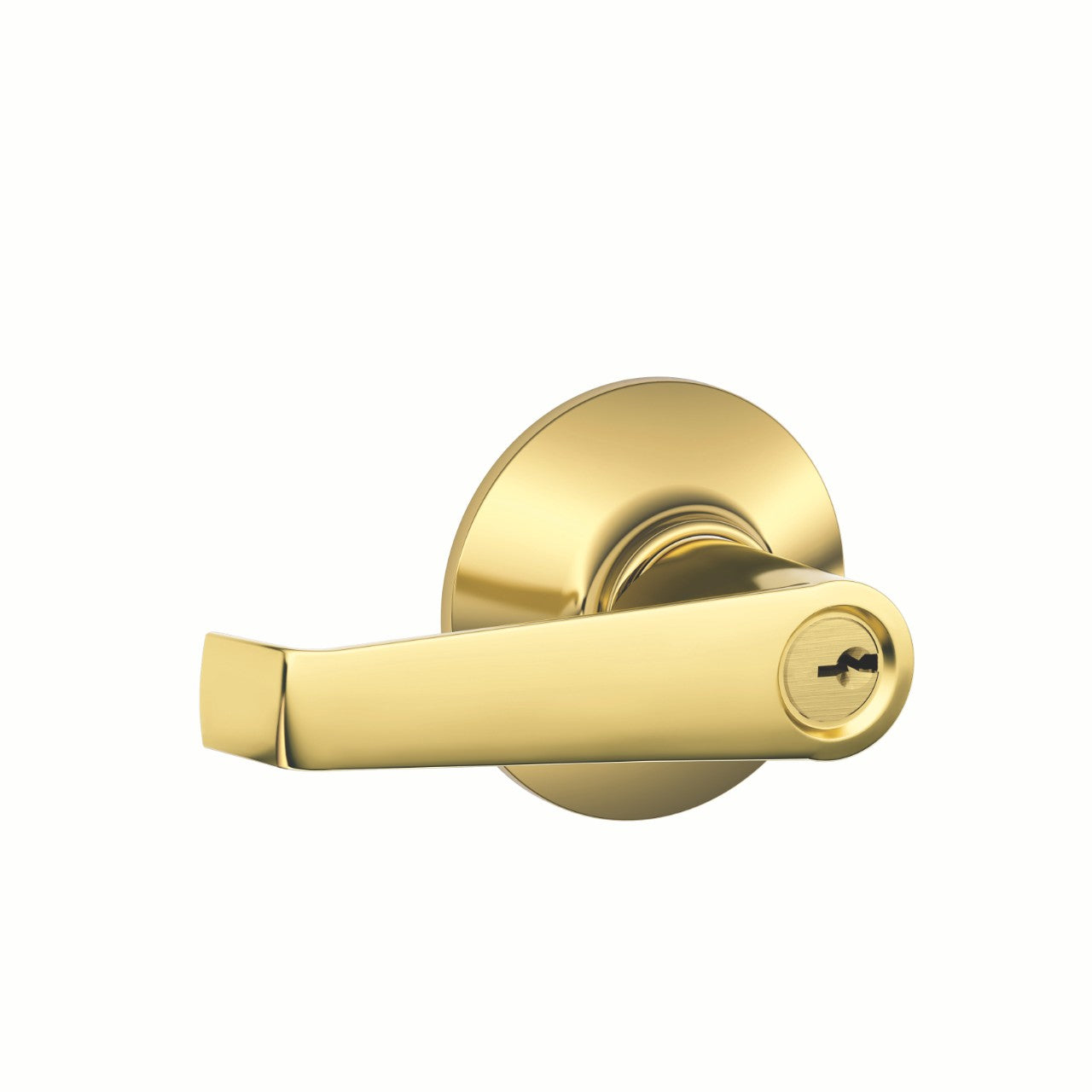

Finish (variant)	Satin Chrome finish (image shows Bright Brass; multiple finishes available)

---

Frequently Asked Questions (FAQ):

Q: What door thickness does this lever fit?
A: It fits standard residential doors 1-3/8 in. (35 mm) to 1-3/4 in. (44 mm) thick.

---

Q: What backset sizes are supported?
A: The universal latch adjusts to 2-3/8 in. (60 mm) or 2-3/4 in. (70 mm) backsets.

---

Q: Is it ADA compliant?
A: No, this model is listed as not ADA compliant.

---

Q: How is it keyed and how many keys are included?
A: It uses a 5-pin tumbler C keyway and includes two keys.

---

Q: Is it fire-rated?
A: Models for up to three-hour fire doors are available; check local code requirements and specific model markings.

---

Streamlined Security with Modern Simplicity

Elan’s crisp, linear lever brings a tailored note to contemporary doors, catching the light with a refined satin sheen. Its minimalist silhouette feels timeless yet fresh, elevating entryways with quiet confidence. Pair it with a clean-lined escutcheon and matte black hinges for a chic mixed-metal moment. A polished essential, it marries everyday luxury with steadfast security.

---

Upgrade your entry with the Schlage Elan lever today for effortless installation, modern style, and Grade 2 security.
