Siemens

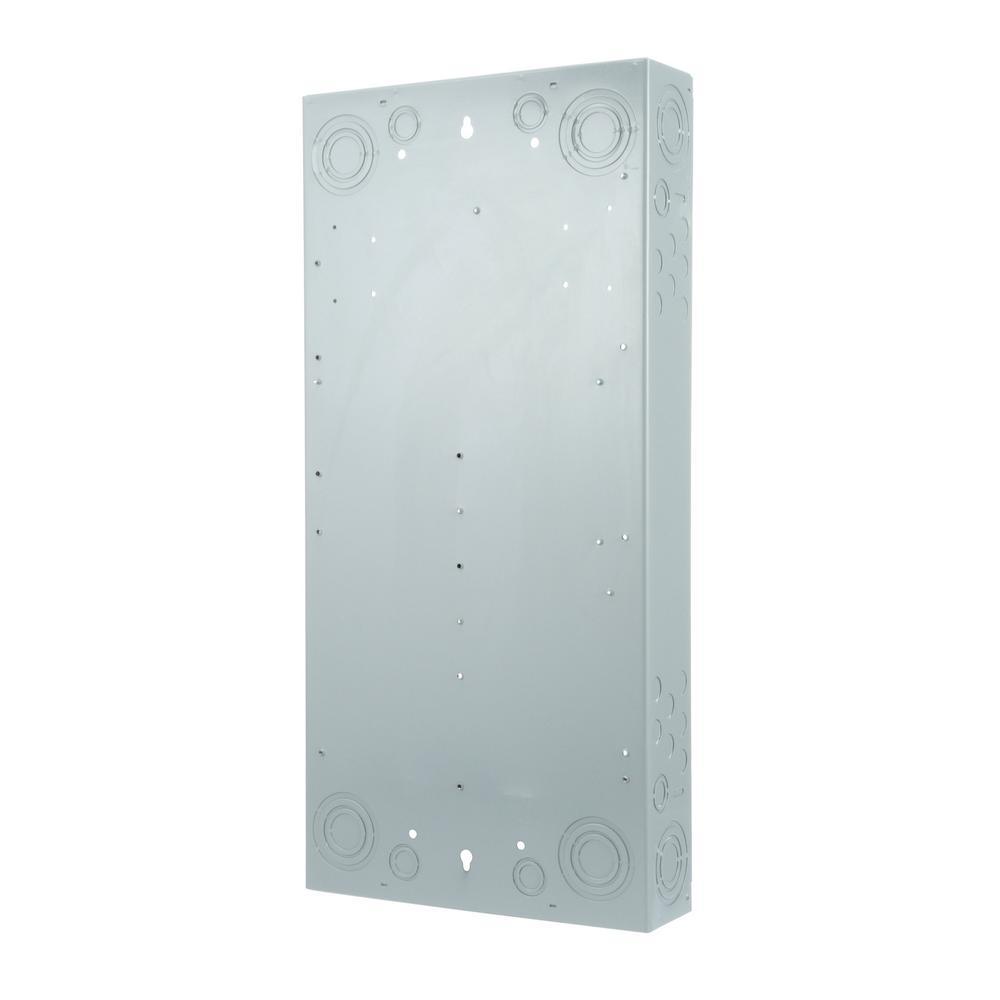

SN Series 200 Amp 20-Space 40-Circuit Main Breaker Plug-On Neutral Load Center
Not priced yet
Gone — not just here.
Substitutes below — from the same aisle.
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
The new Siemens SN Series Load Center is the smart choice when value and quick installation are of highest priority. The SN Series load centers include labor saving features such as the ability to accept Plug-on neutral breakers, patented Insta-wire and mounting trim tabs. These exclusive features make the SN Series load center the best load center for the value minded contractor.
Features
- Features Siemens plug-on neutral, for simple quick installation, that is spacious with over 4 in. of wire bending space and a secure reliable installation method
- SN series plug-on neutral load center includes 1 factory installed ground bars
- Single phase load center
- Aluminum bus
- NEMA type 1 enclosure
- Grey trim
- Interrupt rating: 22000 AIC
Features
| Item Weight | 21.421 |
| Number of Spaces | 20 |
| Load Center Mounting Type | Flush,Surface |
| Voltage (volts) | 120/240 |
| Load Center Type | Main Breaker |
| Mounting Type | Plug-On Neutral |
| Electrical Product Type | Load Center |
| Indoor/Outdoor | Indoor |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Maximum Amperage (amps) | 200 |
| Number of Circuits | 40 |
| Product Weight (lb.) | 21.421 |
| Load center width (in.) | 15.75 |
| Load center height (in.) | 4.69 |
| Load center depth (in.) | 20.06 |
| Manufacturer Warranty | 1 Year |
| Certifications and Listings | UL Listed |
