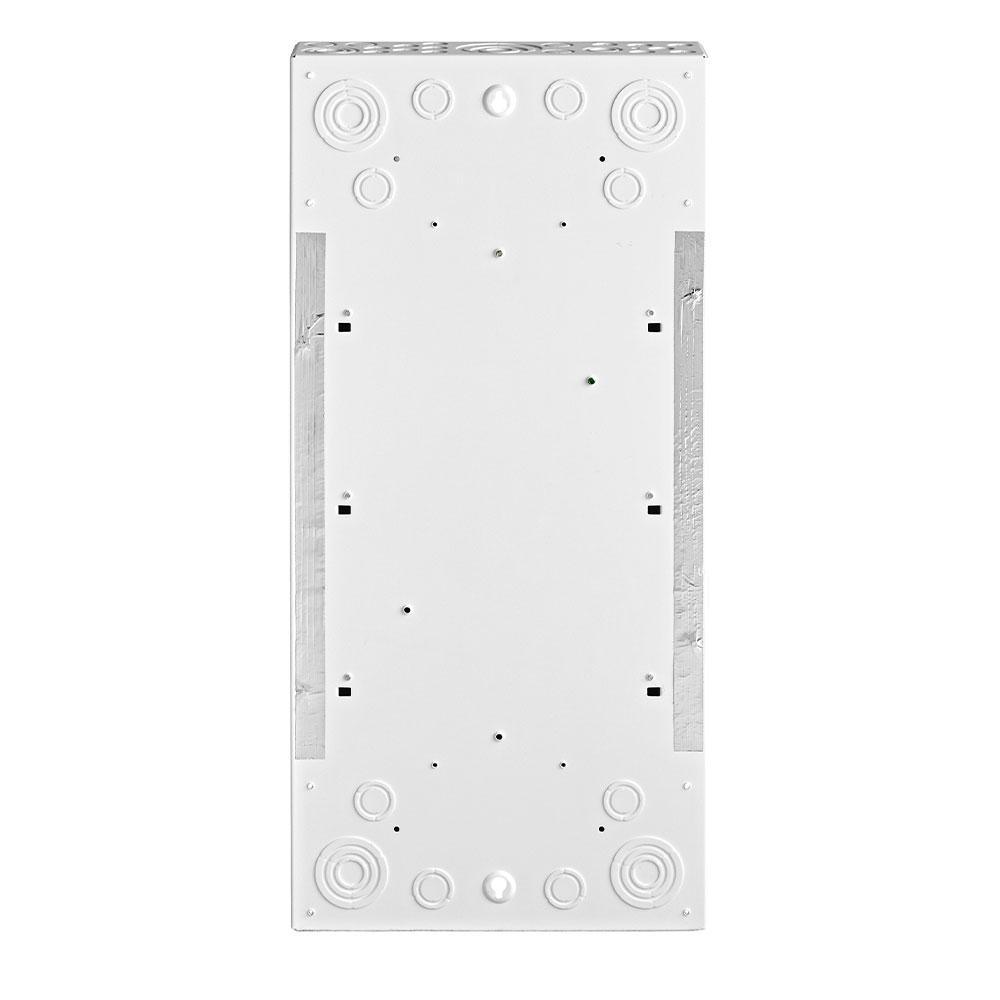

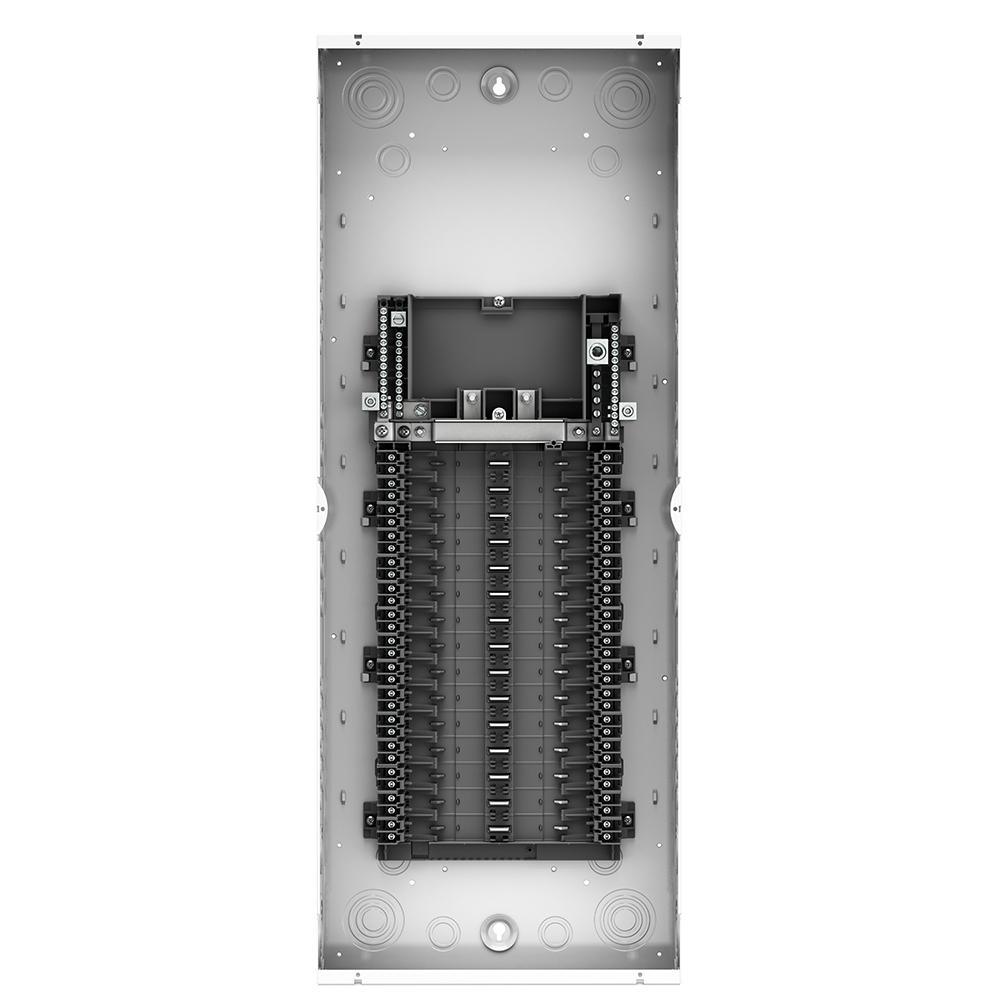

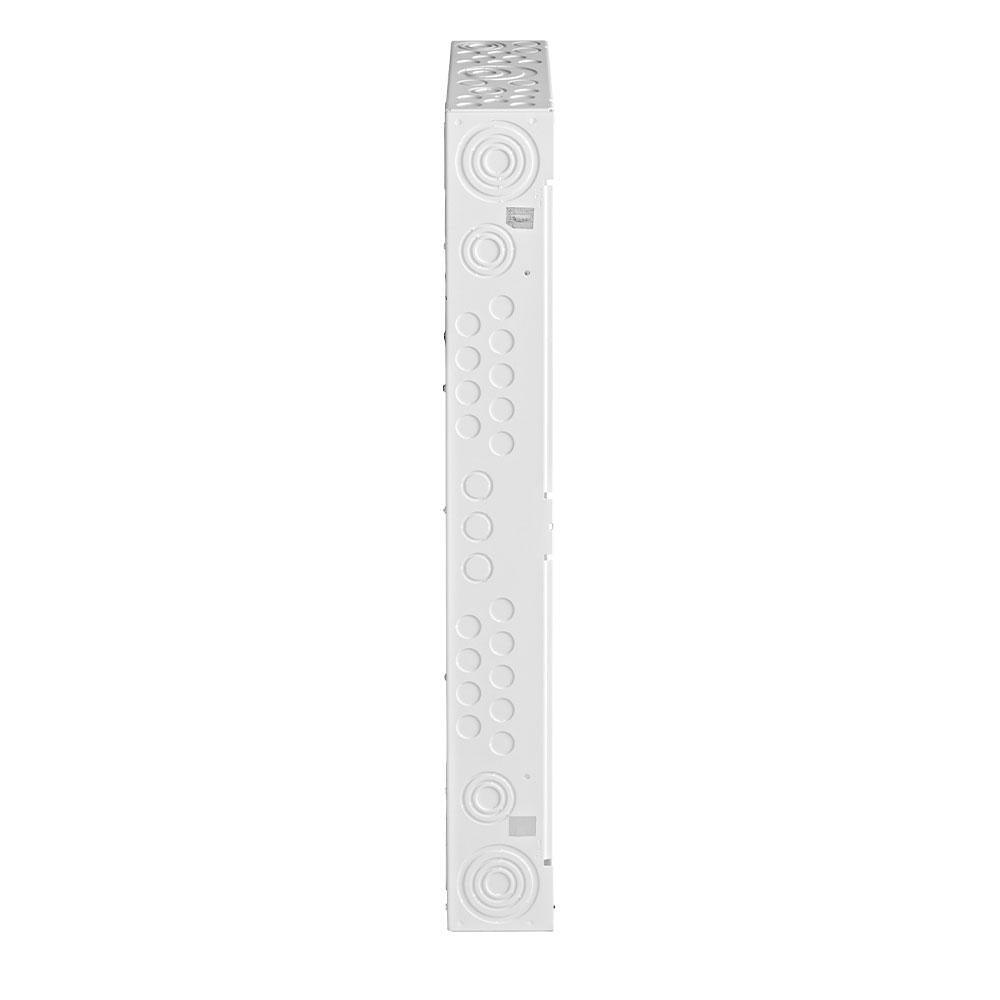

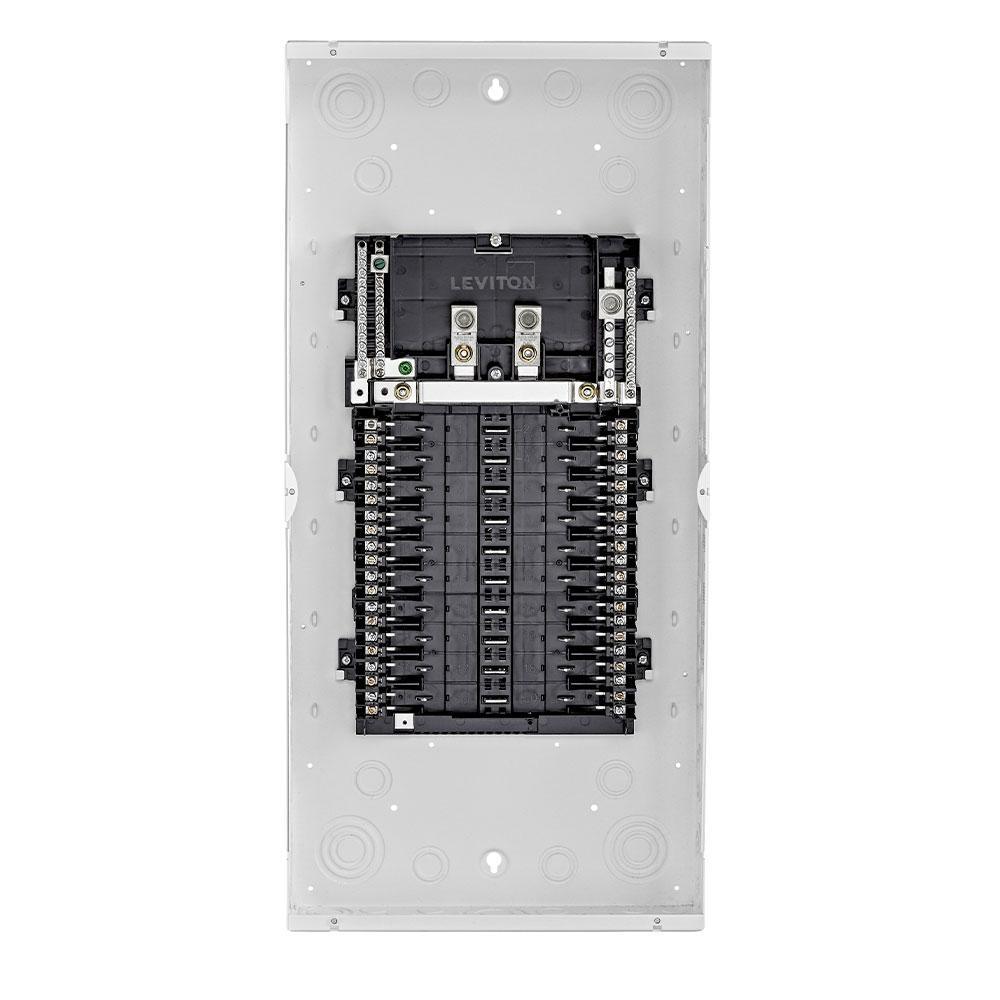

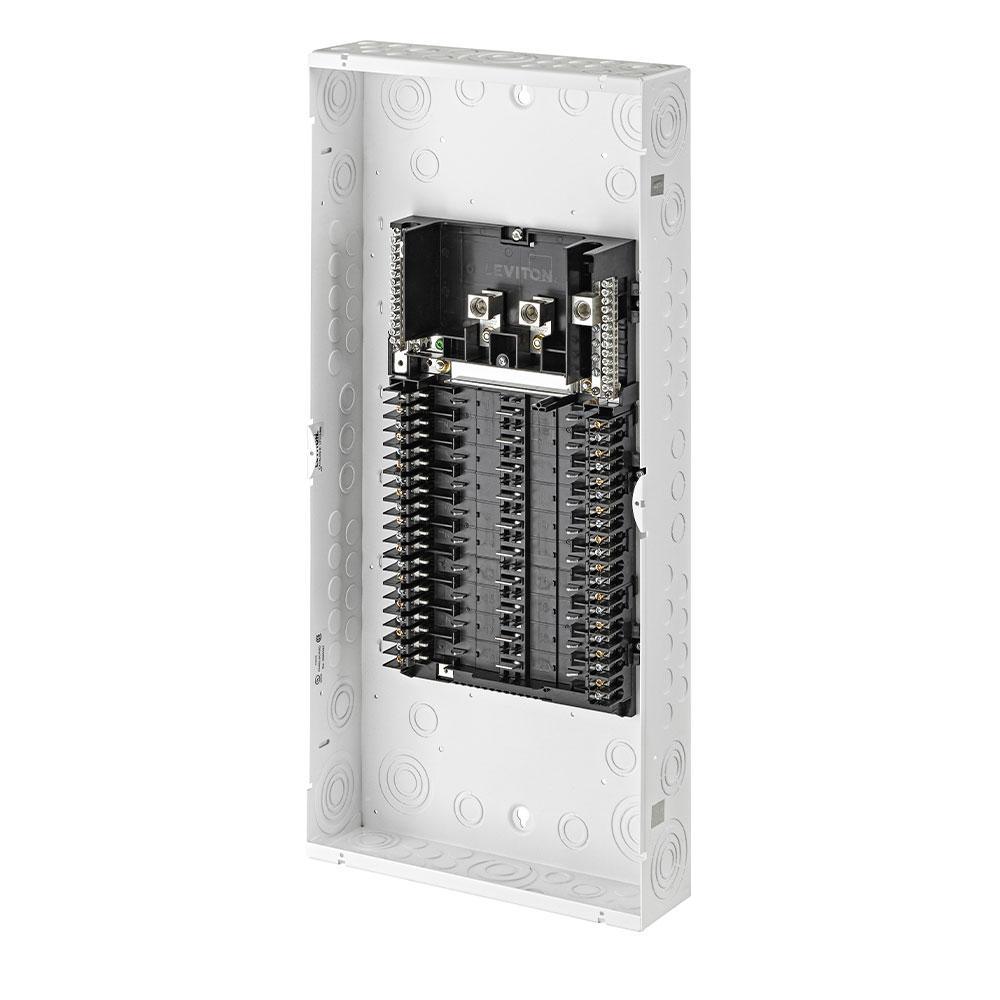

125 Amp 20-Space Indoor Load Center with Main Lugs
from $104.00
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU 312395750
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Leviton Indoor Load Centers are easy to install and feature a white enclosure for a modern, appealing unit. All hot and neutral wires terminate at custom lugs in the panel, not at the circuit breaker, so the entire panel can be wired at rough-in without circuit breakers installed. Leaving the option of having the circuit breakers easily plugged-on at final installation. An optional observation window in the cover allows at-a-glance operating status of all the circuit breakers (sold separately).
Features
- California residents
- All hot and neutral wires terminate at custom lugs in the panel, not at the circuit breaker, so the entire panel can be wired at rough-in without circuit breakers installed
- Galvanized steel, white powder coat enclosure housing for a clean, neat appearance, (cover and door sold separately)
- Easily invertible for bottom feed applications
- Copper bus is a standard feature on all Leviton load centers
- Notches stamped into the enclosure for cable ties promote secure and neat wiring, ample room for hands to move and work freely
- Single phase, 3-wire, 120/240 VAC, 22kA short-circuit rating
Features
| Item Weight | 20 |
| Number of Spaces | 20 |
| Maximum Amperage (amps) | 125 |
| Voltage (volts) | 120/240 |
| Load Center Type | Main Breaker |
| Electrical Product Type | Load Center |
| Indoor/Outdoor | Indoor |
| Product Weight (lb.) | 20 |
| Number of Circuits | 20 |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Mounting Type | Plug-On |
| Load Center Mounting Type | Flush |
| Load center width (in.) | 14.25 |
| Load center height (in.) | 4 |
| Load center depth (in.) | 30 |
| Manufacturer Warranty | 10-Year Limited |
| Certifications and Listings | UL Listed |
