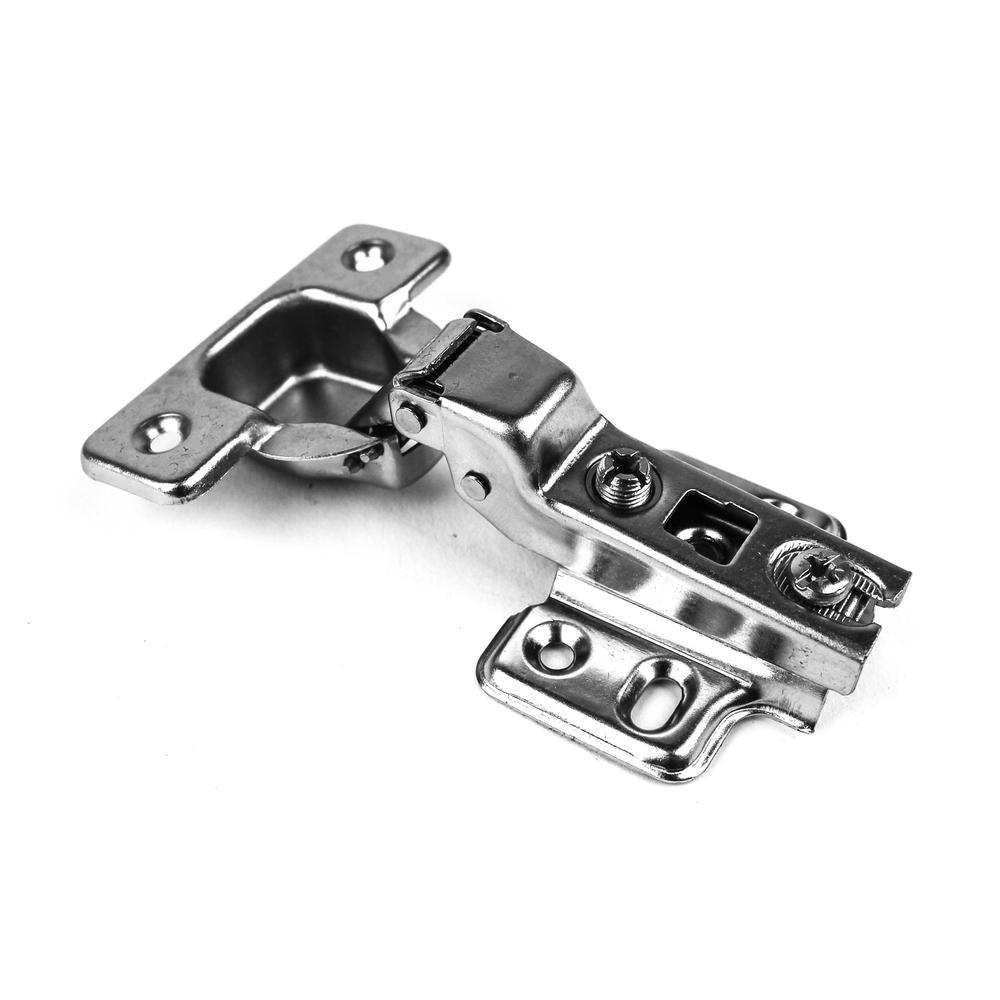

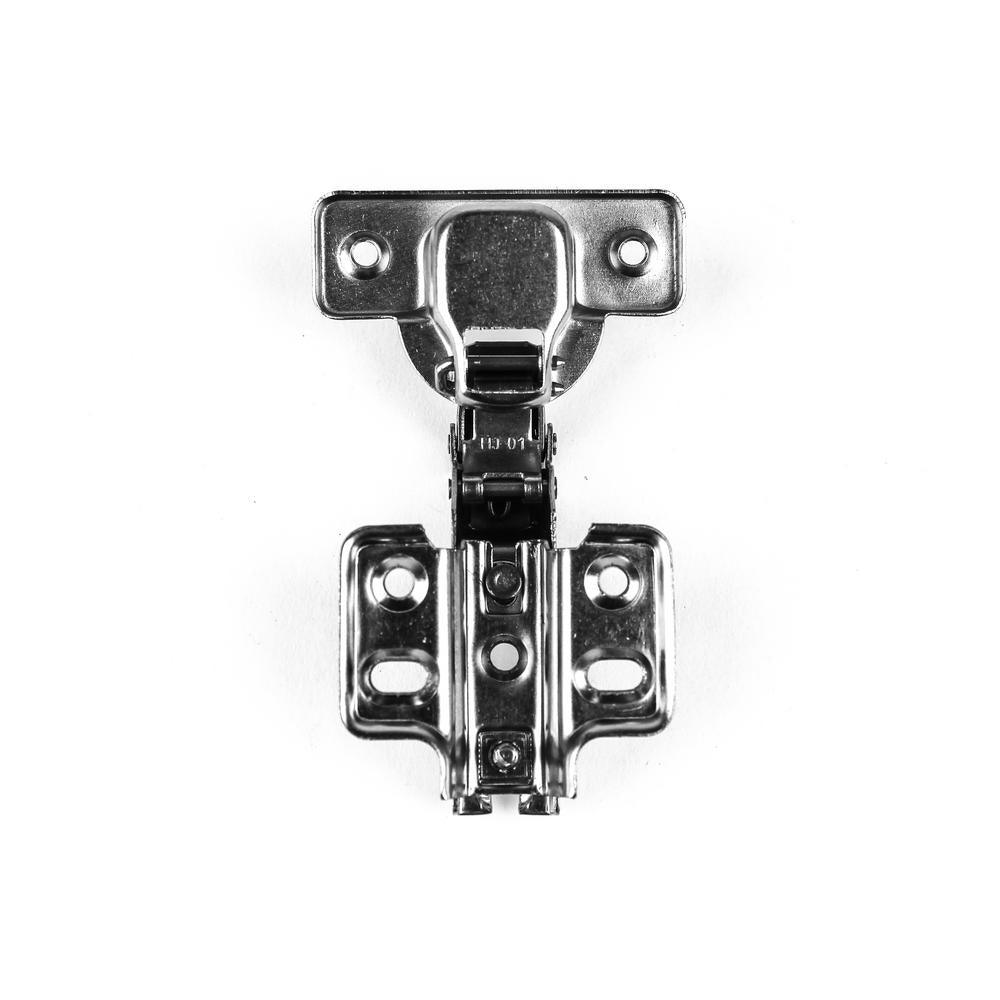

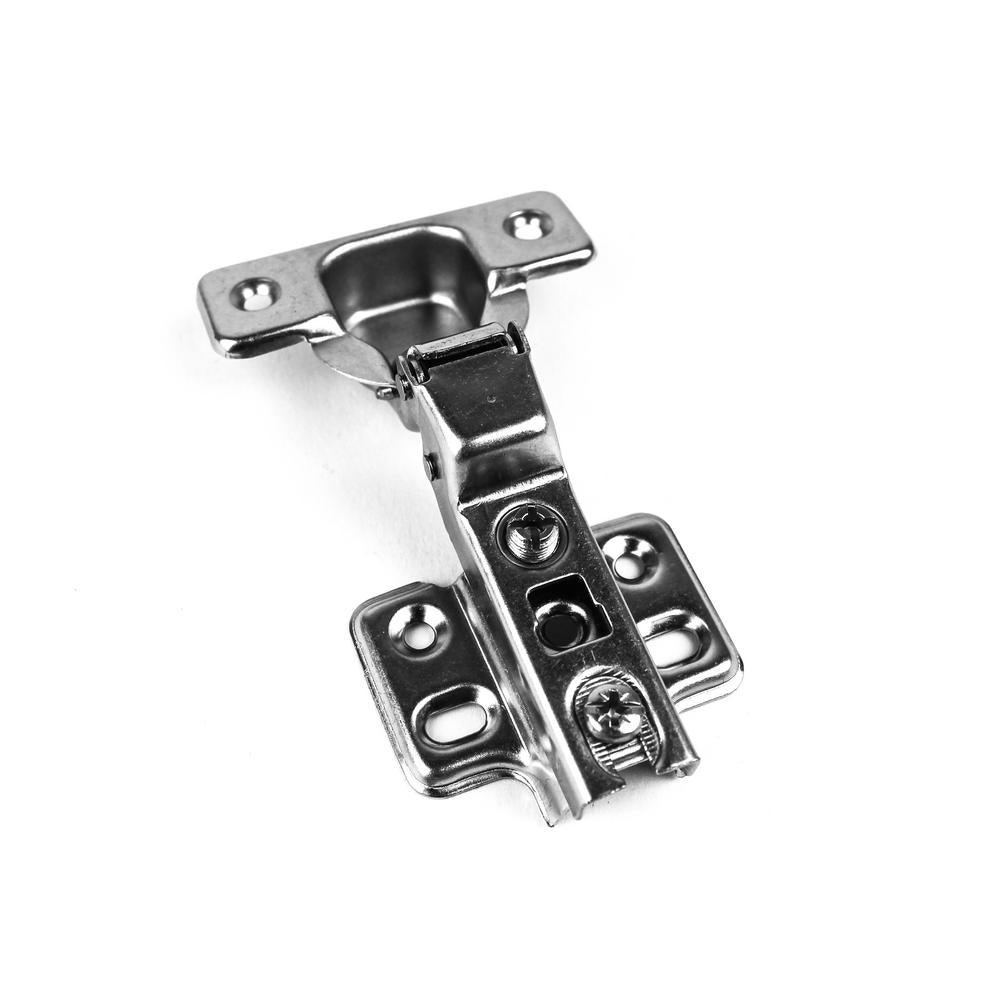

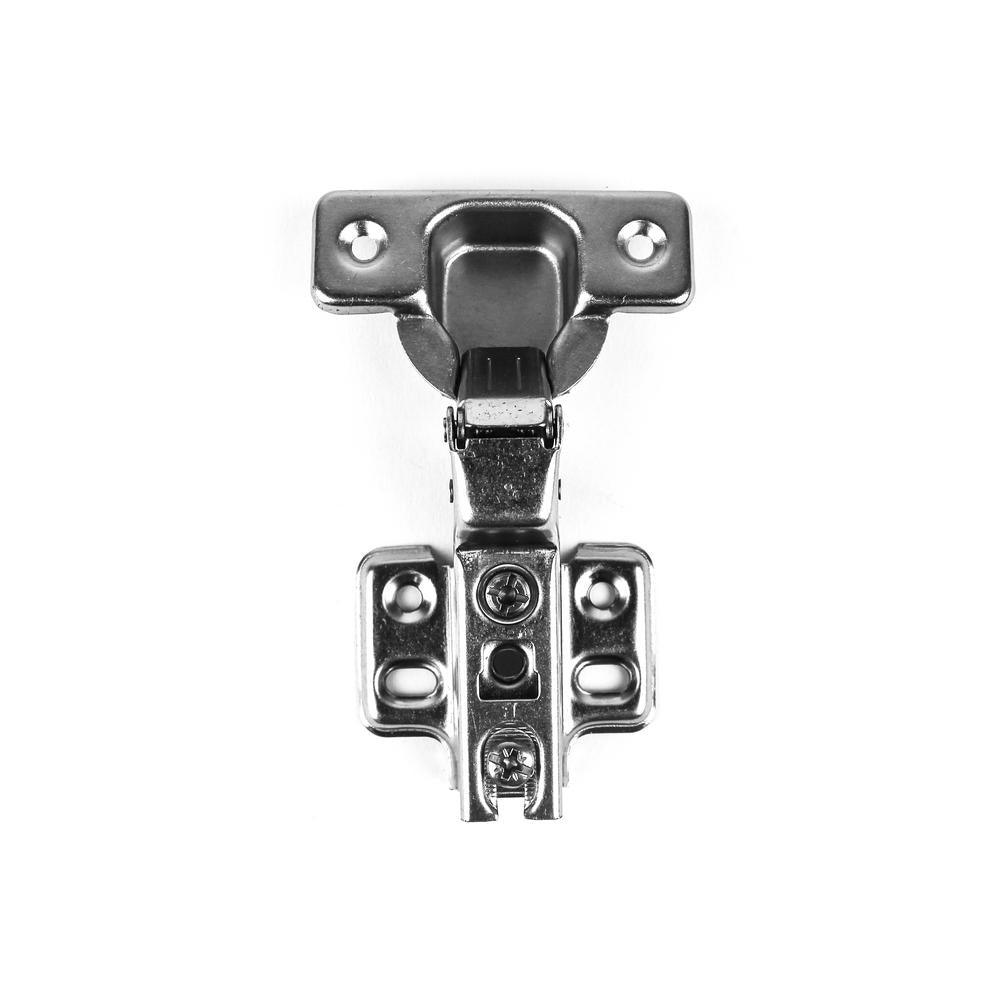

105-Degree 35 mm Half Overlay Frameless Cabinet Hinges with Installation Screws (5-Pairs)
$9.61
Published price — same for everyone
Gone — not just here.
Substitutes below — from the same aisle.
SKU '312301559
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
These hinges are a type of hinge that has a spring built into it so when you start to close a cabinet door, the spring, at some point, takes over and pulls the cabinet door closed with a tap. Half overlay hinges are useful for pairs of doors in the middle of a run of cabinets. Whether you're replacing entire cabinets in the kitchen or installing all-new cabinet doors, you need proper hinges to make sure they open smoothly and efficiently every time.
Features
- Designed for frameless cabinet doors, these small hinges help save space in otherwise tight cabinets to improve kitchen convenience
- Opening angle: 105°, overlay: half overlay, cup diameter: 1-2/5 in. (35 mm), cup depth: 1/2 in. (12.5 mm)
- Suitable door thickness: 3/5 in. to 1 in. (16 mm to 24 mm), screw hole center to center: 1-4/5 in. (45 mm), material: cold rolled-steel, finish: nickel plated
- Adjustment: 3-way adjustable: side (minus 3 mm to plus 1 mm), depth (plus 3 mm to minus 1 mm) and height (plus 2 mm to minus 2 mm), cabinet type: frameless, bore distance: 1/8 in. (3 mm)
Features
| Item Weight | 1.4 |
| Hardware Finish Family | Nickel |
| Hinge Opening (Degrees) | 105 |
| Cabinet Frame Type | Frameless |
| Finish | Nickel Plated |
| Package Quantity | 10 |
| Hinge Type | Half overlay |
| Number of Holes | 6 |
| Features | Self Closing |
| Returnable | 180-Day |
| Material | Stainless Steel |
| Builders Hardware Product Type | Cabinet hinge |
| Product Height (in.) | 3.2 in |
| Product Depth (in.) | 0.5 in |
| Product Width (in.) | 2.1 in |
| Manufacturer Warranty | Yes |
