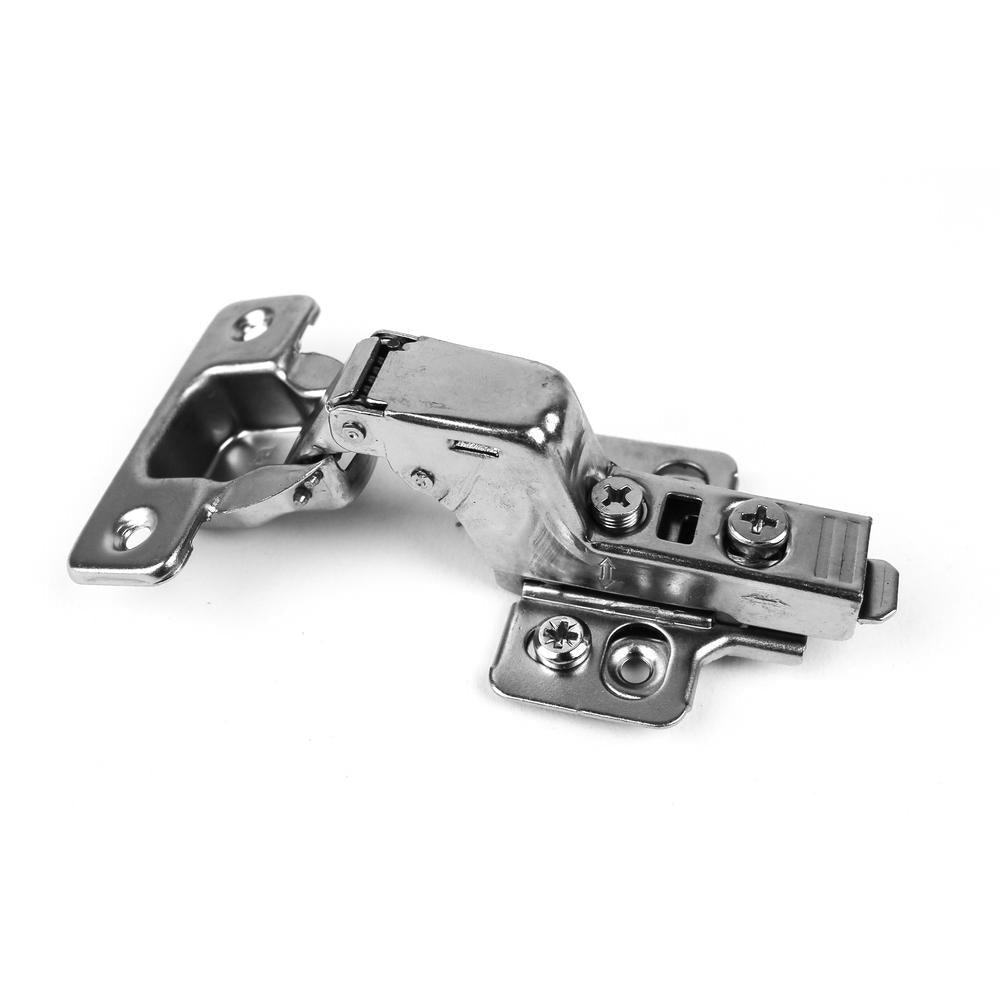

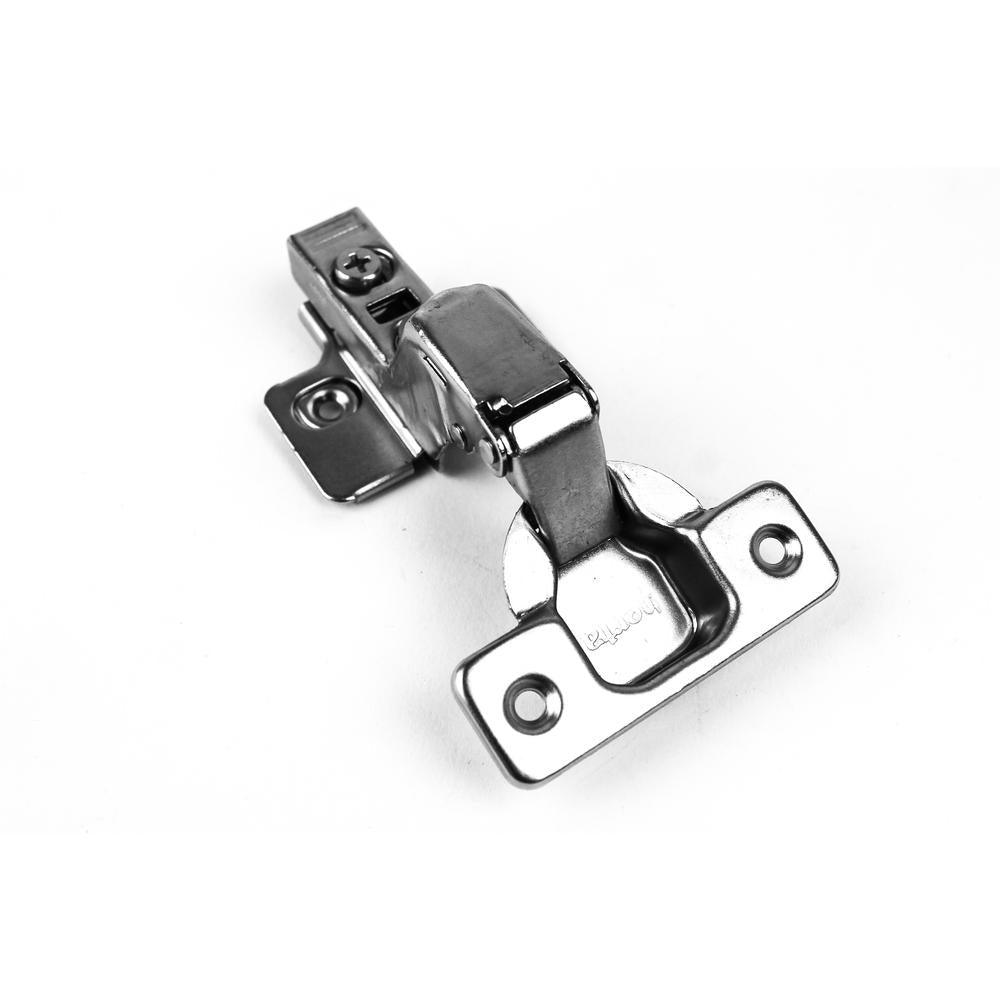

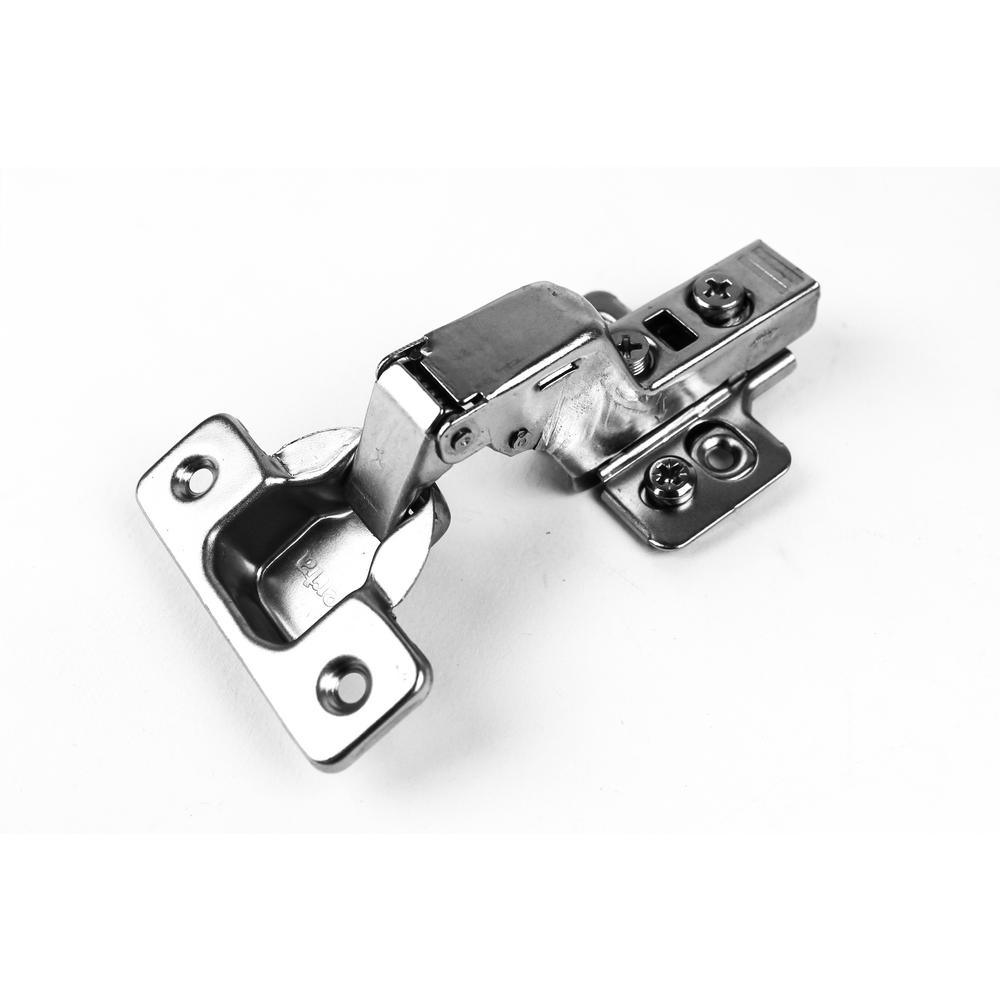

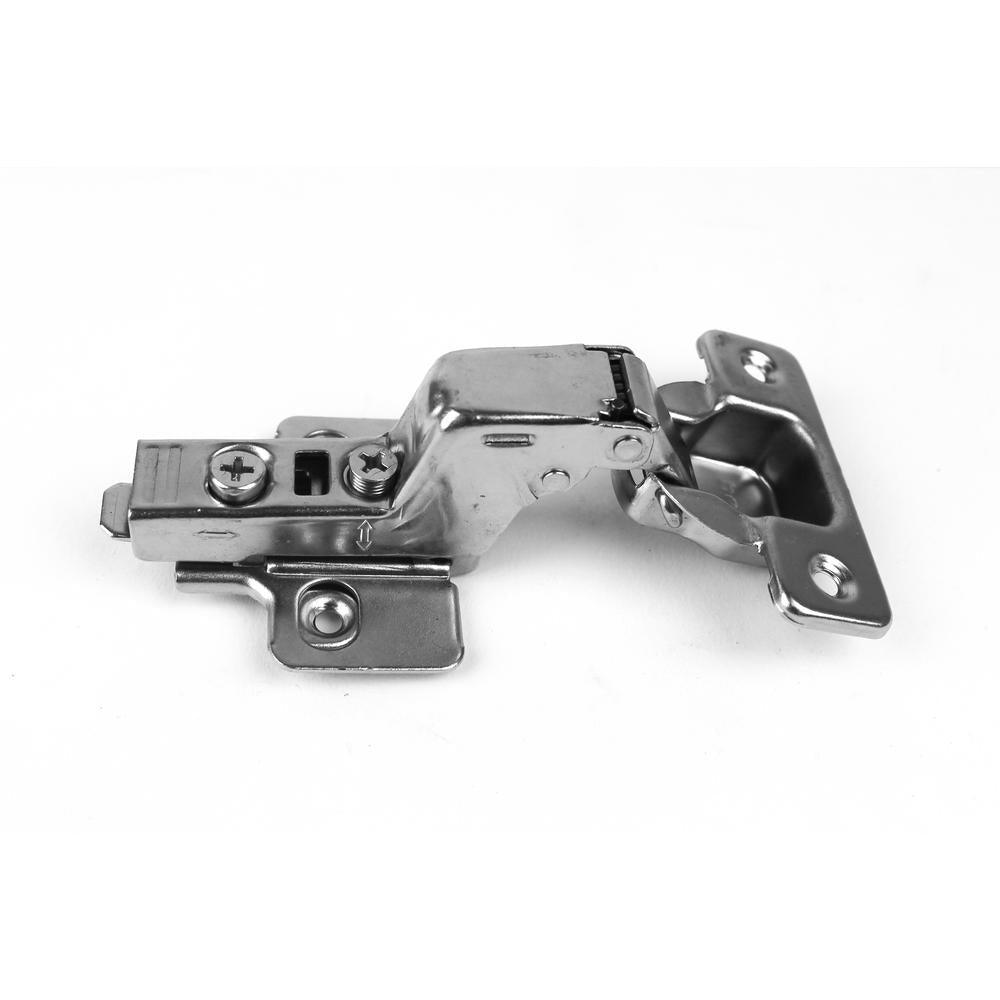

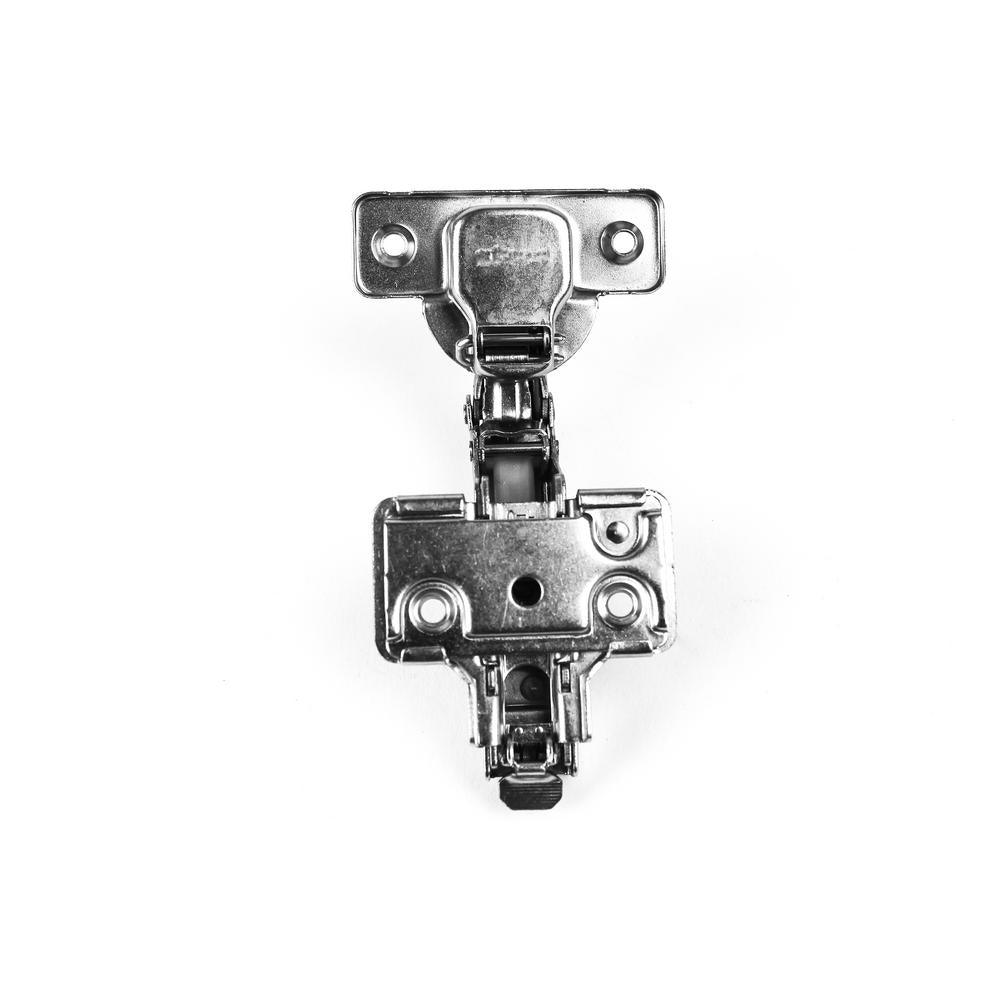

110-Degree 35 mm Inset Overlay Soft Close Frameless Cabinet Hinges with Installation Screws (1-Pair) - Super Arbor

In Stock Hardwarestore Delivery

110-Degree 35 mm Inset Overlay Soft Close Frameless Cabinet Hinges with Installation Screws (30-Pairs)

from $40.99

Published price — same for everyone

Out of stock — available on backorder

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

Inset Cabinet Doors are set into the cabinet frame and fit flush with the face of the cabinet when closed. With this type of door, the hinges can either be concealed or exposed. Inset cabinets are desired by many for their smooth, clean appearance. Each cabinet door hinge features a built-in damper that creates a self-closing (soft closing) movement. Hydraulic Soft Close Silent System is built into the hinge, cabinet door will close slowly even you slam the door. The clip-on plate, 3-way adjustments on the hinge and 2-way adjustment on the base allow faster and more efficient installation. The 2-way adjustment on the base allows you to adjust the door height after installation, great for DIY jobs or contractors.
  • Our high-quality hinges have built-in dampers that act as soft-close (slow-close) buffers to help reduce the noise of slamming doors, easy to install, and easy to adjust cabinet hinge for your kitchen, bathroom, or anywhere else your installing cabinet doors
  • Opening angle: 110°, overlay: Inset, cup diameter: 1-2/5 in. (35 mm), cup depth: 1/2 in. (12 mm), suitable door thickness: 11/20 in. to 22/25 in. (14 mm to 22 mm)
  • Screw hole center to center: 1-4/5 in. (45 mm), material: cold rolled-steel, finish: nickel plated, closing type: soft/self close
  • Adjustment: 3-way adjustable: side(minus 3 mm to plus 1 mm), depth (plus 3 mm to minus 1 mm) and height (plus 2 mm to minus 2 mm), cabinet type: frameless, bore distance: 1/8 in. (3 mm), note: our hinges are for frameless cabinets


Features
Item Weight 14.5
Number of Holes 4
Hardware Finish Family Nickel
Features Soft Close
Cabinet Frame Type Frameless
Hinge Type Inset
Package Quantity 60
Hinge Opening (Degrees) 110
Returnable 180-Day
Material Stainless Steel
Builders Hardware Product Type Cabinet hinge
Finish Nickel Plated
Product Depth (in.) 0.5
Product Width (in.) 2.2
Product Height (in.) 3.2
Manufacturer Warranty Yes
